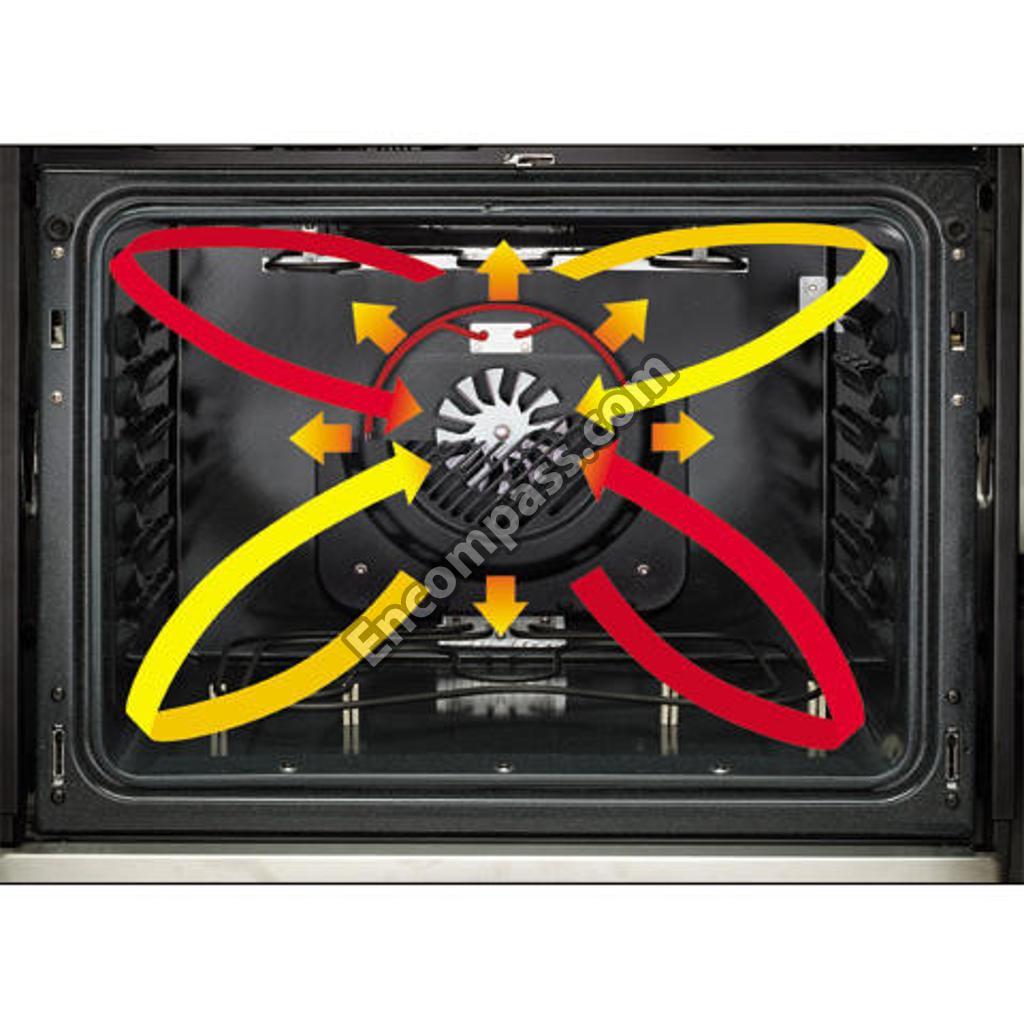

Model Image
Manufacturer

GE

Model Number

JK915CF2CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB08T10023 WB08T10023 35W RANGE HALOGEN BULB
WB02K10048 WB02K10048 BASE RAIL
WB63T10080 WB63T10080 BOTTOM FALSE ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB44T10051 WB44T10051 BROIL ELEMENT
WB27T10503 WB27T10503 CAPACITOR MOTOR
WB26T10016 WB26T10016 CAPACITOR MOTOR
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10221 WB18T10221 CONDUIT WIRE ASSEMBLY
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10061 WB34T10061 COVER WIRE SENSOR
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10062 WB34T10062 COVER WIRE UPR RR
WB35T10060 WB35T10060 COVER- ELECTRICAL TOP
WB57T10269 WB57T10269 DOOR ASM (OTR)
WB03T10156 WB03T10156 DOOR BUMPER
WB01T10022 WB01T10022 DOOR BUMPER
WB28T10080 WB28T10080 DUCT VENT INLET-UPPER
WB44T10052 WB44T10052 ELEMENT BAKE HIDDEN
WB44T10027 WB44T10027 ELEMENT CONVX
WB44T10054 WB44T10054 ELEMENT CONVX
WB26T10018 WB26T10018 FAN ASM - CONTROL
WB63T10072 WB63T10072 FRONT FRAME
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB25T10025 WB25T10025 HALOGEN LAMP ASSEMBLY LWR
WB15T10083 WB15T10083 HANDLE PROFILE 27 (BLK)
WB15T10084 WB15T10084 HANDLE PROFILE 27 (BQT)
WB15T10086 WB15T10086 HANDLE PROFILE 27 (WHT)
WB50T10075 WB50T10075 HINGE DOOR RT
WB02T10158 WB02T10158 HOUSING FAN
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
31-10551 31-10551 INSTRUCTION INSTALL
31-10523 31-10523 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
WB35T10076 WB35T10076 INSULATION BACK & BTM
WB10T10016 WB10T10016 INSULATION HINGE
WB35T10075 WB35T10075 INSULATION WRAPPER
WB50T10072 WB50T10072 KIT CONV MOTOR CAPACITOR
WB30T10082 WB30T10082 LATCH OVEN ASSEMBLY UPPER
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB01K5046 WB01K5046 LOCKWASHER
31-14020 31-14020 MANUAL MINI & WD ASM
49-80130 49-80130 MANUAL USE & CARE
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB32T10010 WB32T10010 OV DR GASKET-UPPER
WB57T10185 WB57T10185 OV DR GLASS INNER
WB55T10088 WB55T10088 OV DR LINER ASSEMBLY-UPPER
WB25T10013 WB25T10013 OV LAMP LENS
WB48K10006 WB48K10006 OV RACK (CONVEX OFFSET)
WB27T10400 WB27T10400 OVEN CONTROL (CLOCK)
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP
WB48T10026 WB48T10026 OVEN RACK
WB36T10602 WB36T10602 PANEL CNTL ASM
WB36T10603 WB36T10603 PANEL CNTL ASM
WB36T10605 WB36T10605 PANEL CNTL ASM
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB02T10168 WB02T10168 PLUG FOAM
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB26T10013 WB26T10013 PSC CONV MOTOR LOWER
WB10T10046 WB10T10046 RECEIVER HINGE
WB08T10018 WB08T10018 RECEPTACLE JACK
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB63T10087 WB63T10087 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB56T10133 WB56T10133 RETAINER INSLN OVN DR
WB63T10091 WB63T10091 RETAINER INSLN SDE
WB02T10159 WB02T10159 RETAINER INSLN TOP
WB18T10331 WB18T10331 RIBBON CONNECTOR GLS TCH
WB48X5108 WB48X5108 ROAST RACK
WB34T10091 WB34T10091 SCREEN FAN
WB01X1127 WB01X1127 SCREW
WB01K5029 WB01K5029 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10037 WB01T10037 SCREW 8-18 BA TW 7/16 S
WB01X1261 WB01X1261 SCREW GROUND
WB01T10033 WB01T10033 SCREW ST 8-18 (BISQUE)
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5157 WB1K5157 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB26T10017 WB26T10017 SUPPORT OVN
WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10076 WB24T10076 SWITCH LIMIT BIMETAL
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB07T10322 WB07T10322 TRIM BTM 27 (BLK)
WB07T10321 WB07T10321 TRIM BTM 27 (BQT)
WB07T10320 WB07T10320 TRIM BTM 27 (WHT)
WB07T10376 WB07T10376 TRIM BTM CAB 27 (BLK)
WB07T10544 WB07T10544 TRIM BTM CAB 27 (BQT)
WB07T10377 WB07T10377 TRIM BTM CAB 27 (WHT)
WB07T10385 WB07T10385 TRIM BTM CAB ASM (BLK)
WB07T10386 WB07T10386 TRIM BTM CAB ASSEMBLY (BQT)
WB1K5176 WB1K5176 TRIM SCREW 10-16 X 3/4 ALMOND
WB01K5176 WB01K5176 TRIM SCREW-ALMOND
WB07T10307 WB07T10307 TRIM VENT
WB07T10337 WB07T10337 TRIM VERT SDE ASM LT BLK
WB07T10341 WB07T10341 TRIM VERT SDE ASM LT WHT
WB07T10336 WB07T10336 TRIM VERT SDE ASM RT BLK
WB07T10338 WB07T10338 TRIM VERT SDE ASM RT BQT
WB07T10340 WB07T10340 TRIM VERT SDE ASM RT WHT
WB07T10339 WB07T10339 TRIM VERT SDE ASSEMBLY LEFT BQT
WB38X33650 WB38X33650 TUBE VENT
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5117 WB1K5117 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WB1X681 WB1X681 WB01X0681
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB63T10089 WB63T10089 WRAPPER OVN CAV ASM
WZ4X416 WZ4X416 WZ04X0408
