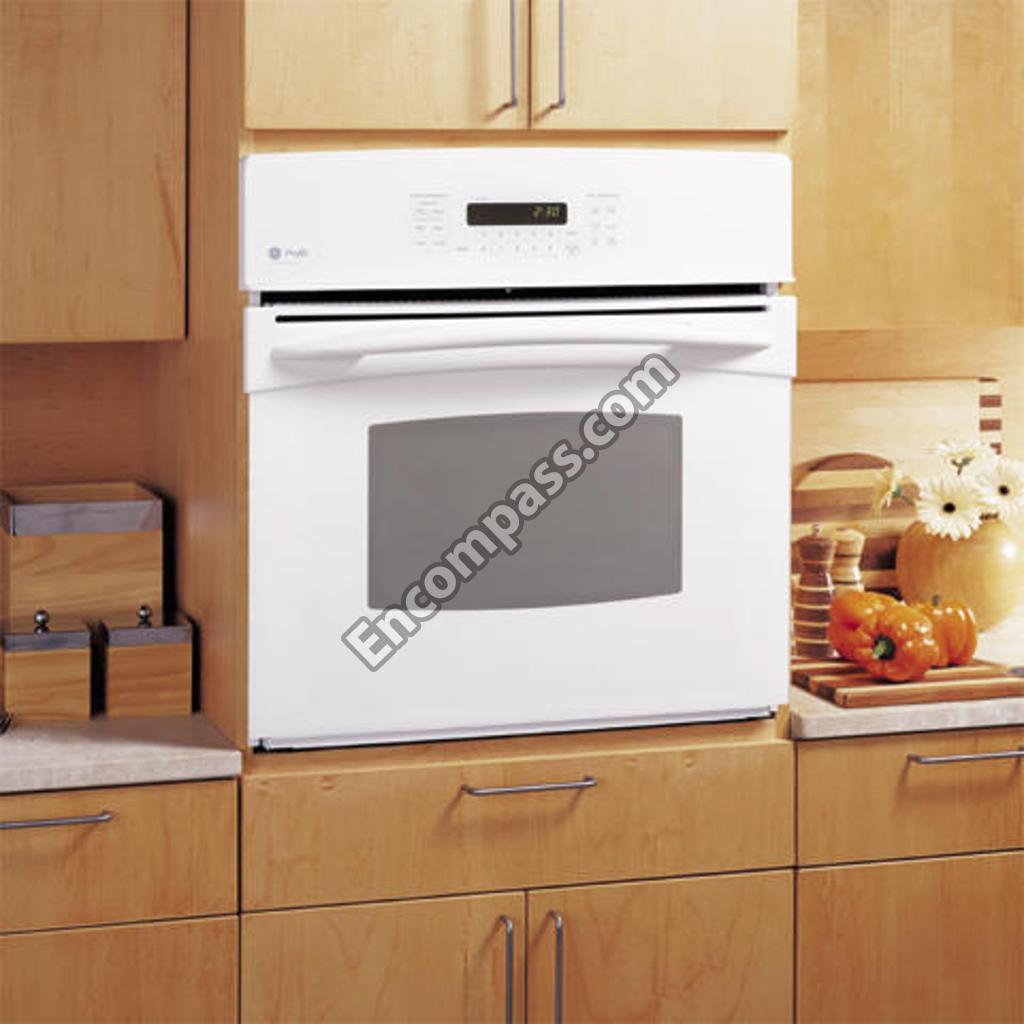

Model Image
Manufacturer

GE

Model Number

JK915WF2WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 GE 340531
WB08T10023 WB08T10023 GE 35W RANGE HALOGEN BULB
WB02K10048 WB02K10048 GE BASE RAIL
WB63T10080 WB63T10080 GE BOTTOM FALSE ASSEMBLY
WB38T10019 WB38T10019 GE BOX VENT ASSEMBLY
WB02T10152 WB02T10152 GE BRACKET CAPACITOR MTR
WB44T10051 WB44T10051 GE BROIL ELEMENT
WB26T10016 WB26T10016 GE CAPACITOR MOTOR
WB27T10503 WB27T10503 GE CAPACITOR MOTOR
WB2K5126 WB2K5126 GE COND CLAMP
WB02K5126 WB02K5126 GE CONDUIT CLAMP
WB18T10221 WB18T10221 GE CONDUIT WIRE ASSEMBLY
WB02X9152 WB02X9152 GE COVER
WB02K5365 WB02K5365 GE COVER
WB2X9152 WB2X9152 GE COVER
WB2K5365 WB2K5365 GE COVER
WB26T10053 WB26T10053 GE COVER FAN (CONVX)
WB34T10056 WB34T10056 GE COVER WIRE LWR
WB34T10061 WB34T10061 GE COVER WIRE SENSOR
WB34T10057 WB34T10057 GE COVER WIRE TOP
WB34T10062 WB34T10062 GE COVER WIRE UPR RR
WB35T10060 WB35T10060 GE COVER- ELECTRICAL TOP
WB57T10269 WB57T10269 GE DOOR ASM (OTR)
WB01T10022 WB01T10022 GE DOOR BUMPER
WB03T10156 WB03T10156 GE DOOR BUMPER
WB57T10270 WB57T10270 GE DOOR OTR ASSEMBLY 27 (WHITE)
WB28T10080 WB28T10080 GE DUCT VENT INLET-UPPER
WB44T10052 WB44T10052 GE ELEMENT BAKE HIDDEN
WB44T10027 WB44T10027 GE ELEMENT CONVX
WB44T10054 WB44T10054 GE ELEMENT CONVX
WB26T10018 WB26T10018 GE FAN ASM - CONTROL
WB63T10072 WB63T10072 GE FRONT FRAME
WB01X1260 WB01X1260 GE GROUND WASHER
WB1X1260 WB1X1260 GE GRUND WASHER
WB25T10025 WB25T10025 GE HALOGEN LAMP ASSEMBLY LWR
WB15T10083 WB15T10083 GE HANDLE PROFILE 27 (BLK)
WB15T10084 WB15T10084 GE HANDLE PROFILE 27 (BQT)
WB15T10086 WB15T10086 GE HANDLE PROFILE 27 (WHT)
WB50T10075 WB50T10075 GE HINGE DOOR RT
WB02T10158 WB02T10158 GE HOUSING FAN
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
31-10551 31-10551 GE INSTRUCTION INSTALL
31-10523 31-10523 GE INSTRUCTION INSTALL
31-10514 31-10514 GE INSTRUCTION SHEET
WB35T10076 WB35T10076 GE INSULATION BACK & BTM
WB10T10016 WB10T10016 GE INSULATION HINGE
WB35T10075 WB35T10075 GE INSULATION WRAPPER
WB50T10072 WB50T10072 GE KIT CONV MOTOR CAPACITOR
WB30T10082 WB30T10082 GE LATCH OVEN ASSEMBLY UPPER
WB24T10060 WB24T10060 GE LIMIT SWITCH-UPPER(LOCK)
WB01K5046 WB01K5046 GE LOCKWASHER
31-14020 31-14020 GE MANUAL MINI & WD ASM
49-80130 49-80130 GE MANUAL USE & CARE
WB1X5572 WB1X5572 GE NUT
WB02T10017 WB02T10017 GE NUT
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB32T10010 WB32T10010 GE OV DR GASKET-UPPER
WB57T10185 WB57T10185 GE OV DR GLASS INNER
WB55T10088 WB55T10088 GE OV DR LINER ASSEMBLY-UPPER
WB25T10013 WB25T10013 GE OV LAMP LENS
WB48K10006 WB48K10006 GE OV RACK (CONVEX OFFSET)
WB27T10400 WB27T10400 GE OVEN CONTROL (CLOCK)
WB02K5310 WB02K5310 GE OVEN DOOR GLASS RETAINER
WB35T10061 WB35T10061 GE OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 GE OVEN DOOR INSULATION TOP
WB48T10026 WB48T10026 GE OVEN RACK
WB36T10602 WB36T10602 GE PANEL CNTL ASM
WB36T10603 WB36T10603 GE PANEL CNTL ASM
WB36T10605 WB36T10605 GE PANEL CNTL ASM
WB02T10147 WB02T10147 GE PLATE REINFORCEMEMT
WB02T10168 WB02T10168 GE PLUG FOAM
WB2X8309 WB2X8309 GE PR0BE COVER
WB20T10024 WB20T10024 GE PROBE
WB02X8309 WB02X8309 GE PROBE COVER
WB26T10013 WB26T10013 GE PSC CONV MOTOR LOWER
WB10T10046 WB10T10046 GE RECEIVER HINGE
WB08T10018 WB08T10018 GE RECEPTACLE JACK
WB56T10373 WB56T10373 GE RETAINER GLASS OVEN DR
WB63T10087 WB63T10087 GE RETAINER INSLN BACK
WB63T10082 WB63T10082 GE RETAINER INSLN BTM
WB56T10133 WB56T10133 GE RETAINER INSLN OVN DR
WB63T10091 WB63T10091 GE RETAINER INSLN SDE
WB02T10159 WB02T10159 GE RETAINER INSLN TOP
WB18T10331 WB18T10331 GE RIBBON CONNECTOR GLS TCH
WB48X5108 WB48X5108 GE ROAST RACK
WB34T10091 WB34T10091 GE SCREEN FAN
WB01X1127 WB01X1127 GE SCREW
WB01K5029 WB01K5029 GE SCREW
WB01X1253 WB01X1253 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB1K5029 WB1K5029 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X536 WB1X536 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01T10058 WB01T10058 GE SCREW 10-16 AB HXW 750 S N
WB01T10066 WB01T10066 GE SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10037 WB01T10037 GE SCREW 8-18 BA TW 7/16 S
WB1K5172 WB1K5172 GE SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 GE SCREW GROUND
WB01T10033 WB01T10033 GE SCREW ST 8-18 (BISQUE)
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 GE SCREW-BLACK
WB1K5157 WB1K5157 GE SCREW-BLK
WZ4X245D WZ4X245D GE SCREW-PKG 12
WB01K5163 WB01K5163 GE SCREW-WHT
WB1K5163 WB1K5163 GE SCREW-WHT
WB21X22134 WB21X22134 GE SENSOR ASSEMBLY
WB26T10017 WB26T10017 GE SUPPORT OVN
WB24T10081 WB24T10081 GE SWITCH HIGH LMT OV BACK
WB24T10065 WB24T10065 GE SWITCH LIGHT SPOT
WB24T10076 WB24T10076 GE SWITCH LIMIT BIMETAL
WB24T10111 WB24T10111 GE SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 GE TAPE FOAM
WB07T10322 WB07T10322 GE TRIM BTM 27 (BLK)
WB07T10320 WB07T10320 GE TRIM BTM 27 (WHT)
WB07T10376 WB07T10376 GE TRIM BTM CAB 27 (BLK)
WB07T10377 WB07T10377 GE TRIM BTM CAB 27 (WHT)
WB07T10385 WB07T10385 GE TRIM BTM CAB ASM (BLK)
WB07T10384 WB07T10384 GE TRIM BTM CAB ASSEMBLY (WHT)
WB01K5172 WB01K5172 GE TRIM SCREW-WHITE
WB07T10307 WB07T10307 GE TRIM VENT
WB07T10337 WB07T10337 GE TRIM VERT SDE ASM LT BLK
WB07T10341 WB07T10341 GE TRIM VERT SDE ASM LT WHT
WB07T10336 WB07T10336 GE TRIM VERT SDE ASM RT BLK
WB07T10338 WB07T10338 GE TRIM VERT SDE ASM RT BQT
WB07T10340 WB07T10340 GE TRIM VERT SDE ASM RT WHT
WB38X33650 WB38X33650 GE TUBE VENT
WB48X10056 WB48X10056 GE UNIVERSAL RANGE BROILER PAN
WB01X5573 WB01X5573 GE WASHER
WB01K5174 WB01K5174 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1K5117 WB1K5117 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1X5573 WB1X5573 GE WASHER
WB01K5117 WB01K5117 GE WASHER .250 ID X .812 OD
WB1X681 WB1X681 GE WB01X0681
WB55T10086 WB55T10086 GE WINDOW PACK ASSEMBLY
WB63T10089 WB63T10089 GE WRAPPER OVN CAV ASM
WZ4X416 WZ4X416 GE WZ04X0408
