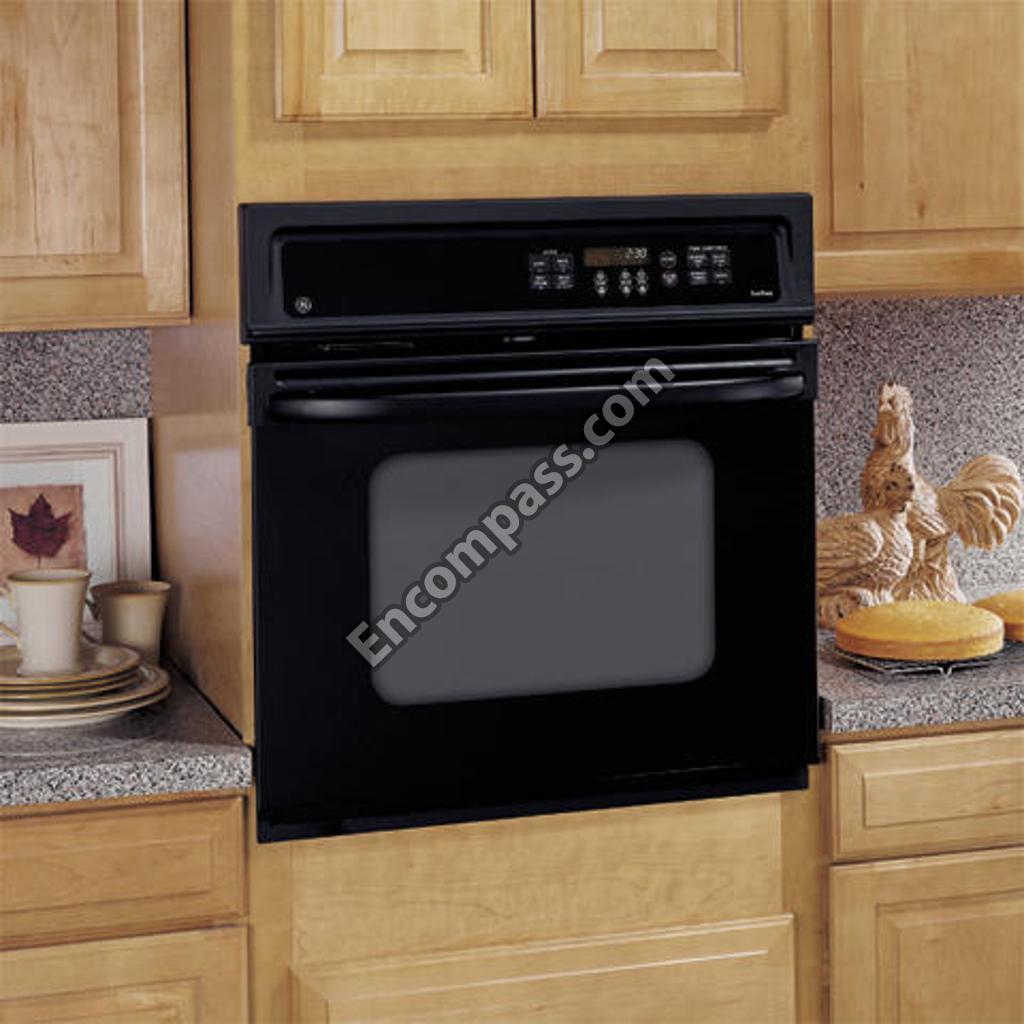

Model Image
Manufacturer

GE

Model Number

JKP15BD1BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB44T10031 WB44T10031 BAKE ELEMENT UPR
WB02K10048 WB02K10048 BASE RAIL
WB07T10188 WB07T10188 BOTTOM TRIM-BLACK
WB44T10051 WB44T10051 BROIL ELEMENT
WB02T10117 WB02T10117 BTM TRIM CLIP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB38T10017 WB38T10017 COLLAR VENT ASSEMBLY
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10221 WB18T10221 CONDUIT WIRE ASSEMBLY
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB35T10060 WB35T10060 COVER- ELECTRICAL TOP
WB03T10156 WB03T10156 DOOR BUMPER
WB10T10018 WB10T10018 DOOR HINGE-LT- UPPER
WB18T10223 WB18T10223 DR SW WIRE HARNESS
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB02T10112 WB02T10112 FAN HOUSING
WB34T10043 WB34T10043 FAN SCREEN
WB55T10089 WB55T10089 FRAME OVEN DR ASSEMBLY (BISQUE
WB63T10072 WB63T10072 FRONT FRAME
WB55T10091 WB55T10091 GLASS OVEN DR OTR
WB57T10193 WB57T10193 GLASS OVEN DR OTR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10045 WB15T10045 HANDLE OVEN DR
WB15T10047 WB15T10047 HANDLE OVEN DR
WB10T10023 WB10T10023 HINGE DOOR RT
WB10T10015 WB10T10015 HINGE RECEIVER
WB02T10114 WB02T10114 INS RETAINER TOP-UPPER
31-10473 31-10473 INSTALLATION INSTRUCTION
31-10514 31-10514 INSTRUCTION SHEET
WB35T10063 WB35T10063 INSULATION BACK & BTT
WB10T10016 WB10T10016 INSULATION HINGE
WB63T10074 WB63T10074 INSULATION RETAINER SIDE
WB30T10082 WB30T10082 LATCH OVEN ASSEMBLY UPPER
WB24T10059 WB24T10059 LIMIT SWITCH
WB24K5098 WB24K5098 LIMIT SWITCH-BODY
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB01K5046 WB01K5046 LOCKWASHER
49-80081 49-80081 MANUAL USE & CARE
31-13884 31-13884 MINI MANUAL & W/D
WB55T10084 WB55T10084 OV DR FRAME ASSEMBLY BLACK
WB55T10087 WB55T10087 OV DR FRAME ASSEMBLY-WHITE
WB55T10093 WB55T10093 OV DR FRAME-AD
WB32T10010 WB32T10010 OV DR GASKET-UPPER
WB55T10092 WB55T10092 OV DR GLASS ASSEMBLY
WB57T10185 WB57T10185 OV DR GLASS INNER
WB15T10050 WB15T10050 OV DR HANDLE
WB56T10133 WB56T10133 OV DR INS RETAINER
WB55T10088 WB55T10088 OV DR LINER ASSEMBLY-UPPER
WB57T10192 WB57T10192 OV DR OUTER GLASS
WB63T10075 WB63T10075 OVEN BODY
WB25T10002 WB25T10002 OVEN BULB LENS
WB26K5050 WB26K5050 OVEN CAVITY SUPPORT
WB27T10348 WB27T10348 OVEN CONTROL ERC3B
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP
WB35T10064 WB35T10064 OVEN INSULATION
WB48T10027 WB48T10027 OVEN RACK
WB36T10515 WB36T10515 PANEL CNTL ASM (AD)
WB36T10514 WB36T10514 PANEL CNTL ASM (BLK)
WB36T10516 WB36T10516 PANEL CNTL ASM (GE-BQT)
WB36T10513 WB36T10513 PANEL CNTL ASM (WHT)
WB2K5395 WB2K5395 PLATE REINFO
WB08T10002 WB08T10002 RANGE OVEN LAMP ASSEMBLY
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB63T10081 WB63T10081 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB01X1127 WB01X1127 SCREW
WB01K5029 WB01K5029 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5162 WB01K5162 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB01X1261 WB01X1261 SCREW GROUND
WB01T10038 WB01T10038 SCREW ST 10-16X 500(BISQUE)
WB01T10033 WB01T10033 SCREW ST 8-18 (BISQUE)
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5162 WB1K5162 SCREW-BLACK
WB21X22134 WB21X22134 SENSOR ASM
WB34T10038 WB34T10038 SENSOR WIRE COVER
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB34K5216 WB34K5216 TOP WIRE COVER
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10187 WB07T10187 TRIM VERT SDE ASSEMBLY LEFT BLACK
WB07T10189 WB07T10189 TRIM VERT SDE ASSEMBLY RT BLACK
WB07T10247 WB07T10247 TRIM VNT DR
WB07T10245 WB07T10245 TRIM VNT DR
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB28T10055 WB28T10055 VENT BOX ASM
WB34T10041 WB34T10041 VENT COVER
WB35T10066 WB35T10066 VENT INSULATION
WB07T10186 WB07T10186 VENT TRIM
WB28T10056 WB28T10056 VENT TUBE
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB34T10044 WB34T10044 WIRE COVER
WB34T10042 WB34T10042 WIRE COVER BOTTOM
WB34T10040 WB34T10040 WIRE COVER LOWER RR
WB34T10039 WB34T10039 WIRE COVER UPPER-RR
WZ4X416 WZ4X416 WZ04X0408
