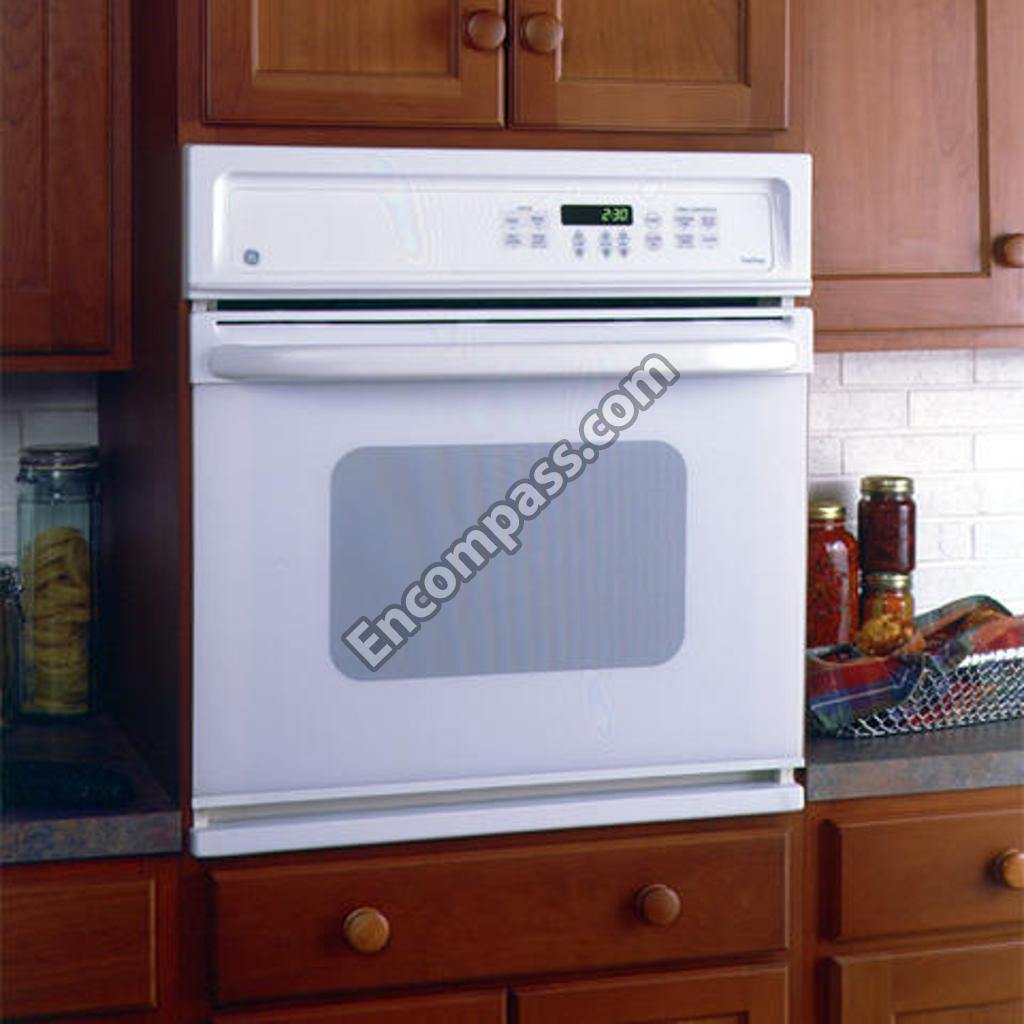

Model Image
Manufacturer

GE

Model Number

JKP15WA3WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB34K5080 WB34K5080 345080
WB63K5167 WB63K5167 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB63K5210 WB63K5210 BODY SIDE EXTENSION-R
WB07T10068 WB07T10068 BOTTOM TRIM (AD)
WB07T10065 WB07T10065 BOTTOM TRIM (WHITE)
WB44K5009 WB44K5009 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB63K5080 WB63K5080 CABINET BOTTOM
WB63T10043 WB63T10043 CABINET SIDE
WB02X9573 WB02X9573 CLIP
WB01K5209 WB01K5209 CLIP
WB2X9573 WB2X9573 CLIP
WB1K5209 WB1K5209 CLIP
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5364 WB18K5364 CONDUIT WIRE ASSEMBLY
WB34K5082 WB34K5082 CONDUIT WIRE COVER
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB63T10037 WB63T10037 COVER TOP
WB34K5069 WB34K5069 COVER WIRE ELEMENT
WB01T10022 WB01T10022 DOOR BUMPER
WB15X5226 WB15X5226 DOOR HANDLE WHITE
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB07T10084 WB07T10084 DR VENT TRIM-AD
WB44T10016 WB44T10016 ELEMENT BAKE
WB26K5045 WB26K5045 FAN ASSEMBLY-UPPER
WB2K5257 WB2K5257 FAN SUPPORT
WB02K5257 WB02K5257 FAN SUPPORT-UPPER
WB55T10028 WB55T10028 FRAME OVEN DR ASSEMBLY
WB55T10027 WB55T10027 FRAME OVEN DR ASSEMBLY (WHITE)
WB63T10036 WB63T10036 FRONT FRAME
WB07T10059 WB07T10059 FT FRAME TRIM LWR (BLACK)
WB07T10064 WB07T10064 FT FRAME TRIM LWR (WHITE)
WB57T10079 WB57T10079 GLASS OVEN DR INNER
WB57T10088 WB57T10088 GLASS OVEN DR OTR (AD
WB57T10089 WB57T10089 GLASS OVEN DR OUT (WHITE)
WB02K5225 WB02K5225 GROMMET STRIP (.020)
WB2K5225 WB2K5225 GROMMET STRP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10045 WB15T10045 HANDLE OVEN DR
WB15T10047 WB15T10047 HANDLE OVEN DR
WB18T10038 WB18T10038 HARNESS WIRE MAIN
345080 345080 HEAT REFLECT
WB10T10011 WB10T10011 HINGE OVEN DR ASSEMBLY
WB07T10057 WB07T10057 INR VENT TRIM (BLACK)
31-10461 31-10461 INSTRUCTIONS INSTALL
WB35K5089 WB35K5089 INSULATION BACK/BTM UPPER
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB35K5068 WB35K5068 INSULATION WRPR OTR
WB35K5048 WB35K5048 INSULATION-WRAPPER-INNER
WB35K5112 WB35K5112 INSULATOR MODULE
WB24K5061 WB24K5061 JAMB SWITCH
WB36X192 WB36X192 LAMP COV ASM
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB24K5085 WB24K5085 LIMIT SWITCH
WB15K5016 WB15K5016 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB18K5617 WB18K5617 LOCK MOTOR WIRE HARNESS
WB01K5046 WB01K5046 LOCKWASHER
31-13913 31-13913 MANUAL MINI & WD ASM
WB10T10012 WB10T10012 OV DR HINGE ASSEMBLY-RT
WB02T10016 WB02T10016 OV DR INSLN RETAINER
WB57T10078 WB57T10078 OV DR OUTER GLASS BLK
WB8K5029 WB8K5029 OV LAMP HLDR
WB2X7693 WB2X7693 OV LIGHT CUP
WB27T10270 WB27T10270 OVEN CONTROL
WB55T10024 WB55T10024 OVEN DOOR FRAME ASSEMBLY (BLAC
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB32T10006 WB32T10006 OVEN DR GASKET
WB55T10058 WB55T10058 OVEN DR LINING RETAINER
WB02X7693 WB02X7693 OVEN LIGHT CUP
49-80032 49-80032 OWNERS MANUAL
WB36T10515 WB36T10515 PANEL CONTROL ASSEMBLY (AD)
WB36T10513 WB36T10513 PANEL CONTROL ASSEMBLY (WHT)
WB2K5395 WB2K5395 PLATE REINFO
WB48T10093 WB48T10093 RACK OV
WB63K5079 WB63K5079 RAIL BASE
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB08K5029 WB08K5029 RECEPTACLE
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WZ04X0044 WZ04X0044 SCREW
WB01X1297 WB01X1297 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5138 WB01K5138 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1164 WB1X1164 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5157 WB1K5157 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8-INCH
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WZ4X44D WZ4X44D SCREW-PKG 12
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB01K5163 WB01K5163 SCREW-WHT
WB1K5163 WB1K5163 SCREW-WHT
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB07T10061 WB07T10061 SHIELD DR TRIM
WB63K5209 WB63K5209 SIDE EXTENSION LT
WB02T10015 WB02T10015 SPACER WINDOW
WB2X9719 WB2X9719 SUPP-BROIL
WB07T10082 WB07T10082 TRIM DR VENT (BLACK)
WB07T10083 WB07T10083 TRIM DR VENT (WHITE)
WB1K5177 WB1K5177 TRIM SCREW 10-16 X 3/4 BLK
WB01K5177 WB01K5177 TRIM SCREW-BLACK
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB07T10054 WB07T10054 TRIM VERT SDE LEFT (WHITE)
WB07T10055 WB07T10055 TRIM VERT SDE RT (BLA
WB07T10053 WB07T10053 TRIM VERT SDE RT (WHITE)
WB28K5010 WB28K5010 TUBE VENT
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB24K5033 WB24K5033 UNKNOWN
WB28T10009 WB28T10009 VENT TUBE
WB01X1254 WB01X1254 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB02X8320 WB02X8320 WINDOW CLIP
WB56T10004 WB56T10004 WINDOW PACK KIT-LARGE
WB34T10006 WB34T10006 WIRE COVER
WB34K5067 WB34K5067 WIRE COVER BOTTOM
WB63T10053 WB63T10053 WRAPPER OVEN CAV ASSEMBLY
