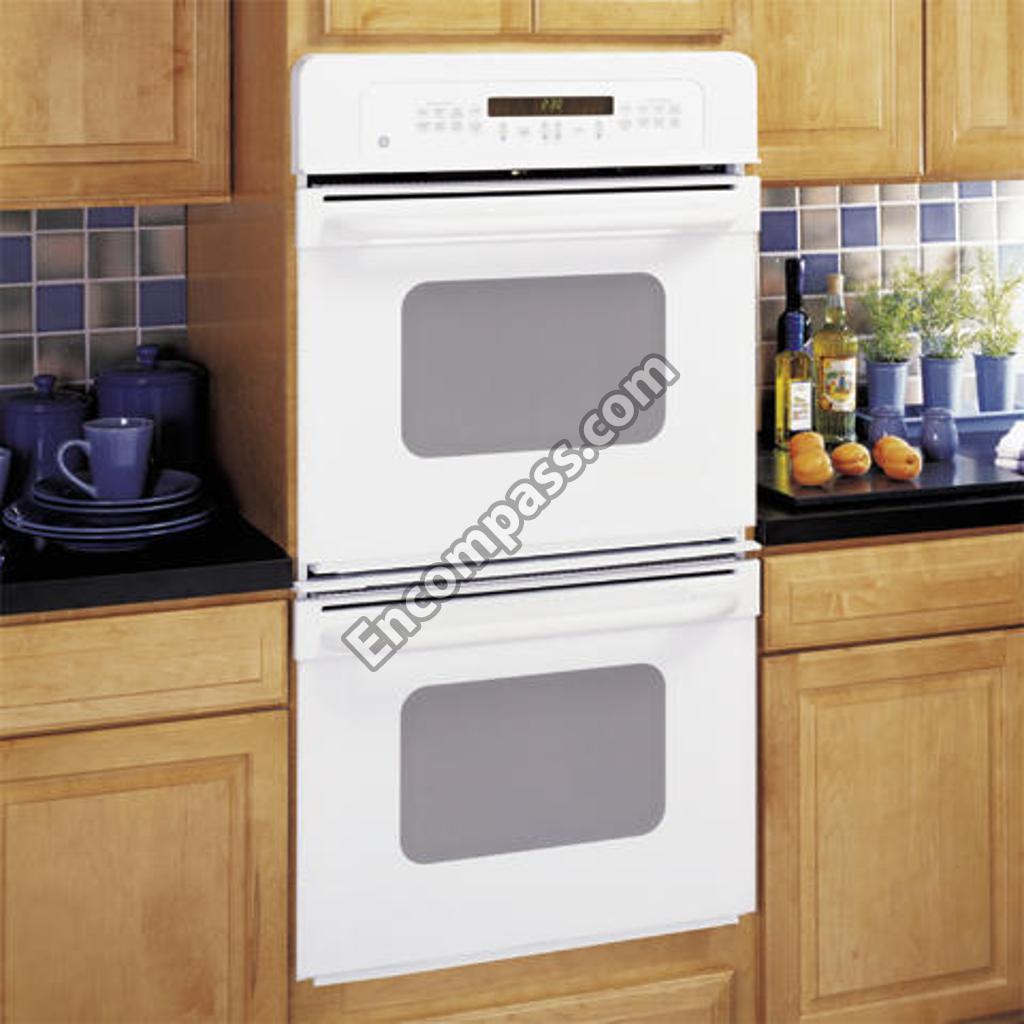

Model Image
Manufacturer

GE

Model Number

JKP48WF3WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB08T10023 WB08T10023 35W RANGE HALOGEN BULB
WB34T10070 WB34T10070 BACK PLATE LEFT
WB34T10048 WB34T10048 BACK PLATE RT
WB44T10031 WB44T10031 BAKE ELEMENT
WB02K10048 WB02K10048 BASE RAIL
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB44T10051 WB44T10051 BROIL ELEMENT
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10225 WB18T10225 CONDUIT WIRE ASSEMBLY
WB27T10455 WB27T10455 CONTROL ERC
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10063 WB34T10063 COVER WIRE MDL
WB34T10061 WB34T10061 COVER WIRE SENSOR
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10062 WB34T10062 COVER WIRE UPR RR
WB35T10060 WB35T10060 COVER- ELECTRICAL TOP
WB34T10064 WB34T10064 DEFLECTOR AIR
WB57T10265 WB57T10265 DOOR ASM (OUT) GE BQT
WB01T10022 WB01T10022 DOOR BUMPER
WB03T10156 WB03T10156 DOOR BUMPER
WB57T10266 WB57T10266 DOOR OTR ASSEMBLY 27 (WHITE)
WB28T10080 WB28T10080 DUCT VENT INLET-UPPER
WB28T10082 WB28T10082 DUCT VNT INLET
WB26T10018 WB26T10018 FAN ASM - CONTROL
WB64T10028 WB64T10028 FAN ASSEMBLY-LOWER
WB63T10072 WB63T10072 FRONT FRAME
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB25T10025 WB25T10025 HALOGEN LAMP ASSEMBLY LWR
WB15T10111 WB15T10111 HANDLE OVN DR 27 (BLK)
WB15T10113 WB15T10113 HANDLE OVN DR 27 (BQT)
WB15T10112 WB15T10112 HANDLE OVN DR 27 (WHT)
WB50T10075 WB50T10075 HINGE DOOR RT
WB02T10158 WB02T10158 HOUSING FAN
31-10551 31-10551 INSTRUCTION INSTALL
31-10523 31-10523 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
WB35T10076 WB35T10076 INSULATION BACK & BTM
WB10T10016 WB10T10016 INSULATION HINGE
WB35T10075 WB35T10075 INSULATION WRAPPER
WB14T10020 WB14T10020 LATCH OVEN
WB14T10021 WB14T10021 LATCH OVEN LWR
WB24T10067 WB24T10067 LIMIT SWITCH-LOWER
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB01K5046 WB01K5046 LOCKWASHER
31-14008 31-14008 MANUAL MINI & WD ASM
49-80229 49-80229 MANUAL USE & CARE
WB32T10010 WB32T10010 OV DR GASKET-UPPER
WB57T10185 WB57T10185 OV DR GLASS INNER
WB55T10088 WB55T10088 OV DR LINER ASSEMBLY-UPPER
WB25T10013 WB25T10013 OV LAMP LENS
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP
WB48T10027 WB48T10027 OVEN RACK
WB36T10608 WB36T10608 PANEL CNTL ASM
WB36T10615 WB36T10615 PANEL CNTL ASM
WB36T10616 WB36T10616 PANEL CNTL ASM
WB36T10617 WB36T10617 PANEL CNTL ASM
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB02T10167 WB02T10167 PLUG FOAM
WB10T10046 WB10T10046 RECEIVER HINGE
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB63T10087 WB63T10087 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB56T10133 WB56T10133 RETAINER INSLN OVN DR
WB63T10091 WB63T10091 RETAINER INSLN SDE
WB02T10159 WB02T10159 RETAINER INSLN TOP
WB34T10091 WB34T10091 SCREEN FAN
WB01X1127 WB01X1127 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5029 WB01K5029 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01T10033 WB01T10033 SCREW ST 8-18 (BISQUE)
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB36T10389 WB36T10389 SIDE EXTENSION
WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10082 WB24T10082 SWITCH HIGH LMT UPPER OV
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10077 WB24T10077 SWITCH LIMIT
WB24T10076 WB24T10076 SWITCH LIMIT BIMETAL
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB07T10376 WB07T10376 TRIM BTM CAB 27 (BLK)
WB07T10377 WB07T10377 TRIM BTM CAB 27 (WHT)
WB07T10323 WB07T10323 TRIM MIDDLE ASM
WB07T10325 WB07T10325 TRIM MIDDLE ASM
WB07T10324 WB07T10324 TRIM MIDDLE ASM
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB07T10307 WB07T10307 TRIM VENT
WB07T10315 WB07T10315 TRIM VERT SDE ASM LT BLK
WB07T10314 WB07T10314 TRIM VERT SDE ASM RT BLK
WB07T10309 WB07T10309 TRIM VERT SDE ASSEMBLY LEFT WHT
WB07T10308 WB07T10308 TRIM VERT SDE ASSEMBLY RT WHT
WB38X33650 WB38X33650 TUBE VENT
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB63T10088 WB63T10088 WRAPPER OVN CAV ASM
