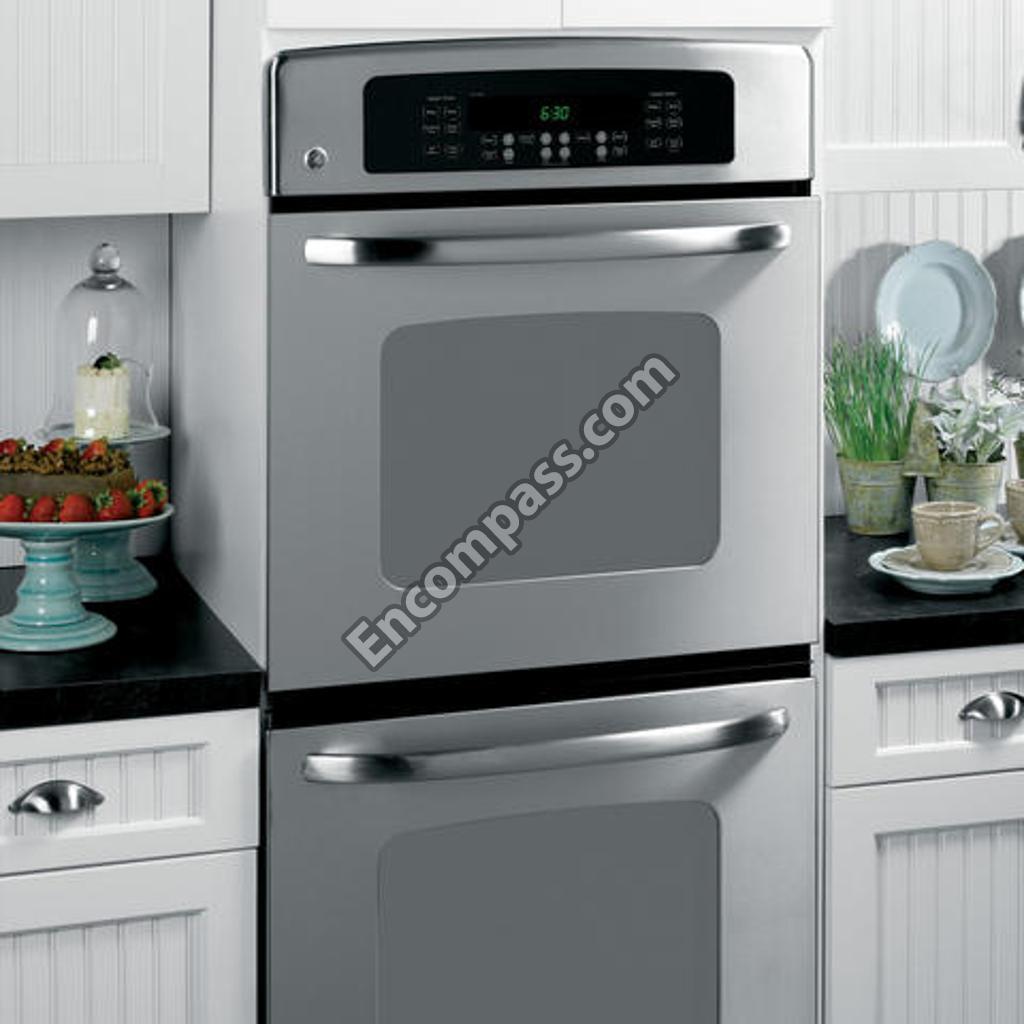

Model Image
Manufacturer

GE

Model Number

JKP55SM1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB02T10393 WB02T10393 BACK PLATE LT
WB34T10048 WB34T10048 BACK PLATE RT
WB02T10359 WB02T10359 BADGE GE
WB24T10080 WB24T10080 BAKE TCO
WB26T10060 WB26T10060 BLOWER TANGENTIAL ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB27T11176 WB27T11176 BUTTON BOARD HSG ASM DDH
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10448 WB18T10448 CONDUIT WIRE ASM 52
WB18T10225 WB18T10225 CONDUIT WIRE ASSEMBLY
WB27T10910 WB27T10910 CONTROL OVN (ERC3DD)
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB02T10363 WB02T10363 COVER ELECTRICAL TOP
WB02T10364 WB02T10364 COVER WIRE LWR
WB02T10361 WB02T10361 COVER WIRE MIDDLE
WB02T10365 WB02T10365 COVER WIRE SIDE
WB34T10057 WB34T10057 COVER WIRE TOP
WB02T10357 WB02T10357 COVER WIRE UPR RR
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10333 WB57T10333 DOOR OTR ASM 27 (SS)
WB02T10360 WB02T10360 DUCT BOTTOM
WB44T10109 WB44T10109 ELEMENT BAKE ASSEMBLY (2100W)
WB44T10099 WB44T10099 ELEMENT BROIL ASM
WB27T11233 WB27T11233 FACEPLATE

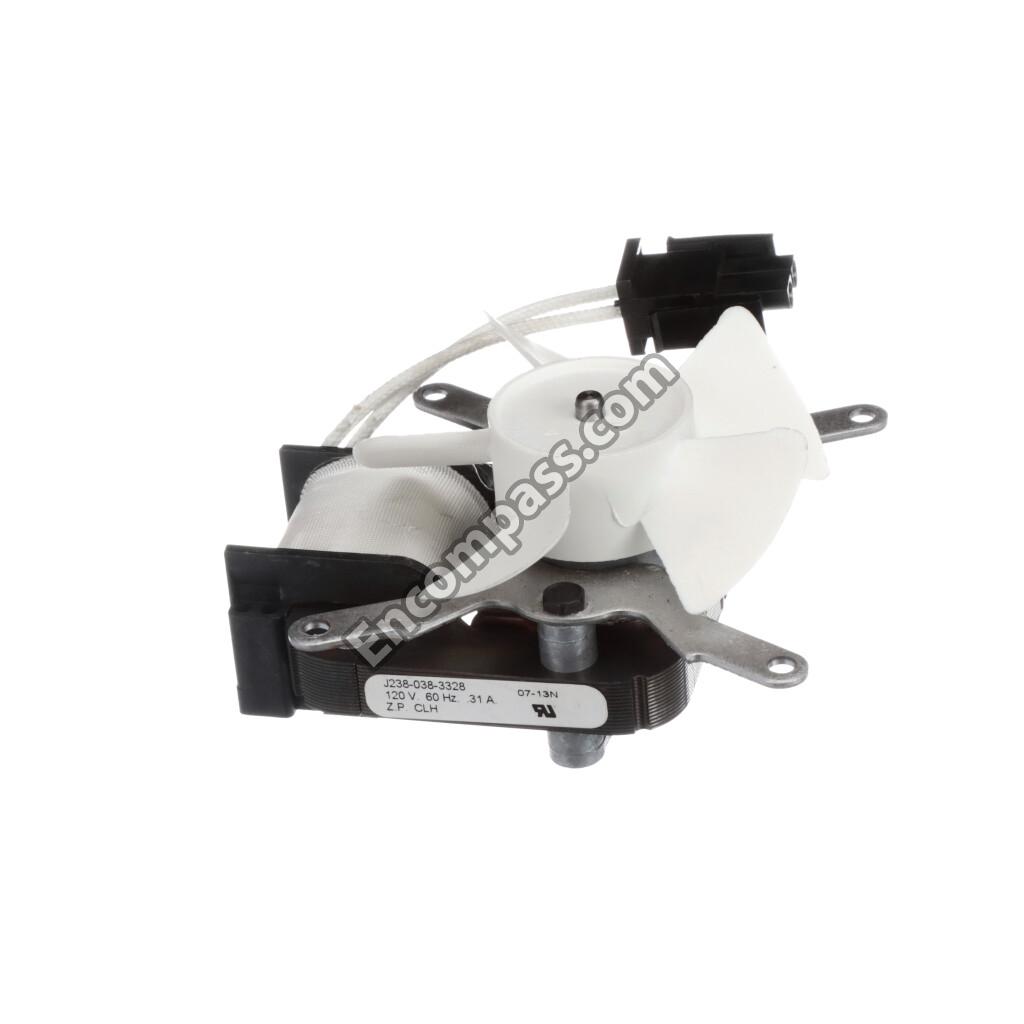

WB64T10067 WB64T10067 FAN ASM
WB63T10123 WB63T10123 FRAME FRONT
WB32T10012 WB32T10012 GASKET OVN DR
WB57T10195 WB57T10195 GLASS OVEN DR INR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10150 WB15T10150 HANDLE TUBE SS
WB18T10404 WB18T10404 HARNESS WIRE KEYBOARD
WB10T10109 WB10T10109 HINGE DOOR LT
WB10T10108 WB10T10108 HINGE DOOR RT
WB02T10362 WB02T10362 HOUSING FAN
31-10647 31-10647 INSTRUCTION INSTALL
WB35T10176 WB35T10176 INSULATION BACK
WB35T10175 WB35T10175 INSULATION TOP AND SIDES
WB35T10174 WB35T10174 INSULATION TOP BCK & BTM

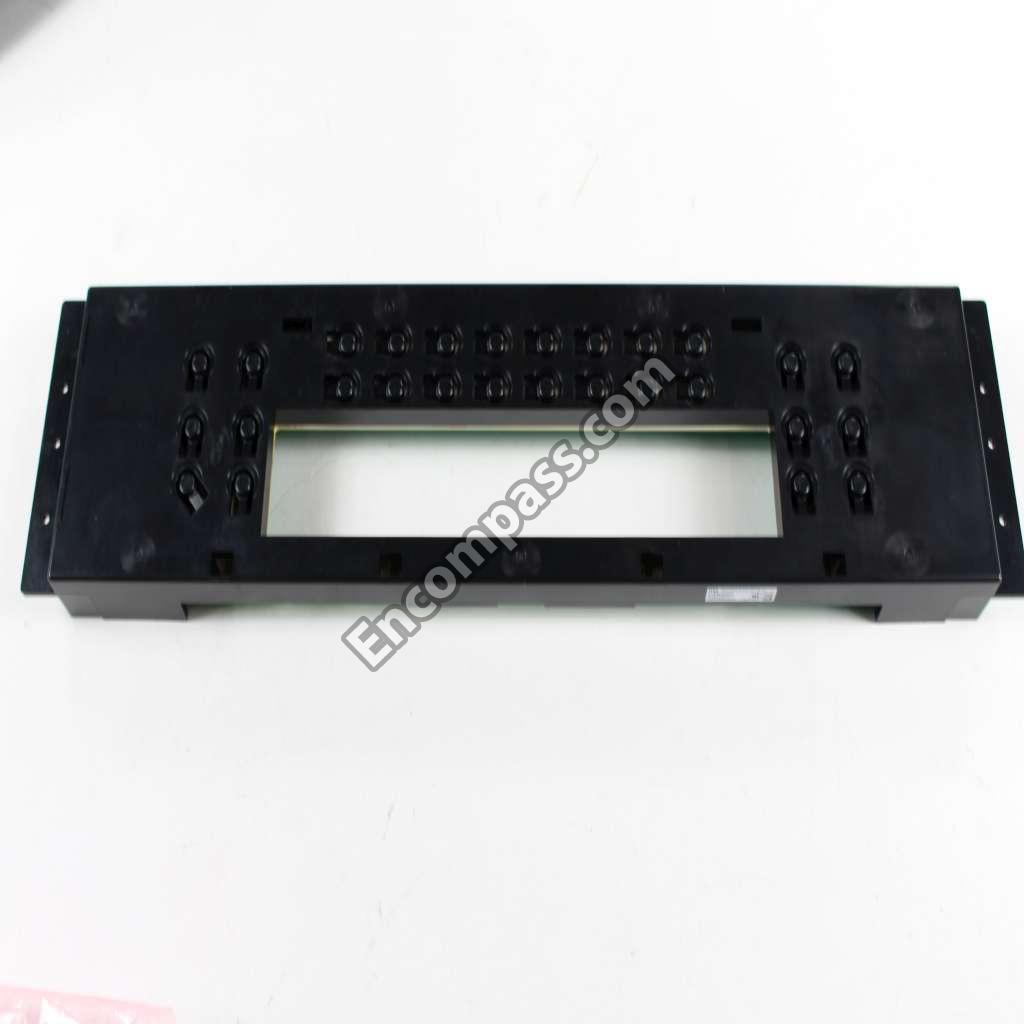

WB27T10931 WB27T10931 KEYPANEL BOARD HSG ASM
WB49T10056 WB49T10056 KIT PANEL CNTL 27 (SS)
WB25T10096 WB25T10096 LAMP HALOGEN ASM
WB49X29679 WB49X29679 LAMP HALOGEN UPPR 50W
WB14T10059 WB14T10059 LATCH OVEN ASM
WB25T10027 WB25T10027 LENS OVEN LAMP
WB55T10168 WB55T10168 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
31-14533 31-14533 MANUAL MINI & WD ASM
49-80429 49-80429 MANUAL USE & CARE
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP

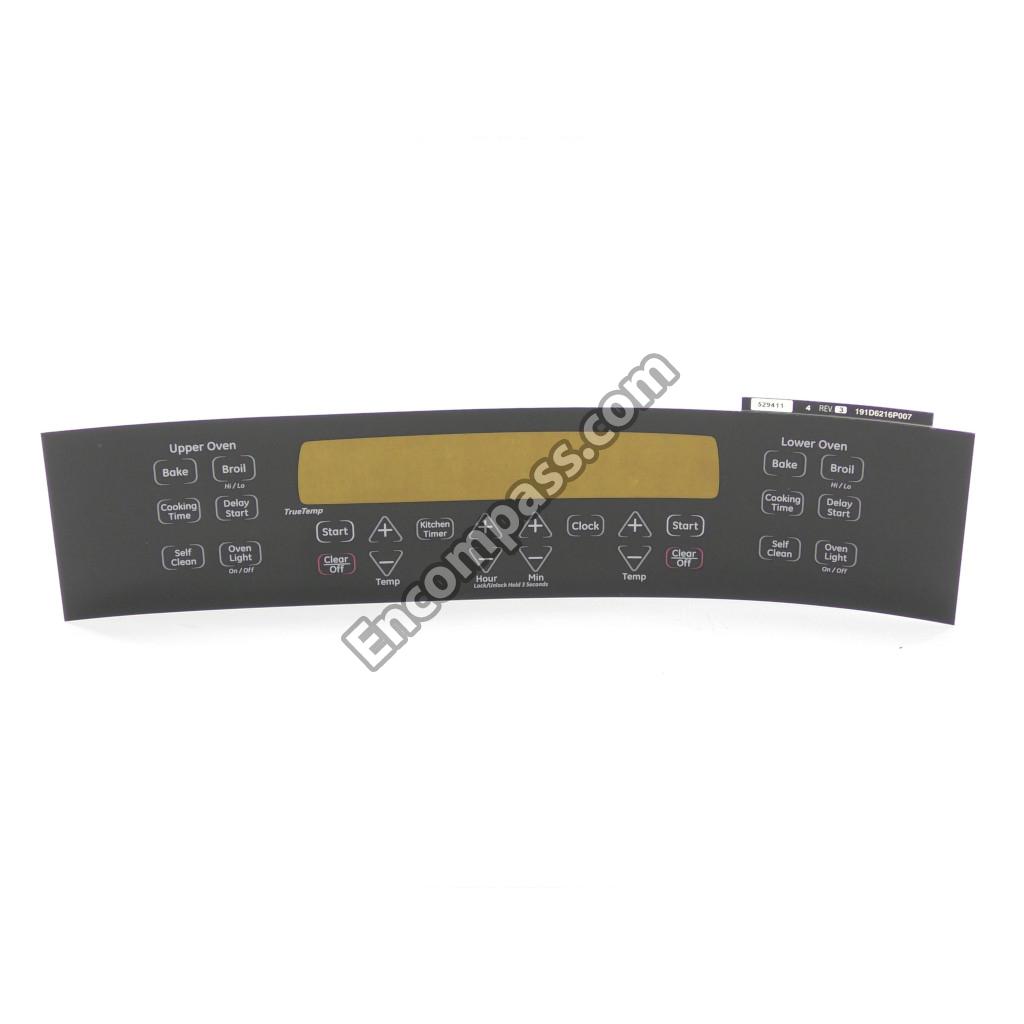

WB27T10944 WB27T10944 OVERLAY PANEL(GEBK)
WB49T10016 WB49T10016 PAN REFLECTOR
WB49T10017 WB49T10017 PAN REFLECTOR SIDE
WB36T11279 WB36T11279 PANEL AND BRACKET ASM
WB36T11016 WB36T11016 PANEL CNTL ASM (27-SS)
WB02T10394 WB02T10394 PLATE DOOR FRAME
WB02T10382 WB02T10382 PLATE ERC
WB02T10383 WB02T10383 PLATE ERC
31-10745 31-10745 PM INSTALL INSTRUCTIONS
31-10662 31-10662 PM INSTALL INSTRUCTIONS

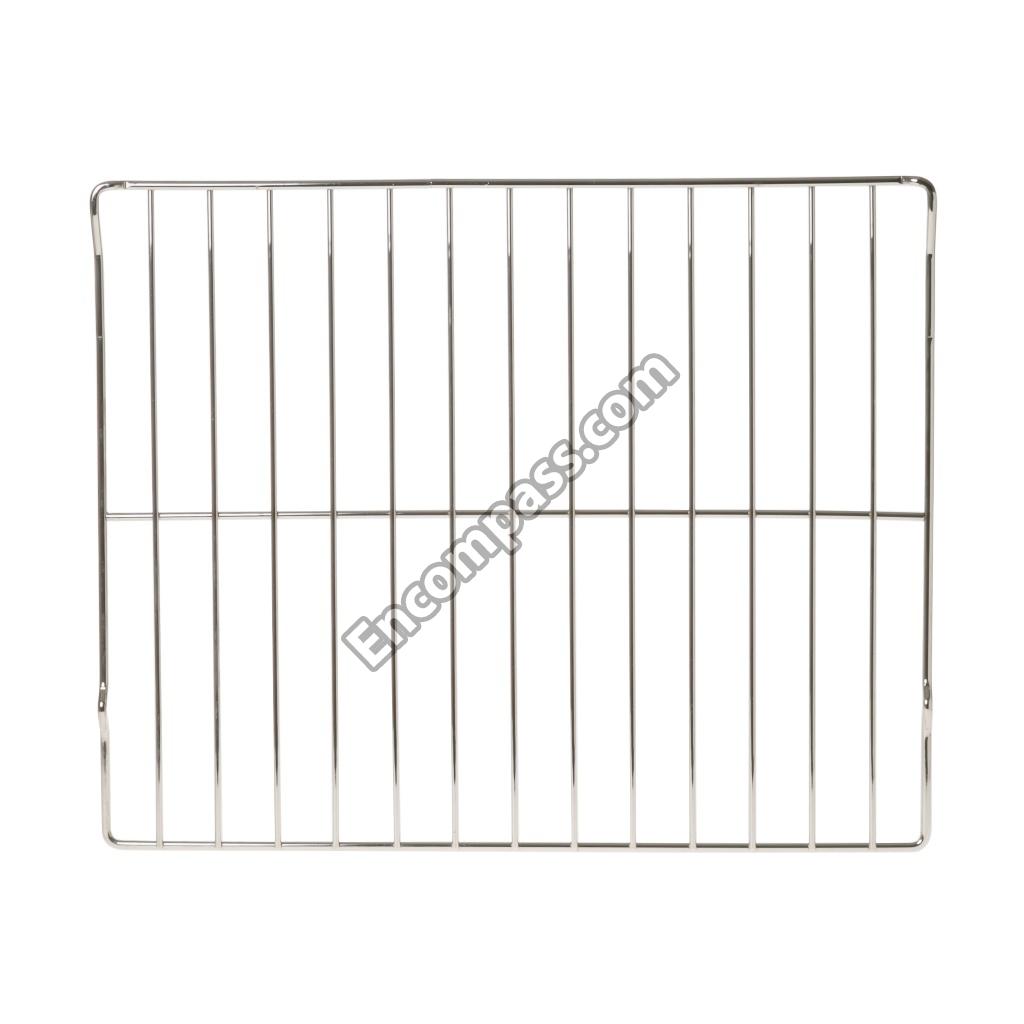

WB48T10043 WB48T10043 RACK OVEN
WB48T10045 WB48T10045 RACK OVEN
WB10T10076 WB10T10076 RECEIVER HINGE
WB34T10097 WB34T10097 REFLECTOR HEAT
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB63T10124 WB63T10124 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB56T10133 WB56T10133 RETAINER INSLN OVN DR
WB63T10125 WB63T10125 RETAINER INSLN SDE
WB02T10356 WB02T10356 RETAINER INSLN TOP
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1116 WB01X1116 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5029 WB01K5029 SCREW
WR1X1850 WR1X1850 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB36T10389 WB36T10389 SIDE EXTENSION
WB02T10376 WB02T10376 SUPPORT CNTL TRM
WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10082 WB24T10082 SWITCH HIGH LMT UPPER OV
WB24T10143 WB24T10143 SWITCH LIMIT
WB24T10096 WB24T10096 SWITCH LIMIT BIMETAL
WB01T10052 WB01T10052 TAPE FOAM
WB07T10541 WB07T10541 TRIM BTM CAB 27 (BK)
WB07T10560 WB07T10560 TRIM MIDDLE ASSEMBLY
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10539 WB07T10539 TRIM VENT
WB07T10552 WB07T10552 TRIM VERT SDE ASM 27 LT
WB07T10551 WB07T10551 TRIM VERT SDE ASM 27 RT
WB38X33650 WB38X33650 TUBE VENT
WB28T10213 WB28T10213 TUBE VNT ASSEMBLY
WB28T10212 WB28T10212 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB63T10126 WB63T10126 WRAPPER OVN CAV ASM
