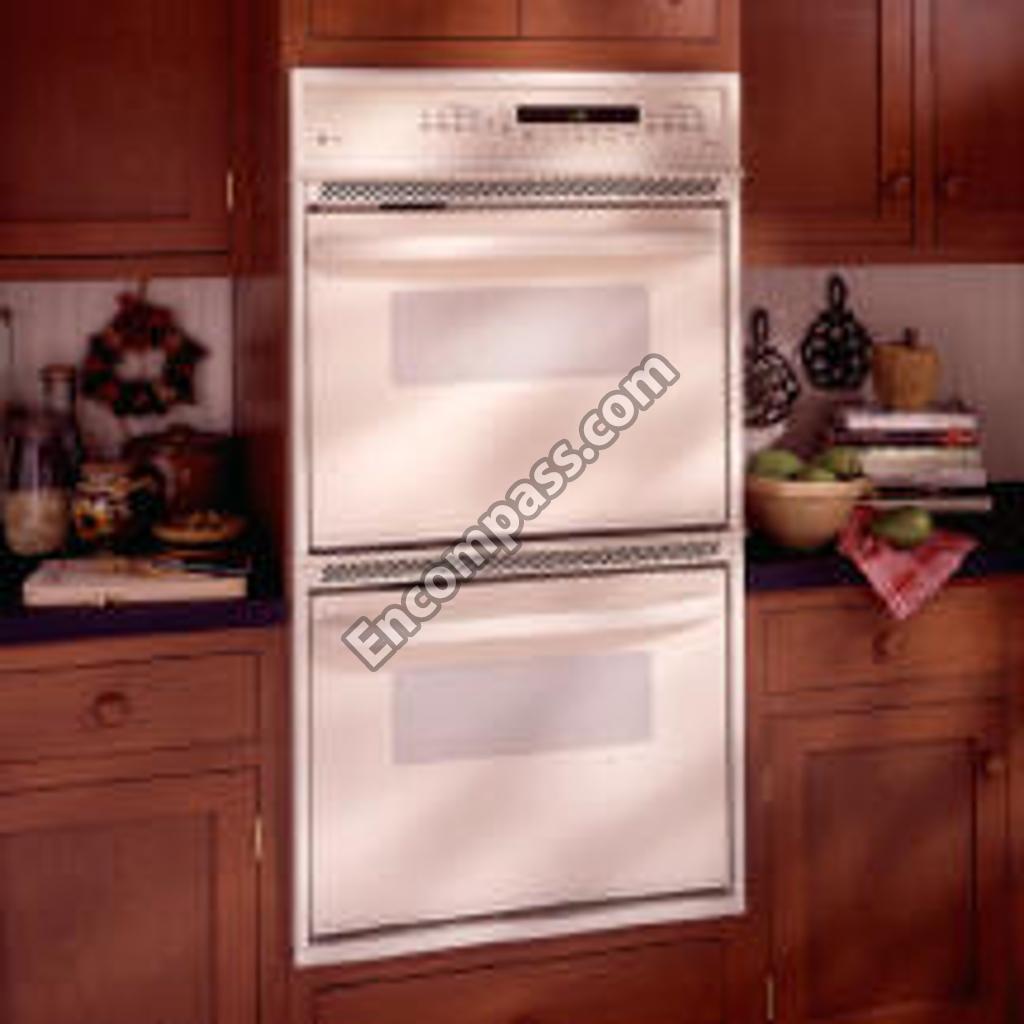

Model Image
Manufacturer

GE

Model Number

JKP56AW2AA

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB34K5080 WB34K5080 345080
49-8443 49-8443 44-K006
WB63K5167 WB63K5167 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB38K5058 WB38K5058 BARRIER VENT
WB2X8351 WB2X8351 BLADE FAN
WB63K5174 WB63K5174 BODY SIDE EXTENSION-L
WB63K5210 WB63K5210 BODY SIDE EXTENSION-R
WB7K5459 WB7K5459 BOTTOM TRIM
WB07K5459 WB07K5459 BOTTOM TRIM-ALMOND
WB44K5009 WB44K5009 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48X10056 WB48X10056 BROILER PAN
WB07K5463 WB07K5463 BTM TRIM END CAP-LT-AD
WB07K5462 WB07K5462 BTM TRIM END CAP-RT-AD
WB7K5463 WB7K5463 BTM TRM CAP
WB63K5080 WB63K5080 CABINET BOTTOM
WB36K5641 WB36K5641 CAP END (LT-WHITE)
WB56X1907 WB56X1907 CENTER GLASS
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB34K5082 WB34K5082 CONDUIT WIRE COVER
WB26K5069 WB26K5069 CONVECTION FAN MOTOR
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB2X9152 WB2X9152 COVER
WB63K5094 WB63K5094 COVER TOP
WB34K5089 WB34K5089 COVER WIRE CENTER
WB34K5069 WB34K5069 COVER WIRE ELEMENT
WB34K5070 WB34K5070 COVER WIRE LIGHT
WB55T10006 WB55T10006 DOOR LINING-
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB35K5050 WB35K5050 DOOR PLUG INSULATION
WB55T10007 WB55T10007 DOOR PLUG-UP
WB44K5013 WB44K5013 ELEMENT BAKE UPR
WB44T10027 WB44T10027 ELEMENT CONVEX
WB7K5462 WB7K5462 END CAP BOT
WB7K5461 WB7K5461 END CAP LH
WB7K5460 WB7K5460 END CAP RH
WB36K5639 WB36K5639 END CAP-LEFT-BLACK
WB07K5461 WB07K5461 END CAP-LT-AD-CTL PNL
WB07K5460 WB07K5460 END CAP-RT-AD-CTL PNL
WB36K5642 WB36K5642 END CAP-RT-WHITE
WB07K5509 WB07K5509 EXTENSION VNT TRM LWR(A)
WB26K5072 WB26K5072 FAN
WB02X8351 WB02X8351 FAN BLADE
WB02K5137 WB02K5137 FAN SUPPORT
WB2K5257 WB2K5257 FAN SUPPORT
WB02K5257 WB02K5257 FAN SUPPORT-UPPER
WB2K5137 WB2K5137 FAN SUPPRT L
WB26K5045 WB26K5045 FANASSEMBLY-UPPER
WB56K5161 WB56K5161 FRAME OV DR (AD)
WB63T10008 WB63T10008 FRONT FRAME
WB57K5102 WB57K5102 GLASS OV DR INNER
WB57K5276 WB57K5276 GLASS OVEN DR OTR (AD
WB2M1 WB2M1 GLASS RETNR
WB02K5147 WB02K5147 GLASS SPACER
WB02K5225 WB02K5225 GROMMET STRIP (.020)
WB2K5225 WB2K5225 GROMMET STRP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15K5121 WB15K5121 HANDLE OV DR
WB15K5127 WB15K5127 HANDLE OV DR
WB7K5479 WB7K5479 HANDLE TRIM
345080 345080 HEAT REFLECT
WB34K5255 WB34K5255 HEAT REFLECTOR
WB14K5007 WB14K5007 HINGE OV DR LT
WB14K5006 WB14K5006 HINGE OV DR RT
WB8K5013 WB8K5013 HOUS ASM REC
WB08K5013 WB08K5013 HOUSING ASM RECEPTACLE
WB7K5458 WB7K5458 I-BROW TRIM
WB07K5458 WB07K5458 I-BROW TRIM-ALMOND
31-10200 31-10200 INSTALLATION INSTRUCTION
WB35K5089 WB35K5089 INSULATION BACK/BTM UPPER
WB35K5068 WB35K5068 INSULATION WRPR OTR
WB35K5054 WB35K5054 INSULATION-OVEN DOOR
WB35K5048 WB35K5048 INSULATION-WRAPPER-INNER
WB08K5054 WB08K5054 JACK RECEPTACLE
WB8K5054 WB8K5054 JACK RECPTCL
WB24K5061 WB24K5061 JAMB SWITCH
WB36X192 WB36X192 LAMP COV ASM
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB24K5085 WB24K5085 LIMIT SWITCH
WB15K5016 WB15K5016 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB01K5046 WB01K5046 LOCKWASHER
WB63K5168 WB63K5168 MAIN BACK-CONVEX
31-13342 31-13342 MINI MANUAL W/WIRE DIAG.
WB02X8454 WB02X8454 NUT
WB1X5572 WB1X5572 NUT
WB2X8454 WB2X8454 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB2K5132 WB2K5132 ODR STIF ASM
WB34K5077 WB34K5077 OV DR BAFFLE
WB02K5131 WB02K5131 OV DR GLASS RETAINER
WB02M0001 WB02M0001 OV DR GLASS RETAINER
WB56X1901 WB56X1901 OV DR INNER GLASS
WB02K5127 WB02K5127 OV DR INS RETAINER
WB02K5132 WB02K5132 OV DR LINING STIFFENER
WB8K5029 WB8K5029 OV LAMP HLDR
WB2X7693 WB2X7693 OV LIGHT CUP
WB2K5131 WB2K5131 OVDR GL RET
WB2K5127 WB2K5127 OVDR INS RET
WB9K5022 WB9K5022 OVDR SPRING
WB63T10009 WB63T10009 OVEN BODY
WB26K5050 WB26K5050 OVEN CAVITY SUPPORT
WB27T10289 WB27T10289 OVEN CONTROL ERC3DD
WB56K5158 WB56K5158 OVEN DOOR FRAME-BLACK
WB56K5159 WB56K5159 OVEN DOOR FRAME-WHITE
WB57K5248 WB57K5248 OVEN DOOR GLASS-OUTER-BL
WB57K5259 WB57K5259 OVEN DOOR GLASS-WHITE
WB15K5122 WB15K5122 OVEN DOOR HANDLE-BLACK
WB09K5022 WB09K5022 OVEN DOOR SPRING
WB36X0389 WB36X0389 OVEN LAMP CAMERA LENS
WB02X7693 WB02X7693 OVEN LIGHT CUP
WB36T10139 WB36T10139 PANEL CNTL A
WB36T10151 WB36T10151 PANEL CNTL A
WB36T10152 WB36T10152 PANEL CNTL A
WB63T10010 WB63T10010 PANEL OVN IN
WB1K5071 WB1K5071 PLASTC RIVET
WB01K5071 WB01K5071 PLASTIC RIVET
WB2K5395 WB2K5395 PLATE REINFO
WB03K5077 WB03K5077 PLUG BUTTON
WB3K5077 WB3K5077 PLUG BUTTON
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB48T10093 WB48T10093 RACK OV
WB48K5009 WB48K5009 RACK OV (CONVEX FLAT)
WB48K5010 WB48K5010 RACK OV (CONVEX OFFSET)
WB63K5079 WB63K5079 RAIL BASE
WB08K5029 WB08K5029 RECEPTACLE
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB48X5108 WB48X5108 ROAST RACK
WB26K5042 WB26K5042 SCREEN (SS CONVEX)
WB01X1141 WB01X1141 SCREW
WB01X1127 WB01X1127 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5072 WB01K5072 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1131 WB01X1131 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1164 WB01X1164 SCREW
WB01K5138 WB01K5138 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5028 WB01K5028 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1164 WB1X1164 SCREW
WB1X681 WB1X681 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5072 WB1K5072 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1131 WB1X1131 SCREW-6-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1180 WB01X1180 SCREW-BLACK
WZ4X44D WZ4X44D SCREW-PKG 12
WB2X9168 WB2X9168 SEAL
WB02X9168 WB02X9168 SEAL GLASS OV DR INNER
WB21X5301 WB21X5301 SENSOR ASM
WB63K5209 WB63K5209 SIDE EXTENSION LT
WB6K5026 WB6K5026 SMOKE EL SCR
WB06K5026 WB06K5026 SMOKE ELIM SCREEN
WB01K5065 WB01K5065 SNAP BUSHING
WB1K5065 WB1K5065 SNAP BUSHING
WB2K5147 WB2K5147 SPACER
WB1K5141 WB1K5141 SPEED NUT FL
WB01K5141 WB01K5141 SPEED NUT-FLAT
WB2X9719 WB2X9719 SUPP-BROIL
WB24K5049 WB24K5049 SWITCH LIMIT
WB7K5442 WB7K5442 TRIM CAP
WB7K5509 WB7K5509 TRIM EXTENSN
WB07K5479 WB07K5479 TRIM HANDLE (AD)
WB07K5508 WB07K5508 TRIM I-BROW LWR (AD)
WB1K5211 WB1K5211 TRIM SCREW
WB1K5208 WB1K5208 TRIM SCREW
WB1K5176 WB1K5176 TRIM SCREW 10-16 X 3/4 ALMOND
WB1K5178 WB1K5178 TRIM SCREW 8-18 X 3/4
WB01K5211 WB01K5211 TRIM SCREW-AD
WB01K5178 WB01K5178 TRIM SCREW-ALMOND
WB01K5208 WB01K5208 TRIM SCREW-ALMOND
WB01K5176 WB01K5176 TRIM SCREW-ALMOND
WB07K5507 WB07K5507 TRIM VERT SIDE LT (AD)
WB07K5506 WB07K5506 TRIM VERT SIDE RT (AD)
49-8709 49-8709 UC JKP54GW JKP55WW JKP56AW
WB24K5033 WB24K5033 UNKNOWN
WB32K5038 WB32K5038 UNKNOWN
WB38K5041 WB38K5041 VENT BOX
WB38K5051 WB38K5051 VENT BOX ASM
WB34K5078 WB34K5078 VENT BOX COVER
WB07K5442 WB07K5442 VENT TRIM CAP
WB07K5480 WB07K5480 VENT TRIM-AD
WB7K5480 WB7K5480 VENT TRIM-AD
WB2K5139 WB2K5139 VERT SD SUPP
WB7K5507 WB7K5507 VERT SD TRIM
WB7K5506 WB7K5506 VERT SD TRIM
WB02K5139 WB02K5139 VERTICAL SIDE SUPT
WB01K5198 WB01K5198 WASHER
WB01K5146 WB01K5146 WASHER
WB01X1254 WB01X1254 WASHER
WB01X5573 WB01X5573 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5146 WB1K5146 WASHER
WB1K5046 WB1K5046 WASHER
WB1K5198 WB1K5198 WASHER
WB1X5573 WB1X5573 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB63T10043 WB63T10043 WB63T10043
WB18K5215 WB18K5215 WIRE CONDUIT ASSEMBLY-DOU
WB34K5067 WB34K5067 WIRE COVER BOTTOM
WB63T10011 WB63T10011 WRAPPER OVN
WZ4X416 WZ4X416 WZ04X0408
