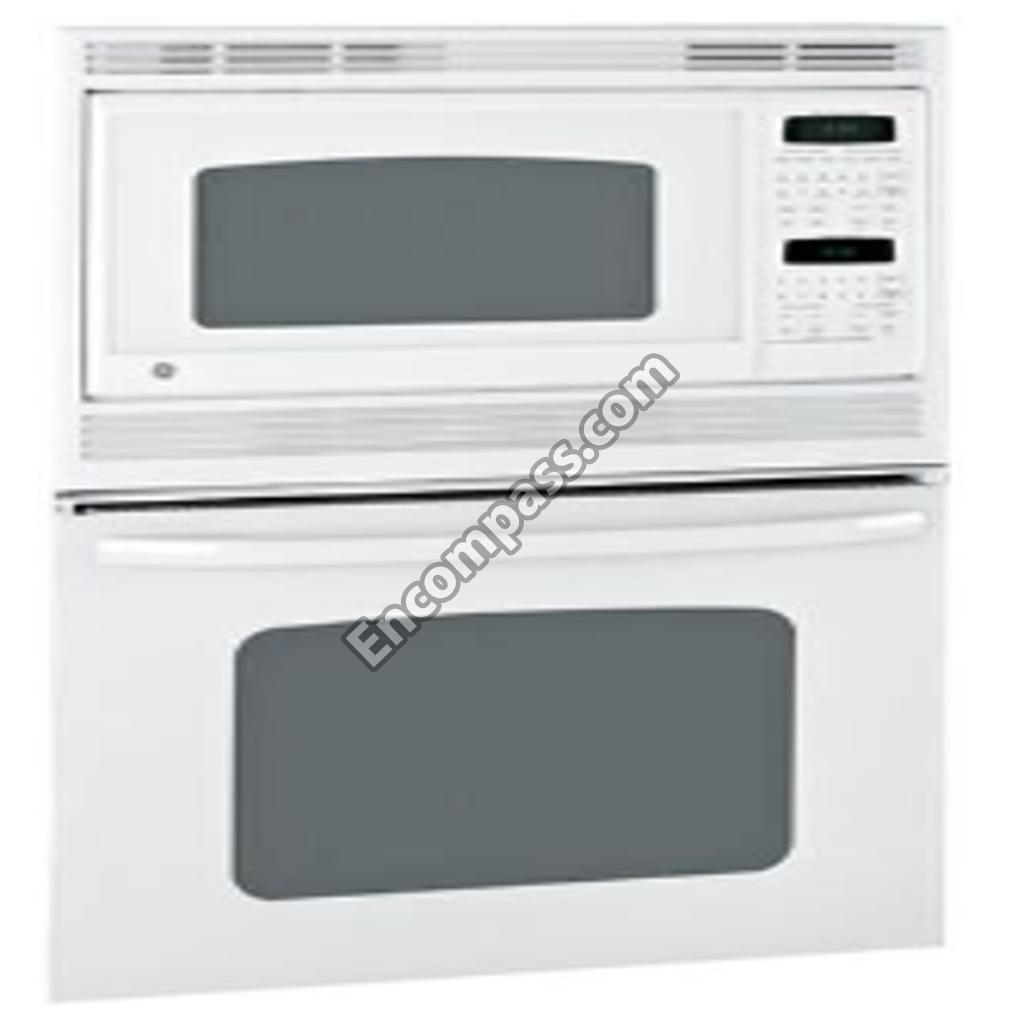

Model Image
Manufacturer

GE

Model Number

JKP90DP3WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB38K5056 WB38K5056 AIR DUCT-TOP LT
WB10X10071 WB10X10071 ASSEMBLY BODY LATCH
WB26X10026 WB26X10026 ASSEMBLY COVER MOTOR
WB34T10071 WB34T10071 ASSEMBLY DUCT
WB63X10011 WB63X10011 BASE PLATE
WB63T10052 WB63T10052 BKT SLIDE-A:27LT
WB63X10014 WB63X10014 BKT SLIDE-B:27 RT

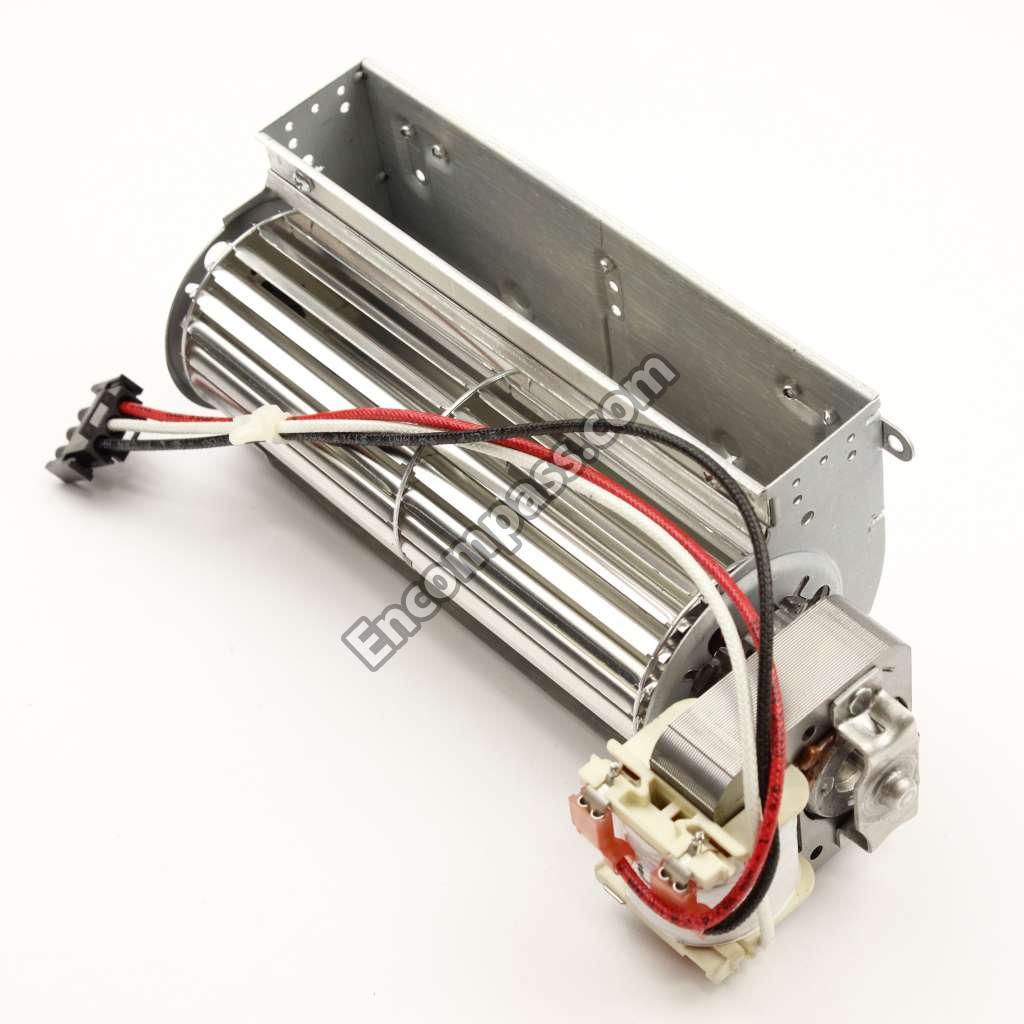

WB26T10060 WB26T10060 BLOWER TANGENTIAL ASM
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB6X537 WB6X537 BRACKET
WB63X10015 WB63X10015 BRACKET BASE COVER
WB06X0537 WB06X0537 BRACKET H.V.C
WB02T10033 WB02T10033 BRACKET SUPT TRIM
WB27X10073 WB27X10073 C-OIL
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10396 WB18T10396 CONDUIT WIRE ASM
WB27T10914 WB27T10914 CONTROL OVN ASM

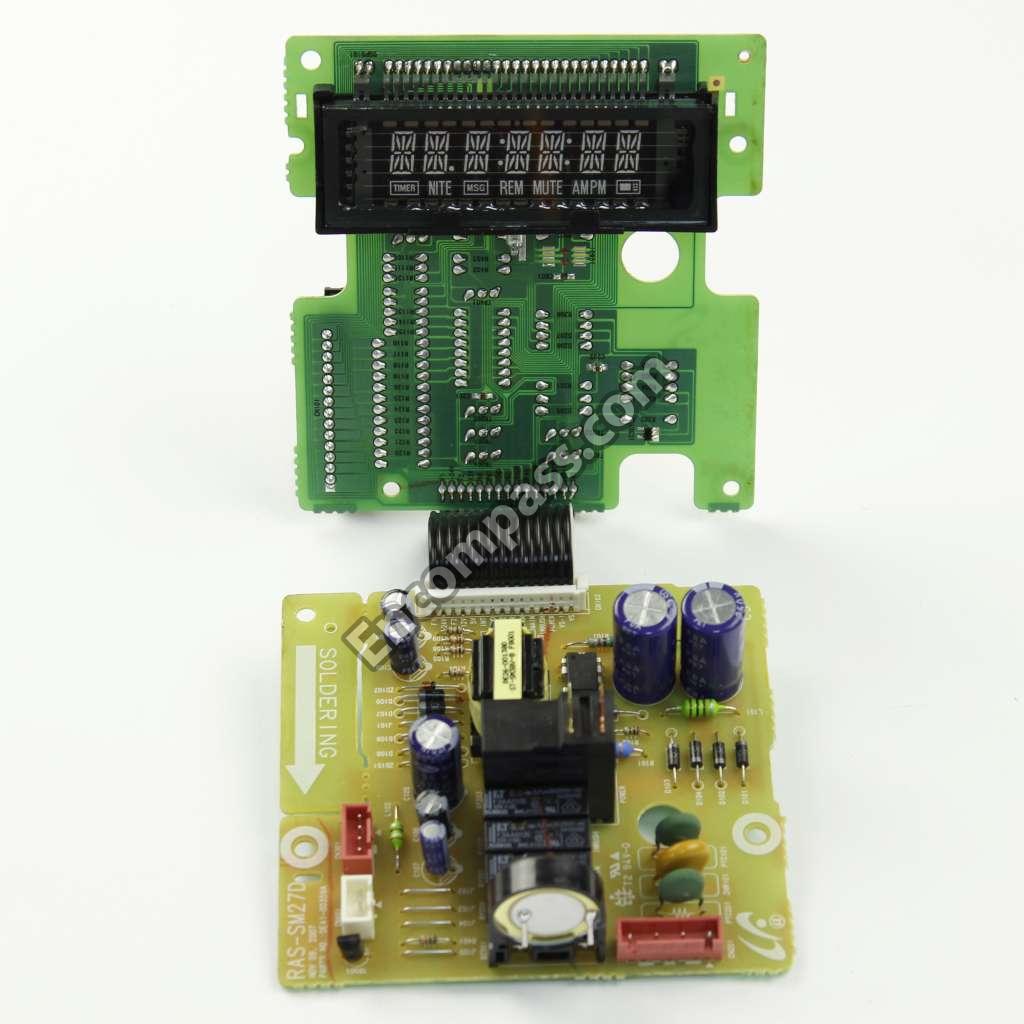

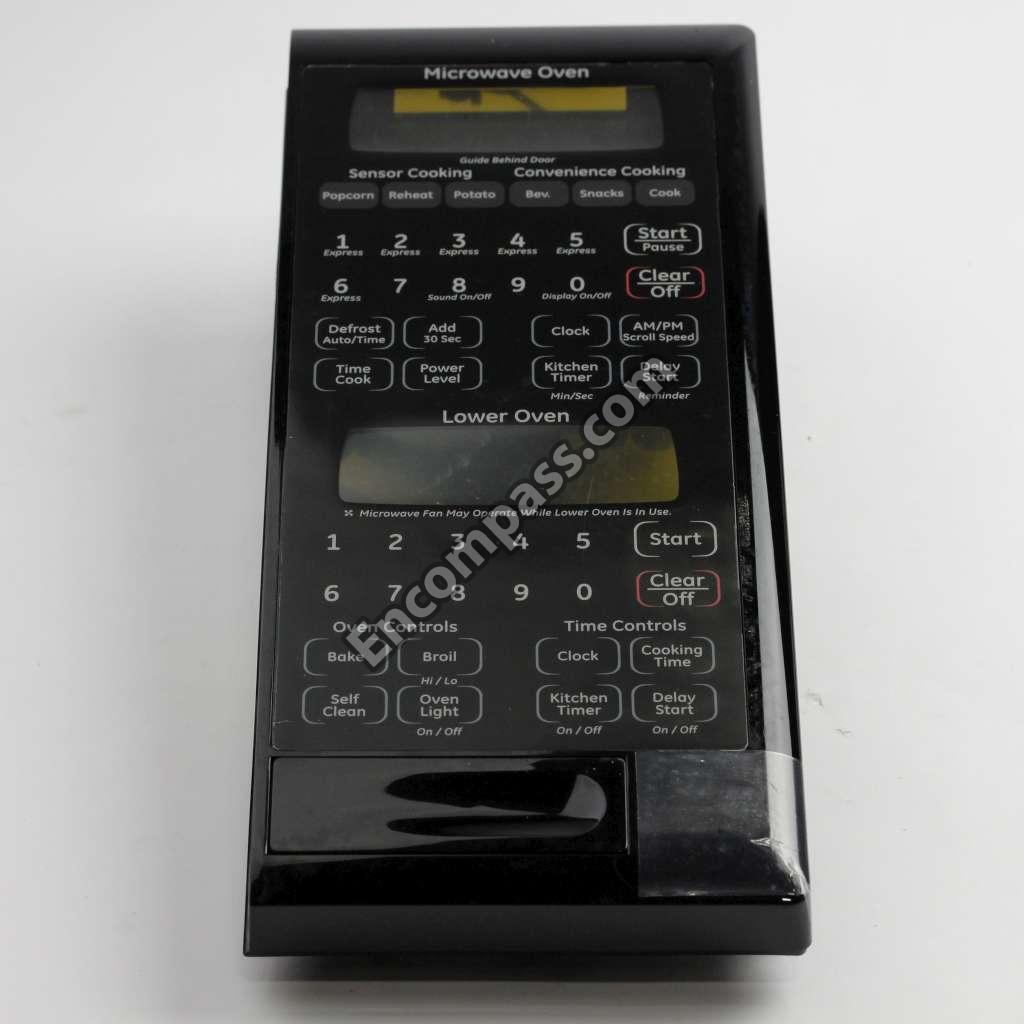

WB27T11342 WB27T11342 CONTROL PANEL ASM
WB27T11340 WB27T11340 CONTROL PANEL ASSM
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB6X538 WB6X538 COVER WAVE G
WB02T10364 WB02T10364 COVER WIRE LWR
WB02T10365 WB02T10365 COVER WIRE SIDE
WB02T10367 WB02T10367 COVER WIRE UPPER
WB06X0535 WB06X0535 COVER-AIR
WB6X535 WB6X535 COVER-AIR
WB06X0538 WB06X0538 COVER-WAVE GUIDE
WB35X10002 WB35X10002 CUSHION - H V T
WB35X10001 WB35X10001 CUSHION RUBBER
WB55T10172 WB55T10172 DOOR ASM WH
WB01T10022 WB01T10022 DOOR BUMPER

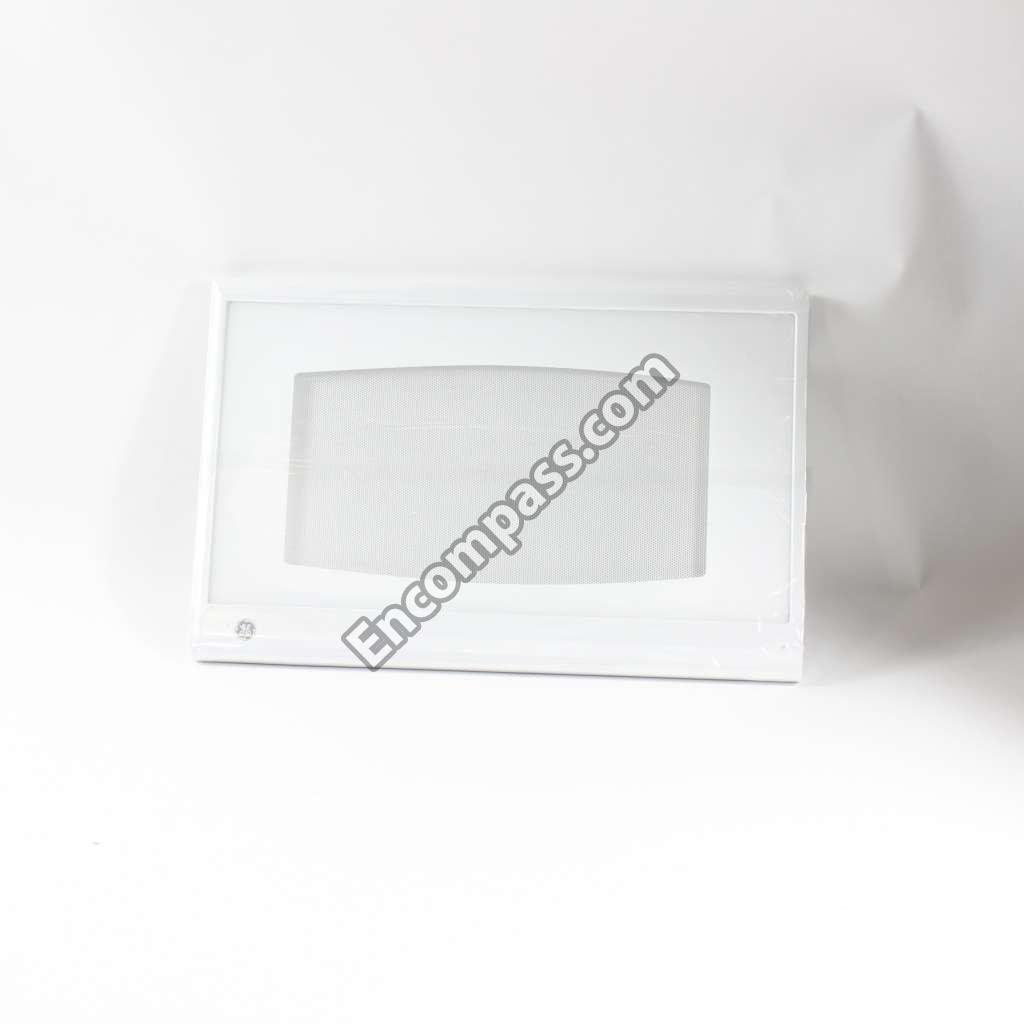

WB57T10334 WB57T10334 DOOR OTR ASM 27 (WH)
WB34T10013 WB34T10013 DUCT AIR BACK
WB34T10010 WB34T10010 DUCT AIR TOP RT
WB02T10360 WB02T10360 DUCT BOTTOM
WB44T10109 WB44T10109 ELEMENT BAKE ASM 2100W

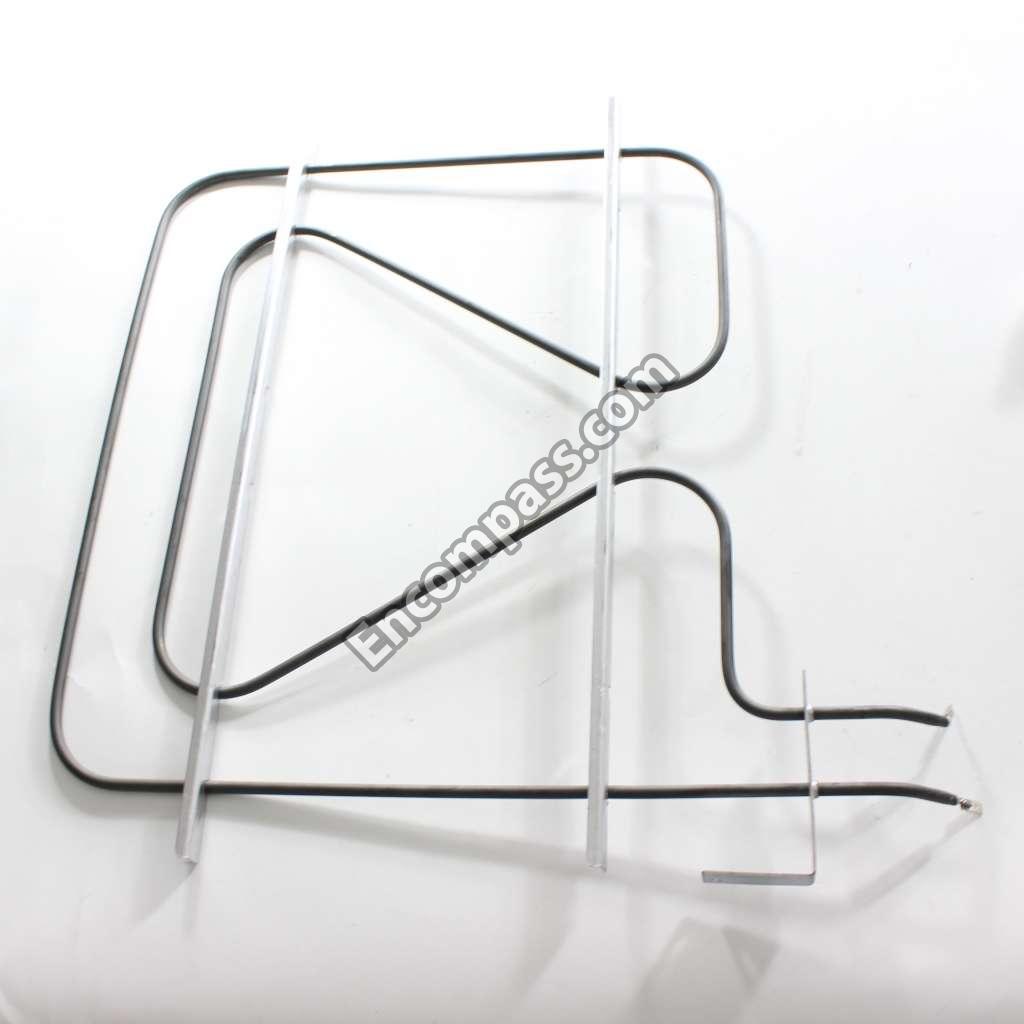

WB44T10099 WB44T10099 ELEMENT BROIL ASM
WB24X10034 WB24X10034 FAN TCO (60/70)
WB63T10123 WB63T10123 FRAME FRONT
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB06X10034 WB06X10034 FUSE-HOLDER

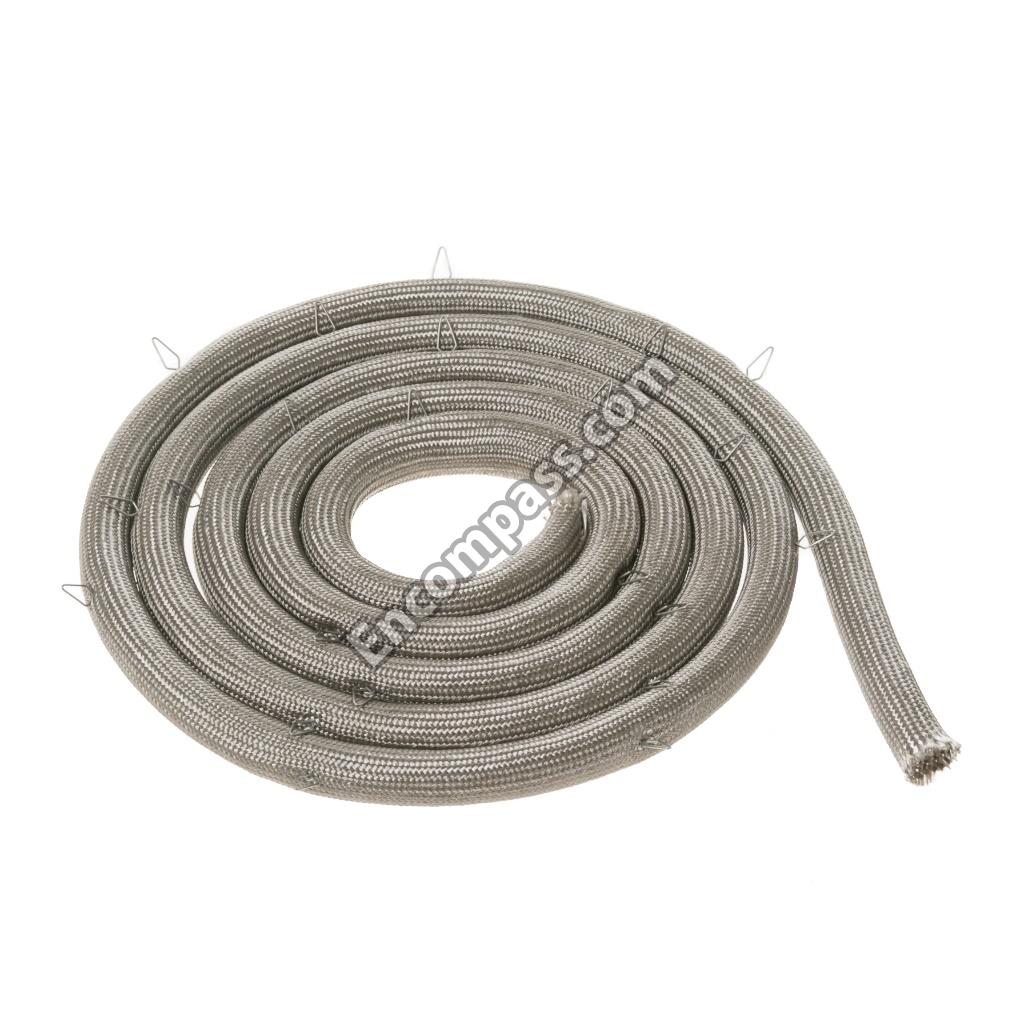

WB32T10012 WB32T10012 GASKET OVN DR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB06T10012 WB06T10012 GUIDE ROLLER ASSEMBLY
WB15T10181 WB15T10181 HANDLE OVN DR 27 (GE-WH)

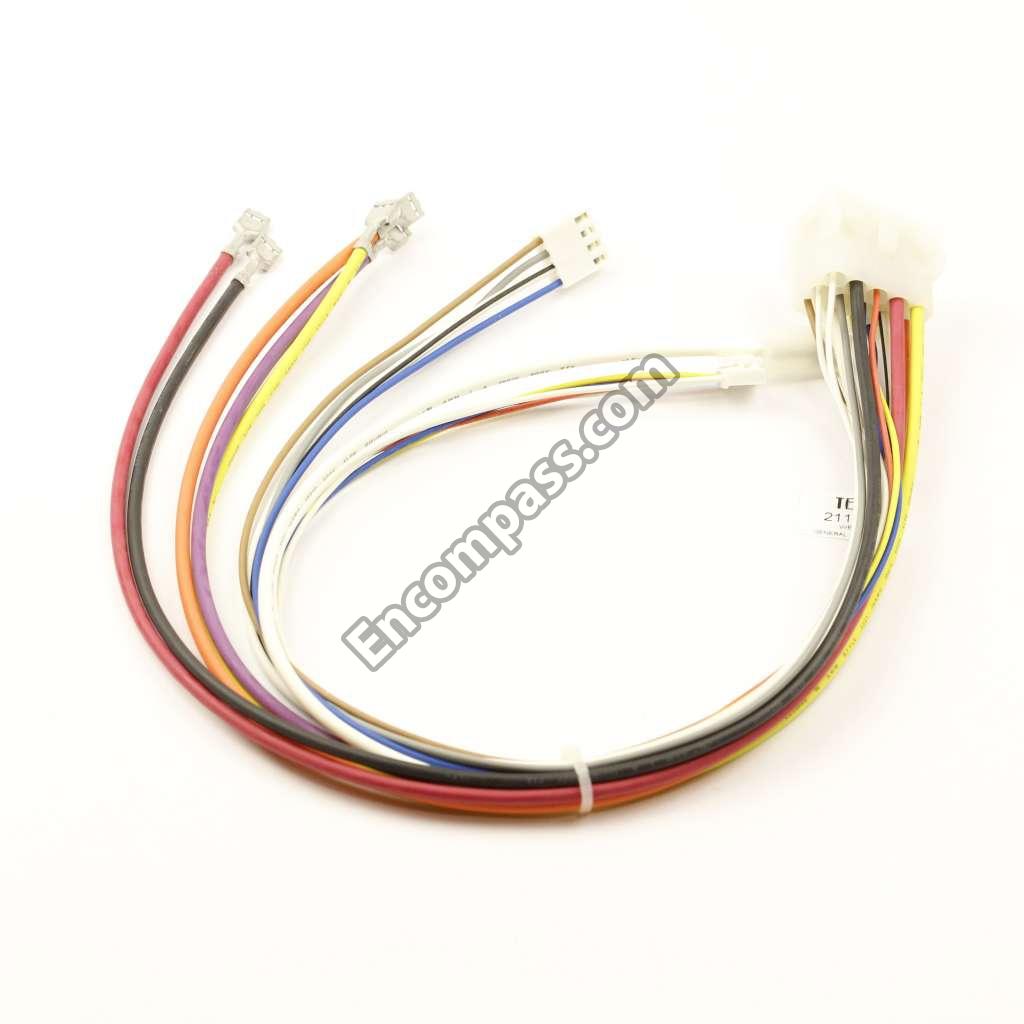

WB18T10323 WB18T10323 HARNESS WIRE CNTL
WB10T10111 WB10T10111 HINGE DOOR LT
WB10T10110 WB10T10110 HINGE DOOR RT
WB06X0549 WB06X0549 HOLDER-SENSOR
WB6X549 WB6X549 HOLDER-SENSR
WB02T10498 WB02T10498 HOUSING FAN
31-10730 31-10730 INSTRUCTION INSTALL
WB35T10176 WB35T10176 INSULATION BACK
WB35T10175 WB35T10175 INSULATION TOP AND SIDES
WB35T10174 WB35T10174 INSULATION TOP BCK & BTM
229C5598P002 229C5598P002 LABEL WIRE DIAG

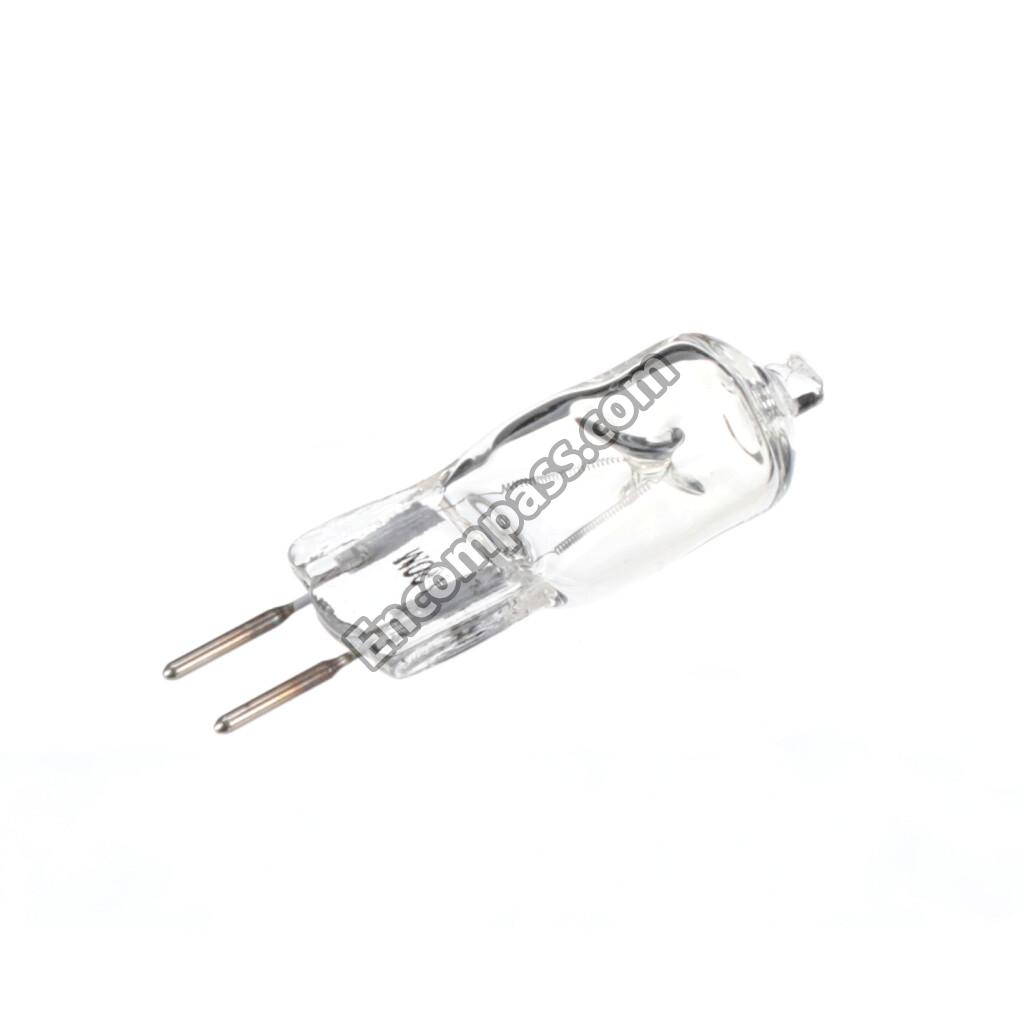

WB49X29679 WB49X29679 LAMO HALOGEN

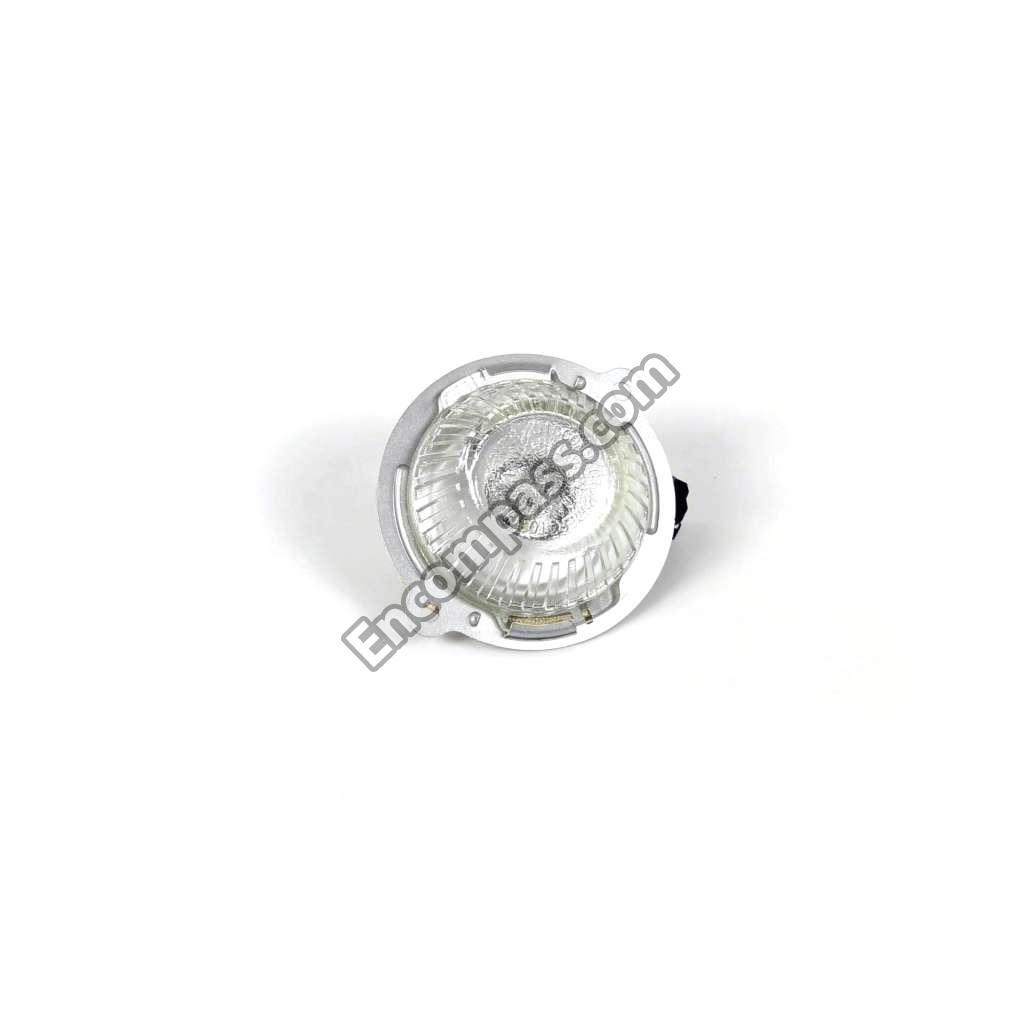

WB25T10096 WB25T10096 LAMP HALOGEN ASM
WB36X10194 WB36X10194 LAMP:125V25W

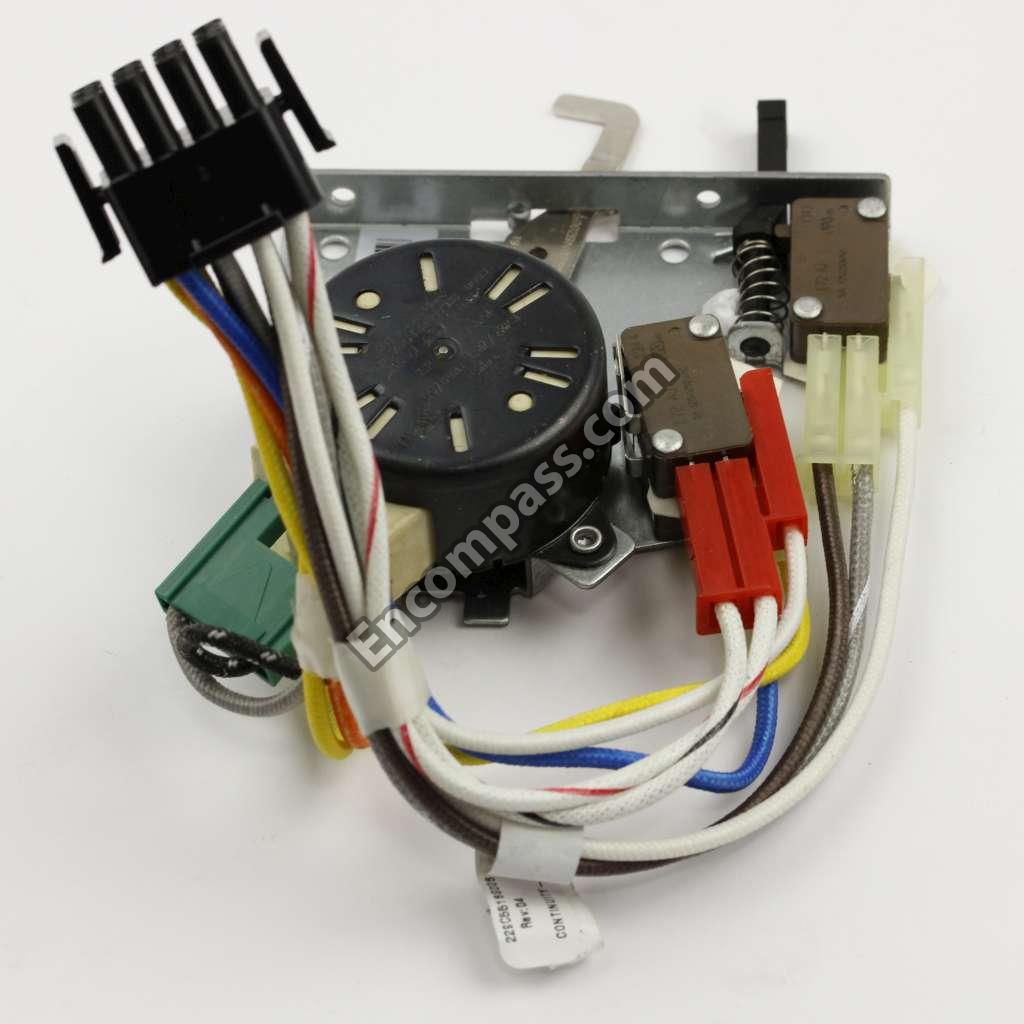

WB14T10071 WB14T10071 LATCH OVEN ASM

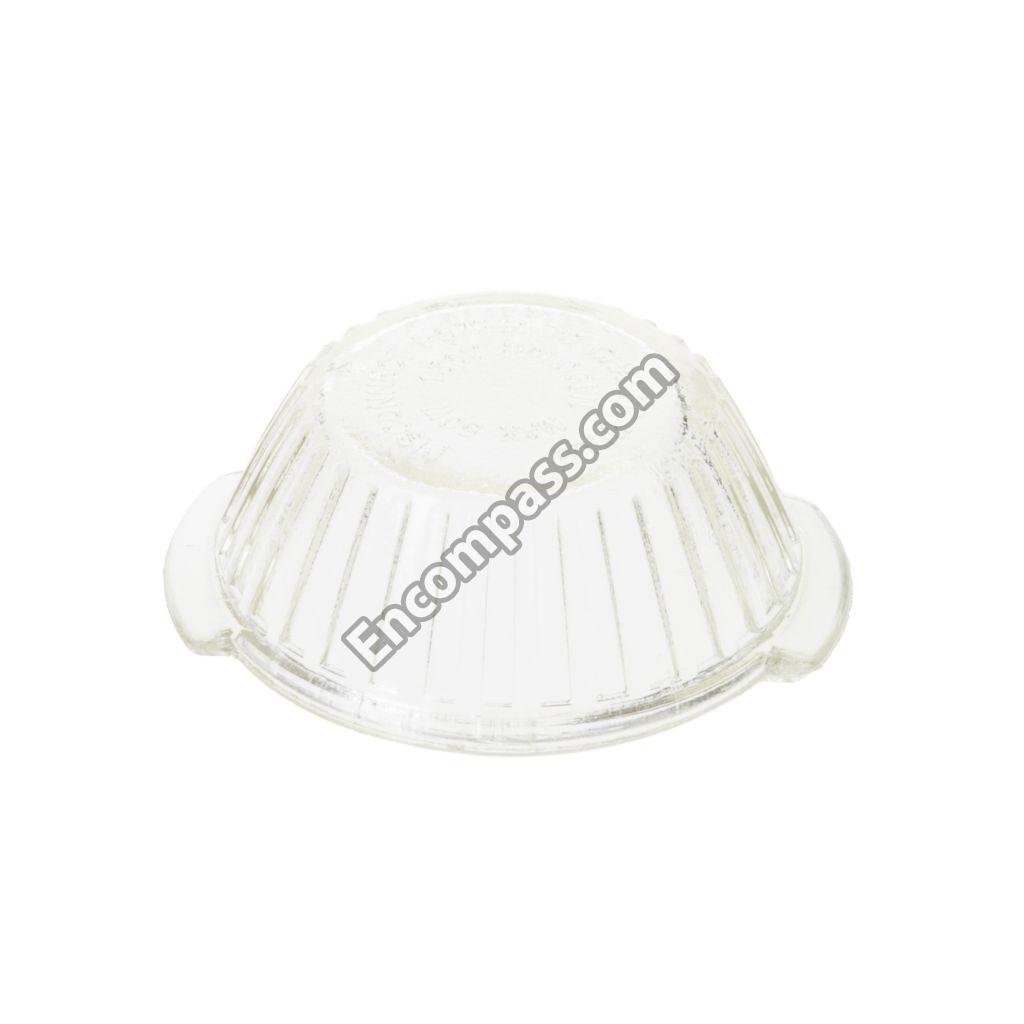

WB25T10027 WB25T10027 LENS OVEN LAMP
WB10X10015 WB10X10015 LEVER DOOR POM
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10168 WB55T10168 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB27X10516 WB27X10516 MAGNETRON

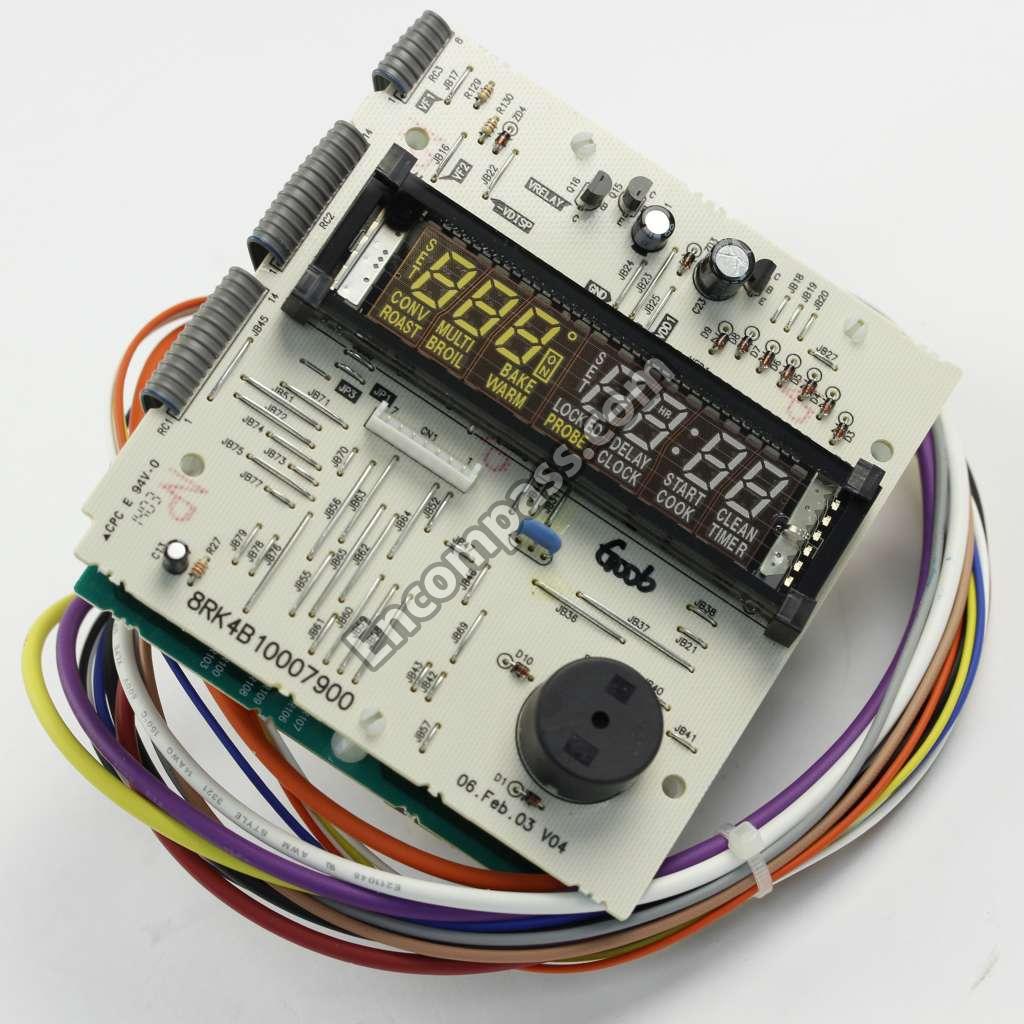

WB27T11249 WB27T11249 MAIN CONTROL BOARD
WB18T10536 WB18T10536 MAIN WIRE HARNESS
31-14797 31-14797 MANUAL MINI & WD ASM
WB27X10597 WB27X10597 MICROWAVE DIODE
WB24X830 WB24X830 MICROWAVE OVEN DOOR SWITCH
31-41013 31-41013 MINI MANUAL

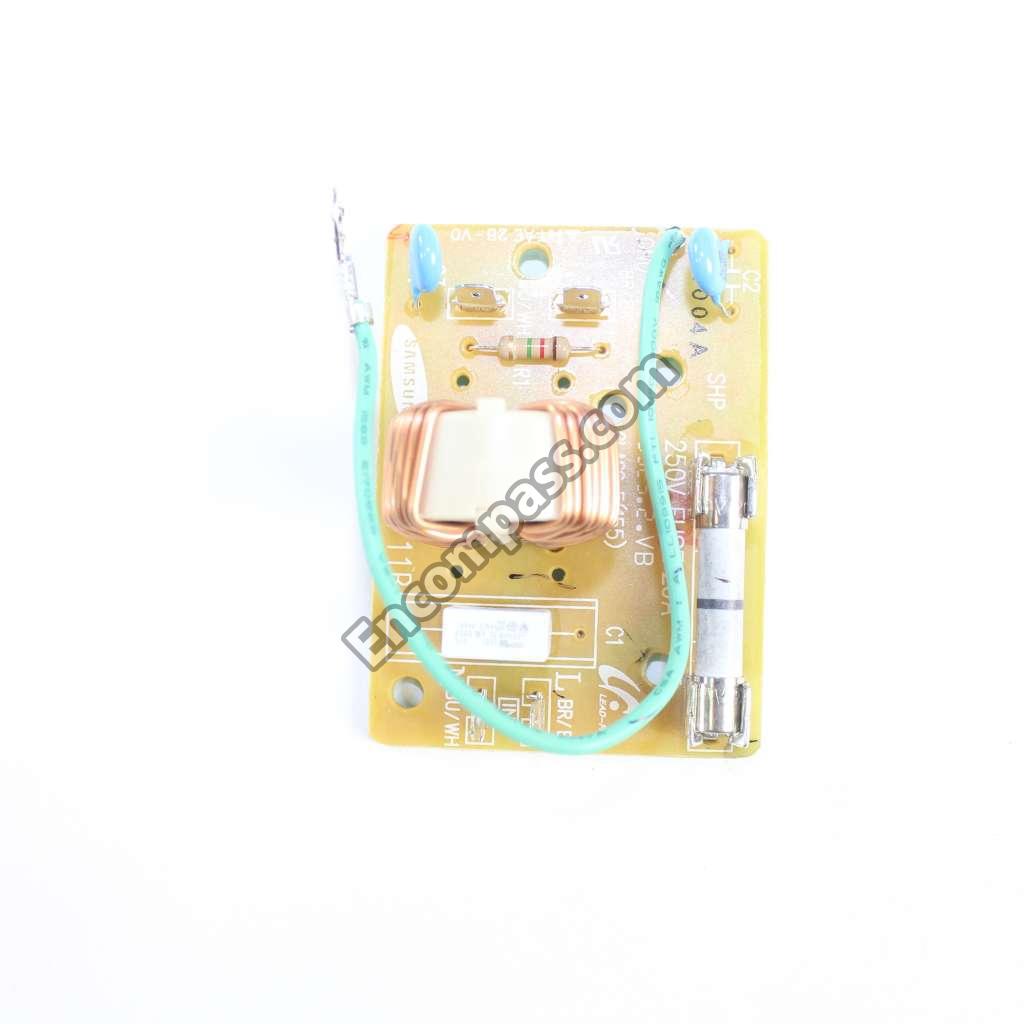

WB02X11243 WB02X11243 NOISE FILTER
WB35T10061 WB35T10061 OVEN DOOR INSULATION SDE
WB35T10062 WB35T10062 OVEN DOOR INSULATION TOP
WB49T10016 WB49T10016 PAN REFLECTOR
WB49T10017 WB49T10017 PAN REFLECTOR SIDE
WB63T10039 WB63T10039 PANEL OUTER:EG1
31-10662 31-10662 PM INSTALL INSTRUCTIONS
WB03T10210 WB03T10210 PUSH-BUTTON BLK

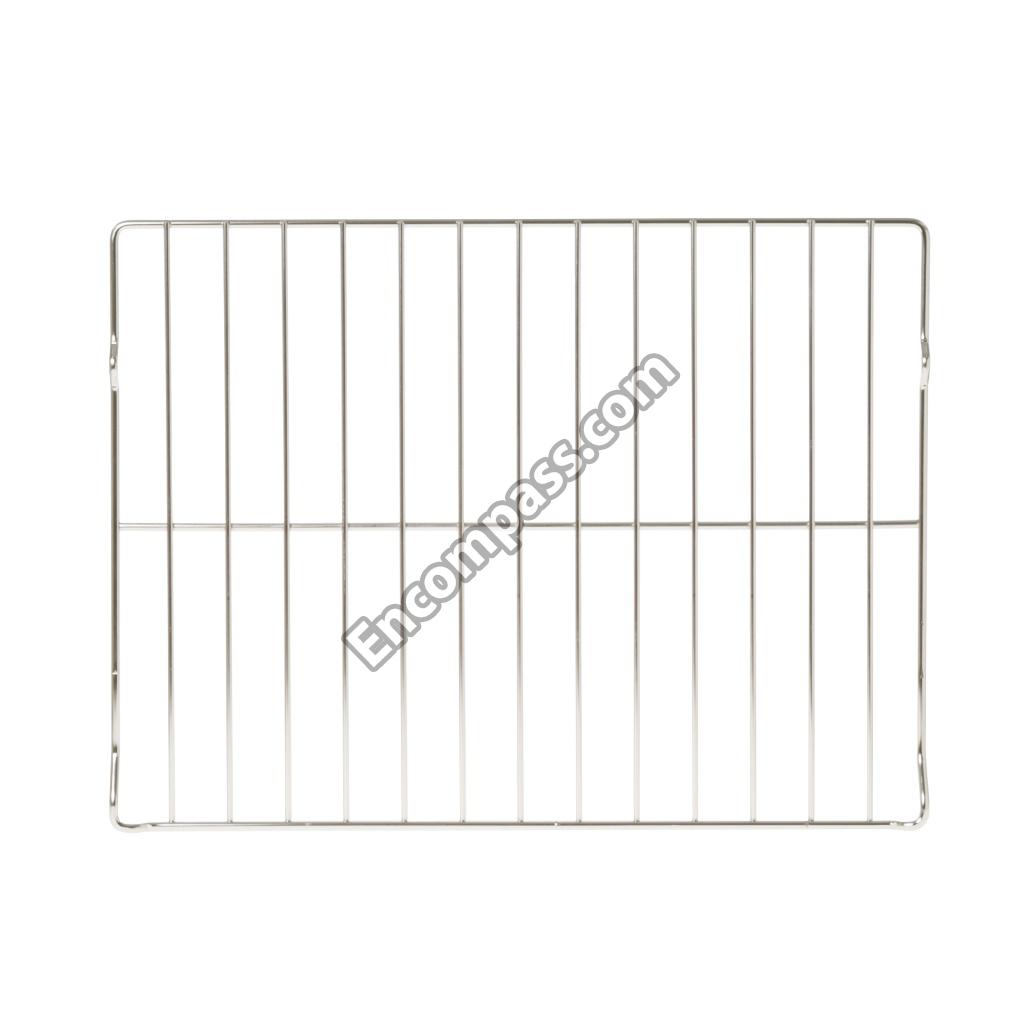

WB48T10045 WB48T10045 RACK OVEN
WB02T10366 WB02T10366 RAIL SLIDE
WB10T10083 WB10T10083 RECEIVER HINGE
WB34T10097 WB34T10097 REFLECTOR HEAT
WB63T10124 WB63T10124 RETAINER INSLN BACK
WB63T10082 WB63T10082 RETAINER INSLN BTM
WB56T10133 WB56T10133 RETAINER INSLN OVN DR
WB63T10125 WB63T10125 RETAINER INSLN SDE
WB02T10356 WB02T10356 RETAINER INSLN TOP

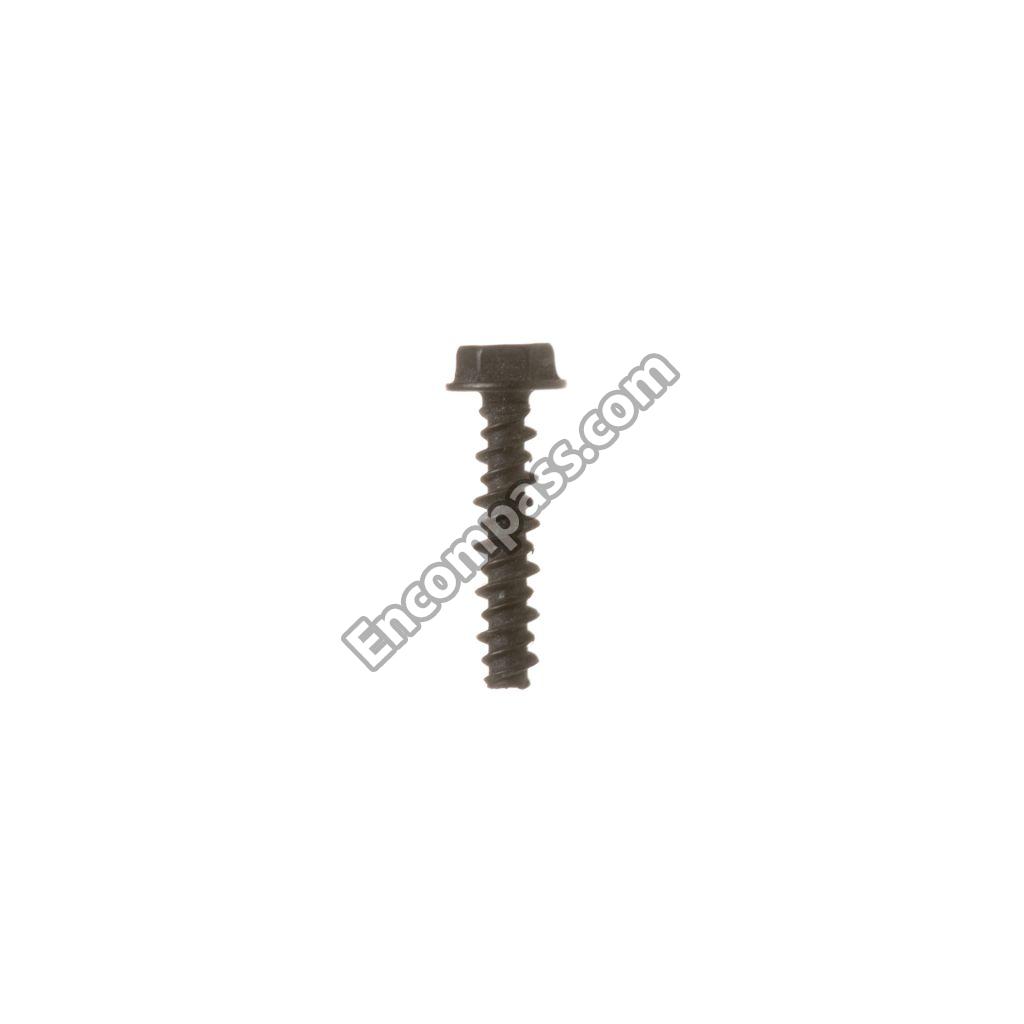

WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01K5200 WB01K5200 SCREW
WB01M0001 WB01M0001 SCREW
WH2X1186 WH2X1186 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW

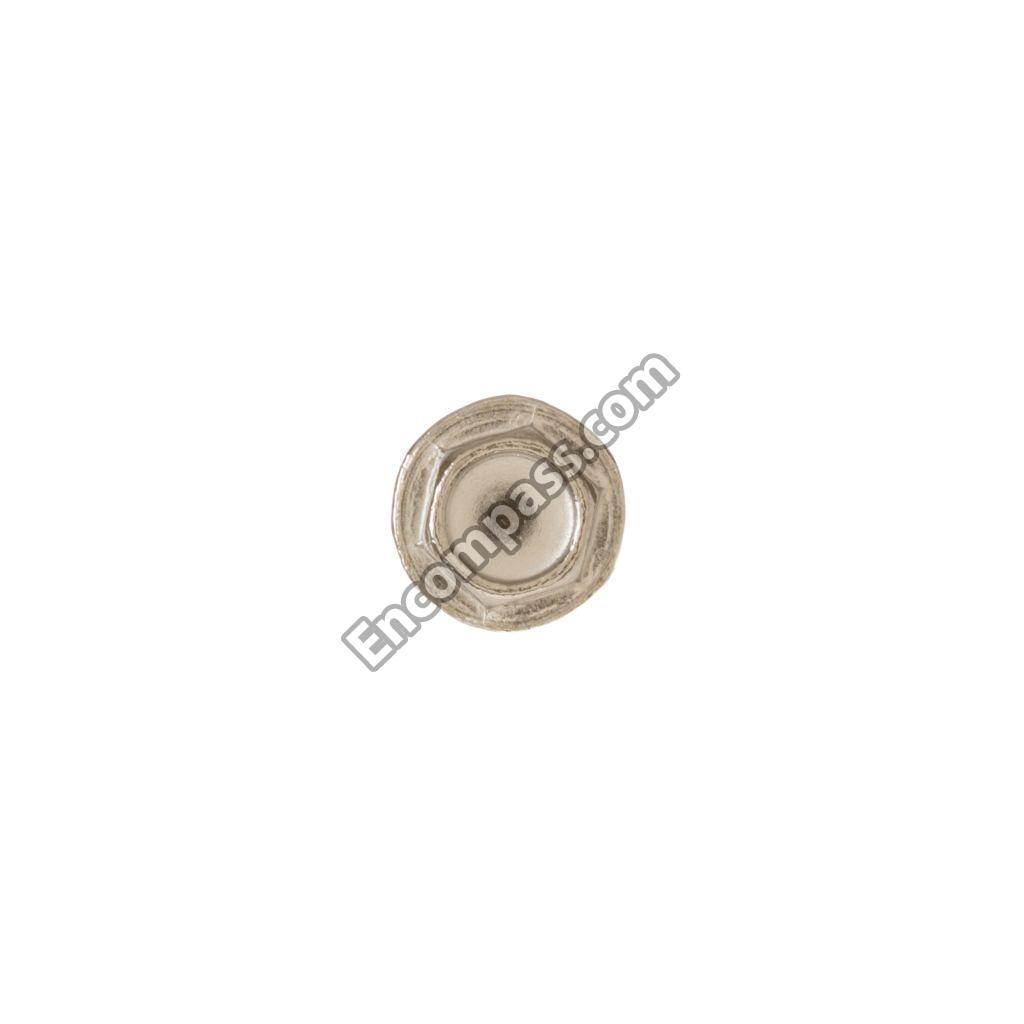

WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10015 WB01T10015 SCREW 6-19X 1 1/4 PAN
WB01T10011 WB01T10011 SCREW 8-18 AB FLT 375 W

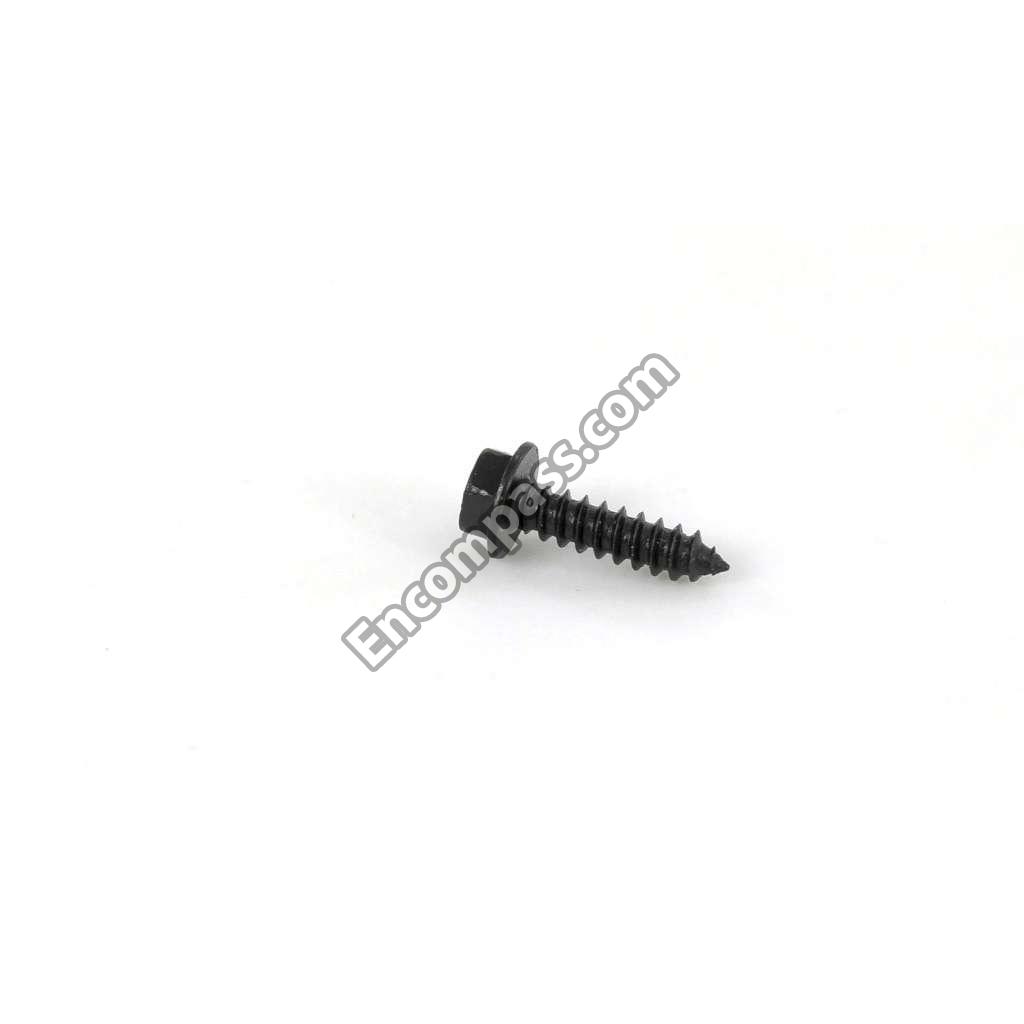

WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""

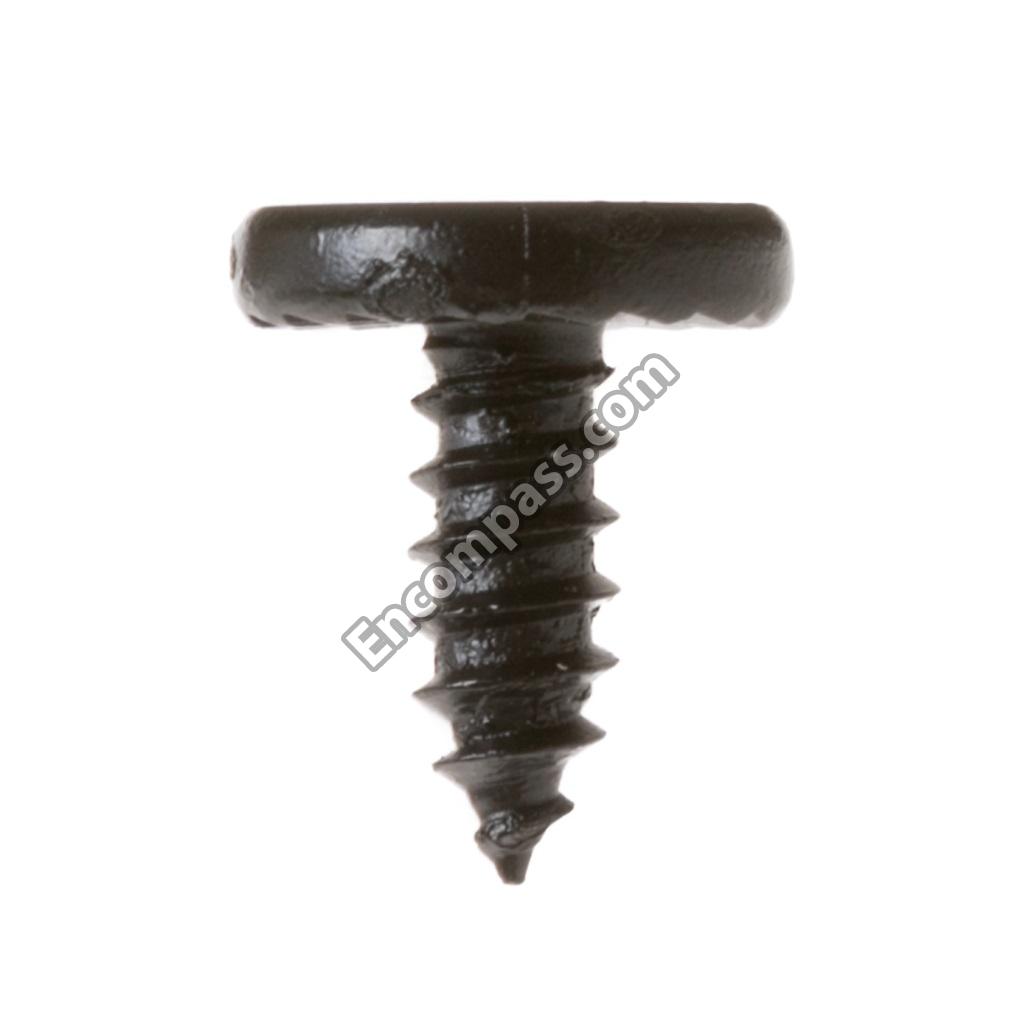

WB1K5157 WB1K5157 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WB21X22134 WB21X22134 SENSOR ASSEMBLY
WB27X1170 WB27X1170 SENSOR HUMIDITY
WB02T10524 WB02T10524 SPACER DOOR HDL
WB09X0308 WB09X0308 SPRING-BUTTON
WB09X10009 WB09X10009 SPRING-BUTTON
WB24X829 WB24X829 SW-SECONDARY
WB24T10081 WB24T10081 SWITCH HIGH LMT OV BACK
WB24T10127 WB24T10127 SWITCH LIMIT BIMETAL
WB24X0829 WB24X0829 SWITCH-MICRO
WB24X0830 WB24X0830 SWITCH-MICRO
WB26X0172 WB26X0172 T/T MOTOR
WB26X172 WB26X172 T/T MOTOR
WB01T10052 WB01T10052 TAPE FOAM

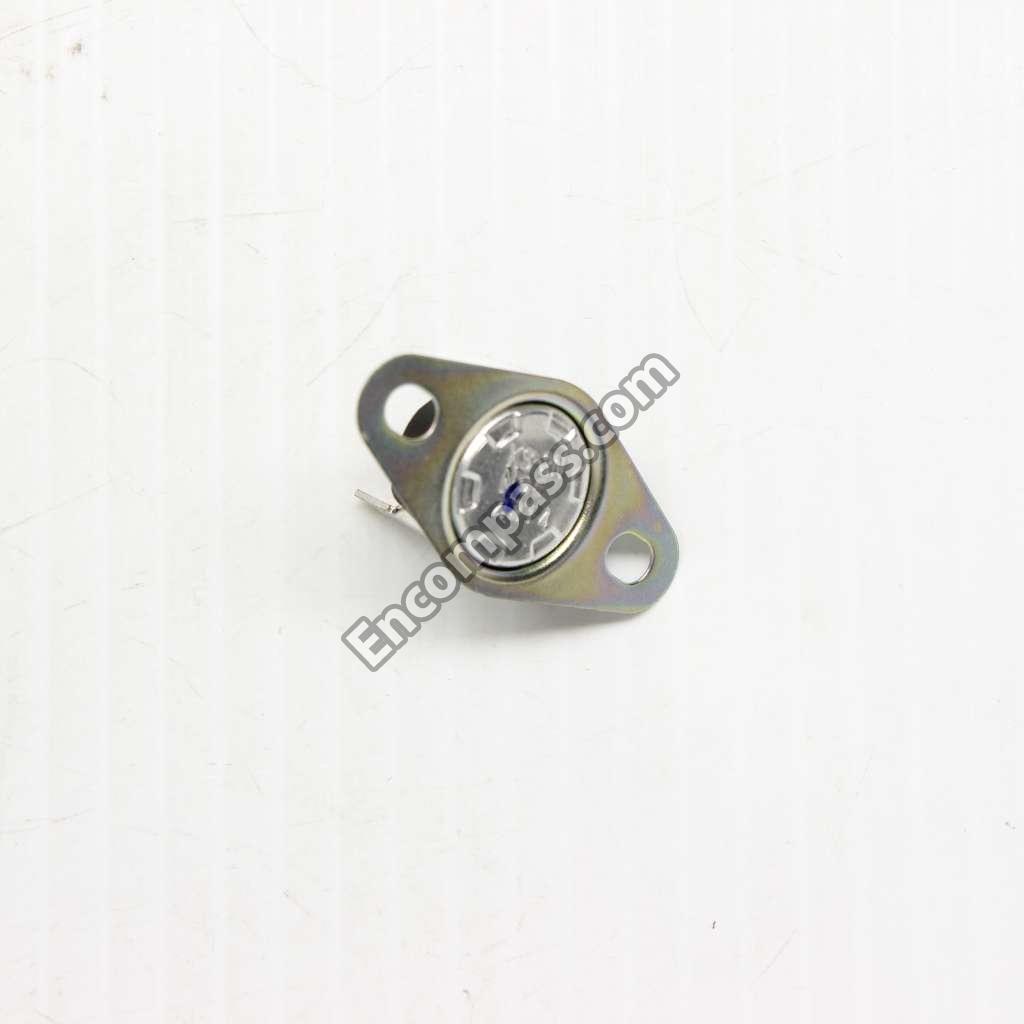

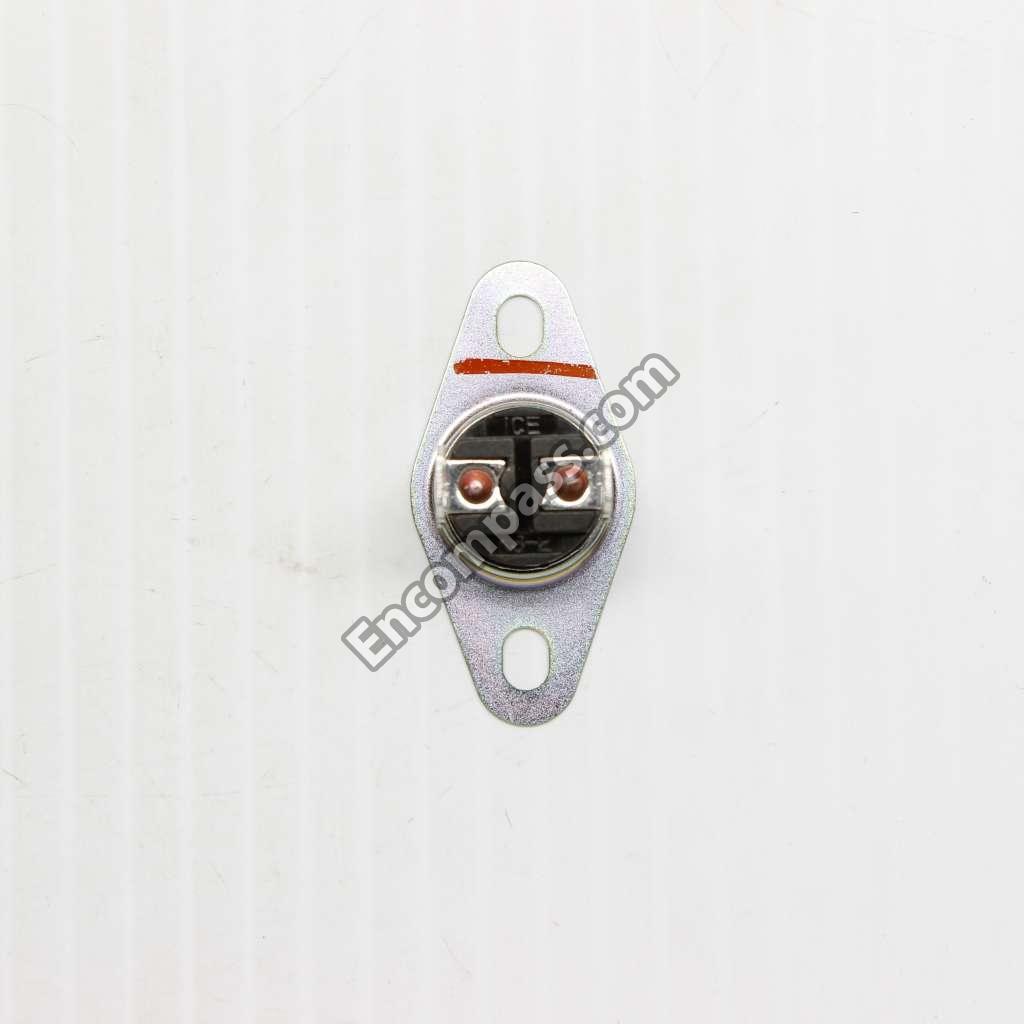

WB24X10025 WB24X10025 THERMOSTAT
WB27X10166 WB27X10166 THERMOSTAT
WB27X10189 WB27X10189 TRANS-H.V
WB49X0690 WB49X0690 TRAY-COOKING
WB49X690 WB49X690 TRAY-GLASS
WB07T10572 WB07T10572 TRIM ASSEMBLY 27 (WHITE)
WB07T10547 WB07T10547 TRIM BTM CAB 27 (WH)
WB07T10569 WB07T10569 TRIM MDL SS 27 (WH)
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB07T10539 WB07T10539 TRIM VENT
WB07T10571 WB07T10571 TRIM VERT SDE 27 LEFT (WHITE)
WB07T10570 WB07T10570 TRIM VERT SDE 27 RT (WHITE)
WB38X33650 WB38X33650 TUBE VENT
WB28T10214 WB28T10214 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB55T10086 WB55T10086 WINDOW PACK ASSEMBLY
WB63T10126 WB63T10126 WRAPPER OVN CAV ASM
