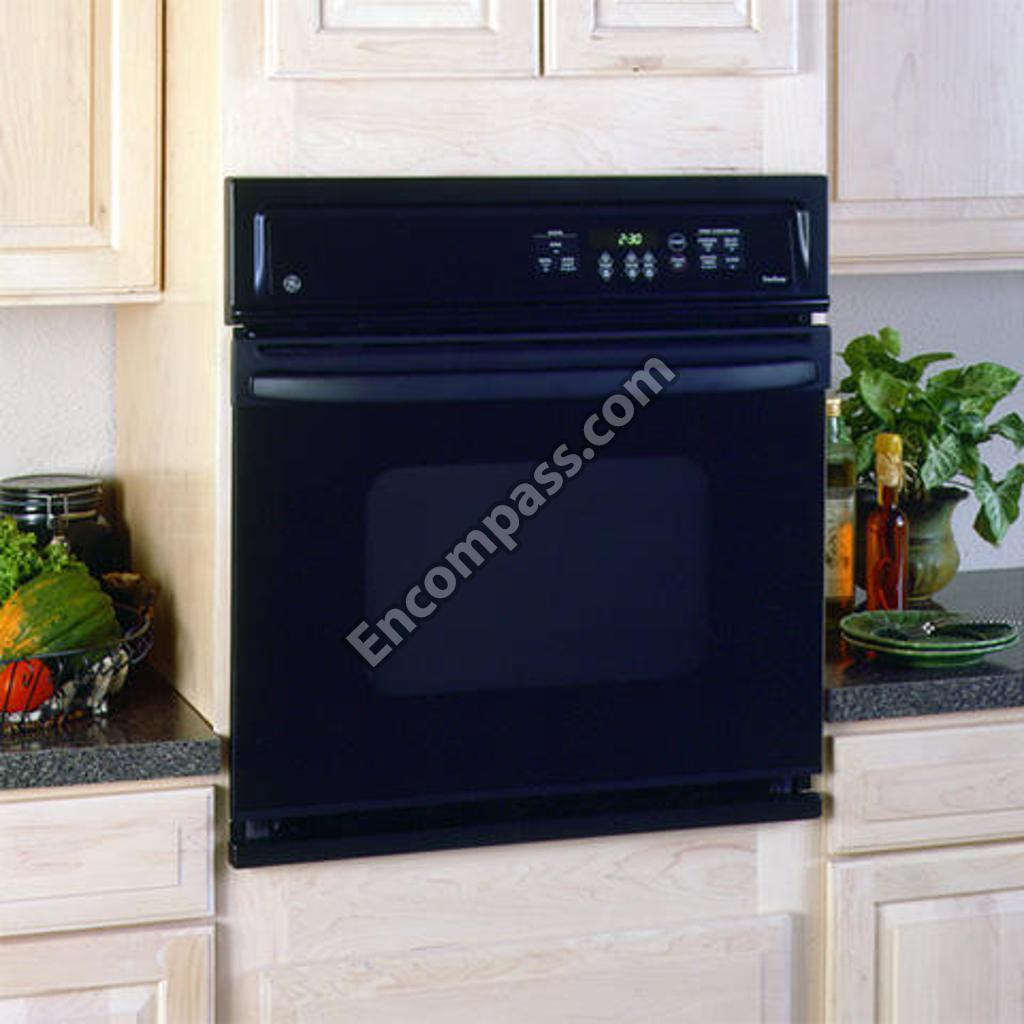

Model Image
Manufacturer

GE

Model Number

JKS05BA3BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB34K5080 WB34K5080 345080
WB63K5167 WB63K5167 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB63K5210 WB63K5210 BODY SIDE EXTENSION-R
WB07T10060 WB07T10060 BOTTOM TRIM (BLACK)
WB44K5009 WB44K5009 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB63K5080 WB63K5080 CABINET BOTTOM
WB63T10043 WB63T10043 CABINET SIDE
WB02X9573 WB02X9573 CLIP
WB01K5209 WB01K5209 CLIP
WB2X9573 WB2X9573 CLIP
WB1K5209 WB1K5209 CLIP
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5364 WB18K5364 CONDUIT WIRE ASSEMBLY
WB34K5082 WB34K5082 CONDUIT WIRE COVER
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB34K5068 WB34K5068 COVER LATCH OPNG
WB63T10037 WB63T10037 COVER TOP
WB34K5069 WB34K5069 COVER WIRE ELEMENT
WB44T10064 WB44T10064 ELEMENT BAKE (2000W)
WB26K5045 WB26K5045 FAN ASSEMBLY-UPPER
WB2K5257 WB2K5257 FAN SUPPORT
WB02K5257 WB02K5257 FAN SUPPORT-UPPER
WB63T10036 WB63T10036 FRONT FRAME
WB07T10059 WB07T10059 FT FRAME TRIM LWR (BLACK)
WB02K5225 WB02K5225 GROMMET STRIP (.020)
WB2K5225 WB2K5225 GROMMET STRP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10045 WB15T10045 HANDLE OVEN DR
WB18T10037 WB18T10037 HARNESS WIRE MAIN
345080 345080 HEAT REFLECT
WB10T10011 WB10T10011 HINGE OVEN DR ASSEMBLY
WB07T10057 WB07T10057 INR VENT TRIM (BLACK)
31-10461 31-10461 INSTRUCTIONS INSTALL
WB35K5040 WB35K5040 INSULATION BACK & BTM
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB35K5042 WB35K5042 INSULATION WRAPPER OUT
WB35K5041 WB35K5041 INSULATION-INNER WRAP-LO
WB35K5112 WB35K5112 INSULATOR MODULE
WB36X192 WB36X192 LAMP COV ASM
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB24K5029 WB24K5029 LIMIT SWITCH-LOWER(BACK)
WB55T10059 WB55T10059 LINING OVEN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
31-13911 31-13911 MANUAL MINI & WD ASM
49-8910 49-8910 MANUAL USE & CARE
WB10T10012 WB10T10012 OV DR HINGE ASSEMBLY-RT
WB02T10016 WB02T10016 OV DR INSLN RETAINER
WB57T10078 WB57T10078 OV DR OUTER GLASS BLK
WB8K5029 WB8K5029 OV LAMP HLDR
WB2X7693 WB2X7693 OV LIGHT CUP
WB55T10024 WB55T10024 OVEN DOOR FRAME ASSEMBLY (BLAC
WB02X7693 WB02X7693 OVEN LIGHT CUP
WB27T10274 WB27T10274 OVN CONTROL ERC3B
WB36T10518 WB36T10518 PANEL CONTROL ASSEMBLY (BLK)
WB2K5395 WB2K5395 PLATE REINFO
WB2X9587 WB2X9587 PLUG
WB03K5043 WB03K5043 PLUG BUTTON
WB3K5043 WB3K5043 PLUG BUTTON
WB02X9587 WB02X9587 PLUG BUTTON-ROUND
WB48T10093 WB48T10093 RACK OV
WB63K5079 WB63K5079 RAIL BASE
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB08K5029 WB08K5029 RECEPTACLE
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB01X1297 WB01X1297 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5138 WB01K5138 SCREW
WB01K5162 WB01K5162 SCREW
WB1X1293 WB1X1293 SCREW
WB1M1 WB1M1 SCREW
WB1X1164 WB1X1164 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5157 WB1K5157 SCREW
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5162 WB1K5162 SCREW-BLACK
WB32K5050 WB32K5050 SEAL OV DR
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB07T10061 WB07T10061 SHIELD DR TRIM
WB63K5209 WB63K5209 SIDE EXTENSION LT
WB02T10015 WB02T10015 SPACER WINDOW
WB2X9719 WB2X9719 SUPP-BROIL
WB07T10082 WB07T10082 TRIM DR VENT (BLACK)
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10056 WB07T10056 TRIM VERT SDE LEFT (BLACK)
WB07T10055 WB07T10055 TRIM VERT SDE RT (BLA
WB28K5010 WB28K5010 TUBE VENT
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB24K5033 WB24K5033 UNKNOWN
WB28T10009 WB28T10009 VENT TUBE
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB02X8320 WB02X8320 WINDOW CLIP
WB56T10004 WB56T10004 WINDOW PACK KIT-LARGE
WB34T10006 WB34T10006 WIRE COVER
WB34K5067 WB34K5067 WIRE COVER BOTTOM
WB63T10053 WB63T10053 WRAPPER OVEN CAV ASSEMBLY
