Manufacturer
GE
Model Number
JKS3000SN2SS
Description

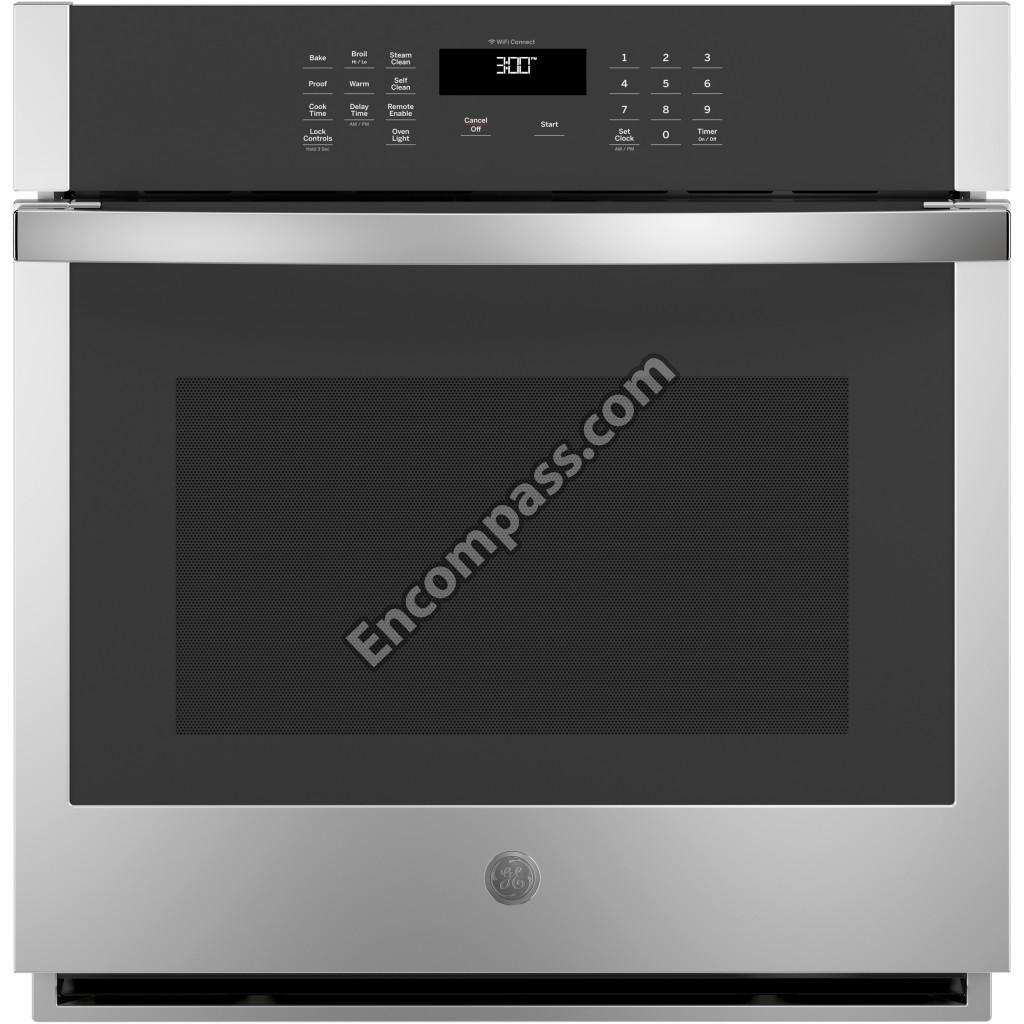

Electric Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
6-19 X 1/4 TORX PAN HEAD |
|
|
BADGE ASM |
|
|
BLOCK TERMINAL |
|
|
BOARD FAN SENSOR |
|
|
BOARD WIFI CAT MODULE |
|
|
BOTTOM TRIM |
|
|
BRACE VERTICAL LEFT BLK |
|
|
BRACE VERTICAL RIGHT BLK |
|
|
BRACKET UPPER FAN MOUNT |
|
|
BROIL ELEMENT |
|
|
BUMPER DOOR |
|
|
CHANNEL REAR |
|
|
CHANNEL REAR |
|
|
CHANNEL UPPER AIR VENT |
|
|
CONDUIT WIRE SWO |
|
|
CONTROL PANEL MOUNTING BRACKET |
|
|
CONTROL RC17 (FLASHED) |
|
|
COVER - UPPER REAR DUCT |
|
|
COVER BOTTOM AIR DUCT |
|
|
COVER DOOR LATCH ACCESS |
|
|
COVER HIDDEN BAKE |
|
|
COVER TOP FRONT |
|
|
COVER TOP LEFT EDGE |
|
|
COVER TOP RIGHT EDGE |
|
|
COVER WIRE REAR |
|
|
DIVIDER AIR CENTER |
|
|
DOOR HINGE LT |
|
|
DOOR HINGE RT |
|
|
DOOR INSULATION RETAINER |
|
|
DOOR LATCH ASM |
|
|
DOOR LATCH COM HARNESS WIRE |
|
|
DOOR LINER PLUG |
|
|
DOOR SIDE INSULATION |
|
|
ELEMENT BROIL ASM |
|
|
FAN BLOWER |
|
|
GASKET BROIL ELEMENT |
|
|
GASKET OVEN DOOR |
|
|
GROMMET |
|
|
HALOGEN LAMP ASM |
|
|
HEX NUT |
|
|
HIDDEN BAKE ELEMENT |
|
|
HIDDEN BAKE ELEMENT KIT |
|
|
HINGE BRACKET ASM KIT |
|
|
HOUSING TRANSCEIVER |
|
|
INSTRUCTION INSTALL |
|
|
INSULATION DR TOP |
|
|
JUMPER |
|
|
LAMP HALOGEN BULB G9 |
|
|
LINER SUPPORT |
|
|
MAIN HARNESS WIRE |
|
|
OPTIONAL 6 FT CONDUIT |
|
|
OUTER DOOR-STAINLESS |
|
|
OVEN DOOR LINER ASM |
|
|
OVEN LIGHT CAMERA LENS |
|
|
OVEN RACK |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM OWNERS MANUAL |
|
|
RETAINER INSLN BACK |
|
|
RJ45 BRACKET |
|
|
SCR 8-18 AB TRT20NBS 5/8 |
|
|
SCREEN SUPPORT |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 10-32 HEX 1 3/4 IN |
|
|
SCREW 10-32 TR T |
|
|
SCREW 7-19 1/4HEX 1/2IN |
|
|
SCREW 8-18 AB HXW 3/8 |
|
|
SCREW GROUND |
|
|
SCREW ST10-16 X 7/16"" |
|
|
SCREW-NICKLE |
|
|
SENSOR ASM |
|
|
STAINLESS STEEL HANDLE AND ENDCAP |
|
|
STAINLESS TRIM VERT SIDE (SWO) |
|
|
STAINLESS UI LCD CONTROL PANEL |
|
|
SWITCH HIGH LIMIT |
|
|
TOP REAR COVER |
|
|
TRIM VENT LOWER BLACK |
|
|
UI COM AND RJ45 HARNESS |
|
|
UPPER VENT TRIM |
|
|
WINDOW PACK ASM |
