Model Image
Manufacturer

GE

Model Number

JMC27G*J4

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB03X5699 WB03X5699 ""TIMER-KNOB""
WB3X5699 WB3X5699 3-TIMER KNOB
40A15 40A15 40WATT 15AMP
WB32X10012 WB32X10012 6 INCH CHROME BURNER PAN - ELE
WB31X5013 WB31X5013 6 INCH CHROME TRIM RING - ELEC
WB32X10013 WB32X10013 8 INCH CHROME BURNER PAN - ELE
WB02X7749 WB02X7749 ALUMINUM FOIL
WB59X0071 WB59X0071 ANGLE REAR
WB02X1626 WB02X1626 BAFFLE
WB2X1626 WB2X1626 BAFFLE
WB2X7694 WB2X7694 BAIL
WB44X0192 WB44X0192 BAKE UNIT 208V/240V L.O.
WB44X5082 WB44X5082 BAKE UNIT 236V
WB02X3345 WB02X3345 BARRIER
WB2X3345 WB2X3345 BARRIER
WB38X0063 WB38X0063 BODY VENT
WB38X63 WB38X63 BODY VENT
WB38X0065 WB38X0065 BODY VENT ASM WELD
WB02X3340 WB02X3340 BRACE BOTTOM
WB02X3339 WB02X3339 BRACE SIDE LH
WB02X3338 WB02X3338 BRACE SIDE RH
WB02X3342 WB02X3342 BRACE TOP
WB02X5409 WB02X5409 BRACKET THERMOSTAT
WB2X1452 WB2X1452 BROIL SUPPT
WB44X0180 WB44X0180 BROIL UNIT 208/240V L.O.
WB44X134 WB44X134 BROIL UNT FX
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB32X0052 WB32X0052 CENTER TRIM 6"" UNIT
WB32X0051 WB32X0051 CENTER TRIM 8"" UNIT
WB32X52 WB32X52 CENTER TRIM SAYS GENUINE CALRO
WB32X51 WB32X51 CENTER TRIM SAYS GENUINE CALRO
WB59X0107 WB59X0107 CHANNEL BOTTOM
WB02X2401 WB02X2401 CHANNEL SIDE
WB1X386 WB1X386 CLAMP
WB2X3014 WB2X3014 CLAMP
WB2X3331 WB2X3331 CLAMP **NLA*
WB02X3014 WB02X3014 CLAMP CONDUIT
WB02X3331 WB02X3331 CLAMP CRYSTAL
WB01X0386 WB01X0386 CLAMP HARNESS
WB02X3347 WB02X3347 CLAMP TRIM
WB02X1185 WB02X1185 CLIP
WB2X1185 WB2X1185 CLIP
WB02X3471 WB02X3471 CLIP CAPILLARY TUBEOVEN
WB02X0574 WB02X0574 CLIP INSULATOR
WB02X0995 WB02X0995 CLIP LEAD
WB2X3471 WB2X3471 CLIP TUBE SU
WB2X574D WB2X574D CLIP-PKG 12
WB01X0119 WB01X0119 CONTOURED WASHER
WB62X1448 WB62X1448 COOKTOP ALMOND
WB62X1447 WB62X1447 COOKTOP HA
WB62X1444 WB62X1444 COOKTOP-WHITE
WB49X0359 WB49X0359 COVER
WB02X1448 WB02X1448 COVER
WB59X0106 WB59X0106 COVER SIDE
WB36X113 WB36X113 CRYSTAL
WB36X556 WB36X556 CRYSTAL BG
WB36X0113 WB36X0113 CRYSTAL TIMER
WB36X0526 WB36X0526 CRYSTAL WINDOW
WB07X1139 WB07X1139 DEFLECTOR
WB07X0558 WB07X0558 END CAP
WB7X558 WB7X558 END CAP
WB2X7749 WB2X7749 FOIL ALUM
WB56X1326 WB56X1326 FRAME
WB2X3284 WB2X3284 FRAME
WB02X3284 WB02X3284 FRAME WINDOW
WB02X3344 WB02X3344 GASKET
WB2X3383 WB2X3383 GASKET
WB2X3346 WB2X3346 GASKET
WB2X2058 WB2X2058 GASKET
WB02X3346 WB02X3346 GASKET SILICONE
WB02X2058 WB02X2058 GASKET SILICONE
WB36X0556 WB36X0556 GLASS BLACK
WB15X154 WB15X154 GRIP
WB15X0154 WB15X0154 GRIP ASM HANDLE
WB59X5030 WB59X5030 GUARD
WB59X0069 WB59X0069 GUARD BOTTOM
WB55X0403 WB55X0403 GUARD INSULATION
WB59X0105 WB59X0105 GUARD SIDE
WB59X0172 WB59X0172 GUARD TERMINAL
WB2X1460 WB2X1460 GUIDE
WB02X1460 WB02X1460 GUIDE LEVER LOWER OVEN
WB59X0108 WB59X0108 GUSSET
WB10X0151 WB10X0151 HINGE LEVER RH & LH
WB2X6195 WB2X6195 HINGE PIN
WB10X155 WB10X155 HINGE SUP LH
WB10X154 WB10X154 HINGE SUP RH
WB02X1608 WB02X1608 INDICATOR LAMP
31-0653 31-0653 INSTALL INSTRUCTIONS
WB02X3417 WB02X3417 INSULATION
WB2X3417 WB2X3417 INSULATION **NLA*
WB02X3283 WB02X3283 INSULATION DOOR
WB55X0409 WB55X0409 INSULATION GUARD TOP
WB2X2398 WB2X2398 INSULATOR
WB25X0065 WB25X0065 JEWEL
WB25X65 WB25X65 JEWEL
WB3X439 WB3X439 KNOB
WB03X0437 WB03X0437 KNOB OVEN SWITCH
WB03X0439 WB03X0439 KNOB SURFACE UNIT
WB3X438 WB3X438 KNOB THERMO

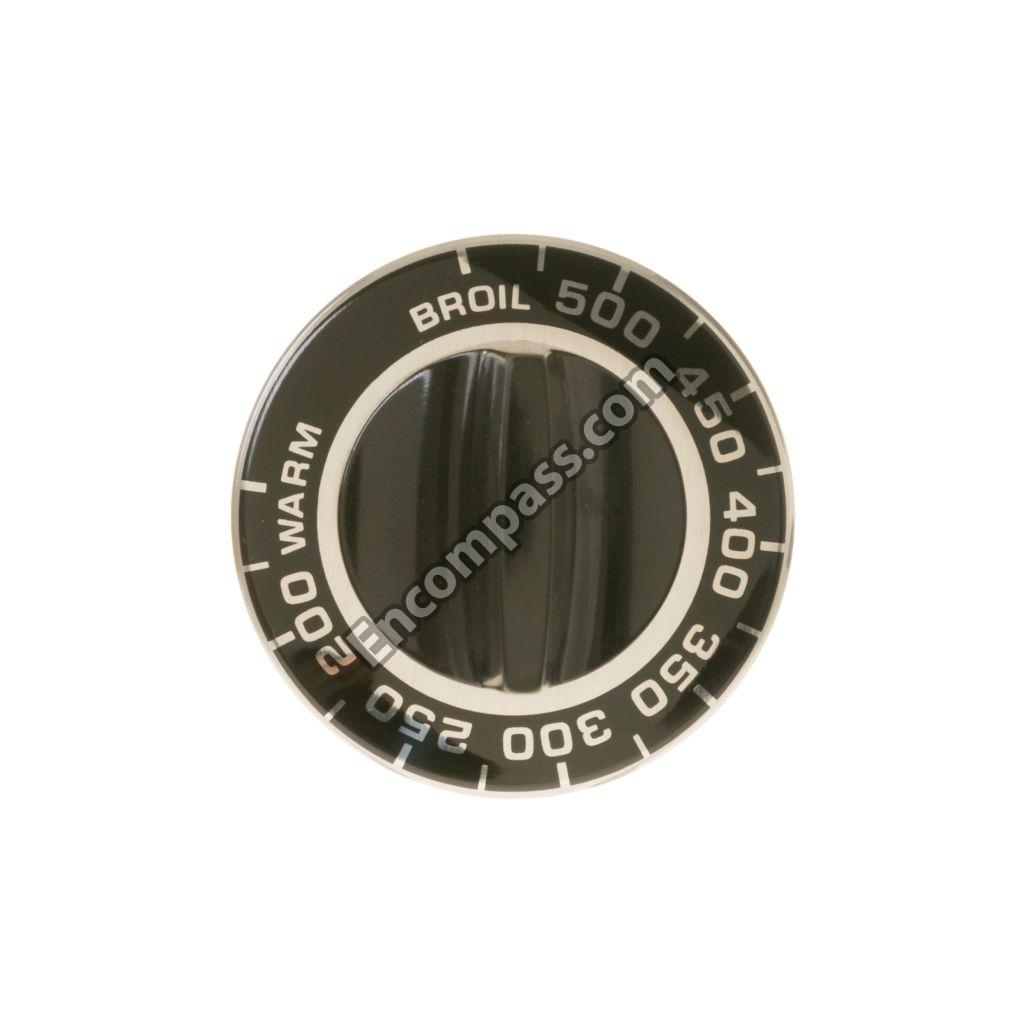

WB03X0438 WB03X0438 KNOB THERMOSTAT
WB36X192 WB36X192 LAMP COV ASM
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB2X3289 WB2X3289 LINK
WB02X3289 WB02X3289 LINK DOOR SPRING
49-4975 49-4975 MANUAL USERS
WB9X151 WB9X151 N.L.A. SPRING
WB10X151 WB10X151 N/L/A 05/10/01
WB19X5283 WB19X5283 N/L/A 10/05/98
WB7X6992 WB7X6992 N/L/A 10/16/02
WB7X6923 WB7X6923 N/L/A 11/04/03
WB2X1608 WB2X1608 NEON LAMP
WB2X3283 WB2X3283 NLA INSULATION
WB01X5220 WB01X5220 NUT MTG INSTRUMENT BRKTS
WB01X0186 WB01X0186 NUT TEE
WB2X7693 WB2X7693 OV LIGHT CUP
WB36X0389 WB36X0389 OVEN LAMP CAMERA LENS
WB02X7693 WB02X7693 OVEN LIGHT CUP
WB53X5135 WB53X5135 OVEN LINER
WB22X5133 WB22X5133 OVEN SWITCH-UPPER
WB02X3285 WB02X3285 PAD
WB2X3285 WB2X3285 PAD
WB02X2100 WB02X2100 PAD END CAP
WB02X6195 WB02X6195 PIN HINGE DOOR
WB48X73 WB48X73 RACK
WB48X0073 WB48X0073 RACK OVEN
WB08X5095 WB08X5095 RECEPTACLE
WB08T10026 WB08T10026 RECEPTACLE PUSH-IN
WB2X1082 WB2X1082 RETAINER
WB02X1082 WB02X1082 RING RETAINING
WB02X1462 WB02X1462 ROLLER
WB2X1462 WB2X1462 ROLLER
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X0352 WB01X0352 SCREW
WB01X0537 WB01X0537 SCREW
WB1X537 WB1X537 SCREW
WZ4X426 WZ4X426 SCREW
WB1X536 WB1X536 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB1X352 WB1X352 SCREW **NLA*
WB01X0593 WB01X0593 SCREW - DOOR ASM (4 PER)
WZ04X0345 WZ04X0345 SCREW 8-18X5/8 HXW
WB1X5364 WB1X5364 SCREW MTG
WZ04X0384 WZ04X0384 SCREW MTG END CAP
WZ04X0426 WZ04X0426 SCREW MTG PANEL
WB01X0558 WB01X0558 SCREW NAIL POINT
WB1X558D WB1X558D SCREW-PKG 12
WZ4X384D WZ4X384D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB1X194D WB1X194D SCREW-PKG 12
WZ4X345D WZ4X345D SCREW-PKG 12
WB02X3383 WB02X3383 SEAL SWITCH
WB02X3179 WB02X3179 SLEEVE
WB2X1409 WB2X1409 SLEEVE
WB02X1409 WB02X1409 SLEEVE CONDUIT
WB2X3179 WB2X3179 SLEEVING **NLA*
WB2X3025 WB2X3025 SPACER **NLA*
WB02X3025 WB02X3025 SPACER DOOR
WB1X585D WB1X585D SPDNUT-PKG12
WB1X580D WB1X580D SPDNUT-PKG12
WB02X3341 WB02X3341 SPEED CLIP
WB01X0420 WB01X0420 SPEEDNUT
WB01X0585 WB01X0585 SPEEDNUT
WB01X0580 WB01X0580 SPEEDNUT
WB01X0187 WB01X0187 SPEEDNUT
WB2X1461 WB2X1461 SPRING
WB9X150 WB9X150 SPRING
WB09X0151 WB09X0151 SPRING DOOR
WB02X1461 WB02X1461 SPRING HINGE LEVER
WB09X0150 WB09X0150 SPRING STOP
WB02X1452 WB02X1452 SUPPORT BROIL
WB10X0155 WB10X0155 SUPPORT HINGE LH
WB10X0154 WB10X0154 SUPPORT HINGE RH
WB30X0359 WB30X0359 SURFACE UNIT, 6""
WB30X0348 WB30X0348 SURFACE UNIT, 8""
WB24K2 WB24K2 SWITCH
WB21X36771 WB21X36771 SWITCH, INF SURFACE UNIT
WB24X0105 WB24X0105 SWITCH, OVEN LIGHT
WB22X5076 WB22X5076 SWITCH, OVEN S.O.
WB24X415 WB24X415 SWITCH-LITE
WB24X5248 WB24X5248 TEMP LIMIT SWITCH
WB2X1351 WB2X1351 TERM BLOCK
WB02X1351 WB02X1351 TERM BLOCK DOUBLE COIL
WB02X2398 WB02X2398 TERM BLOCK SINGLE COIL
WB2X5409 WB2X5409 THERMO BRACK
WB21X5208 WB21X5208 THERMOSTAT U O
WB01X0194 WB01X0194 THUMB SCREW
WB19X0155 WB19X0155 TIMER
WB02X3393 WB02X3393 TRIM CLIP
WB07X6992 WB07X6992 TRIM CONTROL
WB07X1153 WB07X1153 TRIM DOOR
WB7X1153 WB7X1153 TRIM DOOR **NLA*
WB07X1133 WB07X1133 TRIM FILLER LH
WB07X1132 WB07X1132 TRIM FILLER RH
WB07X1154 WB07X1154 TRIM FILTER
WB07X0560 WB07X0560 TRIM SIDE LH
WB07X0561 WB07X0561 TRIM SIDE RH
WB07X0559 WB07X0559 TRIM TOP
WB7X559 WB7X559 TRIM TOP
WB07X6923 WB07X6923 TRIM TOP DOOR
WB38X5062 WB38X5062 TUBE VENT PK **NLA*
WB30X359 WB30X359 UNIT 6 HR
WB30X348 WB30X348 UNIT 8 HR
WB32X0036 WB32X0036 UNIT PAN 6""
WB31X5014 WB31X5014 UNKNOWN
WB1X119D WB1X119D WASHR-PKG 12
WB3X408 WB3X408 WB3X408
WB55X5316 WB55X5316 WB55X5316
WB36X526 WB36X526 WINDOW
