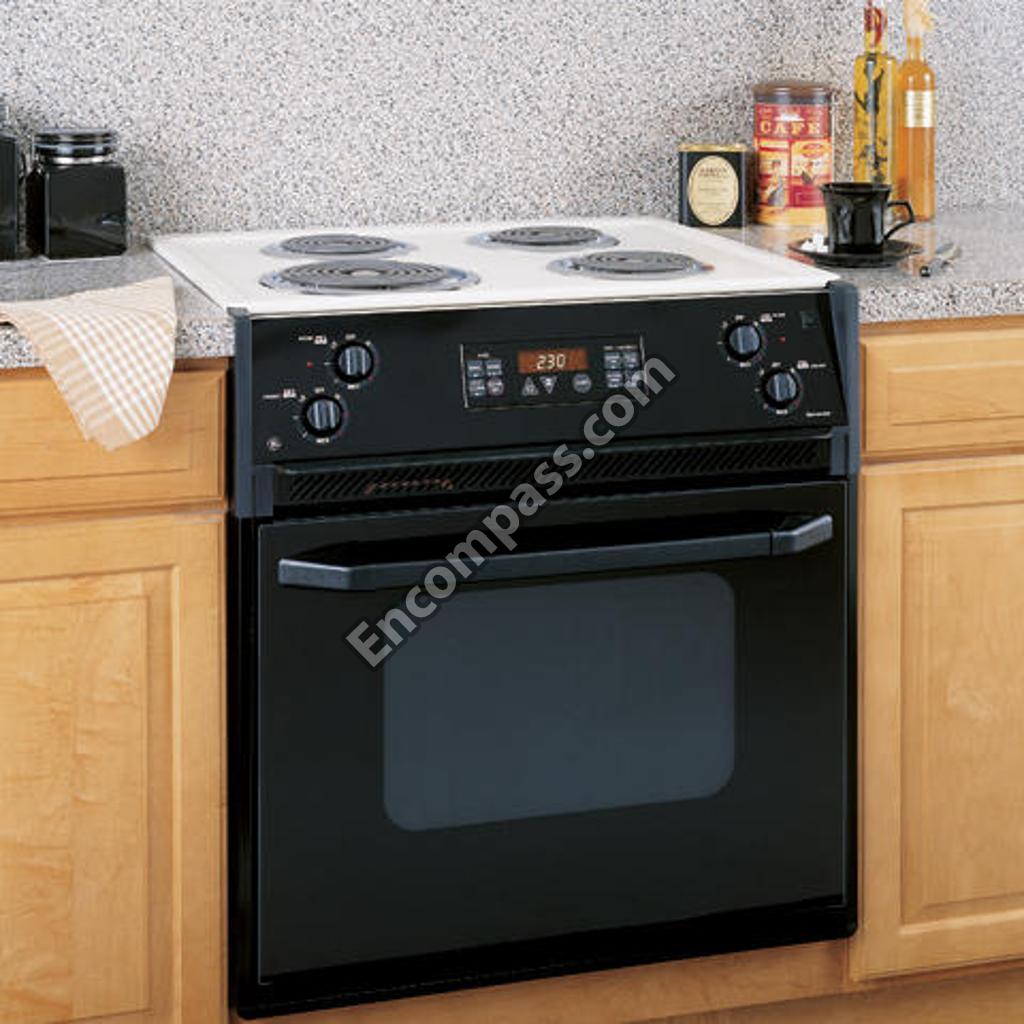

Model Image
Manufacturer

GE

Model Number

JMP28BC2WH

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB34K5080 WB34K5080 345080
WB31T10010 WB31T10010 6 INCH CHROME BURNER BOWL - ELEC
WB30M1 WB30M1 6-INCH SURF ELEM
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - EL
WB30M2 WB30M2 8-INCH SURF ELEM
WB63K5167 WB63K5167 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB34K5137 WB34K5137 BARRIER BODYSIDE EXT
WB34K5138 WB34K5138 BARRIER FRT FRAME LATCH
WB38K5029 WB38K5029 BARRIER VENT
WB64K5051 WB64K5051 BOTTOM BURN BOX
WB44K5009 WB44K5009 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB63K5080 WB63K5080 CABINET BOTTOM
WB63T10043 WB63T10043 CABINET SIDE
WB07T10532 WB07T10532 CAP END LT (BLACK)
WB7K5176 WB7K5176 CAP END LWR
WB07K5176 WB07K5176 CAP END LWR TRIM (BLK)
WB07T10531 WB07T10531 CAP END RT (BK)
WB36K5224 WB36K5224 CAP END RT (BLACK)
WB01K5118 WB01K5118 CLIP HINGE
WB1K5118 WB1K5118 CLIP HINGE
WB2X8320 WB2X8320 CLIP WINDOW
WB27K5337 WB27K5337 CLOCK PLATE-BLACK
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5346 WB18K5346 CONDUIT HARNESS ASSEMBLY
WB34K5082 WB34K5082 CONDUIT WIRE COVER
WB27X27460 WB27X27460 CONTROL OVN ERC3B
WB36K5565 WB36K5565 CONTROL PANEL
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34T10004 WB34T10004 COVER VNT BO
WB34T10005 WB34T10005 COVER WIRE C
WB34K5069 WB34K5069 COVER WIRE ELEMENT
WB01T10022 WB01T10022 DOOR BUMPER
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB44T10064 WB44T10064 ELEMENT BAKE (2000W)
WB63T10104 WB63T10104 EXTENSION UPR SIDE LT
WB63T10103 WB63T10103 EXTENSION UPR SIDE RT
WB26K5072 WB26K5072 FAN
WB02K5137 WB02K5137 FAN SUPPORT
WB2K5137 WB2K5137 FAN SUPPRT L
WB63T10036 WB63T10036 FRONT FRAME
WB57T10098 WB57T10098 GLASS OVEN DR OTR (BLACK)
WB57T10257 WB57T10257 GLASS OVN DR INR
WB02K5147 WB02K5147 GLASS SPACER
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15K5068 WB15K5068 HANDLE ASM (BLK)
345080 345080 HEAT REFLECT
WB14K5008 WB14K5008 HINGE MAINTOP LT
WB14K5009 WB14K5009 HINGE MAINTOP RT
WB10T10043 WB10T10043 HINGE OVEN DR LT
WB10T10042 WB10T10042 HINGE OVEN DR RT
WB7K5378 WB7K5378 I BROW TRIM
WB07K5378 WB07K5378 I-BROW TRIM-BLK
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS
WB3K5109 WB3K5109 INF KNOB BLK
WB24T10025 WB24T10025 INF SW CNTL 2600W RF LR
WB24T10022 WB24T10022 INF SWITCH CNTL 1250W
WB03K5109 WB03K5109 INFINITE KNOB BLK
31-10417 31-10417 INSTRUCTIONS INSTALL
WB35K5089 WB35K5089 INSULATION BACK/BTM UPPER
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB35K5068 WB35K5068 INSULATION WRPR OTR
WB35K5048 WB35K5048 INSULATION-WRAPPER-INNER
WB35K5112 WB35K5112 INSULATOR MODULE
WB24K5061 WB24K5061 JAMB SWITCH
WB17T10006 WB17T10006 KIT SURF TERM BLOCK
WB36X192 WB36X192 LAMP COV ASM
WB25T10042 WB25T10042 LENS
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB25T10040 WB25T10040 LIGHT INDICATOR
WB15K5016 WB15K5016 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB01K5046 WB01K5046 LOCKWASHER
WB07K5268 WB07K5268 LOWER VENT TRIM-BLK
WB7K5268 WB7K5268 LOWR VNT TRM
WB62K5077 WB62K5077 MAIN TOP WHITE
WB62T10221 WB62T10221 MAINTOP ELEC
31-14199 31-14199 MANUAL MINI & WD ASM
49-80005 49-80005 MANUAL USE & CARE
WB8K5029 WB8K5029 OV LAMP HLDR
WB56K5158 WB56K5158 OVEN DOOR FRAME-BLACK
WB35T10002 WB35T10002 OVEN DOOR INSULATION SD
WB32T10006 WB32T10006 OVEN DR GASKET
WB55T10058 WB55T10058 OVEN DR LINING RETAINER
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB37K5022 WB37K5022 PANEL BACK
WB2K5395 WB2K5395 PLATE REINFO
WB48T10093 WB48T10093 RACK OV
WB63K5079 WB63K5079 RAIL BASE
WB36X0389 WB36X0389 RANGE OVEN BULB COVER
WB08K5029 WB08K5029 RECEPTACLE
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB02T10193 WB02T10193 RETAINER INSLN OVN DR
WB24K5035 WB24K5035 ROCKER SWITCH
WB02K5226 WB02K5226 ROD MAIN TOP SUPPORT
WB2K5226 WB2K5226 ROD MTP SUPT
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WZ04X0044 WZ04X0044 SCREW
WB01X1131 WB01X1131 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5123 WB01K5123 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5162 WB01K5162 SCREW
WB1K5116 WB1K5116 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8-INCH
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1131 WB1X1131 SCREW-6-32
WB1K5162 WB1K5162 SCREW-BLACK
WB1K5157 WB1K5157 SCREW-BLK
WB1X500D WB1X500D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB34T10086 WB34T10086 SHIELD FRT LWR LEFT
WB34T10087 WB34T10087 SHIELD FRT LWR RT
WB6K5026 WB6K5026 SMOKE EL SCR
WB06K5026 WB06K5026 SMOKE ELIM SCREEN
WB2K5147 WB2K5147 SPACER
WB02T10015 WB02T10015 SPACER WINDOW
WB2M87 WB2M87 SUP ROD CLMP
WB2X9719 WB2X9719 SUPP-BROIL
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB24K5049 WB24K5049 SWITCH LIMIT
WB01T10014 WB01T10014 TERMINAL BLOCK CLIP
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10079 WB07T10079 TRIM SIDE (WHITE)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB24K5033 WB24K5033 UNKNOWN
WB38K5041 WB38K5041 VENT BOX
WB38K5051 WB38K5051 VENT BOX ASSEMBLY
WB07K5101 WB07K5101 VENT TRIM
WB7K5101 WB7K5101 VENT TRIM BL
WB01X1254 WB01X1254 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB02X8320 WB02X8320 WINDOW CLIP
WB34T10006 WB34T10006 WIRE COVER
WB34K5067 WB34K5067 WIRE COVER BOTTOM
WB63T10053 WB63T10053 WRAPPER OVEN CAV ASSEMBLY
