Model Image
Manufacturer

GE

Model Number

JNM3160DF1WW

Description

Microwave Or Advantium

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB39X10042 WB39X10042 "GUIDE , FAN"
WB25X10029 WB25X10029 "INCANDESCENT LAMP, 30W"
WB25X10030 WB25X10030 "INCANDESCENT LAMP,40W"
WB26X28944 WB26X28944 "MOTOR, FAN"
WB06X10932 WB06X10932 AIR BRACKET
WB56X11006 WB56X11006 BASE PLATE
WB06X10933 WB06X10933 BRACKET
WB06X10945 WB06X10945 CAP
WB27X26111 WB27X26111 CAPACITOR
WB06X10931 WB06X10931 CAVITY LAMP COVER
WB02X11550 WB02X11550 CHARCOAL FILTER

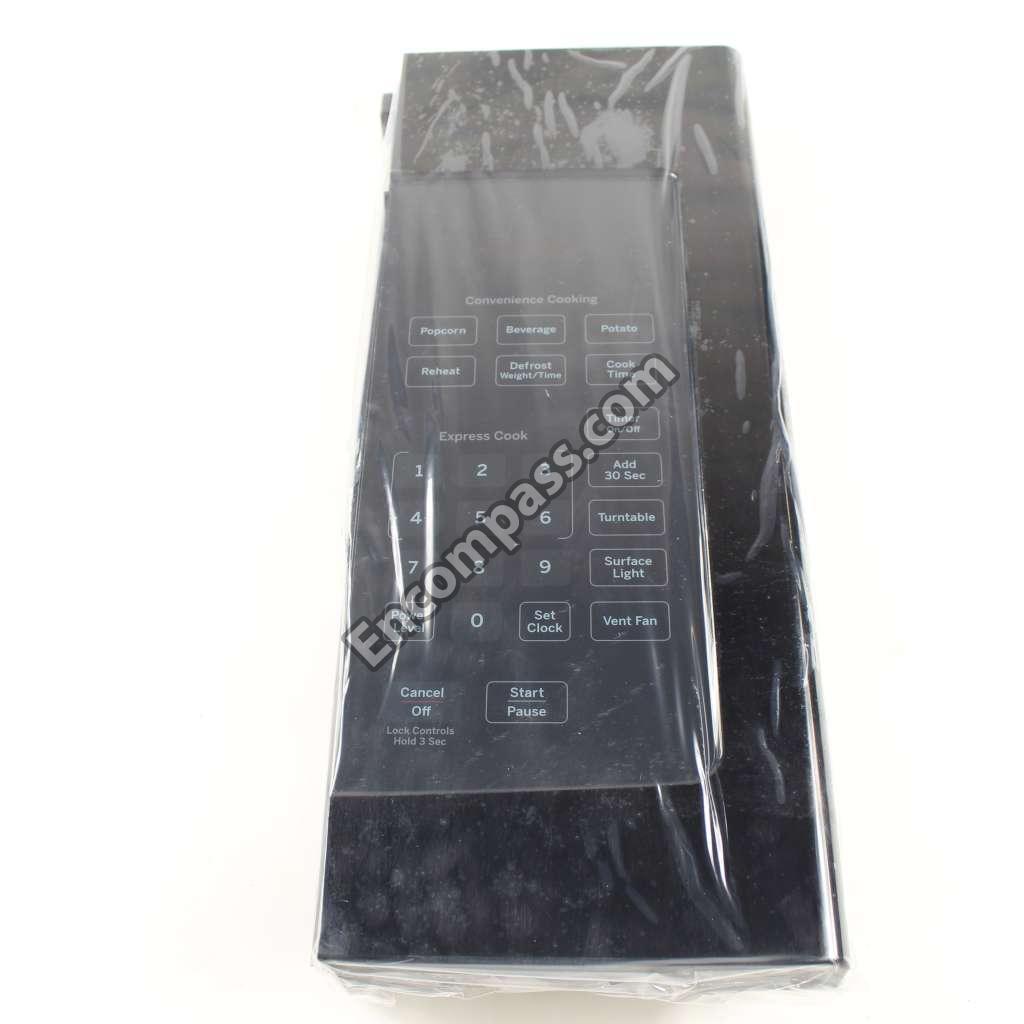

WB27X11216 WB27X11216 CONTROL ASM BB
WB27X11217 WB27X11217 CONTROL ASM CC

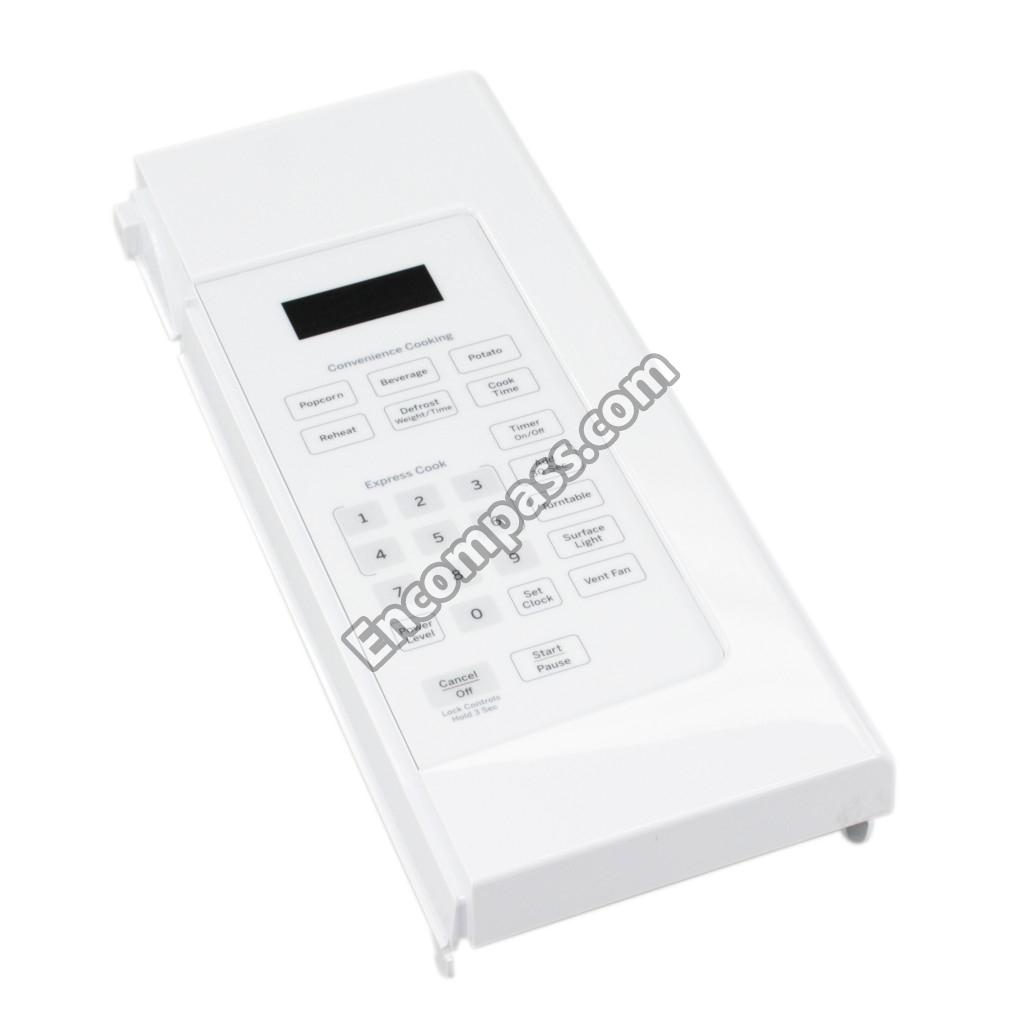

WB27X11218 WB27X11218 CONTROL ASM WW
WB06X10941 WB06X10941 CONTROL PANLE BRACKET
WB06X10925 WB06X10925 COUPLER
WB55X10974 WB55X10974 COVER CHOKE
WB06X10938 WB06X10938 DAMPER BRACKET

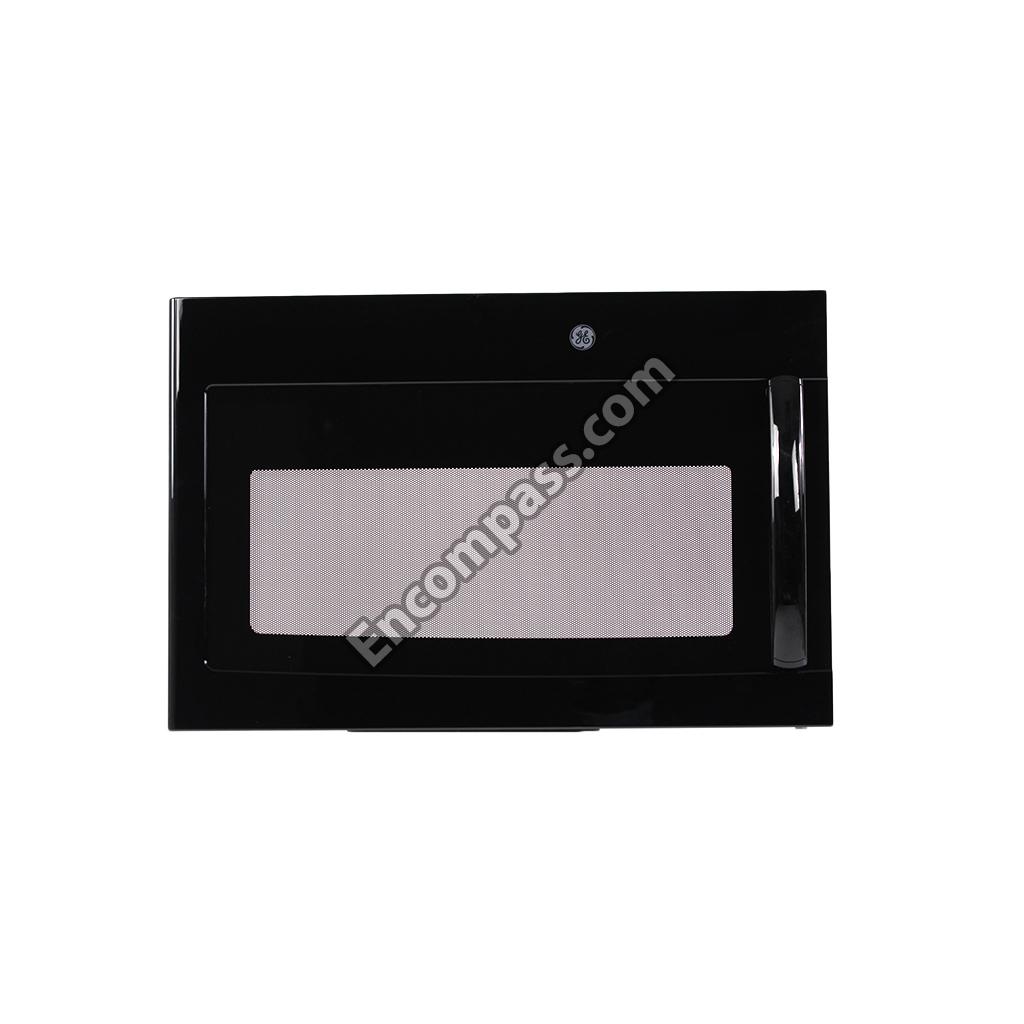

WB56X32788 WB56X32788 DOOR ASM BB
WB56X32790 WB56X32790 DOOR ASM CC
WB56X32791 WB56X32791 DOOR ASM WW
WB10X32787 WB10X32787 DOOR LATCH SPRING
WB06X10860 WB06X10860 FAN
WB27X11140 WB27X11140 FILTER NOISE
WB27X11138 WB27X11138 FUSE
WB06X10928 WB06X10928 GLASS BRACKET
WB06X10608 WB06X10608 GREASE FILTER

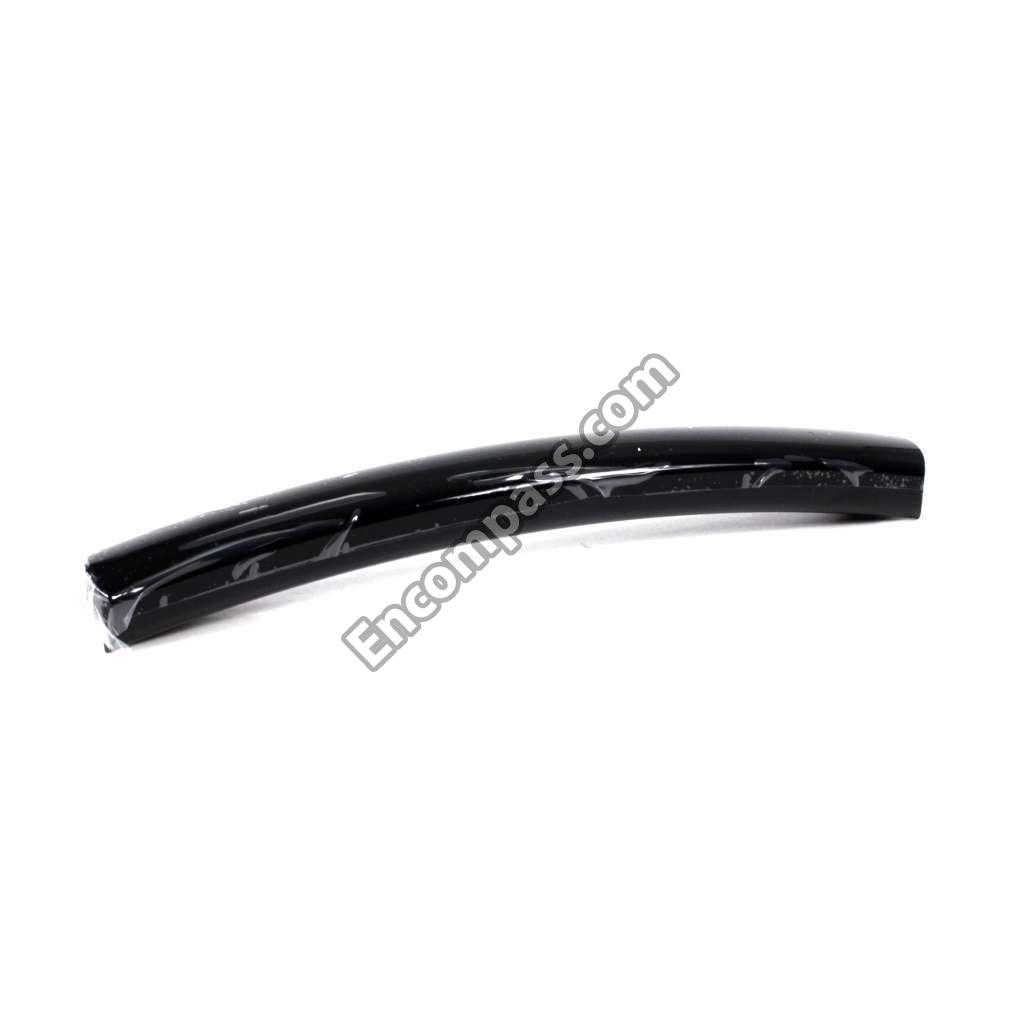

WB15X10275 WB15X10275 HANDLE

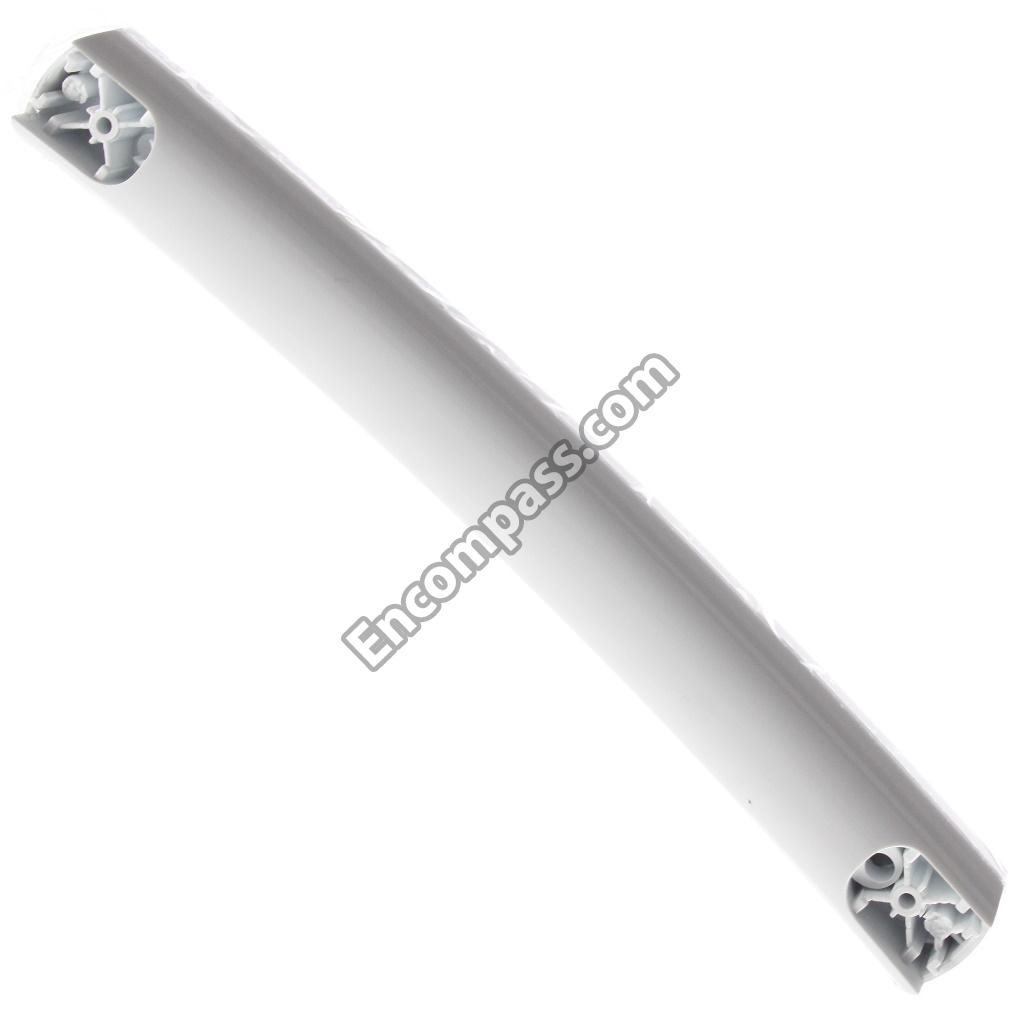

WB15X10276 WB15X10276 HANDLE
WB15X10277 WB15X10277 HANDLE
WB06X10939 WB06X10939 HANDLE SUPPORT
WB06X10942 WB06X10942 HANDLE SUPPORT
WB06X10943 WB06X10943 HANDLE SUPPORT
WB18X10523 WB18X10523 HARNESS MAIN
WB27X11214 WB27X11214 HVCAPACITOR
WB26X28935 WB26X28935 HVDIODE
WB20X10067 WB20X10067 HVTRANSFORMER
WB01X10298 WB01X10298 INSTALLATI0N HARDWARE
49-40675 49-40675 INSTALLATION INSTRUCTION
31-41080 31-41080 INSTALLATION TEMPLATES
WB06X10927 WB06X10927 LAMP COVER
WB06X10926 WB06X10926 LAMP GLASS
WB10X32782 WB10X32782 LATCH
WB06X10610 WB06X10610 LATCH BOARD
WB03X10348 WB03X10348 LEVER SWITCH
WB26X23320 WB26X23320 MAGNETRON
WB27X11215 WB27X11215 MAIN BOARD
WB24X10205 WB24X10205 MICRO SWITCH(STAND CLOSE
31-41079 31-41079 MINI MANUAL
WB01X22640 WB01X22640 MOUNTING NUT BRACKET
WB56X11009 WB56X11009 MOUNTING PLATE
WB56X11013 WB56X11013 OUTER CASE
WB56X11011 WB56X11011 OUTER CASE
WB04X10039 WB04X10039 OVERLAY
WB04X10038 WB04X10038 OVERLAY
WB04X10040 WB04X10040 OVERLAY
WB18X27449 WB18X27449 POWER CORD ASM
WB06X10625 WB06X10625 ROTATING RING ASM
WB01X10430 WB01X10430 SCREW ST4 12
WB01X10431 WB01X10431 SCREW ST4 12PWBHC
WB01X10433 WB01X10433 SCREW ST4 8PBHC
WB01X10107 WB01X10107 SCREW ST4 8TB
WB01X10434 WB01X10434 SCREW ST420TBHC
WB06X10929 WB06X10929 SOCKET LAMP
WB06X10936 WB06X10936 SPACER
WB24X10204 WB24X10204 SWITCH MICRO
WB27X11208 WB27X11208 THERMOSTAT 110/0
WB27X11212 WB27X11212 THERMOSTAT 120/0
WB27X11210 WB27X11210 THERMOSTAT 160/0
WB27X11213 WB27X11213 THERMOSTAT 70/40
WB39X10032 WB39X10032 TRAY
WB26X32190 WB26X32190 TURN TABLE MOTOR
49-40669 49-40669 USE & CARE MANUAL
WB07X11407 WB07X11407 VENT GRILLE
WB07X11409 WB07X11409 VENT GRILLE
WB07X11411 WB07X11411 VENT GRILLE
WB26X10273 WB26X10273 VENT MOTOR
WB06X10937 WB06X10937 VENT MOTOR COVER
WB06X10924 WB06X10924 WAVE GUIDE COVER
