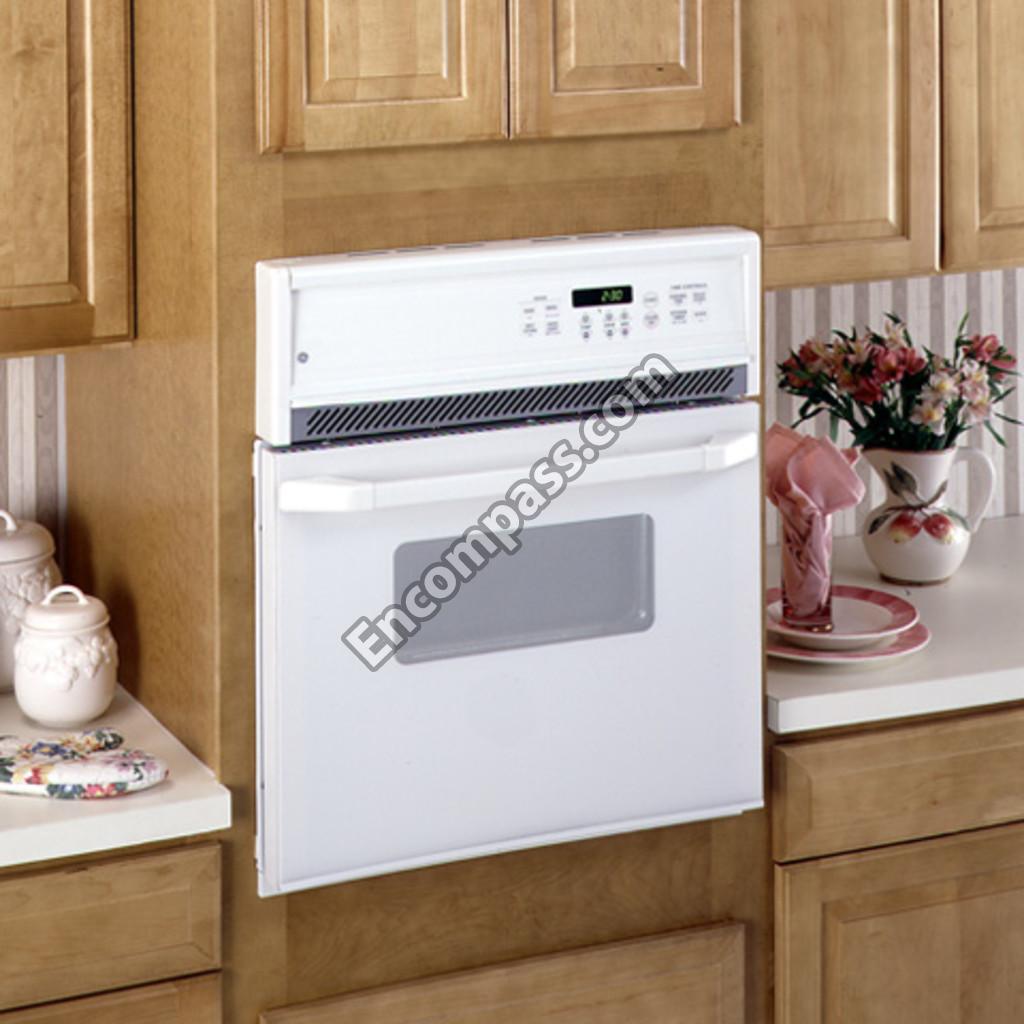

Model Image
Manufacturer

GE

Model Number

JRP15WW4WW

Description

Electric Wall Oven

Interactive Exploded View
Exploded View

Parts List

Part Number Description
49-8909 49-8909 049-80032
WB1K5200 WB1K5200 340531
WB63K5118 WB63K5118 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB38K5058 WB38K5058 BARRIER VENT
WB63K5116 WB63K5116 BOTTOM CAB
WB02X9634 WB02X9634 BOTTOM CHANNEL
WB2K5406 WB2K5406 BRACKET
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB44K5009 WB44K5009 BROIL ELEMENT.
BUYLOCAL BUYLOCAL BULB OVEN LI
WB2K5173 WB2K5173 CAB TOP RET
WB63M0045 WB63M0045 CABINET BACK
WB63M45 WB63M45 CABINET BACK
WB35K5066 WB35K5066 CABINET TOP INSULATIO
WB2X9634 WB2X9634 CHANNEL
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB7X5016 WB7X5016 CON HSG SCRN
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5364 WB18K5364 CONDUIT WIRE ASSEMBLY
WB07X5016 WB07X5016 CONT HOUSING SCREEN
WB37K5041 WB37K5041 CONTROL HOUSING
WB37K5040 WB37K5040 CONTROL HOUSING TOP
WB02K5406 WB02K5406 CONTROL PANEL BRACKET
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02X9642 WB02X9642 COVER PLATE
WB2X9642 WB2X9642 COVER PLATE
WB02K5164 WB02K5164 CUP LIGHT SUPPORT
WB55K5078 WB55K5078 DOOR FRAME W/INSULATOR
WB35K5054 WB35K5054 DOOR INSULATION
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB55T10009 WB55T10009 DOOR PLUG
WB18T10032 WB18T10032 DR SW WIRE HARNESS
WB44T10007 WB44T10007 ELEMENT BAKE
WB36T10068 WB36T10068 END CAP LEFT-W
WB36T10067 WB36T10067 END CAP RT-W
WB07K5121 WB07K5121 EXTENSION VENT TRIM
WB26K5072 WB26K5072 FAN-LOWER
WB63T10013 WB63T10013 FRONT FRAME
WB02K5177 WB02K5177 FRT TRIM SPACER
WB2K5177 WB2K5177 FT TRM SPACR
WB36X0779 WB36X0779 GLASS DOOR-CENTER
WB2M1 WB2M1 GLASS RETNR
WB02K5147 WB02K5147 GLASS SPACER
WB36X779 WB36X779 GLASS-CENTER
WB57M0022 WB57M0022 GLASS-OVEN DOOR -INNER
WB57M22 WB57M22 GLS OV DR-IN
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15K5088 WB15K5088 HANDLE ASSEMBLY (WHITE)
WB07K5319 WB07K5319 HANDLE END CAPS
WB18K5645 WB18K5645 HARNESS WIRE LOCK MTR
WB18K5644 WB18K5644 HARNESS WIRE MAIN
WB34X26884 WB34X26884 HEAT REFLECTOR
WB34K5249 WB34K5249 HEAT SHIELD
WB14K5007 WB14K5007 HINGE OV DR LEFT
WB14K5006 WB14K5006 HINGE OV DR RT
WB7K5319 WB7K5319 HNDL END CAP
WB07K5494 WB07K5494 I-BROW TRIM-WHT
WB7K5478 WB7K5478 I-BROW TRM-B
WB02K5173 WB02K5173 INS CABINET TOP RETAINER
WB02K5180 WB02K5180 INS OV SIDE RETAINER
WB2M41 WB2M41 INS RET BRKT
31-10118 31-10118 INSTALLATION INSTRUCTION
WB35K5068 WB35K5068 INSULATION WRPR OTR
WB35K5057 WB35K5057 INSULATION-BACK/BTM UPPER
WB35K5048 WB35K5048 INSULATION-WRAPPER-INNER
WB24K5061 WB24K5061 JAMB SWITCH
WB36X192 WB36X192 LAMP COV ASM
WB49T10020 WB49T10020 LATCH OVEN ASSEMBLY
WB15K5016 WB15K5016 LEVER LOCK
WB2K5164 WB2K5164 LGHT CUP SUP
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB24K5085 WB24K5085 LIMIT SWITCH-ERC
WB24K5045 WB24K5045 LIMIT SWITCH-TO CAB TOP
WB07K5127 WB07K5127 LO FRT FRAME TRIM-WHT
WB7K5127 WB7K5127 LO FT FRM TR
31-13600 31-13600 MANUAL MINI & WD ASM
WB2K5132 WB2K5132 ODR STIF ASM
WB57K5277 WB57K5277 OUTER OVEN DR GLASS-WHITE
WB34K5077 WB34K5077 OV DR BAFFLE
WB02K5131 WB02K5131 OV DR GLASS RETAINER
WB02M0001 WB02M0001 OV DR GLASS RETAINER
WB02K5159 WB02K5159 OV DR INS RETAINER
WB57K5093 WB57K5093 OV DR INTERMEDIATE GLASS
WB02K5132 WB02K5132 OV DR LINING STIFFENER
WB8X303 WB8X303 OV LAMP HLDR
WB08X0303 WB08X0303 OV LAMP HOLDER
WB2X7693 WB2X7693 OV LIGHT CUP
WB2K5131 WB2K5131 OVDR GL RET
WB2K5159 WB2K5159 OVDR INS RET
WB63T10012 WB63T10012 OVEN BODY
WB32K5037 WB32K5037 OVEN DOOR GASKET
WB55T10011 WB55T10011 OVEN DOOR LI
WB09K5017 WB09K5017 OVEN DOOR SPRING
WB02X7693 WB02X7693 OVEN LIGHT CUP
WB48X0218 WB48X0218 OVEN RACK
WB2K5180 WB2K5180 OVSD INS RET
WB1K5071 WB1K5071 PLASTC RIVET
WB01K5071 WB01K5071 PLASTIC RIVET
WB2K5395 WB2K5395 PLATE REINFO
WB35K5055 WB35K5055 PLUG INSULATION
WB48T10094 WB48T10094 RACK OVEN
WB36T10543 WB36T10543 RANGE CONTROL PANEL
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB02M0041 WB02M0041 RETAINER INS BRACKET
WB01X1173 WB01X1173 RIVET
WB1X1173 WB1X1173 RIVET
WZ04X0044 WZ04X0044 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1113 WB01X1113 SCREW
WB01K5162 WB01K5162 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WB1X536 WB1X536 SCREW
WB1K5157 WB1K5157 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1X1113 WB1X1113 SCREW
WB1X1293 WB1X1293 SCREW
WB01K0058 WB01K0058 SCREW 8-18 (WH) 1/2 S
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1K5162 WB1K5162 SCREW-BLACK
WZ4X44D WZ4X44D SCREW-PKG 12
WB01K5163 WB01K5163 SCREW-WHT
WB1K5169 WB1K5169 SCREW-WHT
WB1K58 WB1K58 SCREW8-18 WH
WB02M0030 WB02M0030 SCROLL BRACKET
WB2M30 WB2M30 SCROLL BRCKT
WB2X9168 WB2X9168 SEAL
WB02X9168 WB02X9168 SEAL GLASS OV DR INNER
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB63K5117 WB63K5117 SIDE CABINET
WB7K5125 WB7K5125 SIDE TRIM
WB6K5026 WB6K5026 SMOKE EL SCR
WB06K5026 WB06K5026 SMOKE ELIM SCREEN
WB2K5147 WB2K5147 SPACER
WB09T10007 WB09T10007 SPRING OVEN DR UPPER
WB2X9719 WB2X9719 SUPP-BROIL
WB63K5120 WB63K5120 TOP CABINET
WB2K5256 WB2K5256 TOP INS RET
WB02K5256 WB02K5256 TOP INSULATION RETNR-UPP
WB1K5177 WB1K5177 TRIM SCREW 10-16 X 3/4 BLK
WB01K5177 WB01K5177 TRIM SCREW-BLACK
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB7K5121 WB7K5121 VENT TRIM EX
WB7K5495 WB7K5495 VENT TRIM-SS
WB07K5497 WB07K5497 VENT TRM-STAINLESS STEEL
WB07K5125 WB07K5125 VERTICAL SIDE TRIM-WHITE
WB01X1254 WB01X1254 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB27T10276 WB27T10276 WB27T10276
WB38K5051 WB38K5051 WB38K5051
WB02X9665 WB02X9665 WIRE COVER
WB2X9665 WB2X9665 WIRE COVER
WB34K5099 WB34K5099 WIRE SHIELD
