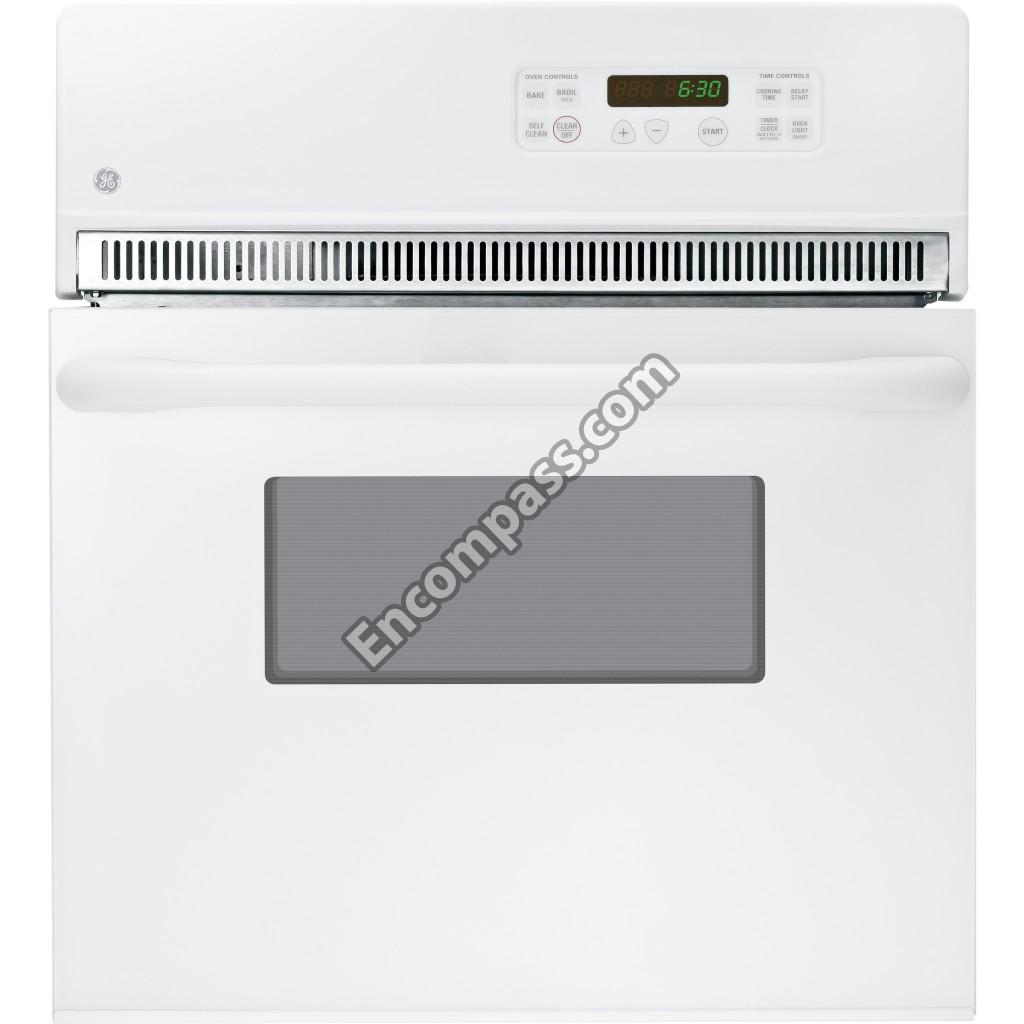

Model Image
Manufacturer

GE

Model Number

JRP20WJ4WW

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP
WB63T10105 WB63T10105 BACK MAIN
WB38K5058 WB38K5058 BARRIER VENT
WB63K5116 WB63K5116 BOTTOM CAB
WB02X9634 WB02X9634 BOTTOM CHANNEL
WB02T10250 WB02T10250 BRACKET CNTL MTG 24
WB44X48674 WB44X48674 BROIL ELEMENT 3400W
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48X10056 WB48X10056 BROILER PAN & RACK LARGE 12-3/4 X 16-1/
WB02T10117 WB02T10117 BTM TRIM CLIP
WB63M0045 WB63M0045 CABINET BACK
WB01K5209 WB01K5209 CLIP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18X32566 WB18X32566 CONDUIT WIRE ASM
WB37K5041 WB37K5041 CONTROL HOUSING
WB37K5040 WB37K5040 CONTROL HOUSING TOP
WB02K5406 WB02K5406 CONTROL PANEL BRACKET
WB02X9152 WB02X9152 COVER
WB02K5164 WB02K5164 CUP LIGHT SUPPORT
WB01T10022 WB01T10022 DOOR BUMPER
WB35K5054 WB35K5054 DOOR INSULATION
WB27X42806 WB27X42806 ERC3B2K5 OVEN CONTROL
WB07K5121 WB07K5121 EXTENSION VENT TRIM
WB27T10588 WB27T10588 FACEPLATE GRAPHICS ASM
WB26X43008 WB26X43008 FAN ASSEMBLY
WB02X34847 WB02X34847 FAN SCREEN PROTECTOR
WB56T10161 WB56T10161 FRAME OVN DR (WHT)
WB35X26289 WB35X26289 GASKET OVN DR
WB57T10315 WB57T10315 GLASS OVN DR INR
WB15T10124 WB15T10124 GLASS OVN DR OTR 24(WHT)
WB02K5147 WB02K5147 GLASS SPACER
WB01X1260 WB01X1260 GROUND WASHER
WB15T10123 WB15T10123 HANDLE GE 24 (WHT)
WB18X32563 WB18X32563 HARNESS WIRE DOOR SWITCH
WB18X32560 WB18X32560 HARNESS WIRE JUMPER
WB18X32562 WB18X32562 HARNESS WIRE LCK MTR
WB18X32528 WB18X32528 HARNESS WIRE MAIN
WB34X26884 WB34X26884 HEAT REFLECTOR
WB34K5249 WB34K5249 HEAT SHIELD
WB10T10061 WB10T10061 HINGE OV DR LT
WB10T10060 WB10T10060 HINGE OV DR RT
WB35T10101 WB35T10101 INSULATION
WB35K5057 WB35K5057 INSULATION-BACK/BTM UPPER
WB15K5016 WB15K5016 LEVER LOCK
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB24K5098 WB24K5098 LIMIT SWITCH-BODY
WB63X26288 WB63X26288 LINER OVN DR ASM
31-14203 31-14203 MANUAL MINI & WD ASM
WB34K5077 WB34K5077 OV DR BAFFLE
WB02M0001 WB02M0001 OV DR GLASS RETAINER
WB02K5159 WB02K5159 OV DR INS RETAINER
WB02K5132 WB02K5132 OV DR LINING STIFFENER
WB08X0303 WB08X0303 OV LAMP HOLDER
WB14T10074 WB14T10074 OVEN DOOR DOOR LATCH
WB36X192 WB36X192 OVEN LAMP CAMERA LENS
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB36T10755 WB36T10755 PANEL CNTL SWO (SCR-WHT)
31-2000912 31-2000912 PM INSTALL INSTRUCTIONS
49-80715-1 49-80715-1 PM OWNERS MANUAL
WB48T10094 WB48T10094 RACK OVEN
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB02T10197 WB02T10197 RETAINER INSLN SDE
WB01X1173 WB01X1173 RIVET
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WZ4X416 WZ4X416 SCR 8-18 AB HXW 3/4
WZ04X0044 WZ04X0044 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01M10002 WB01M10002 SCREW
WB01K0058 WB01K0058 SCREW 8-18 (WH) 1/2 S
WB01X38868 WB01X38868 SCREW FLAT ZINC TC 10-32X.625
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5163 WB01K5163 SCREW-WHT
WB02X9168 WB02X9168 SEAL GLASS OV DR INNER
WB21X5301 WB21X5301 SENSOR ASM
WB02X29256 WB02X29256 SMOKE ELIMINATOR SCREEN
WB02T10163 WB02T10163 SPACER FRT TRIM (WHT)
WB09T10007 WB09T10007 SPRING OVEN DR UPPER
WB24T10096 WB24T10096 SWITCH LIMIT BIMETAL
WB24T10160 WB24T10160 SWITCH SPDT HIGH AMP
WB63K5120 WB63K5120 TOP CABINET
WB07T10414 WB07T10414 TRIM FRT FRM LWR
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB44X48681 WB44X48681 UPPER BAKE ELEMENT 2650W
WB07K5495 WB07K5495 VENT TRIM-SS
WB07K5125 WB07K5125 VERTICAL SIDE TRIM-WHITE
WB01K5174 WB01K5174 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB34K5228 WB34K5228 WB34K5228
WB38K5051 WB38K5051 WB38K5051
WB02X9665 WB02X9665 WIRE COVER
WB34K5099 WB34K5099 WIRE SHIELD
