Model Image
Manufacturer

GE

Model Number

JRP28SK3SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB2X7694 WB2X7694 BAIL
WB38K5058 WB38K5058 BARRIER VENT
WB63K5116 WB63K5116 BOTTOM CAB.
WB02X9634 WB02X9634 BOTTOM CHANNEL
WB2K5406 WB2K5406 BRACKET
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB2K5173 WB2K5173 CAB TOP RET
WB37K5017 WB37K5017 CABINET BACK
WB2X9634 WB2X9634 CHANNEL
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB02K0010 WB02K0010 CLIP CAPILLARY
WB02K10073 WB02K10073 CLIP CAPILLARY
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18X32567 WB18X32567 CONDUIT WIRE ASSEMBLY
WB37K5041 WB37K5041 CONTROL HOUSING
WB37K5040 WB37K5040 CONTROL HOUSING TOP
WB02K5406 WB02K5406 CONTROL PANEL BRACKET
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02K5164 WB02K5164 CUP LIGHT SUPPORT
WB35K5054 WB35K5054 DOOR INSULATION
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB2K5172 WB2K5172 DR SPRG RET
WB44X26290 WB44X26290 ELEMENT BAKE (2000W)
WB44X26298 WB44X26298 ELEMENT BAKE (2650W)
WB44X48674 WB44X48674 ELEMENT BROIL (3400W)
WB27X42806 WB27X42806 ERC3B2K5 OVEN CONTROL
WB07K5121 WB07K5121 EXTENSION VENT TRIM

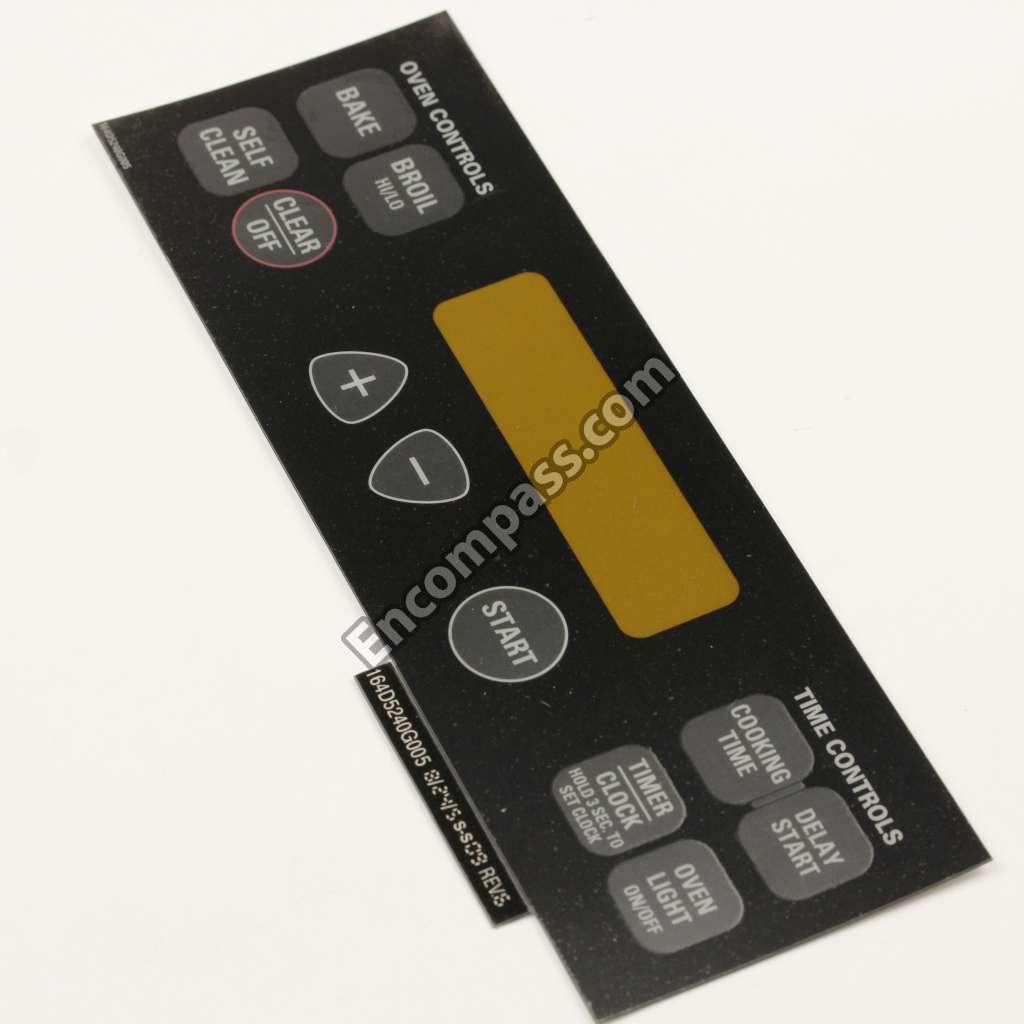

WB27T10587 WB27T10587 FACEPLATE GRAPHICS ASSEMBLY
WB26K5072 WB26K5072 FAN-LOWER
WB56T10162 WB56T10162 FRAME OVN DR (BLK)
WB35X26289 WB35X26289 GASKET OVN DR
WB57T10315 WB57T10315 GLASS OVN DR INR
WB2M1 WB2M1 GLASS RETNR
WB02K5147 WB02K5147 GLASS SPACER
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10145 WB15T10145 HANDLE GE 24
WB34X26884 WB34X26884 HEAT REFLECTOR
WB34K5249 WB34K5249 HEAT SHIELD
WB10T10061 WB10T10061 HINGE OV DR LEFT
WB10T10060 WB10T10060 HINGE OV DR RT
WB02K5173 WB02K5173 INS CABINET TOP RETAINER
WB02K5172 WB02K5172 INS DR SPRING RETAINER
WB02K5180 WB02K5180 INS OV SIDE RETAINER
31-10658 31-10658 INSTRUCTIONS INSTALL
WB35T10101 WB35T10101 INSULATION
WB35K5068 WB35K5068 INSULATION WRPR OTR
WB35K5067 WB35K5067 INSULATION-BACK BTM-LOW
WB35K5057 WB35K5057 INSULATION-BACK/BTM UPPER
WB35K5041 WB35K5041 INSULATION-INNER WRAP-LO
WB35K5048 WB35K5048 INSULATION-WRAPPER-INNER
229C5299P002 229C5299P002 LABEL WIRE DIAG
WB36X192 WB36X192 LAMP COV ASM
WB49T10020 WB49T10020 LATCH OVEN ASSEMBLY
WB25T10043 WB25T10043 LENS
WB15K5016 WB15K5016 LEVER LOCK
WB2K5164 WB2K5164 LGHT CUP SUP
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB25T10039 WB25T10039 LIGHT INDICATOR

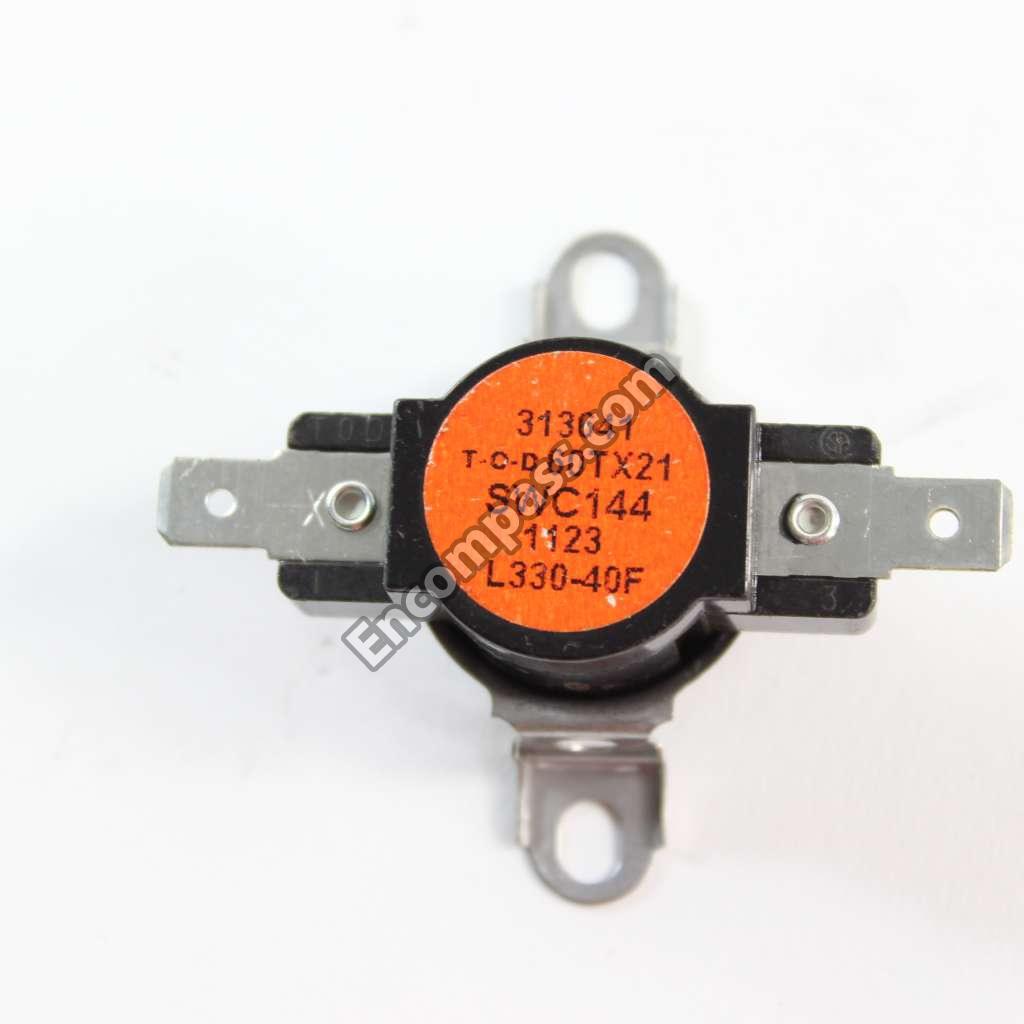

WB24K5098 WB24K5098 LIMIT SWITCH-BODY
WB24K5085 WB24K5085 LIMIT SWITCH-ERC
WB63X26288 WB63X26288 LINER OVN DR ASSEMBLY
WB63K5113 WB63K5113 MAIN BACK
WB2K5132 WB2K5132 ODR STIF ASM
WB02K5171 WB02K5171 OV BTM INS RETAINER-UPP
WB34K5077 WB34K5077 OV DR BAFFLE
WB02M0001 WB02M0001 OV DR GLASS RETAINER
WB02K5159 WB02K5159 OV DR INS RETAINER
WB02K5132 WB02K5132 OV DR LINING STIFFENER
WB8X303 WB8X303 OV LAMP HLDR
WB08X0303 WB08X0303 OV LAMP HOLDER
WB02K5174 WB02K5174 OV TOP INS RETAINER-LO
WB2K5174 WB2K5174 OV TOP RET L
WB2K5171 WB2K5171 OVBT INS RET
WB2K5159 WB2K5159 OVDR INS RET
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB2K5180 WB2K5180 OVSD INS RET
WB36T10758 WB36T10758 PANEL CONTROL DWO (SCR-BLK)
WB56T10232 WB56T10232 PANEL GLASS AND TAPE ASSEMBLY
WB2K5395 WB2K5395 PLATE REINFO
WB2X9587 WB2X9587 PLUG
WB2X9189 WB2X9189 PLUG BUT REC
WB02X9189 WB02X9189 PLUG BUTTON-RECTANGULAR
WB02X9587 WB02X9587 PLUG BUTTON-ROUND
31-17241 31-17241 PM MANUAL MINI & WD ASM
49-80715-1 49-80715-1 PM OWNERS MANUAL
WB48T10094 WB48T10094 RACK OVEN
WB02T10117 WB02T10117 RANGE BOTTOM TRIM CLIP
WB02T10250 WB02T10250 RANGE CONTROL MOUNTING BRACKET - 24
WB02T10164 WB02T10164 RANGE FRONT TRIP CLIP
WB24T10160 WB24T10160 RANGE HIGH AMP SWITCH

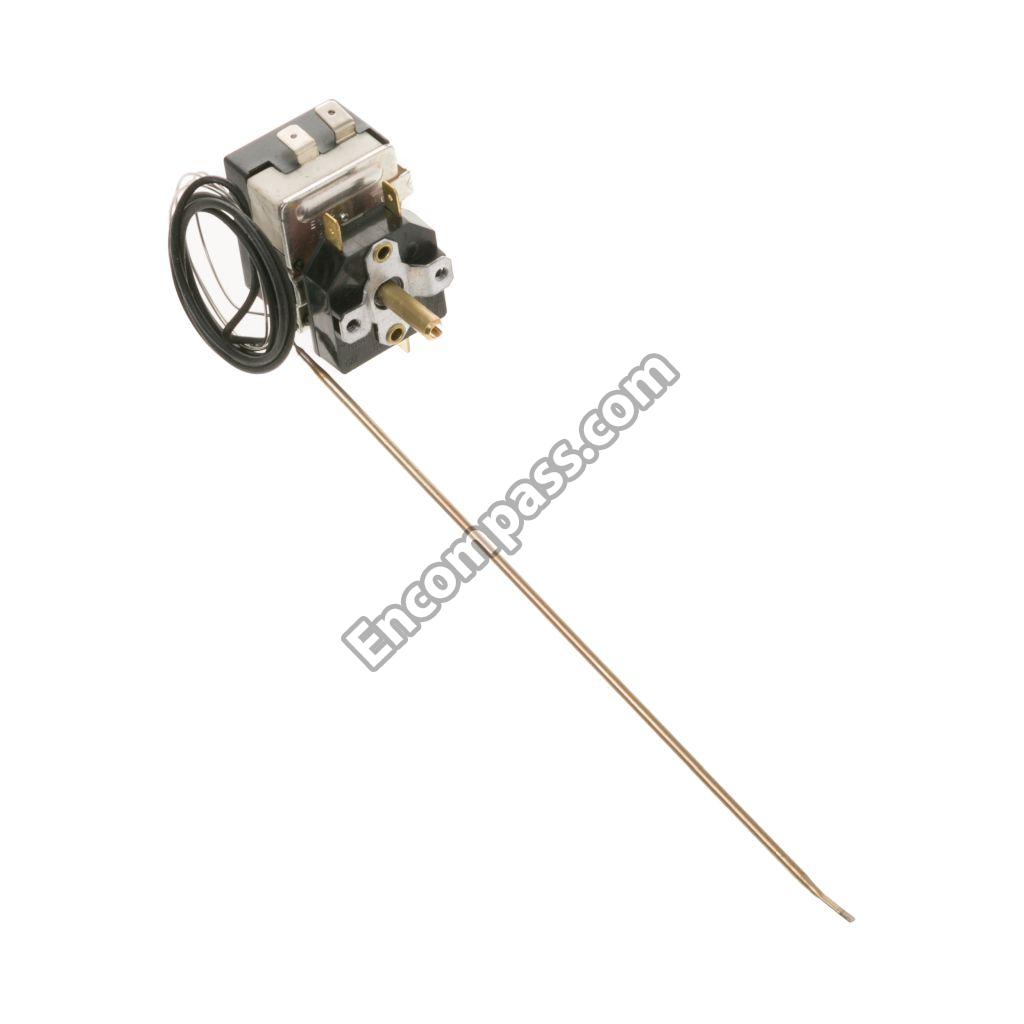

WB20T10013 WB20T10013 RANGE THERMOSTAT
WB03T10057 WB03T10057 RANGE THERMOSTAT KNOB - BLACK
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB01X1173 WB01X1173 RIVET
WB1X1173 WB1X1173 RIVET
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI.
WB02X34847 WB02X34847 SCREEN FAN
WZ04X0044 WZ04X0044 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5162 WB01K5162 SCREW
WB01M10002 WB01M10002 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1K5072 WB1K5072 SCREW
WB1K60 WB1K60 SCREW 8-18
WB01K0060 WB01K0060 SCREW 8-18 (BK) 1/2 S
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1K5162 WB1K5162 SCREW-BLACK
WZ4X44D WZ4X44D SCREW-PKG 12
WB02M0030 WB02M0030 SCROLL BRACKET
WB2M30 WB2M30 SCROLL BRCKT
WB2X9168 WB2X9168 SEAL
WB02X9168 WB02X9168 SEAL GLASS OV DR INNER
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB63K5112 WB63K5112 SIDE CABINET
WB02X29256 WB02X29256 SMOKE ELIMINATOR SCREEN
WB2K5147 WB2K5147 SPACER
WB09T10007 WB09T10007 SPRING OVEN DR UPPER
WB09T10009 WB09T10009 SPRING OVN DR
WB2X9719 WB2X9719 SUPP-BROIL
WB63K5120 WB63K5120 TOP CABINET
WB2K5256 WB2K5256 TOP INS RET
WB02K5256 WB02K5256 TOP INSULATION RETNR-UPP
WB07T10415 WB07T10415 TRIM FRT FRM LWR
WB07K5263 WB07K5263 TRIM SIDE (RT OR LT)BLK
WB7K5123 WB7K5123 TRIM-I-BROW
WB07K5123 WB07K5123 TRIM-I-BROW BLK-CENTER
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB38K5051 WB38K5051 VENT BOX ASSEMBLY
WB7K5121 WB7K5121 VENT TRIM EX
WB07K5491 WB07K5491 VENT TRIM-BLACK
WB7K5491 WB7K5491 VENT TRM-BLK
WB7K5263 WB7K5263 VERT SD TRIM
WB1X119D WB1X119D WASHR-PKG 12
WB02X9665 WB02X9665 WIRE COVER
WB2X9665 WB2X9665 WIRE COVER
WB34K5099 WB34K5099 WIRE SHIELD
