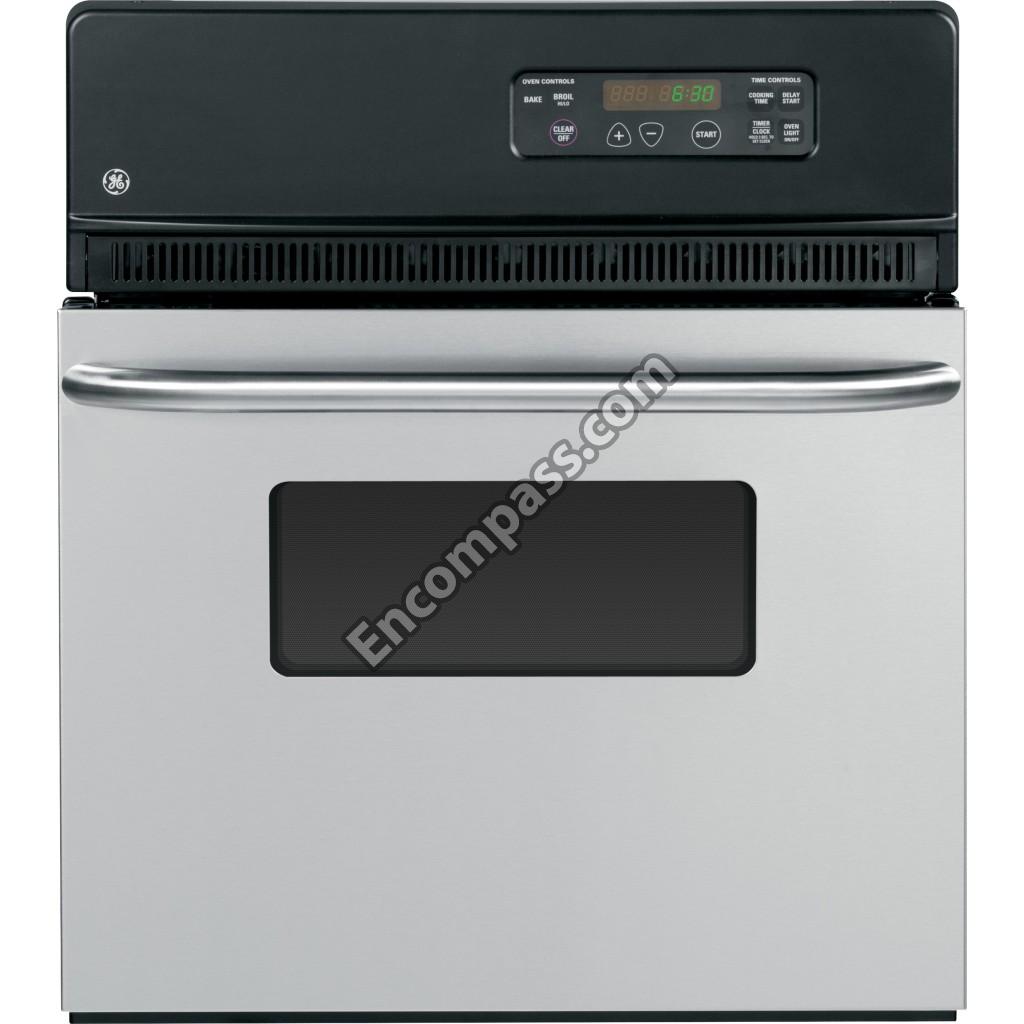

Model Image
Manufacturer

GE

Model Number

JRS06SK2SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB63T10105 WB63T10105 BACK MAIN
WB2X7694 WB2X7694 BAIL
WB38K5058 WB38K5058 BARRIER VENT
WB63K5116 WB63K5116 BOTTOM CAB.
WB02X9634 WB02X9634 BOTTOM CHANNEL
WB2K5406 WB2K5406 BRACKET
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB63M0045 WB63M0045 CABINET BACK
WB63M45 WB63M45 CABINET BACK
WB2X9634 WB2X9634 CHANNEL
WB02X9573 WB02X9573 CLIP
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2X9573 WB2X9573 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5364 WB18K5364 CONDUIT WIRE ASSEMBLY
WB37K5041 WB37K5041 CONTROL HOUSING
WB37K5040 WB37K5040 CONTROL HOUSING TOP
WB02K5406 WB02K5406 CONTROL PANEL BRACKET
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB02K5164 WB02K5164 CUP LIGHT SUPPORT
WB35K5054 WB35K5054 DOOR INSULATION
WB44X26290 WB44X26290 ELEMENT BAKE (2000W)
WB44X48674 WB44X48674 ELEMENT BROIL (3400W)

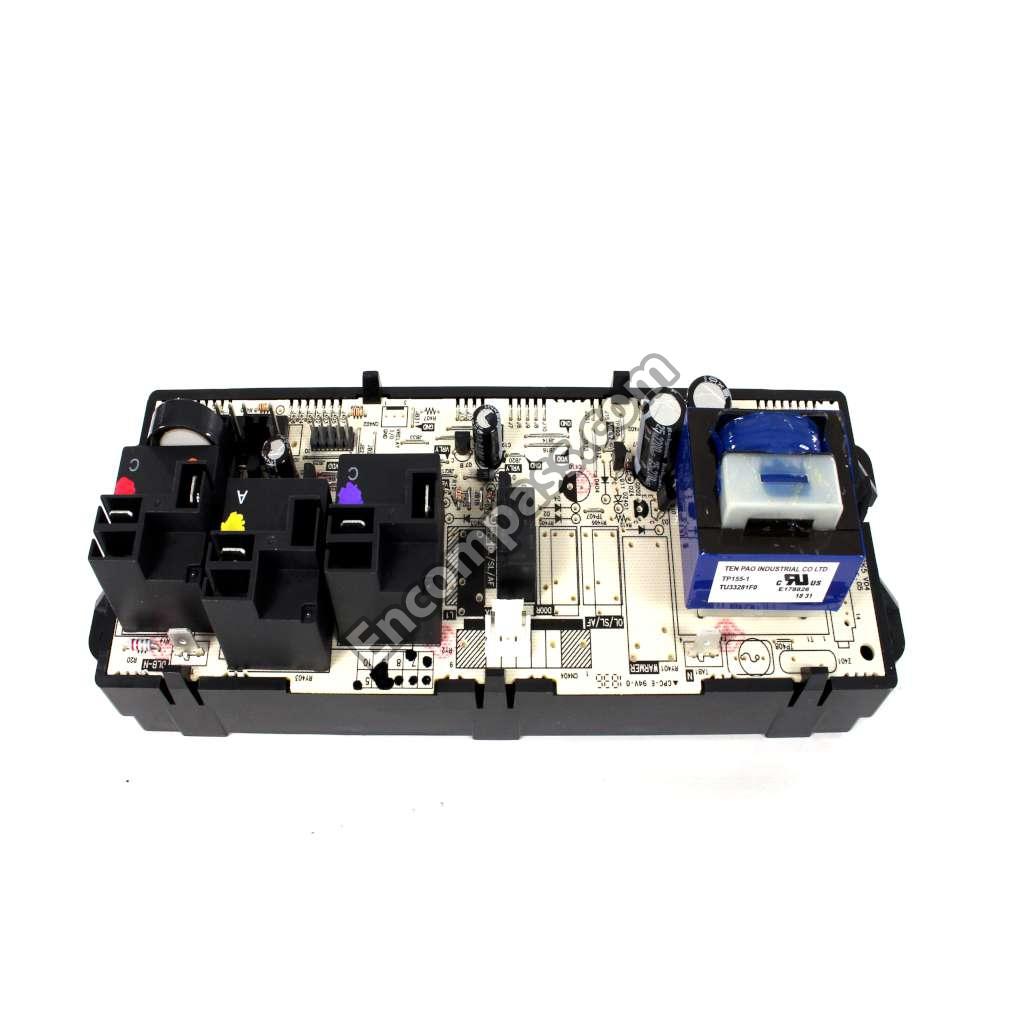

WB27X27463 WB27X27463 ERC3B2K5 OVEN CONTROL
WB07K5121 WB07K5121 EXTENSION VENT TRIM

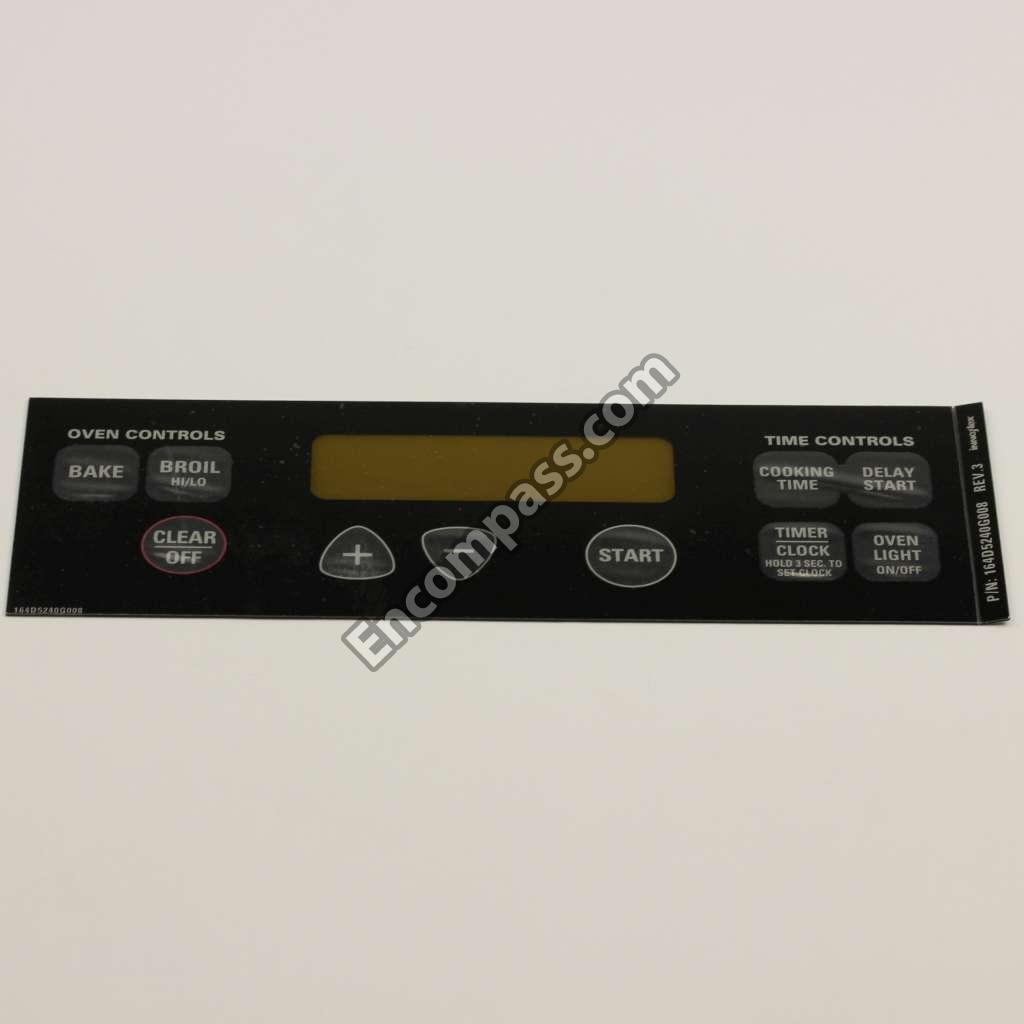

WB27T10589 WB27T10589 FACEPLATE GRAPHICS ASSEMBLY

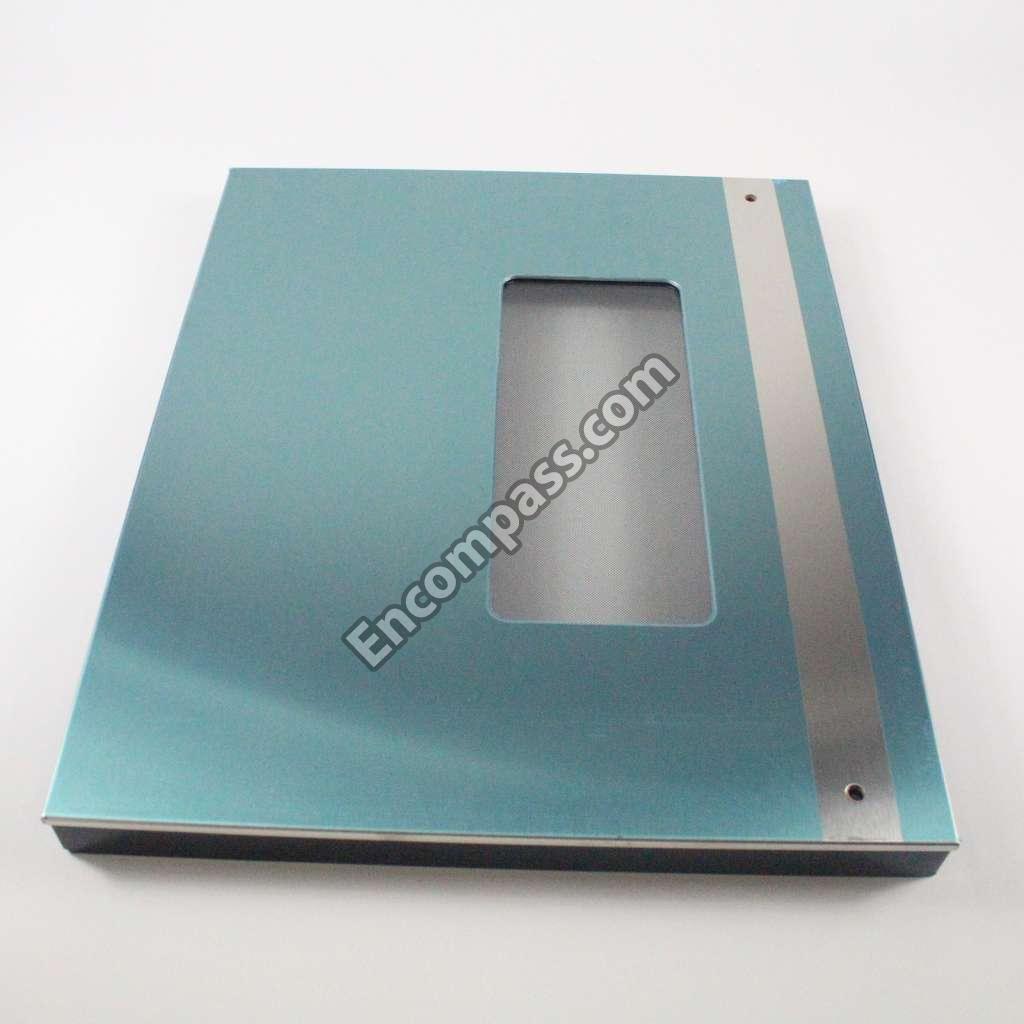

WB56T10162 WB56T10162 FRAME OVN DR (BLK)
WB35X26289 WB35X26289 GASKET OVN DR
WB57T10315 WB57T10315 GLASS OVN DR INR
WB02K5147 WB02K5147 GLASS SPACER
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER

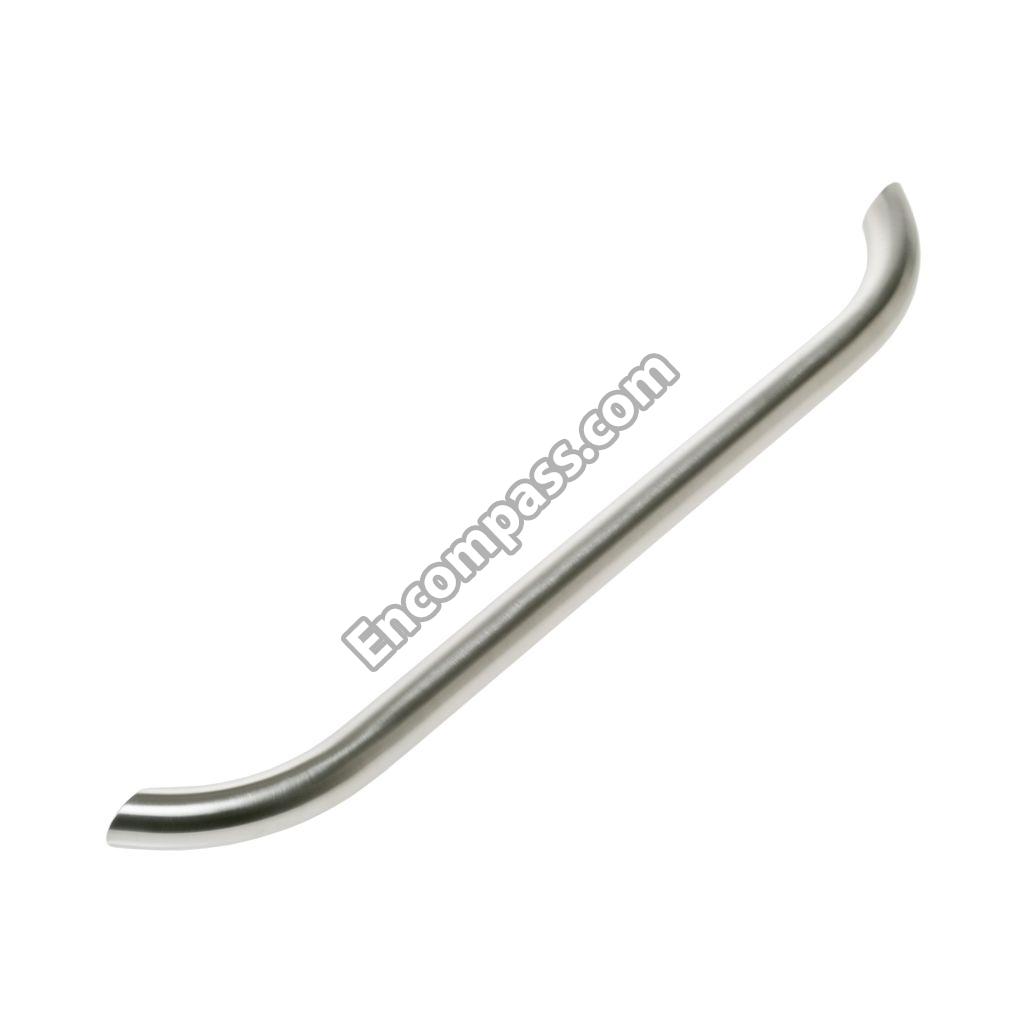

WB15T10145 WB15T10145 HANDLE GE 24
WB34K5249 WB34K5249 HEAT SHIELD
WB10T10061 WB10T10061 HINGE OV DR LEFT
WB10T10060 WB10T10060 HINGE OV DR RT
WB02K5176 WB02K5176 INS OV TOP RETAINER
WB2K5176 WB2K5176 INS OVTP RET
31-10583 31-10583 INSTRUCTIONS INSTALL
WB35K5067 WB35K5067 INSULATION-BACK BTM-LOW
WB35K5041 WB35K5041 INSULATION-INNER WRAP-LO
WB36X192 WB36X192 LAMP COV ASM
WB2K5164 WB2K5164 LGHT CUP SUP
WB02X7694 WB02X7694 LIGHT CAMERA LENS BAIL
WB63X26288 WB63X26288 LINER OVN DR ASSEMBLY
31-14205 31-14205 MANUAL MINI & WD ASM
49-80344 49-80344 MANUAL USE & CARE
WB07T10370 WB07T10370 MICROWAVE TRIM
WB02K5159 WB02K5159 OV DR INS RETAINER
WB8X303 WB8X303 OV LAMP HLDR
WB08X0303 WB08X0303 OV LAMP HOLDER
WB2K5159 WB2K5159 OVDR INS RET
WB02T10037 WB02T10037 OVEN LIGHT CUP
WB36T10756 WB36T10756 PANEL CONTROL SWO (SCR-BLK)
WB56T10232 WB56T10232 PANEL GLASS AND TAPE ASSEMBLY
WB2K5395 WB2K5395 PLATE REINFO

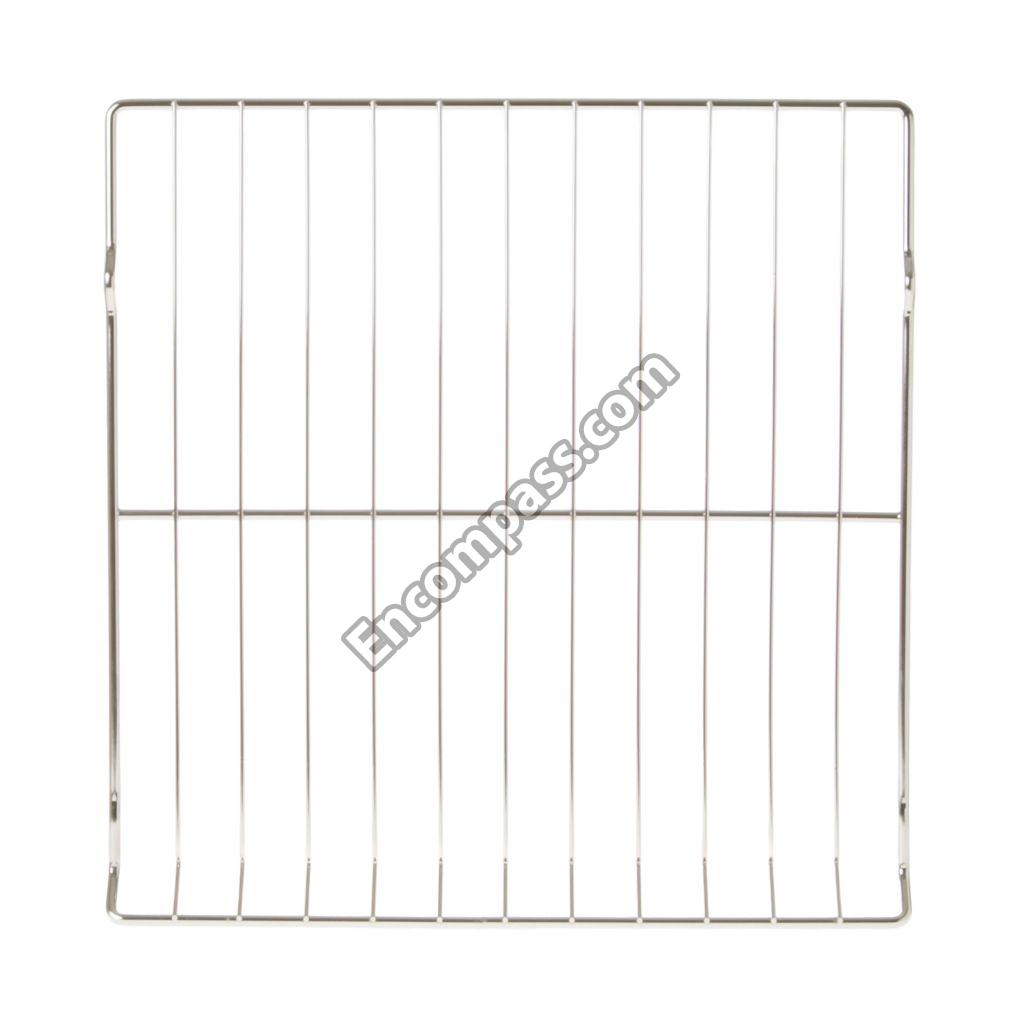

WB48T10094 WB48T10094 RACK OVEN
WB02T10117 WB02T10117 RANGE BOTTOM TRIM CLIP
WB02T10250 WB02T10250 RANGE CONTROL MOUNTING BRACKET - 24
WB02T10164 WB02T10164 RANGE FRONT TRIP CLIP
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB02T10197 WB02T10197 RETAINER INSLN SDE

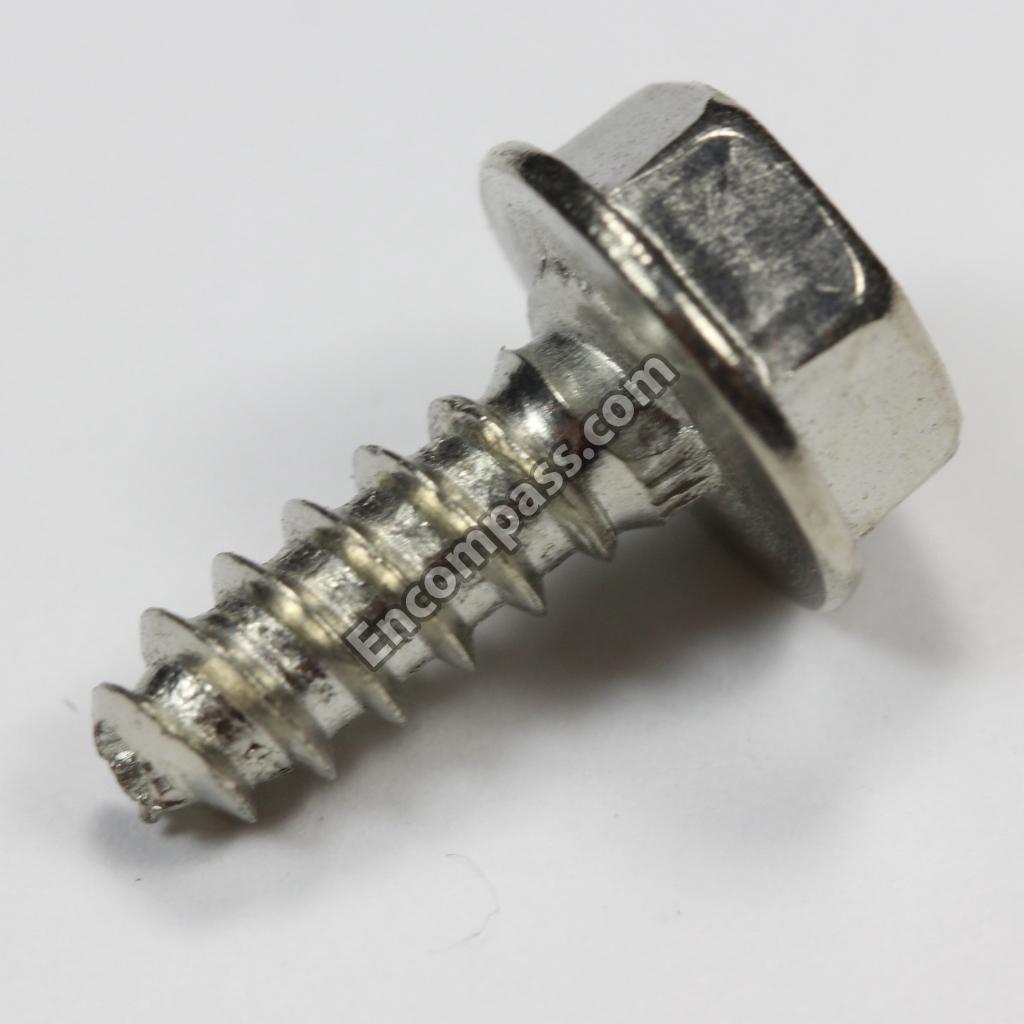

WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI.
WB02X34847 WB02X34847 SCREEN FAN
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5162 WB01K5162 SCREW
WB1X536 WB1X536 SCREW
WB01M10002 WB01M10002 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1K5072 WB1K5072 SCREW
WB1X1334 WB1X1334 SCREW
WB1K60 WB1K60 SCREW 8-18
WB01K0060 WB01K0060 SCREW 8-18 (BK) 1/2 S
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1K5162 WB1K5162 SCREW-BLACK
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB2K5147 WB2K5147 SPACER
WB09T10007 WB09T10007 SPRING OVEN DR UPPER
WB2X9719 WB2X9719 SUPP-BROIL
WB24K5046 WB24K5046 SWITCH LIMIT
WB63K5120 WB63K5120 TOP CABINET
WB07T10415 WB07T10415 TRIM FRT FRM LWR
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN

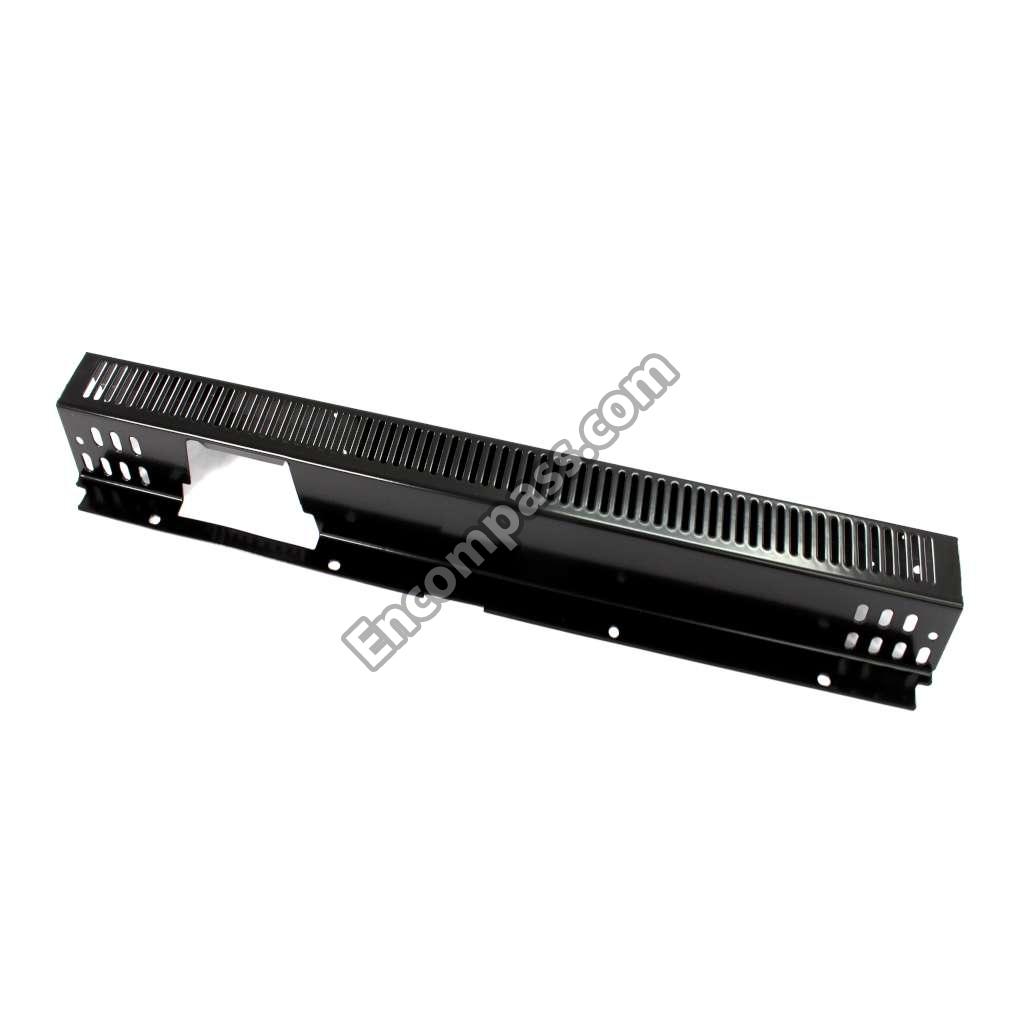

WB38K5051 WB38K5051 VENT BOX ASSEMBLY
WB7K5121 WB7K5121 VENT TRIM EX
WB07K5491 WB07K5491 VENT TRIM-BLACK
WB7K5491 WB7K5491 VENT TRM-BLK
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB02X9665 WB02X9665 WIRE COVER
WB2X9665 WB2X9665 WIRE COVER
WB01X1413 WB01X1413 WOOD SCREW-BLK
