Manufacturer
GE
Model Number
JS760DP5WW
Description

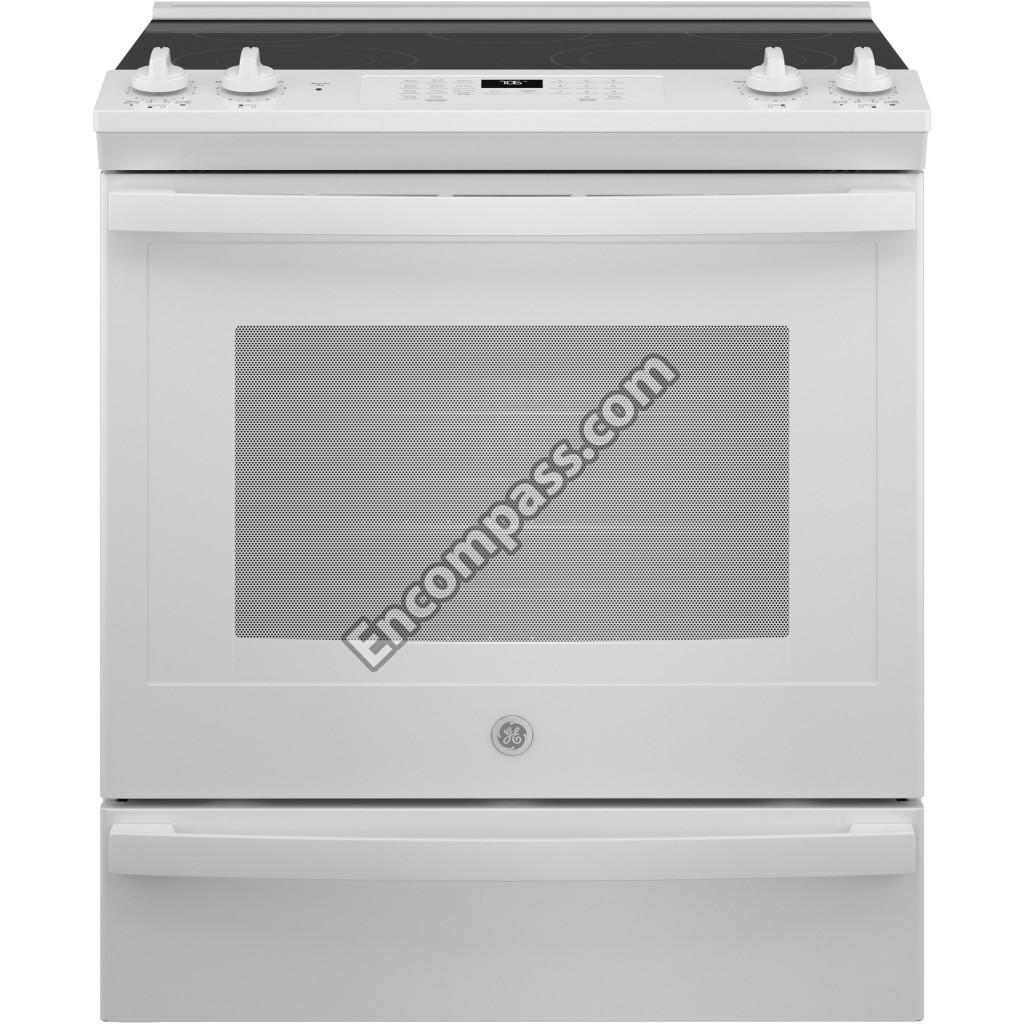

Electric Range
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
"ELEMENT RADIANT 9"" DUAL" |
|
|
BADGE ASM |
|
|
BLACK CONVECTION FAN COVER |
|
|
BLOCK TERMINAL ASM |
|
|
BOARD SENSOR |
|
|
BRACKET ANTI-TIP ASM |
|
|
BRACKET OVN HDL VNT TRM |
|
|
BRACKET OVN HDL VNT TRM |
|
|
BRACKET RADIANT ELEMENT |
|
|
BRACKET RADIANT ELEMENT |
|
|
BRACKET WARMER SUPT |
|
|
BROIL ELEMENT ASM |
|
|
CAMERA LENS |
|
|
CHASIS BRACE RT |
|
|
CHASSIS BRACE LT |
|
|
CLEANER GLASS |
|
|
CLIP CABLE |
|
|
CLIP SEAM OVEN BODY |
|
|
CONNECTED WIFI BOARD |
|
|
CONTOURED WASHER |
|
|
CONTROL BRACKET |
|
|
CONTROL PANEL GASKET |
|
|
CONTROL PANEL TRIM ASM |
|
|
CONVECTION MOTOR |
|
|
CONVECTION MOTOR BRACKET |
|
|
COOLING FAN ASM |
|
|
COOLING FAN DUCT |
|
|
COVER TERMINAL BLOCK |
|
|
DOOR GLASS BRACKET |
|
|
DOOR LATCH ASM |
|
|
DRAWER BODY ASM |
|
|
DRAWER PANEL WH |
|
|
DRAWER SUPPORT FRT |
|
|
DRAWER WEDGE |
|
|
ELEMENT HALIANT 12 IN |
|
|
ELEMENT RADIANT 5.5 IN |
|
|
ELEMENT WARMER LOW PRF |
|
|
ENCLOSURE CONTROL |
|
|
FRAME DOOR SIDE (WH) |
|
|
GASKET CONV FAN |
|
|
HALOGEN LAMP ASSEMBLY |
|
|
HANDLE & ENDCAP ASM (WH) |
|
|
HARNESS RJ45 INT CONNECT |
|
|
HARNESS WIRE MAINTOP INF |
|
|
HARNESS WIRE SENSOR WIFI |
|
|
HIDDEN BAKE HARNESS WIRE |
|
|
HINGE DOOR |
|
|
HINGE RECEIVER |
|
|
HUB BLADE ASM |
|
|
INF SWITCH CONTROL 1250W |
|
|
INSERT PLUG |
|
|
INSTRUCTION INSTALL |
|
|
INSULATION DOOR |
|
|
INSULATION DOOR |
|
|
INSULATION DOOR |
|
|
KNOB INFINITE (WH) |
|
|
LAMP HALOGEN BULB G9 |
|
|
LEAD WIRE 14 GA GN |
|
|
LEG LEVELER |
|
|
LIGHT INDICATOR |
|
|
LIGHT INDICATOR PILOT |
|
|
LINER OVEN DOOR ASM (BK) |
|
|
MAIN WIRE COVER |
|
|
MAINTOP GLASS ASM (WH) |
|
|
MAINTOP STRIKE |
|
|
MANUAL U&C TIP SHEET |
|
|
MOUNT TERMINAL BLOCK |
|
|
NUT HEX |
|
|
NUT HEX M4-.7 THREAD |
|
|
OVEN BACK INSULATION |
|
|
OVEN BOTTOM INSULATION |
|
|
OVEN CONTROL & FACEPLATE |
|
|
OVEN DOOR GASKET |
|
|
OVEN WRAPPER INSULATION |
|
|
PLATE COVER (BK) |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM INSTRUCTION CLEANING |
|
|
PM INSTRUCTIONS INSTALL |
|
|
RACK OVEN |
|
|
RANGETOP BUMPER |
|
|
REAR SUPPORT |
|
|
REAR TRIM SUPPORT |
|
|
REAR VENT TRIM AND GASKET |
|
|
REFLECTOR PANE BAKE ELEM |
|
|
RETAINER OVN DR INSLN |
|
|
SCR 10-32 CA TRT15 3.06 |
|
|
SCR 8-15 A HXW 7/8 S |
|
|
SCR 8-18 BA POR 3/4 SN |
|
|
SCR 8-32 TT FLP .270 |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW (CR) |
|
|
SCREW 10-32 TR T |
|
|
SCREW 8-18 AB HXW 3/8 |
|
|
SCREW 8-18 AB IHW 3/8 S |
|
|
SCREW ST10-16 X 7/16"" |
|
|
SENSOR ASM |
|
|
SIDE INSULATION RETAINER |
|
|
SIDE PANEL SUPPORT |
|
|
SIDE PANEL WH |
|
|
SIDE REFLECTOR |
|
|
SPACER |
|
|
SPRING RADIANT ELEMENT |
|
|
SWITCH HIGH LIMIT |
|
|
SWITCH INFINITE CONTROL |
|
|
TOP INSULATION RETAINER |
|
|
TRIM FRT FRM (BK) |
|
|
UNIT ASM |
|
|
VENT TUBE |
|
|
WASHER .250 ID X .812 OD |
|
|
WHITE CONTROL PANEL OVERLAY |
|
|
WHITE OUTER DOOR |
|
|
WINDOW PACK ASM |
|
|
WZ04X0408 |
|
|
WZ4X245D |
