Model Image
Manufacturer

GE

Model Number

JS760EL2ES

Description

30-inch Slide-in Electric Convection Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB02X29479 WB02X29479 GE BADGE ASSEMBLY
WB27X28659 WB27X28659 GE BOARD SENSOR
WB34X42670 WB34X42670 GE BRACKET OVN HDL VNT TRM
WB34X25221 WB34X25221 GE BRACKET OVN HDL VNT TRM
WB02X29065 WB02X29065 GE BRACKET RADI
WB02X29067 WB02X29067 GE BRACKET RADI
WB44X45491 WB44X45491 GE BROIL ELEMEN
WB02X25982 WB02X25982 GE CABLE CLIP
WB02T10533 WB02T10533 GE CAPACITOR BRACKET
WB07X33023 WB07X33023 GE CHASSIS BRACE LT
WB34X20082 WB34X20082 GE COMPLETE FAN COVER
WB01X0119 WB01X0119 GE CONTOURED WASHER
WB34X29472 WB34X29472 GE CONTROL BRAC
WB07X47587 WB07X47587 GE CONTROL PANEL
WB35X29473 WB35X29473 GE CONTROL PANEL

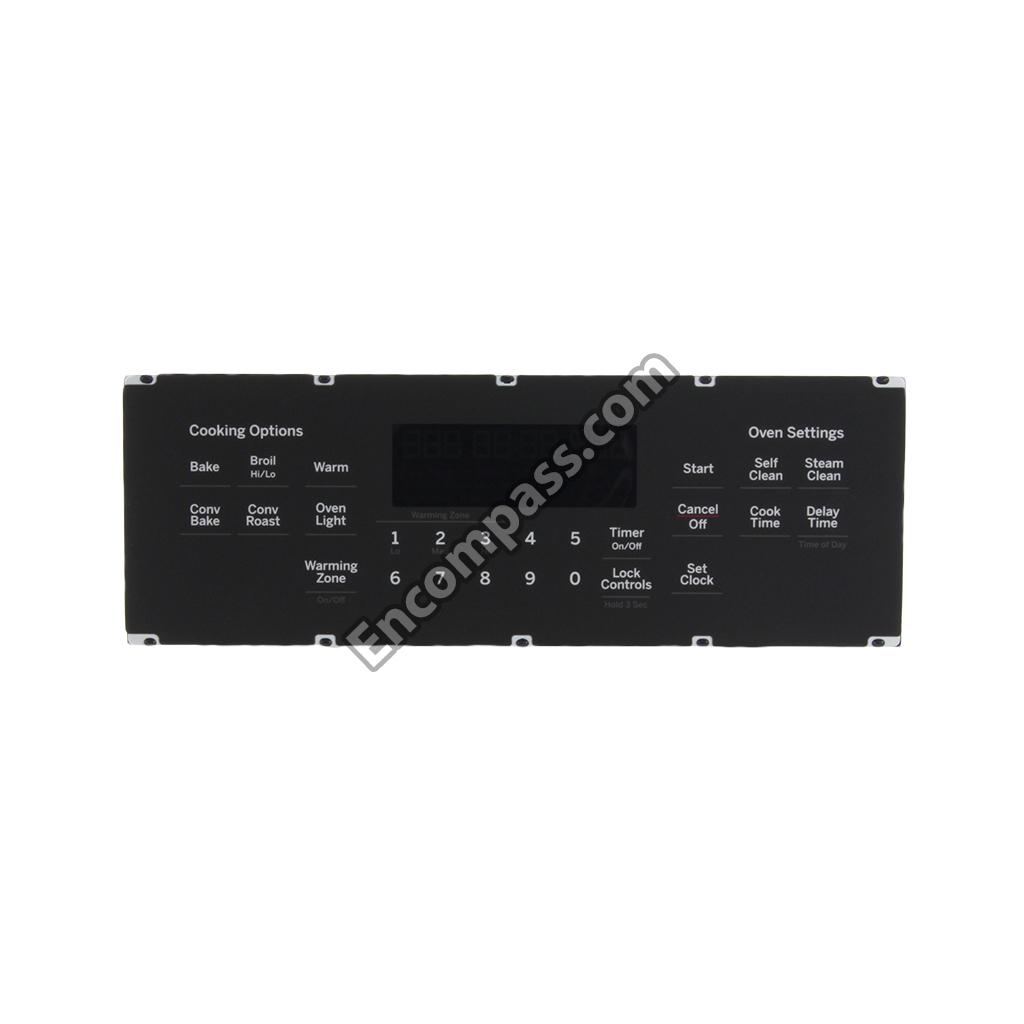

WB07X30059 WB07X30059 GE CONTROL PANEL OVERLAY ASM
WB44X29154 WB44X29154 GE CONVECTION E
WB26X29157 WB26X29157 GE CONVECTION MOTOR
WB02X29181 WB02X29181 GE CONVECTION MOTOR BRACKET
WB04T10080 WB04T10080 GE CONVERSION GASKET
WB27T10668 WB27T10668 GE COOKTOP INDICATOR LIGHT
WB34X29483 WB34X29483 GE COOLING FAN
WB26X29468 WB26X29468 GE COOLING FAN ASSEMBLY
WB02X21423 WB02X21423 GE COVER PLATE
WB02T10560 WB02T10560 GE COVER-TRM BL
WB02X28578 WB02X28578 GE DOOR GLASS BRACKET
WB10T10070 WB10T10070 GE DOOR HINGE
31-10617 31-10617 GE DOOR OVEN
WB63X29476 WB63X29476 GE DRAWER BODY
WB56X29481 WB56X29481 GE DRAWER PANEL
WB02X29072 WB02X29072 GE DRAWER WEDGE
WH2X930 WH2X930 GE DRYER SCREW
WB34X29485 WB34X29485 GE ENCLOSURE CONTROL
WB07T10516 WB07T10516 GE FRONT FRAME TRIM
WB64X0093 WB64X0093 GE GLASS CLEANER
WB08T10045 WB08T10045 GE HALOGEN LAMP
WB25X40248 WB25X40248 GE HALOGEN LAMP ASSEMBLY
WB02X35585 WB02X35585 GE HEX NUT
WB18X30731 WB18X30731 GE HIDDEN BAKE HARNESS WIRE
WB10T10068 WB10T10068 GE HINGE RECEIVER
WB02X26501 WB02X26501 GE HUB BLADE ASSEMBLY
WB25X20005 WB25X20005 GE INDICATOR LIGHT
WB24X25013 WB24X25013 GE INFINITE SWITCH
WB18X32705 WB18X32705 GE INFINITE SWITCH HARNESS
WB18X30735 WB18X30735 GE INFINITE SWITCH HARNESS WIRE
WB01X29474 WB01X29474 GE INSERT PLUG
31-10781 31-10781 GE INSTALLATION INSTRUCTIONS
WB35T10134 WB35T10134 GE INSULATION
WB35T10135 WB35T10135 GE INSULATION
WB35T10255 WB35T10255 GE INSULATION
WB18X30704 WB18X30704 GE JUMPER
WB03X34871 WB03X34871 GE KNOB
WB25X24909 WB25X24909 GE LAMP HALOGEN ASM
WB25X33021 WB25X33021 GE LAMP HALOGEN ASM
WB10X29077 WB10X29077 GE LATCH ASSEMBLY
WB07X21459 WB07X21459 GE LATCH TRIM
WB18X30745 WB18X30745 GE LEAD WIRE 14 GA GN
WB25X24023 WB25X24023 GE LENS
WB02T10026 WB02T10026 GE MAIN TOP STRIP
WB34X29069 WB34X29069 GE MAIN WIRE COVER
WB62X45228 WB62X45228 GE MAINTOP GLASS ASM (DG)
WB18X30732 WB18X30732 GE MAINTOP HARNESS WIRE
49-80597 49-80597 GE MANUAL U&C TIP SHEET
WB17T10021 WB17T10021 GE MOUNTING TERMINAL
WB01T10133 WB01T10133 GE NUT HEX M4-.
WB56X36547 WB56X36547 GE OUTER DOOR ASM (TZ)
WB35X29074 WB35X29074 GE OVEN BACK IN
WB35X29643 WB35X29643 GE OVEN BOTTOM
WB02T10118 WB02T10118 GE OVEN CLIP SEAM
WB27X33138 WB27X33138 GE OVEN CONTROL
WB56T10287 WB56T10287 GE OVEN DOOR FRAME
WB35X30048 WB35X30048 GE OVEN DOOR GA
WB25T10013 WB25T10013 GE OVEN LAMP LENS
WB55T10203 WB55T10203 GE OVEN LINER
WB48T10083 WB48T10083 GE OVEN RACK
WB56T10178 WB56T10178 GE OVEN RETAINER
WB35X29076 WB35X29076 GE OVEN WRAPPER
WB02T10509 WB02T10509 GE PAN REFLECTOR
31-10870 31-10870 GE PM INSTRUCTION CLEANING
WB09X40389 WB09X40389 GE RADIANT SPRING
WB02T10578 WB02T10578 GE RANGE ANTI-TIP BRACKET
WB44X45499 WB44X45499 GE RANGE BAKE ELEMENT
WB27T10662 WB27T10662 GE RANGE CONVECTION FAN MOTOR START CAPACITOR
WB30X24111 WB30X24111 GE RANGE DUAL RADIANT SURFACE ELEMENT, 6 TO 9-IN
WB30T10130 WB30T10130 GE RANGE HALOGEN SURFACE ELEMENT
WB02X10521 WB02X10521 GE RANGE LEVELING LEG
WB15X29386 WB15X29386 GE RANGE OVEN DOOR HANDLE ASSEMBLY
WB56X22160 WB56X22160 GE RANGE OVEN DOOR INNER GLASS
WB21X22134 WB21X22134 GE RANGE OVEN TEMPERATURE SENSOR
WB01M10002 WB01M10002 GE RANGE SCREW
WB1X5364 WB1X5364 GE RANGE SCREW
WB1M1 WB1M1 GE RANGE SCREW
WB1X536 WB1X536 GE RANGE SCREW
WB30T10145 WB30T10145 GE RANGE SURFACE ELEMENT
WB24T10011 WB24T10011 GE RANGE SURFACE ELEMENT CONTROL SWITCH, 1,500-WATT
WB17T10011 WB17T10011 GE RANGE TERMINAL BLOCK
WB1X119D WB1X119D GE RANGE WASHER, 12-PACK
WB02X29562 WB02X29562 GE RANGETOP BUM
WB07X29632 WB07X29632 GE REAR TRIM SU
WB07X29475 WB07X29475 GE REAR VENT TRIM AND GASKET ASM
WB49T10007 WB49T10007 GE REFLECTOR SI
WB18X29523 WB18X29523 GE RJ45 CONNECT
WB02X24268 WB02X24268 GE SCR 10-32 CA
WB01T10008 WB01T10008 GE SCR 10-32 TR
WB1X5904 WB1X5904 GE SCR 8-18
WB01X5904 WB01X5904 GE SCR 8-18 BA POR 3/4 SN
WB01X23501 WB01X23501 GE SCR 8-32 TT
WB01K5028 WB01K5028 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB1K5200 WB1K5200 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01T10017 WB01T10017 GE SCREW, #8-18
WZ4X245D WZ4X245D GE SCREW, #8-18
WB34X29158 WB34X29158 GE SIDE INSULAT
WB63X28679 WB63X28679 GE SIDE PANEL DG
WB63X29477 WB63X29477 GE SLIDE AND BEARING ASM
WB02X38986 WB02X38986 GE SPACER
WB02T10034 WB02T10034 GE SUPPORT
WB24X46908 WB24X46908 GE SWITCH HIGH
WB18X32702 WB18X32702 GE TEMPERATURE SENSOR HARNESS
WB34X29159 WB34X29159 GE TOP INSULATION RETAINER
WB38T10029 WB38T10029 GE VENT TUBE
WB07X29079 WB07X29079 GE VERTICAL BRA
WB02T10540 WB02T10540 GE WARM BRACKET
WB30T10154 WB30T10154 GE WARMING ELEMENT
WB1K5117 WB1K5117 GE WASHER
WB01K5117 WB01K5117 GE WASHER .250 ID X .812 OD
WB02X32440 WB02X32440 GE WASHER CONTOURED
WZ4X416 WZ4X416 GE WZ04X0408
