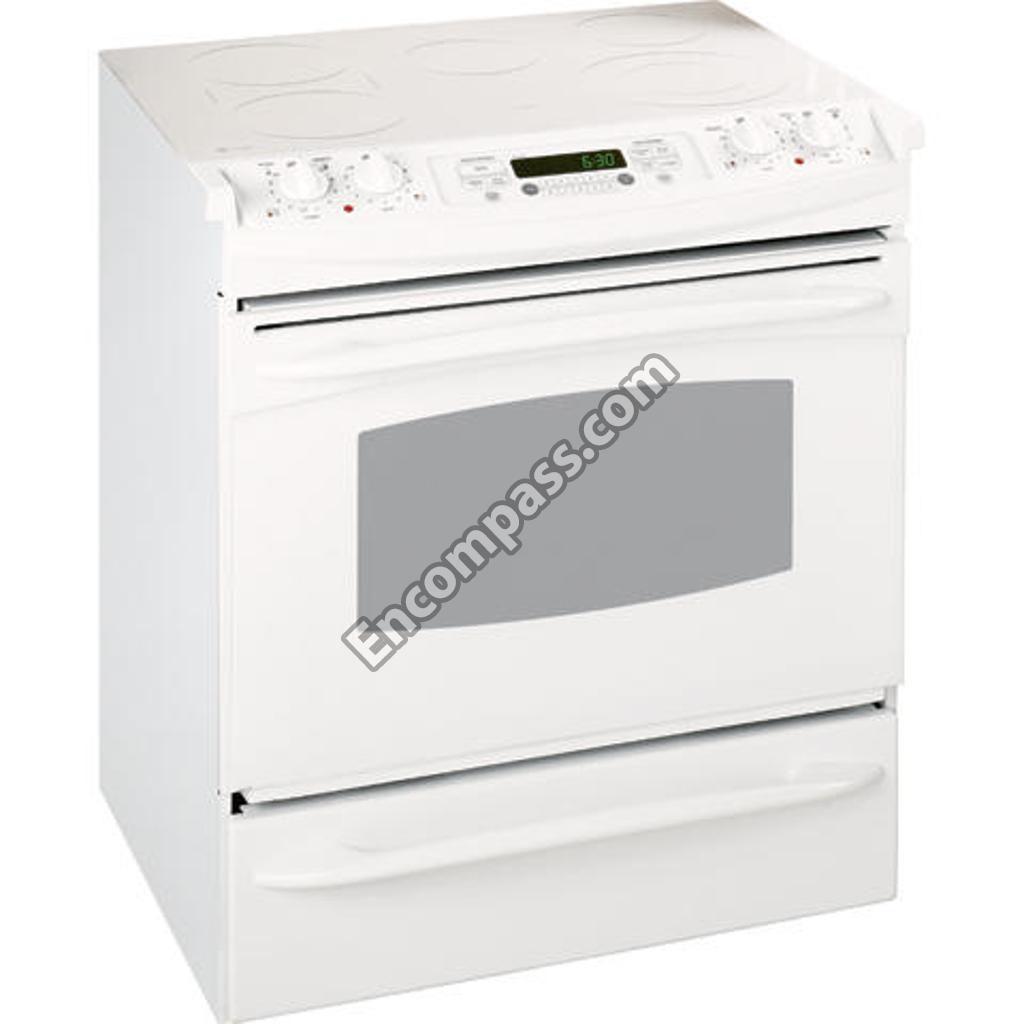

Model Image
Manufacturer

GE

Model Number

JS905TK4WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI TIP BKT
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLACK
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10242 WB02T10242 BRACKET
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB27T10815 WB27T10815 CONTROL OVN ERC
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB57T10348 WB57T10348 DOOR OTR ASM 30 (BK)
WB57T10350 WB57T10350 DOOR OTR ASM 30 (WH)
WB01T10026 WB01T10026 DOOR PAD
WB55T10178 WB55T10178 DRAWER BODY ASM MECH
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB44K10009 WB44K10009 ELEMENT BAKE
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10122 WB30T10122 ELEMENT RADIANT 9 DUAL
WB30T10141 WB30T10141 ELEMENT RADNT BRIDGE
WB07T10498 WB07T10498 EXTENSION SIDE LEFT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB27T10756 WB27T10756 FACEPLATE (SCR-BK)
WB27T10759 WB27T10759 FACEPLATE (SCR-WH)
WB07K10157 WB07K10157 FILLER BACKSPLASH (WHITE)
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02X10744 WB02X10744 GASKET FACEPLATE
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB64X0093 WB64X0093 GLASS CLEANER
WB15T10138 WB15T10138 HANDLE PRF DRAWER (WH)
WB15T10136 WB15T10136 HANDLE PRF DRAWER BK
WB01T10050 WB01T10050 HANGER CABLE
WB10X30494 WB10X30494 HINGE DOOR LEFT
WB10X24381 WB10X24381 HINGE DOOR LT
WB10X20965 WB10X20965 HINGE DOOR RT
WB24T10012 WB24T10012 INF SWITCH CONTROL (WM)
WB36T10570 WB36T10570 INSERT CONTROL PNL
31-10621 31-10621 INSTRUCTION INSTALL
31-10651 31-10651 INSTRUCTIONS INSTALL
31-10574 31-10574 INSTRUCTIONS INSTALL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10126 WB35T10126 INSULATION TOP

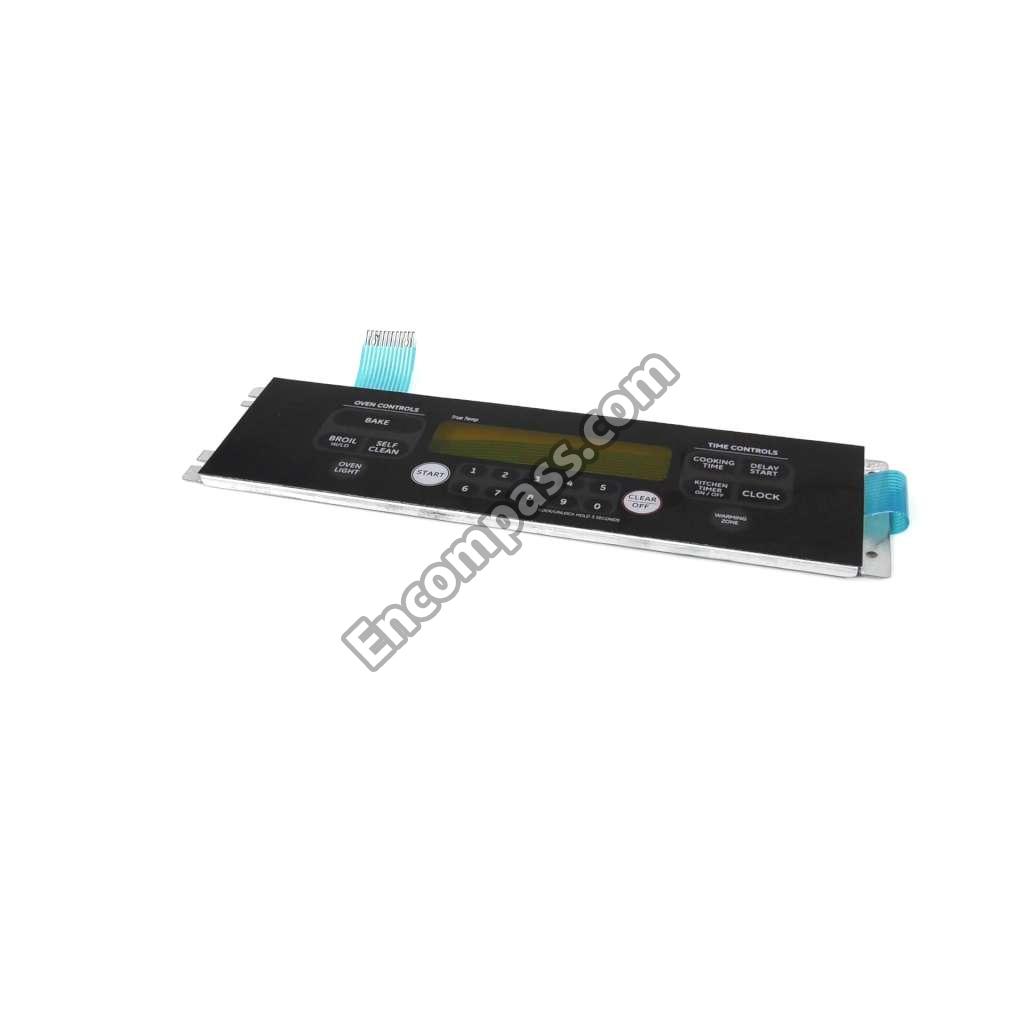

WB27T10755 WB27T10755 KEYPANEL SUPT ASM (BK)
WB27T10758 WB27T10758 KEYPANEL SUPT ASM (WH)
WB03T10078 WB03T10078 KNOB
WB03T10079 WB03T10079 KNOB PROFILE SU
WB14T10069 WB14T10069 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10022 WB25T10022 LENS SNAP-IN
WB25T10048 WB25T10048 LIGHT INDICATOR
WB55T10179 WB55T10179 LINING OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER

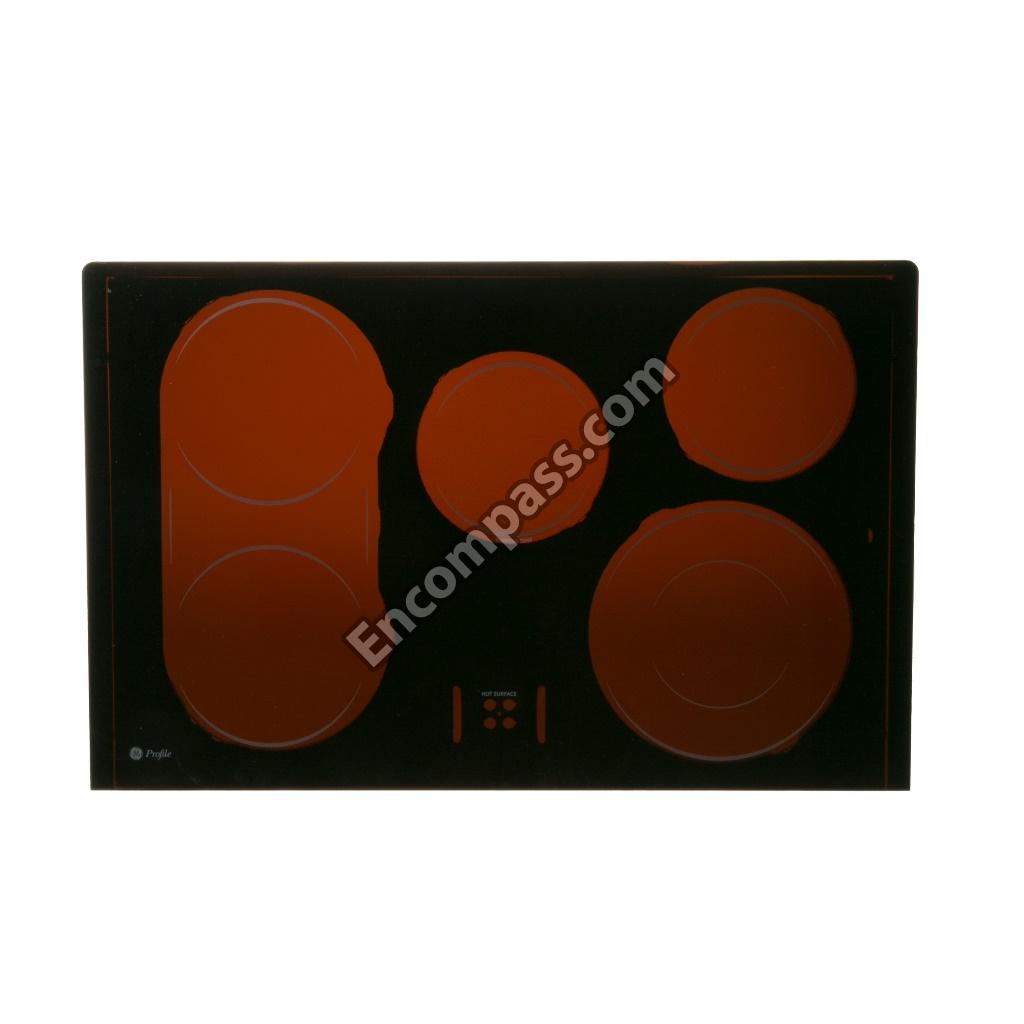

WB62T10700 WB62T10700 MAINTOP GLASS ASM (BK)
WB62T10701 WB62T10701 MAINTOP GLASS ASM (WH)
31-14742 31-14742 MANUAL MINI & WD ASM
49-80525 49-80525 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB08T10002 WB08T10002 OVEN LAMP HO
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 PANEL CNTL ASM
WB36T10668 WB36T10668 PANEL CNTL ASM
WB56T10174 WB56T10174 PANEL DRAWER
WB56T10173 WB56T10173 PANEL DRAWER
WR02X10562 WR02X10562 PUSH FASTENER
WB48T10021 WB48T10021 RACK OVEN LWR
WB30T10129 WB30T10129 RANGE 6-INCH RADIANT SURFACE ELEMENT
WB02T10343 WB02T10343 RANGE INSULATION RETAINER - LOWER TOP
WB24T10060 WB24T10060 RANGE THERMAL FUSE
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1127 WB01X1127 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1178 WB1X1178 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1141 WB1X1141 SCREW-8-32
WB1K5157 WB1K5157 SCREW-BLK
WH2X941D WH2X941D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB23T10015 WB23T10015 SENSOR ASM
WB34T10059 WB34T10059 SHIELD VENT ASSEMBLY
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10065 WB02T10065 SPACER DR HANDLE
WB02T10452 WB02T10452 SPACER REINFORCEMENT
WB2X9037 WB2X9037 SPACER-HNDL
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02T10453 WB02T10453 STUD COMPOSITE
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10134 WB24T10134 SWITCH INF CNTL
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10079 WB24T10079 SWITCH LIMIT
WB24T10160 WB24T10160 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB07T10516 WB07T10516 TRIM FRT FRM (BLACK)
WB07T10518 WB07T10518 TRIM VENT INR (BLACK)
WB07T10523 WB07T10523 TRIM VERT SDE LEFT (WHITE)
WB07T10521 WB07T10521 TRIM VERT SDE LT (BK)
WB07T10520 WB07T10520 TRIM VERT SDE RT (BK)
WB07T10522 WB07T10522 TRIM VERT SDE RT (WH)
WB07T10632 WB07T10632 TRIM VERT SIDE LT (BK)
WB07T10636 WB07T10636 TRIM VERT SIDE LT (WH)
WB07T10635 WB07T10635 TRIM VERT SIDE RT (WHITE)
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB28T10075 WB28T10075 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10085 WB63T10085 WRAPPER OVEN CAV
