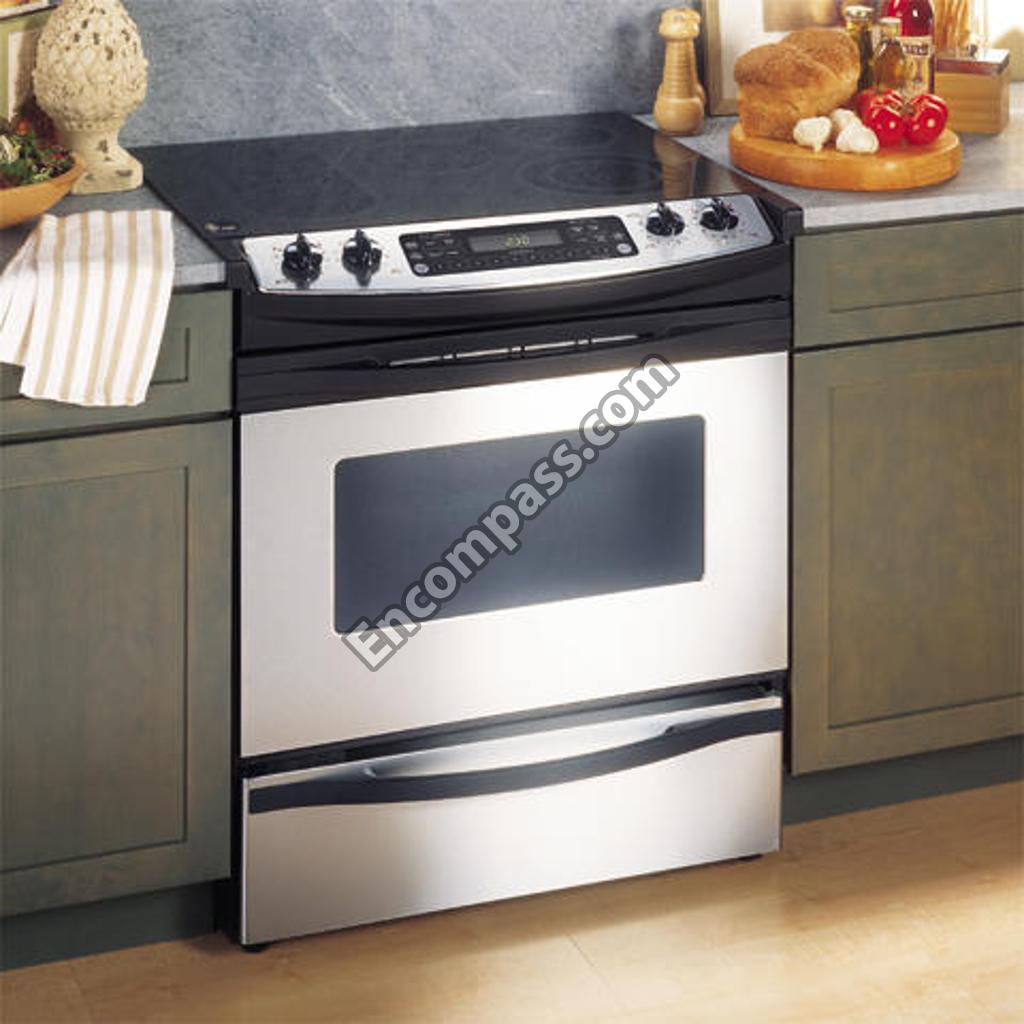

Model Image
Manufacturer

GE

Model Number

JS966SD2SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 GE 28 CERAMA BR
WB1K5200 WB1K5200 GE 340531
WB02T10415 WB02T10415 GE ANTI-TIP BRACKET
WB36K10239 WB36K10239 GE BACKSPLASH FILLER-BLK
WB17T10017 WB17T10017 GE BARRIER HEAT
WB39T10001 WB39T10001 GE BASE RIVET ASSEMBLY
WB2X8351 WB2X8351 GE BLADE FAN
WB26T10039 WB26T10039 GE BLOWER ASSEMBLY
WB02T10137 WB02T10137 GE BRACKET ASM ANTI TIP
WB02K10050 WB02K10050 GE BRACKET BASE
WB61K10010 WB61K10010 GE BURNER BOX BOTTOM
WB01K5209 WB01K5209 GE CLIP
WB1K5209 WB1K5209 GE CLIP
WB2X8320 WB2X8320 GE CLIP WINDOW
WB02X10742 WB02X10742 GE CONTROL PANEL GASKET
WB2X9152 WB2X9152 GE COVER ENAM WIPE
WB26T10053 WB26T10053 GE COVER FAN (CONVEX)
WB34K10049 WB34K10049 GE COVER WIRE REAR
WB34T10054 WB34T10054 GE COVER WIRE RR LWR
WB02T10047 WB02T10047 GE CRYSTAL MOUNT
WB02T10046 WB02T10046 GE CRYSTAL RETAINER
WB56K0020 WB56K0020 GE CRYSTAL WINDOW
WB01T10022 WB01T10022 GE DOOR BUMPER
WB15K10024 WB15K10024 GE DOOR H AND LE-LOWER
WB02K5312 WB02K5312 GE DOOR HANDLE SPACER-WHITE
WB15K5108 WB15K5108 GE DOOR HANDLE-BLACK
WB57T10190 WB57T10190 GE DOOR OVEN W/GLASS ASSEMBLY
WB2K5312 WB2K5312 GE DR HNDL SPCR
WB07K10138 WB07K10138 GE DR TRIM SHIELD
WB48T10068 WB48T10068 GE DRAWER GUIDE
WB56T10074 WB56T10074 GE DRAWER PANEL
WB44K10008 WB44K10008 GE ELEMENT BAKE
WB30X44826 WB30X44826 GE ELEMENT HALIANT 6
WB30T10099 WB30T10099 GE ELEMENT HALIANT 9
WB03T10088 WB03T10088 GE ELEMENT RADIANT
WB07K10155 WB07K10155 GE EXTENSION REAR
WB07T10498 WB07T10498 GE EXTENSION SIDE LEFT
WB07K10135 WB07K10135 GE EXTENSION SIDE RT
WB63T10034 WB63T10034 GE FALSE BOTTOM
WR02X10562 WR02X10562 GE FASTENER PUSH
WB56T10075 WB56T10075 GE FRAME OVEN DR ASSEMBLY (BLACK)
WB63T10064 WB63T10064 GE FRONT FRAME
WB48T10013 WB48T10013 GE FRT DRAWER SUPPORT
WB02T10511 WB02T10511 GE GASKET MAINTOP
WB02T10320 WB02T10320 GE GASKET MAINTOP LH
WB02T10319 WB02T10319 GE GASKET MAINTOP RH
WB41T10002 WB41T10002 GE GASKET OVEN DR
WB04T10021 WB04T10021 GE GASKET OVEN LIGHT
WB64X0093 WB64X0093 GE GLASS CLEANER
WB27K10056 WB27K10056 GE GLASS TOUCH ASSEMBLY (STAINLESS STEEL)
WB02T10067 WB02T10067 GE GROUND STRAP
WB01X1260 WB01X1260 GE GROUND WASHER
WB1X1260 WB1X1260 GE GRUND WASHER
WB18T10185 WB18T10185 GE HARNESS WIRE GLASS TOUCH
WB18T10187 WB18T10187 GE HARNESS WIRE MAIN
WB18T10186 WB18T10186 GE HARNESS WIRE MAINTOP
WB34T10024 WB34T10024 GE HEAT SHIELD ASSEMBLY
WB14T10010 WB14T10010 GE HINGE ASM-LT
WB14T10009 WB14T10009 GE HINGE ASM-RT
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY
WB25T10021 WB25T10021 GE INDICATOR LIGHT
WB18K10013 WB18K10013 GE INDICATOR LIGHT AM
WB24T10012 WB24T10012 GE INF SWITCH CNTL (WM)
WB36T10545 WB36T10545 GE INSERT CNTL PNL
31-10482 31-10482 GE INSTRUCTION INSTALL
31-10426 31-10426 GE INSTRUCTION INSTALL
WB2K5322 WB2K5322 GE INSUL RETNR
WB35K5097 WB35K5097 GE INSULATION OVEN DR SD
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE
WB02K5322 WB02K5322 GE INSULATION RETAINER
WB56X10189 WB56X10189 GE INSULATION RETAINER BACK
WB02T10109 WB02T10109 GE INSULATION RETAINER TOP
WB35K5118 WB35K5118 GE INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 GE INSULATION TOP/SDS (OUT)
WB49X10162 WB49X10162 GE KIT - CONT PNL ASSEMBLY-BK

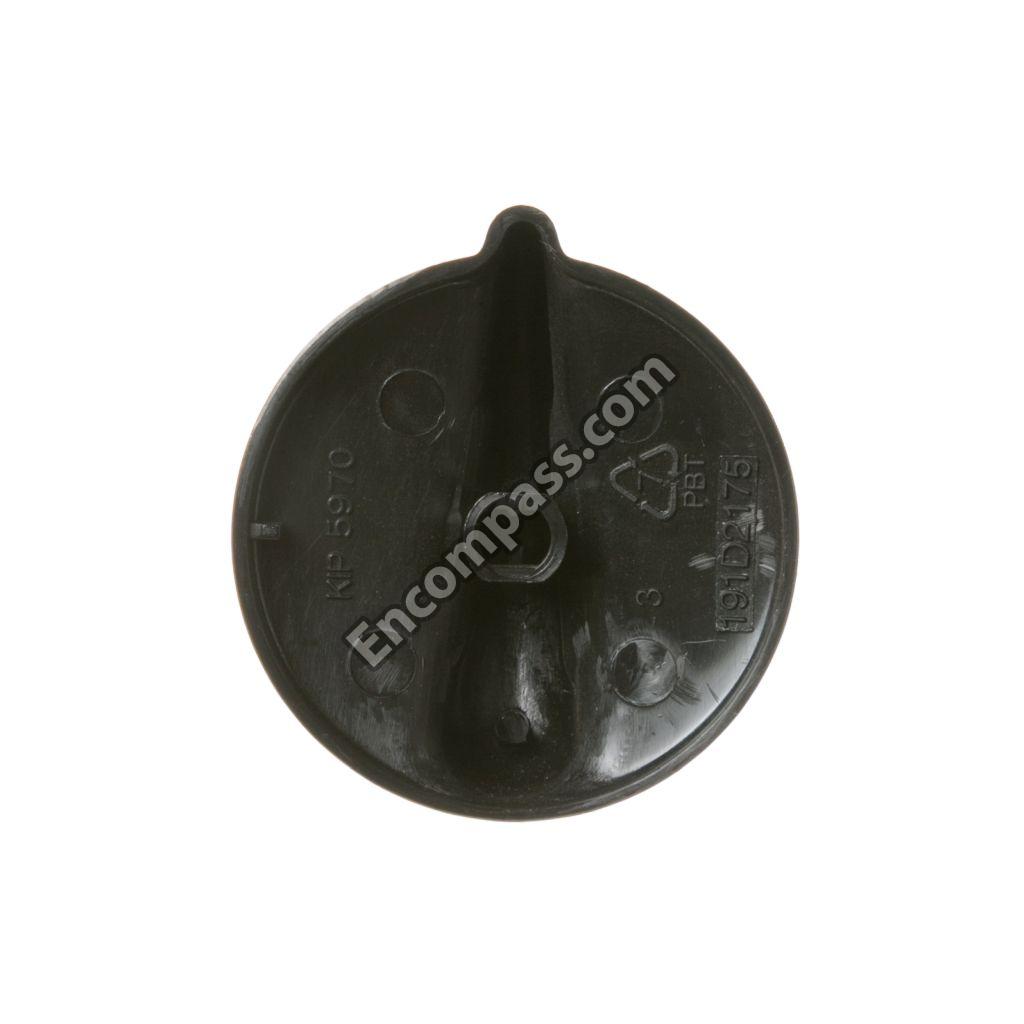

WB03T10183 WB03T10183 GE KNOB PROFILE S/U
WB03T10078 WB03T10078 GE KNOB PROFILE SU
WB25T10026 WB25T10026 GE LAMP HALOGEN ASSEMBLY
WB49X29679 WB49X29679 GE LAMP HALOGEN UPR
WB14T10008 WB14T10008 GE LATCH OVN ASM
WB02X10521 WB02X10521 GE LEG LEVELER
WB25T10027 WB25T10027 GE LENS OVEN LAMP
WB24T10059 WB24T10059 GE LIMIT SWITCH
WB24T10060 WB24T10060 GE LIMIT SWITCH-UPPER(LOCK)
WB55T10090 WB55T10090 GE LINING OVEN DR ASSEMBLY
WB01K5046 WB01K5046 GE LOCKWASHER
WB02K5306 WB02K5306 GE LOWER OVN INSLN RETAINER
WB17T10003 WB17T10003 GE MAIN TERMINAL BLOCK
WB62T10528 WB62T10528 GE MAINTOP GLASS ASSEMBLY (BLACK)
31-13846 31-13846 GE MANUAL MINI & WD ASM
49-80051 49-80051 GE MANUAL USE & CARE
WB1K5198 WB1K5198 GE MOTOR FAN
WB01X5968 WB01X5968 GE NUT
WB1X5572 WB1X5572 GE NUT
WB02T10017 WB02T10017 GE NUT
WB1X5968 WB1X5968 GE NUT 10-32
WB01X5572 WB01X5572 GE NUT MEAT PROBE
WB63T10071 WB63T10071 GE OVEN BODY UPPER
WB27T10224 WB27T10224 GE OVN CNTL ERC3HP
WB01K5199 WB01K5199 GE PAL NUT
WB1K5199 WB1K5199 GE PAL NUT
WB2X8309 WB2X8309 GE PR0BE COVER
WB20T10024 WB20T10024 GE PROBE
WB48T10020 WB48T10020 GE RACK OVEN UPR
WB09T10002 WB09T10002 GE RADIANT ELEMENT SPRING
WB44T10053 WB44T10053 GE RANGE CONVECTION ELEMENT
WB02T10031 WB02T10031 GE REAR DRAWER SUPPORT
WB08T10014 WB08T10014 GE RECEPTACLE JACK
WB02K10049 WB02K10049 GE RETAINER INSLN BTM
WB02T10068 WB02T10068 GE RETAINER SS PANEL
WB48X5108 WB48X5108 GE ROAST RACK
WR01X1850 WR01X1850 GE SCR 7-19 HXW 1/2
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 GE SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB01X1253 WB01X1253 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01K5029 WB01K5029 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01X1127 WB01X1127 GE SCREW
WB01X1141 WB01X1141 GE SCREW
WB01K5028 WB01K5028 GE SCREW
WB1K5029 WB1K5029 GE SCREW
WR1X1850 WR1X1850 GE SCREW
WB1X1293 WB1X1293 GE SCREW
WB1X1317 WB1X1317 GE SCREW
WB1K5062 WB1K5062 GE SCREW
WH2X1186 WH2X1186 GE SCREW
WB1M1 WB1M1 GE SCREW
WB1X1261 WB1X1261 GE SCREW
WB1X536 WB1X536 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01T10058 WB01T10058 GE SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 GE SCREW 10-16 SHLDR TYPE A
WB01T10056 WB01T10056 GE SCREW 10-32 IND HXW 437
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WB01T10053 WB01T10053 GE SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 GE SCREW GROUND
WB1X5364 WB1X5364 GE SCREW MTG
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 GE SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 GE SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 GE SCREW-8-32
WB01X1317 WB01X1317 GE SCREW-BLACK
WB01X1180 WB01X1180 GE SCREW-BLACK
WB1K5157 WB1K5157 GE SCREW-BLK
WH2X941D WH2X941D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WB2K5306 WB2K5306 GE SD INSUL RET
WB23T10015 WB23T10015 GE SENSOR ASM
WB34T10052 WB34T10052 GE SHIELD VENT ASSEMBLY
WB55T10178 WB55T10178 GE STORAGE DRAWER LINING
WB26T10015 WB26T10015 GE SUPPORT OVN CAV
WB02X33180 WB02X33180 GE SUPPORT REAR
WB2K5238 WB2K5238 GE SW BRACKET
WB02K5238 WB02K5238 GE SWITCH BRACKET
WB24T10063 WB24T10063 GE SWITCH INF CNTL
WB24T10119 WB24T10119 GE SWITCH INFINITE CONTROL
WB24T10147 WB24T10147 GE SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 GE TAPE FOAM
WB01T10055 WB01T10055 GE TAPE FOAM
WB17T10002 WB17T10002 GE TERMINAL BOX
WB07T10209 WB07T10209 GE TRIM VENT INR (BLACK)
WB07T10392 WB07T10392 GE TRIM VERT SDE LEFT
WB07T10391 WB07T10391 GE TRIM VERT SDE RT
WB28T10070 WB28T10070 GE TUBE VENT ASM
WB44T10043 WB44T10043 GE UNIT BROIL ASSEMBLY (DLX)
WB48X10056 WB48X10056 GE UNIVERSAL RANGE BROILER PAN
WB38T10014 WB38T10014 GE VENT BOX ASSEMBLY
WB7K5424 WB7K5424 GE VENT TRIM
WB07K5424 WB07K5424 GE VENT TRIM-BLACK
WB01X5573 WB01X5573 GE WASHER
WB01T10010 WB01T10010 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB1X5573 WB1X5573 GE WASHER
WB01T10057 WB01T10057 GE WASHER SS
WB1X681 WB1X681 GE WB01X0681
WB30T10048 WB30T10048 GE WB30T10048
WB35T10090 WB35T10090 GE WB35K5116
WB56K20 WB56K20 GE WIND PACK LG
WB2K5321 WB2K5321 GE WIND SPACER
WB02X8320 WB02X8320 GE WINDOW CLIP
WB02K5321 WB02K5321 GE WINDOW SPACER
