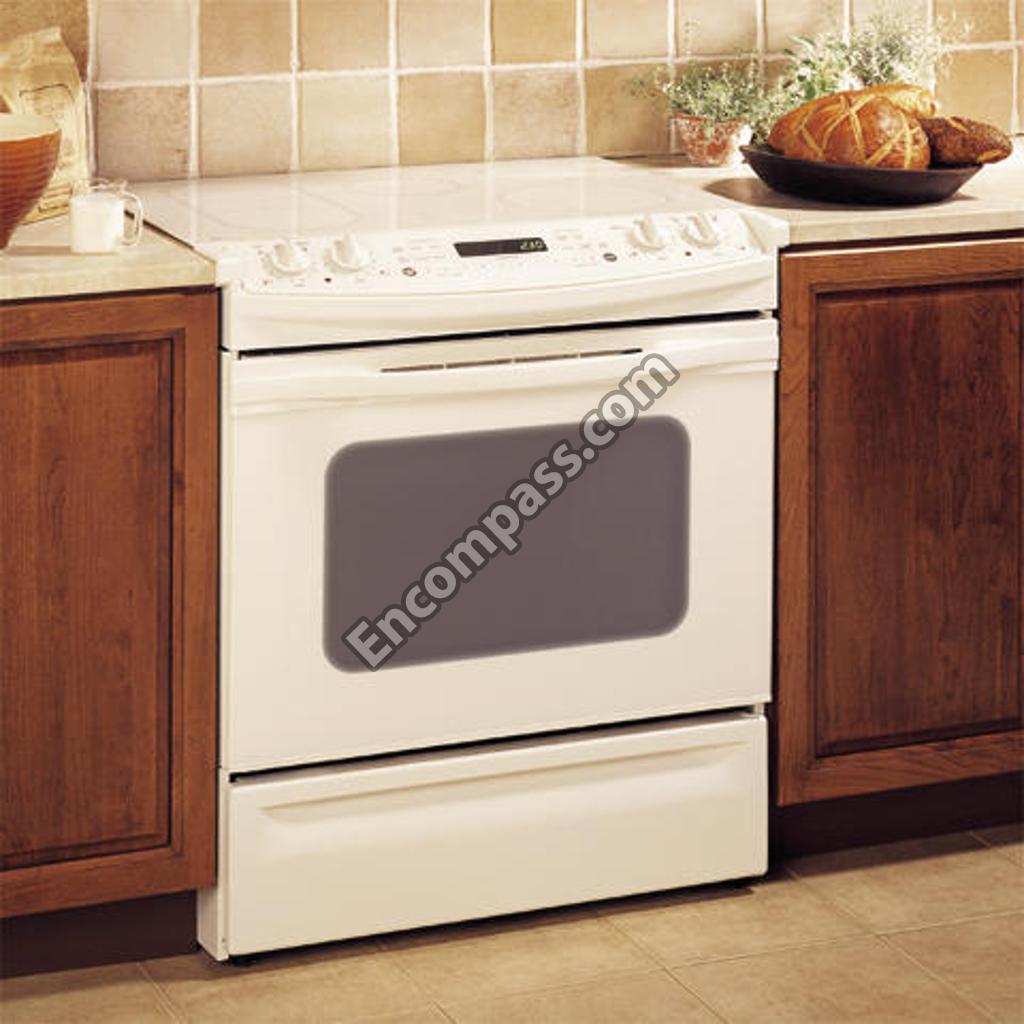

Model Image
Manufacturer

GE

Model Number

JS966TD1WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
WB08T10023 WB08T10023 35W RANGE HALOGEN BULB
49-8443 49-8443 44-K006
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB07K10156 WB07K10156 BACKSPLASH FILLER BQT
WB17T10017 WB17T10017 BARRIER HEAT
WB39T10001 WB39T10001 BASE RIVET ASSEMBLY
WB2X8351 WB2X8351 BLADE FAN
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB02T10137 WB02T10137 BRACKET ASM ANTI TIP
WB02K10050 WB02K10050 BRACKET BASE
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2X8320 WB2X8320 CLIP WINDOW
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER ENAM WIPE
WB26T10053 WB26T10053 COVER FAN (CONVEX)
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB34K10047 WB34K10047 COVER WIRE RR LWR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB01T10022 WB01T10022 DOOR BUMPER
WB15K5108 WB15K5108 DOOR HANDLE-BLACK
WB15K5110 WB15K5110 DOOR HANDLE-WHITE
WB07K10138 WB07K10138 DR TRIM SHIELD
WB48T10068 WB48T10068 DRAWER GUIDE
WB56T10270 WB56T10270 DRAWER PANEL-BISQUE
WB44K10008 WB44K10008 ELEMENT BAKE
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30T10099 WB30T10099 ELEMENT HALIANT 9
WB03T10088 WB03T10088 ELEMENT RADIANT
WB07T10498 WB07T10498 EXTENSION SIDE LEFT
WB07K10135 WB07K10135 EXTENSION SIDE RT
WB63T10034 WB63T10034 FALSE BOTTOM
WR02X10562 WR02X10562 FASTENER PUSH
WB07K10157 WB07K10157 FILLER BACKSPLASH (WHITE)
WB56T10076 WB56T10076 FRAME OVEN DR ASSEMBLY (B
WB56T10075 WB56T10075 FRAME OVEN DR ASSEMBLY (BLACK)
WB63T10064 WB63T10064 FRONT FRAME
WB48T10013 WB48T10013 FRT DRAWER SUPPORT
WB02T10511 WB02T10511 GASKET MAINTOP
WB02X10741 WB02X10741 GASKET MAINTOP
WB04T10008 WB04T10008 GASKET OVEN DR
WB41T10002 WB41T10002 GASKET OVEN DR
WB04T10021 WB04T10021 GASKET OVEN LIGHT
WB64X0093 WB64X0093 GLASS CLEANER
WB57K10059 WB57K10059 GLASS OVEN DR OTR (BISQUE)
WB57T10158 WB57T10158 GLASS OVEN DR OTR (BLACK)
WB57T10160 WB57T10160 GLASS OVEN DR OTR (WHITE)
WB27K10054 WB27K10054 GLASS TOUCH ASSEMBLY (BIS
WB27K10052 WB27K10052 GLASS TOUCH ASSEMBLY (BLA
WB27K10055 WB27K10055 GLASS TOUCH ASSEMBLY (WHITE)
WB02T10067 WB02T10067 GROUND STRAP
WB30T10044 WB30T10044 HALIANT ELEMENT 9""
WB25T10024 WB25T10024 HALOGEN LAMP ASSEMBLY
WB18T10185 WB18T10185 HARNESS WIRE GLASS TOUCH
WB17T10004 WB17T10004 HEAT BARRIER
WB34T10024 WB34T10024 HEAT SHIELD ASSEMBLY
WB14T10006 WB14T10006 HINGE ASM LT
WB14T10005 WB14T10005 HINGE ASM RT
WB14T10010 WB14T10010 HINGE ASM-LT
WB14T10009 WB14T10009 HINGE ASM-RT
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB25T10021 WB25T10021 INDICATOR LIGHT
WB18K10013 WB18K10013 INDICATOR LIGHT AM
WB24T10012 WB24T10012 INF SWITCH CNTL (WM)
WB07T10177 WB07T10177 INNER VENT TRIM
WB36T10545 WB36T10545 INSERT CNTL PNL
WB36K10240 WB36K10240 INSERT CONTROL PNL
31-10482 31-10482 INSTRUCTION INSTALL
WB2K5322 WB2K5322 INSUL RETNR
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB56X10189 WB56X10189 INSULATION RETAINER BACK
WB02T10109 WB02T10109 INSULATION RETAINER TOP
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB49X10163 WB49X10163 KIT - CONT PNL ASSEMBLY-WH
WB03T10095 WB03T10095 KNOB PROFILE S/U (BISQUE)
WB03T10078 WB03T10078 KNOB PROFILE SU
WB03T10079 WB03T10079 KNOB PROFILE SU WH
WB25T10026 WB25T10026 LAMP HALOGEN ASSEMBLY
WB49X29679 WB49X29679 LAMP HALOGEN UPR
WB14T10008 WB14T10008 LATCH OVN ASM
WB02X10521 WB02X10521 LEG LEVELER
WB25T10027 WB25T10027 LENS OVEN LAMP
WB24T10045 WB24T10045 LIMIT SWITCH
WB24T10059 WB24T10059 LIMIT SWITCH
WB24T10033 WB24T10033 LIMIT SWITCH
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10090 WB55T10090 LINING OVEN DR ASSEMBLY
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB17T10003 WB17T10003 MAIN TERMINAL BLOCK
WB02X10740 WB02X10740 MAINTOP GASKET
WB61T10088 WB61T10088 MAINTOP GLASS ASSEMBLY (BISQUE
WB61T10090 WB61T10090 MAINTOP GLASS ASSEMBLY (WHITE)
WB62T10529 WB62T10529 MAINTOP GLASS ASSEMBLY (WHITE)
31-13846 31-13846 MANUAL MINI & WD ASM
49-80051 49-80051 MANUAL USE & CARE
WB1K5198 WB1K5198 MOTOR FAN
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB26T10003 WB26T10003 OV CAVITY SUPPORT
WB25T10013 WB25T10013 OV LAMP LENS
WB63T10071 WB63T10071 OVEN BODY UPPER
WB63T10063 WB63T10063 OVEN BODY-UPPER
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB56T10373 WB56T10373 OVEN DOOR RETAINER KIT
WB15T10027 WB15T10027 OVEN DR HANDLE (BQST)
WB27T10224 WB27T10224 OVN CNTL ERC3HP
WB02T10244 WB02T10244 PAD FELT
WB01K5199 WB01K5199 PAL NUT
WB1K5199 WB1K5199 PAL NUT
WB49X10164 WB49X10164 PANEL CONTROL ASSEMBLY
WB56T10268 WB56T10268 PANEL DRAWER
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB48T10020 WB48T10020 RACK OVEN UPR
WB09T10002 WB09T10002 RADIANT ELEMENT SPRING
WB44T10053 WB44T10053 RANGE CONVECTION ELEMENT
WB02T10034 WB02T10034 RANGE PANEL SIDE SUPORT
WB02T10031 WB02T10031 REAR DRAWER SUPPORT
WB08T10014 WB08T10014 RECEPTACLE JACK
WB02K10049 WB02K10049 RETAINER INSLN BTM
WB48X5108 WB48X5108 ROAST RACK
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01T10051 WB01T10051 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5028 WB01K5028 SCREW
WB1X1293 WB1X1293 SCREW
WH2X1186 WH2X1186 SCREW
WR1X1850 WR1X1850 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB1X1149 WB1X1149 SCREW 10-16 X 3/8
WB01T10056 WB01T10056 SCREW 10-32 IND HXW 437
WB01T10008 WB01T10008 SCREW 10-32 TR T
NCN NCN SCREW 8-16 B FLP 625 ZN
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB01X1261 WB01X1261 SCREW GROUND
WB01T10039 WB01T10039 SCREW ST 6-20X 375 TR BISQUE
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB02T10110 WB02T10110 SCREW-BLACK
WB1K5157 WB1K5157 SCREW-BLK
WH2X941D WH2X941D SCREW-PKG 12
WB01K5185 WB01K5185 SCREW-WHITE
WB01K5161 WB01K5161 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB1K5161 WB1K5161 SCREW-WHITE
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB34T10114 WB34T10114 SHIELD OVN DR VNT
WB55T10178 WB55T10178 STORAGE DRAWER LINING
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10063 WB24T10063 SWITCH INF CNTL
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB17T10002 WB17T10002 TERMINAL BOX
WB7K5429 WB7K5429 TRIM ASM
WB07K5429 WB07K5429 TRIM ASSEMBLY
WB07T10164 WB07T10164 TRIM ASSEMBLY (BISQUE)
WB07K10151 WB07K10151 TRIM SDE VERT (LT-WHITE)
WB07K10150 WB07K10150 TRIM SDE VERT (RT-WHITE)
WB07T10209 WB07T10209 TRIM VENT INR (BLACK)
WB28K5010 WB28K5010 TUBE VENT
WB28T10070 WB28T10070 TUBE VENT ASM
WB44T10043 WB44T10043 UNIT BROIL ASSEMBLY (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB26T10001 WB26T10001 UPR FAN CVR
WB38T10014 WB38T10014 VENT BOX ASSEMBLY
WB01X5573 WB01X5573 WASHER
WB01T10010 WB01T10010 WASHER
WB1X5573 WB1X5573 WASHER
WB26T10008 WB26T10008 WB26T10008
WB30T10048 WB30T10048 WB30T10048
WB35T10090 WB35T10090 WB35K5116
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
