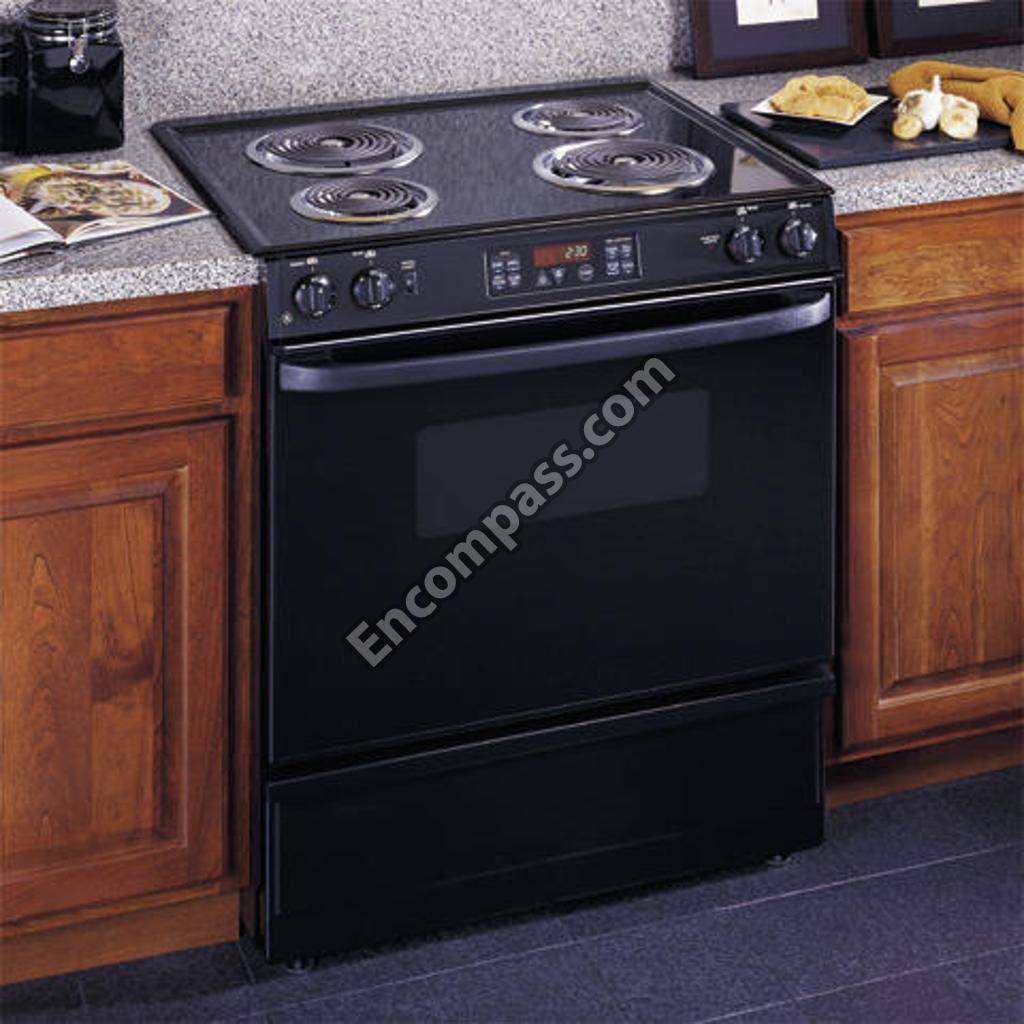

Model Image
Manufacturer

GE

Model Number

JSP34BD3BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 6 INCH CHROME BURNER BOWL - ELEC
WB30M1 WB30M1 6-INCH SURF ELEM
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - EL
WB30M2 WB30M2 8-INCH SURF ELEM
WB36K5047 WB36K5047 BACKSPLASH FILLER
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLACK
WB36T10319 WB36T10319 BACKSPLASH FILLER-BQT
WB36K5579 WB36K5579 BACKSPLASH FILLER-WHITE
WB44K5012 WB44K5012 BAKE ELEMENT
WB34K5250 WB34K5250 BARRIER CONTROL PNL (RT)
WB2M33 WB2M33 BASE ASM
WB02K5334 WB02K5334 BASE ASM W/LEVELERS
WB64K5038 WB64K5038 BBB SIDE EXTENSION
WB2X9148 WB2X9148 BLOCK-FRONT
WB2X9146 WB2X9146 BLOCK-REAR
WB26K5070 WB26K5070 BLOWER ASSEMBLY W/HOSE
WB63M21 WB63M21 BODY SD FILL
WB63K5195 WB63K5195 BODY SIDE-TEXTURED-LT
WB63K5192 WB63K5192 BODY SIDE-TEXTURED-RT
WB63M0021 WB63M0021 BODYSIDE FILLER-REAR
WB02T10137 WB02T10137 BRACKET ASM ANTI TIP
WB10X255 WB10X255 BRACKET-HNGE
WB44X0232 WB44X0232 BROIL ELEMENT 240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB44X232 WB44X232 BROILUNT 240
WB64T10007 WB64T10007 BURNER BOX BOTTOM
WB01K5135 WB01K5135 CABLE CLIP
WB1K5135 WB1K5135 CABLE CLIP
WB56X1907 WB56X1907 CENTER GLASS
WB02K5333 WB02K5333 CLOCK BRACKET
WB2K5333 WB2K5333 CLOCK BRKT
WB27K5337 WB27K5337 CLOCK PLATE-BLACK
WB27K5338 WB27K5338 CLOCK PLATE-WHITE
WB27X27460 WB27X27460 CONTROL OVN ERC3B
WB34K5251 WB34K5251 CONTROL PANEL BARRIER-LT
WB36K5667 WB36K5667 CONTROL PANEL-BLACK
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB2X9749 WB2X9749 COVER PLATE
WB34T10008 WB34T10008 COVER WIRE
WB34K5128 WB34K5128 DISCONNECT SHIELD
WB02K5312 WB02K5312 DOOR HANDLE SPACER-WHITE
WB15K5082 WB15K5082 DOOR HANDLE-WHITE
WB34K5228 WB34K5228 DOOR LOCK PLAT
WB2K5312 WB2K5312 DR HNDL SPCR
WB58X65 WB58X65 DRAWER
WB15T10029 WB15T10029 DRAWER HANDLE (BISQUE)
WB15T10057 WB15T10057 DRAWER HANDLE ASSEMBLY
WB15K5089 WB15K5089 DRAWER HANDLE-BLACK
WB56M0003 WB56M0003 DRAWER SUPPORT
WB23M24 WB23M24 EL CTL 1500W
WB23M0024 WB23M0024 ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W
WB36K5378 WB36K5378 END CAP LEFT (BLACK)
WB36K5497 WB36K5497 END CAP LT
WB36T10318 WB36T10318 END CAP LT (BISQUE)
WB36K5498 WB36K5498 END CAP RT
WB36T10317 WB36T10317 END CAP RT (BISQUE)
WB36K5379 WB36K5379 END CAP RT (BLACK)
WB36K5424 WB36K5424 END CAP-LT-BLACK
WB36K5411 WB36K5411 END CAP-LT-WHITE
WB36K5425 WB36K5425 END CAP-RT-BLACK
WB36K5410 WB36K5410 END CAP-RT-WHITE
WB34K5111 WB34K5111 EXTENSION WIRE COVER
WB24M15 WB24M15 FAN LMT SWIT
WB26M17 WB26M17 FLEX HOSE
WB26M0017 WB26M0017 FLEXIBLE HOSE
WB56T10060 WB56T10060 FRAME OVEN DR (BISQUE
WB56K5144 WB56K5144 FRAME OVEN DR (BLACK)
WB63T10028 WB63T10028 FRONT FRAME
WB02T10125 WB02T10125 GASKET OVEN DR
WB02X9178 WB02X9178 GLASS MTG PLATE
WB57K5102 WB57K5102 GLASS OV DR INNER
WB57T10110 WB57T10110 GLASS OVN DR OTR (BLK)
WB57T10111 WB57T10111 GLASS OVN DR OTR (WHT)
WB2M1 WB2M1 GLASS RETNR
WB2X9725 WB2X9725 GROMET STRP
WB02X9725 WB02X9725 GROMMET STRIP
WB15T10058 WB15T10058 HANDLE ASM
WB15T10059 WB15T10059 HANDLE ASM
WB14X0103 WB14X0103 HINGE ASM-LT
WB14X0104 WB14X0104 HINGE ASM-RT
WB14X103 WB14X103 HINGE-LEFT
WB14X110 WB14X110 HINGE-LEFT
WB14X104 WB14X104 HINGE-RIGHT
WB14X109 WB14X109 HINGE-RIGHT
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS
WB3K5242 WB3K5242 INF KNOB-BLK
WB03K5242 WB03K5242 INFINTE KNOB-BLK
WB02T10077 WB02T10077 INSLN RETAINER-LO
31-10197 31-10197 INSTALLATION INSTRUCTION
31-10026 31-10026 INSTALLATION INSTRUCTION
31-10567 31-10567 INSTRUCTION INSTALL
SR10099 SR10099 INSTRUCTIONS INSTALL
WB2M38 WB2M38 INSUL RETNR
WB02M0038 WB02M0038 INSULATION RETAINER
WB35M0022 WB35M0022 INSULATION TOP &SIDES
WB35K5113 WB35K5113 INSULATION-BACK & BTM
WB35M0024 WB35M0024 INSULATION-TOP & SIDES
WB17T10006 WB17T10006 KIT SURF TERM BLOCK

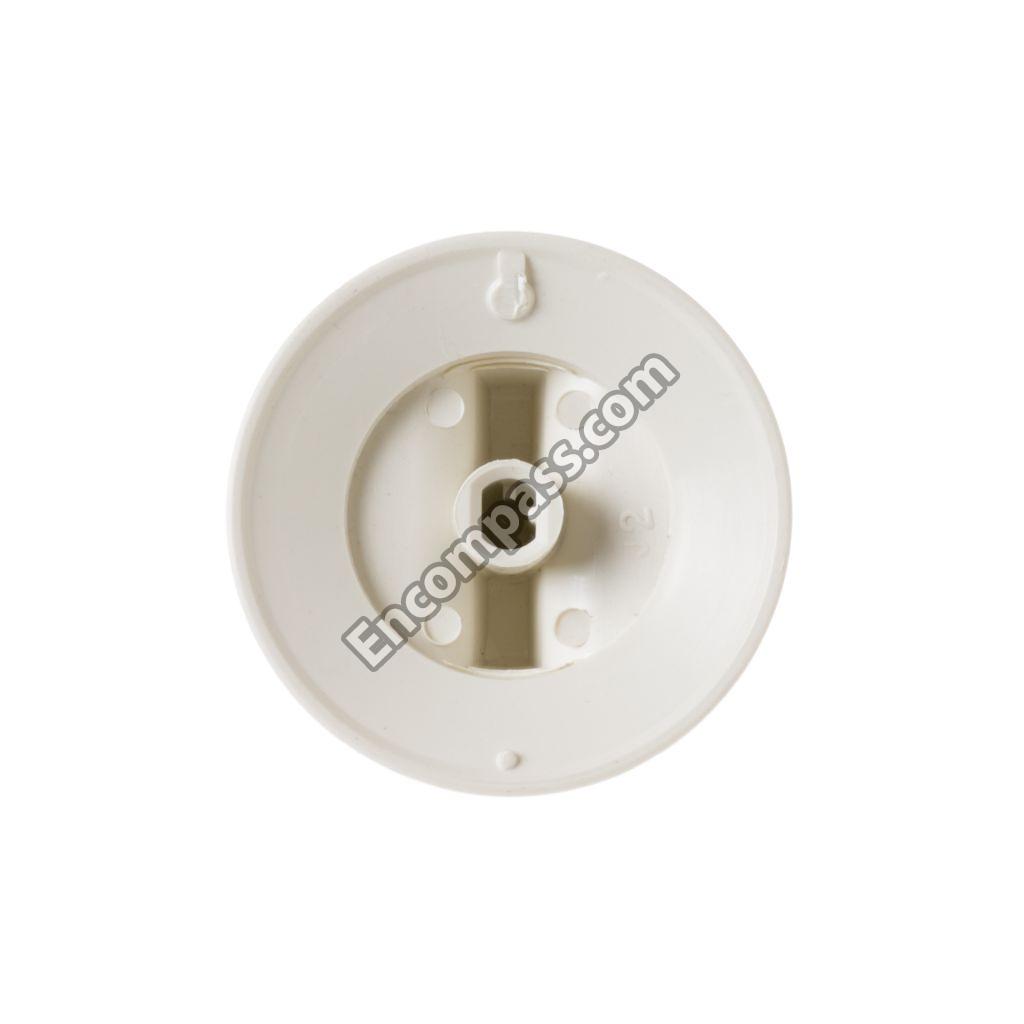

WB03T10169 WB03T10169 KNOB INF (BISQUE)
WB25T10042 WB25T10042 LENS
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW
WB25T10040 WB25T10040 LIGHT INDICATOR
WB34M0027 WB34M0027 LIGHT WIRE COVER
WB24K5086 WB24K5086 LIMIT SWITCH
WB55T10018 WB55T10018 LINING OVEN DR ASSEMBLY
WB15K5016 WB15K5016 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB35M0023 WB35M0023 LOCK MOTOR INSULATION
WB35M23 WB35M23 LOCK MTR INS
WB56K5017 WB56K5017 LOWER FRONT PANEL
WB56K5022 WB56K5022 LOWER PANEL KIT
WB56T10061 WB56T10061 LWR FRT PANEL ASSEMBLY
WB63M56 WB63M56 MAIN BACK
WB63M0056 WB63M0056 MAIN BACK ASM
WB62K5144 WB62K5144 MAIN TOP-BLACK
WB26T10011 WB26T10011 MAINTOP BISQUE
WB14X0110 WB14X0110 MAINTOP HINGE-LT
WB14X0109 WB14X0109 MAINTOP HINGE-RT
31-14158 31-14158 MANUAL MINI & WD ASM
49-80122 49-80122 MANUAL USE & CARE
WB10X0255 WB10X0255 MT HINGE BRACKET
WB02M0084 WB02M0084 MT SUPPORT ROD
WB56X1910 WB56X1910 OV DOOR INS RETAINER
WB02M0001 WB02M0001 OV DR GLASS RETAINER
WB35K5026 WB35K5026 OV DR INSULATION
WB9X244 WB9X244 OV DR SPRING
WB63T10002 WB63T10002 OVEN BODY
WB25T10002 WB25T10002 OVEN BULB LENS
WB09X0244 WB09X0244 OVEN DOOR SPRING
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB48X0208 WB48X0208 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB36T10439 WB36T10439 PANEL CONTROL (SCREW) BQT
WB2X9178 WB2X9178 PLATE
WB02T10054 WB02T10054 PLATE RANGE SERVICE M
WB34K5245 WB34K5245 RACEWAY WIRE
WB02X9427 WB02X9427 RANGE SERVICE MTG PLATE
WB24T10040 WB24T10040 ROCKER SWITCH
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X1141 WB01X1141 SCREW
WZ04X0044 WZ04X0044 SCREW
WB01K5156 WB01K5156 SCREW
WB01X1167 WB01X1167 SCREW
WB01X1258 WB01X1258 SCREW
WB01X1172 WB01X1172 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1113 WB01X1113 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5123 WB01K5123 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5162 WB01K5162 SCREW
WB1X1172 WB1X1172 SCREW
WB1K5062 WB1K5062 SCREW
WB1K5156 WB1K5156 SCREW
WB1X1258 WB1X1258 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1113 WB1X1113 SCREW
WB1X1328 WB1X1328 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8-INCH
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01T10042 WB01T10042 SCREW ST 8-18X 625 TR BISQUE
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01T10040 WB01T10040 SCREW TC 10-32X 625(BISQUE)
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01T10003 WB01T10003 SCREW TORQUE LIMITING
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1141 WB1X1141 SCREW-8-32
WB01K5160 WB01K5160 SCREW-BLACK
WB1K5162 WB1K5162 SCREW-BLACK
WB1K5160 WB1K5160 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB1K5190 WB1K5190 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WB1X1424D WB1X1424D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB1K5123 WB1K5123 SCREWS, MOUNTING BRACKET
WB7K5297 WB7K5297 SD TRIM LT
WB7K5298 WB7K5298 SD TRIM RT
WB21X5301 WB21X5301 SENSOR ASSEMBLY
WB34K5141 WB34K5141 SHIELD WIRE
WB34K5221 WB34K5221 SHIELD WIRE
WB02X9148 WB02X9148 SLIDE BLOCK FRONT
WB02X9146 WB02X9146 SLIDE BLOCK-REAR
WB02M0021 WB02M0021 SNAP BUSHING
WB2M21 WB2M21 SNAP BUSHING
WB01X1177 WB01X1177 SPACER
WB1X1177 WB1X1177 SPACER
WB01X1432 WB01X1432 SPEED NUT
WB1X1432 WB1X1432 SPEED NUT
WB58X0065 WB58X0065 STORAGE DRAWER
WB2M87 WB2M87 SUP ROD CLMP
WB2X9719 WB2X9719 SUPP-BROIL
WB56M3 WB56M3 SUPPORT DRWR
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB24M0015 WB24M0015 SWITCH LIMIT
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB01T10014 WB01T10014 TERMINAL BLOCK CLIP
WB35M22 WB35M22 TOP&SD INSUL
WB01K5212 WB01K5212 TRIM SCREW-BLACK
WB07K5297 WB07K5297 TRIM VERT SDE LT (BLK)
WB07K5298 WB07K5298 TRIM VERT SDE RT (BLK)
WB38K5027 WB38K5027 TUBE VENT ASSEMBLY
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB34K5093 WB34K5093 UPPER WIRE COVER
WB34M0041 WB34M0041 UPPER WIRE SHIELD
WB38K5017 WB38K5017 VENT TUBE
WB07T10168 WB07T10168 VERT SIDE TRIM LT (BISQUE)
WB01X1254 WB01X1254 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB1X681 WB1X681 WB01X0681
WB56K5138 WB56K5138 WB56K5138
WB34M27 WB34M27 WIRE LIT CVR
WB34M41 WB34M41 WIRE SHIELD
