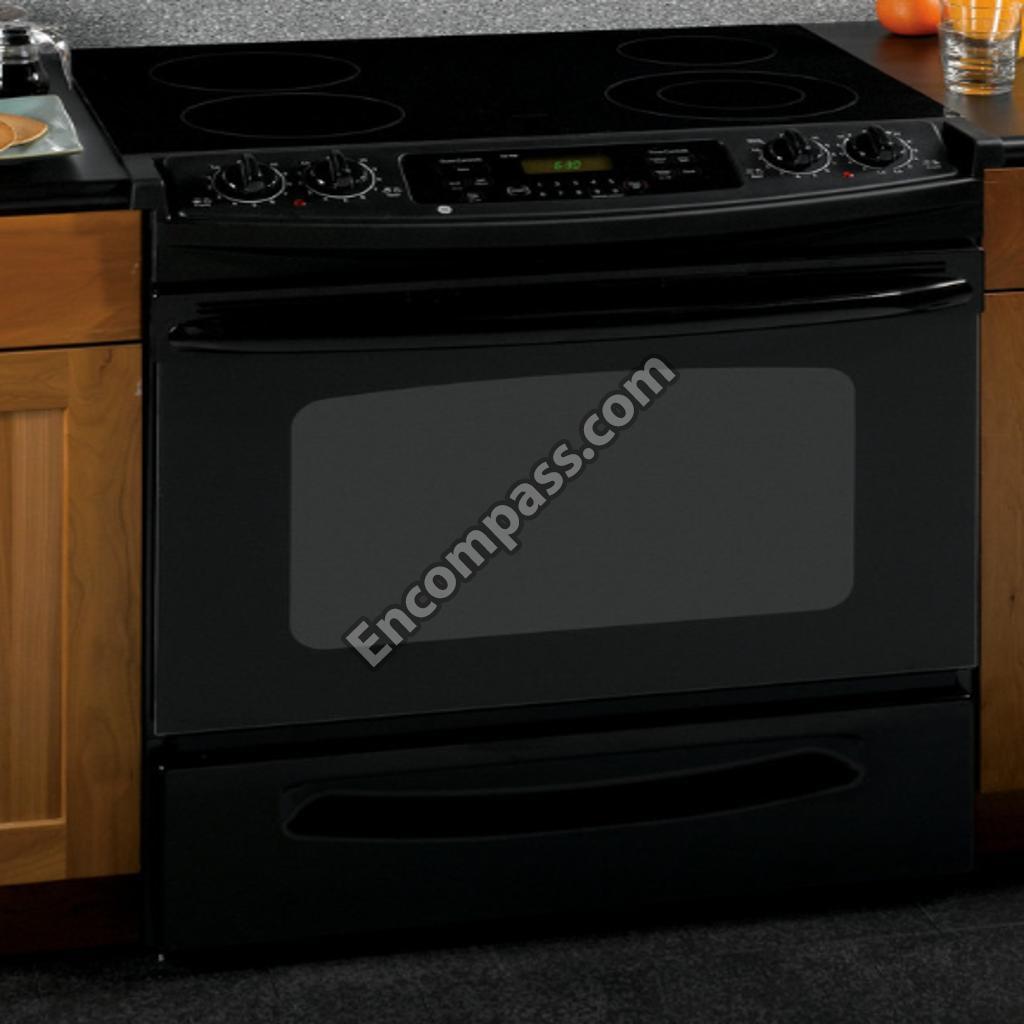

Model Image
Manufacturer

GE

Model Number

JSP42DN3BB

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB44T10069 WB44T10069 BAKE ELEMENT
WB63X28540 WB63X28540 BASE RIVET ASM
WB63X25881 WB63X25881 BASE RIVET ASM
WB26T10039 WB26T10039 BLOWER ASM
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10242 WB02T10242 BRACKET
WB02T10415 WB02T10415 BRACKET ANTI-TIP ASM
WB02T10578 WB02T10578 BRACKET ANTITIP ASM
WB44T10071 WB44T10071 BROIL ELEMENT
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10346 WB57T10346 DOOR OTR ASM 30 (BK)
WB57T10345 WB57T10345 DOOR OTR ASM 30 (BQ)
WB57T10344 WB57T10344 DOOR OTR ASM 30 (WH)
WB55T10180 WB55T10180 DRAWER BODY ASM
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB44K10009 WB44K10009 ELEMENT BAKE
WB30T10129 WB30T10129 ELEMENT RADIANT 6 IN
WB30T10132 WB30T10132 ELEMENT RADIANT 8 IN
WB30T10133 WB30T10133 ELEMENT RADIANT 9 DUAL
WB07K10155 WB07K10155 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB27K10306 WB27K10306 FACEPLATE (SCR-BK)
WB27K10307 WB27K10307 FACEPLATE (SCR-BQ)
WB27K10308 WB27K10308 FACEPLATE (SCR-WH)
WR02X10562 WR02X10562 FASTENER PUSH
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02X10744 WB02X10744 GASKET FACEPLATE
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB64X0093 WB64X0093 GLASS CLEANER
WB15T10187 WB15T10187 HANDLE (BK)
WB15T10186 WB15T10186 HANDLE (BQ)
WB15T10188 WB15T10188 HANDLE (WH)
WB10X30494 WB10X30494 HINGE DOOR LEFT
WB10X24381 WB10X24381 HINGE DOOR LT
WB10X20965 WB10X20965 HINGE DOOR RT
WB24T10026 WB24T10026 INF SWITCH CONTROL (2000W)
WB24T10012 WB24T10012 INF SWITCH CONTROL (WM)
WB36T10568 WB36T10568 INSERT CNTL PNL
31-10673 31-10673 INSTRUCTION INSTALL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10226 WB35T10226 INSULATION OVN DR SDE
WB35T10126 WB35T10126 INSULATION TOP
WB27T11076 WB27T11076 KEYPANEL SUPT ASM (BK)
WB27T11077 WB27T11077 KEYPANEL SUPT ASM (BQ)
WB27T11078 WB27T11078 KEYPANEL SUPT ASM (WH)
WB07T10681 WB07T10681 KIT BACKSPALSH (WH)
WB07T10682 WB07T10682 KIT BACKSPLASH (BQ)
WB03X26320 WB03X26320 KNOB INFINITE (BK)
WB03T10285 WB03T10285 KNOB INFINITE (BQ)
WB03T10282 WB03T10282 KNOB INFINITE (WH)
WB14T10069 WB14T10069 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10022 WB25T10022 LENS SNAP-IN
WB25T10056 WB25T10056 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10179 WB55T10179 LINING OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB62T10726 WB62T10726 MAINTOP GLASS ASM (BK)
WB62T10727 WB62T10727 MAINTOP GLASS ASM (BQ)
WB62T10728 WB62T10728 MAINTOP GLASS ASM (WH)
31-14346 31-14346 MANUAL MINI & WD ASM
49-80602 49-80602 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB27T10416 WB27T10416 OVEN CONTROL (ERC3B)
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB08T10002 WB08T10002 OVEN LAMP HO
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10667 WB36T10667 PANEL CNTL ASM
WB36T10668 WB36T10668 PANEL CNTL ASM
WB36T10666 WB36T10666 PANEL CNTL ASM
WB56T10267 WB56T10267 PANEL DRAWER
WB56T10268 WB56T10268 PANEL DRAWER
WB56T10270 WB56T10270 PANEL DRAWER
WB48T10095 WB48T10095 RACK OVEN
WB07T10680 WB07T10680 RANGE OVEN BACKSPLASH KIT (BLACK)
WB07T10631 WB07T10631 RANGE SIDE TRIM - RIGHT - BLACK
WB10T10083 WB10T10083 RECEIVER HINGE
WB56T10321 WB56T10321 RETAINER GLASS OVN DR
WB56T10320 WB56T10320 RETAINER GLASS OVN DR
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1178 WB01X1178 SCREW
WB01M0001 WB01M0001 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5028 WB01K5028 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1178 WB1X1178 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1137 WB1X1137 SCREW-10AB
WH2X941D WH2X941D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB34T10059 WB34T10059 SHIELD VENT ASM
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10452 WB02T10452 SPACER REINFORCEMENT
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02T10453 WB02T10453 STUD COMPOSITE
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB02T10411 WB02T10411 SUPPORT SIDE PANEL
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10134 WB24T10134 SWITCH INF CNTL
WB24T10079 WB24T10079 SWITCH LIMIT
WB24T10160 WB24T10160 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB07T10496 WB07T10496 TRIM ASM
WB07T10516 WB07T10516 TRIM FRT FRM (BK)
WB07T10521 WB07T10521 TRIM VERT SDE LT (BK)
WB07T10520 WB07T10520 TRIM VERT SDE RT (BK)
WB07T10524 WB07T10524 TRIM VERT SDE RT (BQ)
WB07T10522 WB07T10522 TRIM VERT SDE RT (WH)
WB07T10632 WB07T10632 TRIM VERT SIDE LT (BK)
WB07T10634 WB07T10634 TRIM VERT SIDE LT (BQ)
WB07T10636 WB07T10636 TRIM VERT SIDE LT (WH)
WB07T10633 WB07T10633 TRIM VERT SIDE RT (BQ)
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB28T10075 WB28T10075 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10085 WB63T10085 WRAPPER OVEN CAV
