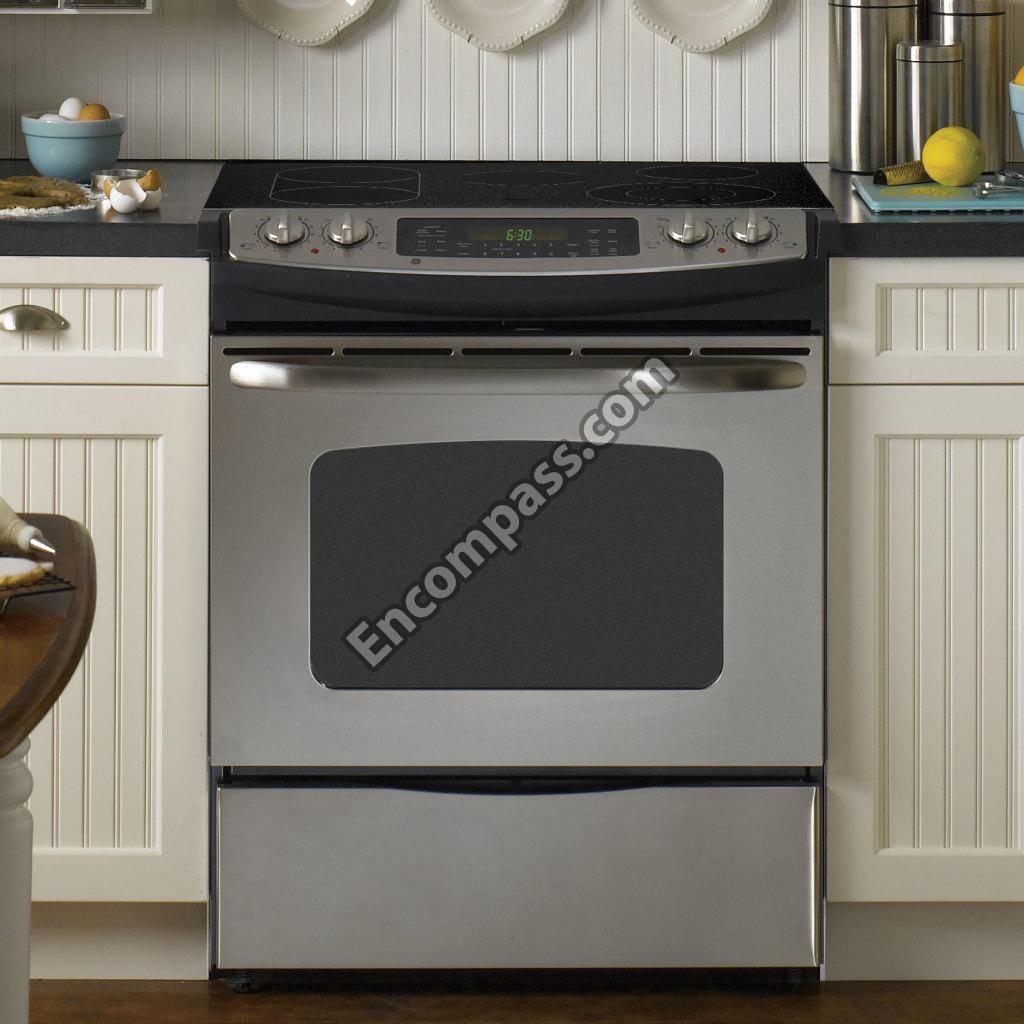

Model Image
Manufacturer

GE

Model Number

JSP46SP2SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
WB63X25881 WB63X25881 BASE RIVET ASM
WB63X28540 WB63X28540 BASE RIVET ASM
WB26T10039 WB26T10039 BLOWER ASM
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10242 WB02T10242 BRACKET
WB02T10415 WB02T10415 BRACKET ANTI-TIP ASM
WB02T10578 WB02T10578 BRACKET ANTITIP ASM
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB44T10071 WB44T10071 BROIL ELEMENT
WB27T10662 WB27T10662 CAPACITOR MOTOR
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB27T11151 WB27T11151 CONTROL OVN ERC
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB26T10058 WB26T10058 COVER FAN CONV
WB2X8309 WB2X8309 COVER PROBE
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB57T10347 WB57T10347 DOOR OTR ASM 30 (SS)
WB55T10180 WB55T10180 DRAWER BODY ASM
WB48T10013 WB48T10013 DRAWER SUPPORT FRT
WB44K10008 WB44K10008 ELEMENT BAKE
WB44X31764 WB44X31764 ELEMENT CONVX ASM
WB44T10086 WB44T10086 ELEMENT CONVX ASM
WB30T10129 WB30T10129 ELEMENT RADIANT 6 IN
WB30T10124 WB30T10124 ELEMENT RADIANT 6 WARMER
WB30T10133 WB30T10133 ELEMENT RADIANT 9 DUAL
WB30T10141 WB30T10141 ELEMENT RADNT BRIDGE
WB07T10498 WB07T10498 EXTENSION SIDE LT
WB07T10497 WB07T10497 EXTENSION SIDE RT
WB63T10034 WB63T10034 FALSE BOTTOM
WR02X10562 WR02X10562 FASTENER PUSH
WB63T10083 WB63T10083 FRAME FRT LOWER
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10511 WB02T10511 GASKET MAINTOP OTR
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10050 WB04T10050 GASKET OVEN DOOR
WB64X0093 WB64X0093 GLASS CLEANER
WB27T11094 WB27T11094 GLASS TOUCH ASM (SS)
WB15T10163 WB15T10163 HANDLE SS
WB18T10386 WB18T10386 HARNESS WIRE GLASS TOUCH
WB10T10085 WB10T10085 HINGE DOOR LT
WB10T10084 WB10T10084 HINGE DOOR RT
WB02T10289 WB02T10289 HUB BLADE ASM
WB24T10012 WB24T10012 INF SWITCH CONTROL (WM)
WB36T10570 WB36T10570 INSERT CONTROL PNL
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10226 WB35T10226 INSULATION OVN DR SDE
WB35T10126 WB35T10126 INSULATION TOP
WB03T10284 WB03T10284 KNOB INFINITE (SS)
WB25T10026 WB25T10026 LAMP HALOGEN ASSEMBLY
WB49X29679 WB49X29679 LAMP HALOGEN UPPR 50W
WB14T10069 WB14T10069 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10027 WB25T10027 LENS OVEN LAMP
WB25T10022 WB25T10022 LENS SNAP-IN
WB25T10056 WB25T10056 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10179 WB55T10179 LINING OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB62T10711 WB62T10711 MAINTOP GLASS ASM (BK)
49-80602 49-80602 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB26T10043 WB26T10043 MOTOR PSC CONV
WB17T10021 WB17T10021 MOUNT TERMINAL BLOCK
WB02T10017 WB02T10017 NUT
WB1X5572 WB1X5572 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10666 WB36T10666 PANEL CNTL ASM
WB56T10286 WB56T10286 PANEL DRAWER SS
WB02X8309 WB02X8309 PROBE COVER
WB20T10024 WB20T10024 PROBE THERMISTOR
WB48T10050 WB48T10050 RACK OVEN
WB07T10680 WB07T10680 RANGE OVEN BACKSPLASH KIT (BLACK)
WB07T10631 WB07T10631 RANGE SIDE TRIM - RIGHT - BLACK
WB10T10083 WB10T10083 RECEIVER HINGE
WB08T10041 WB08T10041 RECEPTACLE JACK
WB56T10321 WB56T10321 RETAINER GLASS OVN DR
WB56T10320 WB56T10320 RETAINER GLASS OVN DR
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10372 WB02T10372 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP
WB02T10324 WB02T10324 SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01T10110 WB01T10110 SCR 8-18X.450 AB FLT20 S
WB01X1178 WB01X1178 SCREW
WB01M0001 WB01M0001 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WH2X930 WH2X930 SCREW
WB1X536 WB1X536 SCREW
WB1M1 WB1M1 SCREW
WH2X1186 WH2X1186 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5029 WB1K5029 SCREW
WB1K5062 WB1K5062 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1118 WB01X1118 SCREW-NICKEL
WB1X500D WB1X500D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB34T10059 WB34T10059 SHIELD VENT ASM
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB02T10452 WB02T10452 SPACER REINFORCEMENT
WB09X40389 WB09X40389 SPRING RADIANT ELEMENT
WB02T10455 WB02T10455 STUD COMPOSITE
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB02X33180 WB02X33180 SUPPORT REAR
WB02T10411 WB02T10411 SUPPORT SIDE PANEL
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10134 WB24T10134 SWITCH INF CNTL
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10079 WB24T10079 SWITCH LIMIT
WB24T10160 WB24T10160 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASSEMBLY
WB07T10496 WB07T10496 TRIM ASM
WB07T10516 WB07T10516 TRIM FRT FRM (BK)
WB07T10521 WB07T10521 TRIM VERT SDE LT (BK)
WB07T10520 WB07T10520 TRIM VERT SDE RT (BK)
WB07T10632 WB07T10632 TRIM VERT SIDE LT (BK)
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB28T10075 WB28T10075 VENT INLET DUCT
WB01X5573 WB01X5573 WASHER
WB1X5573 WB1X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB01T10057 WB01T10057 WASHER SS
WB48T10068 WB48T10068 WEDGE DRAWER
WB63T10149 WB63T10149 WRAPPER OVN CAV ASM
