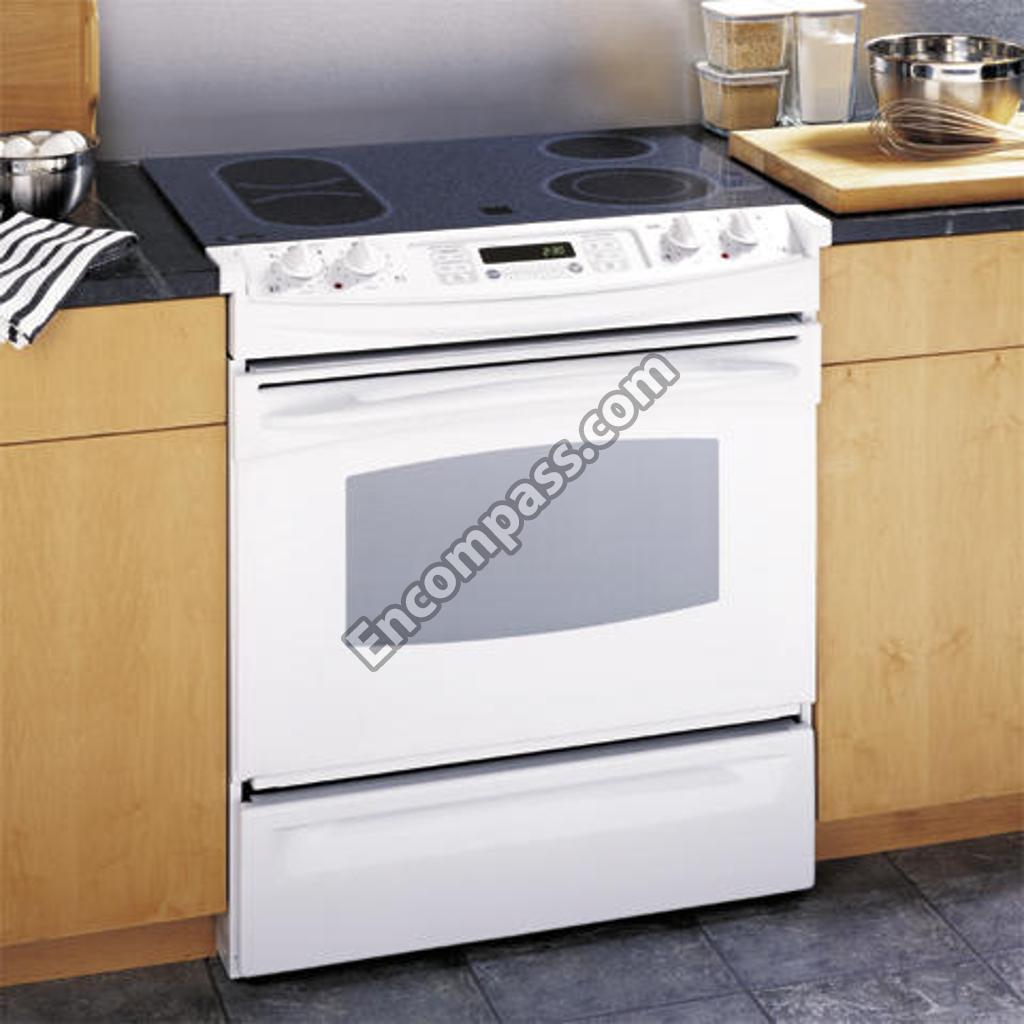

Model Image
Manufacturer

GE

Model Number

JSP57WF3WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
PM10X310 PM10X310 28 CERAMA BR
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB02T10415 WB02T10415 ANTI-TIP BRACKET
WB07K10156 WB07K10156 BACKSPLASH FILLER BQT
WB36K10239 WB36K10239 BACKSPLASH FILLER-BLK
WB17T10017 WB17T10017 BARRIER HEAT
WB39T10001 WB39T10001 BASE RIVET ASSEMBLY
WB26T10039 WB26T10039 BLOWER ASSEMBLY
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10174 WB02T10174 BRACKET
WB02K10050 WB02K10050 BRACKET BASE
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB61K10010 WB61K10010 BURNER BOX BOTTOM
WB26T10016 WB26T10016 CAPACITOR MOTOR
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB02X10742 WB02X10742 CONTROL PANEL GASKET
WB2K5365 WB2K5365 COVER
WB2X9152 WB2X9152 COVER ENAM WIPE
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34K10049 WB34K10049 COVER WIRE REAR
WB34T10054 WB34T10054 COVER WIRE RR LWR
WB02T10047 WB02T10047 CRYSTAL MOUNT
WB02T10046 WB02T10046 CRYSTAL RETAINER
WB01T10022 WB01T10022 DOOR BUMPER
WB03T10156 WB03T10156 DOOR BUMPER
WB48T10068 WB48T10068 DRAWER GUIDE
WB56T10270 WB56T10270 DRAWER PANEL-BISQUE
WB44K10008 WB44K10008 ELEMENT BAKE
WB30X44826 WB30X44826 ELEMENT HALIANT 6
WB30T10099 WB30T10099 ELEMENT HALIANT 9
WB03T10088 WB03T10088 ELEMENT RADIANT
WB07K10155 WB07K10155 EXTENSION REAR
WB07T10498 WB07T10498 EXTENSION SIDE LEFT
WB07K10135 WB07K10135 EXTENSION SIDE RT
WB29T10014 WB29T10014 FACEPLATE (SCREW-BQT)
WB29T10016 WB29T10016 FACEPLATE (SCREW-WHITE)
WB63T10034 WB63T10034 FALSE BOTTOM
WR02X10562 WR02X10562 FASTENER PUSH
WB07K10157 WB07K10157 FILLER BACKSPLASH (WHITE)
WB63T10083 WB63T10083 FRAME FRT LOWER
WB48T10013 WB48T10013 FRT DRAWER SUPPORT
WB02X10744 WB02X10744 GASKET FACEPLATE
WB02T10511 WB02T10511 GASKET MAINTOP
WB02T10320 WB02T10320 GASKET MAINTOP LH
WB02T10319 WB02T10319 GASKET MAINTOP RH
WB04T10021 WB04T10021 GASKET OVEN LIGHT
WB41T10003 WB41T10003 GASKET OVN DR
WB64X0093 WB64X0093 GLASS CLEANER
WB15T10063 WB15T10063 HANDLE PROFILE 30 (BLK)
WB15T10068 WB15T10068 HANDLE PROFILE 30 (BQT)
WB15T10067 WB15T10067 HANDLE PROFILE 30 (WHT)
WB17T10004 WB17T10004 HEAT BARRIER
WB10T10024 WB10T10024 HINGE DOOR LT
WB10T10023 WB10T10023 HINGE DOOR RT
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB24T10012 WB24T10012 INF SWITCH CNTL (WM)
WB36T10570 WB36T10570 INSERT CONTROL PNL
31-10565 31-10565 INSTRUCTION INSTALL
WB35T10073 WB35T10073 INSULATION (INR) LWR
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB27T10470 WB27T10470 KEYPANEL SUPT ASM (BLK)
WB27T10471 WB27T10471 KEYPANEL SUPT ASM (BQT)
WB27T10472 WB27T10472 KEYPANEL SUPT ASM (WHT)
WB03T10095 WB03T10095 KNOB PROFILE S/U (BISQUE)
WB03T10078 WB03T10078 KNOB PROFILE SU
WB03T10079 WB03T10079 KNOB PROFILE SU WH
WB14T10013 WB14T10013 LATCH OVN
WB02X10521 WB02X10521 LEG LEVELER
WB25T10022 WB25T10022 LENS SNAP-IN
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW
WB25T10048 WB25T10048 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVEN DR ASSEMBLY UPPER
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB61T10085 WB61T10085 MAINTOP GLASS ASSEMBLY (BISQUE
WB61T10084 WB61T10084 MAINTOP GLASS ASSEMBLY (BLACK)
WB61T10086 WB61T10086 MAINTOP GLASS ASSEMBLY (WHITE)
31-14151 31-14151 MANUAL MINI & WD ASM
49-80136 49-80136 MANUAL USE & CARE
WB18T10349 WB18T10349 MODULE INDICATOR LIGHT
WB02T10017 WB02T10017 NUT
WB57T10260 WB57T10260 OUTER DR ASSEMBLY LWR
WB25T10002 WB25T10002 OVEN BULB LENS
WB27T10407 WB27T10407 OVEN CONTROL ( CLOCK)
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB56X22160 WB56X22160 PACK WINDOW ASM
WB36T10667 WB36T10667 PANEL CNTL ASM
WB36T10668 WB36T10668 PANEL CNTL ASM
WB36T10666 WB36T10666 PANEL CNTL ASM
WB56T10268 WB56T10268 PANEL DRAWER
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB26T10013 WB26T10013 PSC CONV MOTOR LOWER
WB48K5022 WB48K5022 RACK OVEN
WB09T10002 WB09T10002 RADIANT ELEMENT SPRING
WB44T10053 WB44T10053 RANGE CONVECTION ELEMENT
WB10T10025 WB10T10025 RECEIVER HINGE
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB56T10104 WB56T10104 RETAINER INSLN BACK LOW
WB02T10156 WB02T10156 RETAINER INSLN BTM
WB56T10147 WB56T10147 RETAINER INSLN OVN DR
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB48X5108 WB48X5108 ROAST RACK
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1141 WB01X1141 SCREW
WB01K5028 WB01K5028 SCREW
WB1K5116 WB1K5116 SCREW
WH2X1186 WH2X1186 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10017 WB01T10017 SCREW 8-18 AB IHW 3/8 S NS
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB01T10053 WB01T10053 SCREW 8-32 TPT FLR 270
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB1X1141 WB1X1141 SCREW-8-32
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5157 WB1K5157 SCREW-BLK
WH2X941D WH2X941D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB34T10059 WB34T10059 SHIELD VENT ASM
WB02T10034 WB02T10034 SIDE PANEL SUPPORT
WB55T10178 WB55T10178 STORAGE DRAWER LINING
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB02X33180 WB02X33180 SUPPORT REAR
WB2K5238 WB2K5238 SW BRACKET
WB02K5238 WB02K5238 SWITCH BRACKET
WB24T10063 WB24T10063 SWITCH INF CNTL
WB24T10119 WB24T10119 SWITCH INFINITE CONTROL
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10079 WB24T10079 SWITCH LIMIT
WB01T10052 WB01T10052 TAPE FOAM
WB17T10011 WB17T10011 TERMINAL BLOCK ASM
WB17T10002 WB17T10002 TERMINAL BOX
WB07T10396 WB07T10396 TRIM VERT SDE LEFT WHITE
WB07T10392 WB07T10392 TRIM VERT SDE LT
WB07T10391 WB07T10391 TRIM VERT SDE RT
WB07K10148 WB07K10148 TRIM VERT SDE RT BQT
WB07T10395 WB07T10395 TRIM VERT SDE RT WHITE
WB07T10406 WB07T10406 TRIM VNT INR (BLK)
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB28T10075 WB28T10075 VENT INLET DUCT
WB1K5117 WB1K5117 WASHER
WB1K5046 WB1K5046 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB63T10084 WB63T10084 WRAPPER OVEN CAV ASSEMBLY LO
