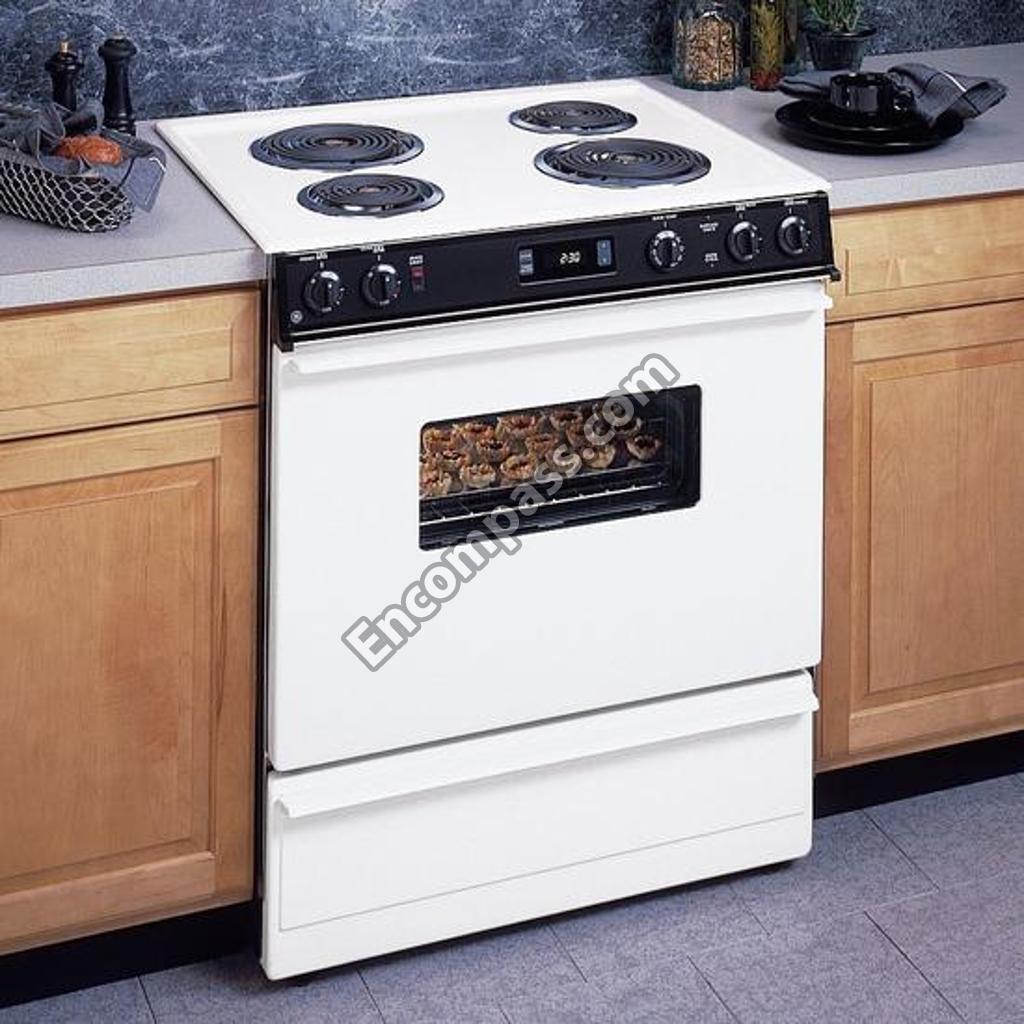

Model Image
Manufacturer

GE

Model Number

JSS16PD1AD

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 6 INCH CHROME BURNER BOWL - ELEC
WB30M1 WB30M1 6-INCH SURF ELEM
WB31T10011 WB31T10011 8 INCH CHROME BURNER BOWL - EL
WB30M2 WB30M2 8-INCH SURF ELEM
WB36K5047 WB36K5047 BACKSPLASH FILLER
WB36K5581 WB36K5581 BACKSPLASH FILLER-AD
WB36T10319 WB36T10319 BACKSPLASH FILLER-BQT
WB36K5579 WB36K5579 BACKSPLASH FILLER-WHITE
WB44K5012 WB44K5012 BAKE ELEMENT
WB34K5250 WB34K5250 BARRIER CONTROL PNL (RT)
WB2M33 WB2M33 BASE ASM
WB02K5334 WB02K5334 BASE ASM W/LEVELERS
WB64K5038 WB64K5038 BBB SIDE EXTENSION
WB1K5133 WB1K5133 BLB RET CLIP
WB17X5095 WB17X5095 BLOCK TERMINAL POWER
WB2X9148 WB2X9148 BLOCK-FRONT
WB2X9146 WB2X9146 BLOCK-REAR
WB63M21 WB63M21 BODY SD FILL
WB63K5195 WB63K5195 BODY SIDE-TEXTURED-LT
WB63K5192 WB63K5192 BODY SIDE-TEXTURED-RT
WB63M0021 WB63M0021 BODYSIDE FILLER-REAR
WB02T10137 WB02T10137 BRACKET ASM ANTI TIP
WB10X255 WB10X255 BRACKET-HNGE
WB02X9190 WB02X9190 BRIDGE SPACER
WB44X0232 WB44X0232 BROIL ELEMENT 240V
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB44X232 WB44X232 BROILUNT 240
WB64T10006 WB64T10006 BURNER BOX BOTTOM
WB02K5333 WB02K5333 CLOCK BRACKET
WB2K5333 WB2K5333 CLOCK BRKT
WB27T10192 WB27T10192 CLOCK/TIMER ASSEMBLY
WB34K5251 WB34K5251 CONTROL PANEL BARRIER-LT
WB35K5034 WB35K5034 CONTROL PANEL INSULATION
WB06X0003 WB06X0003 CONTROL SEAL
WB6X3 WB6X3 CONTROL SEAL
WB2X9749 WB2X9749 COVER PLATE
WB34K5106 WB34K5106 COVER WIRE
WB34K5128 WB34K5128 DISCONNECT SHIELD
WB02X9037 WB02X9037 DOOR HANDLE SPACER-BLACK
WB32K5051 WB32K5051 DOOR SEAL
WB58X65 WB58X65 DRAWER
WB56M0003 WB56M0003 DRAWER SUPPORT
WB23M24 WB23M24 EL CTL 1500W
WB23M0024 WB23M0024 ELEMENT CONTROL 1400W
WB23K5027 WB23K5027 ELEMENT CONTROL 2350W
WB36K5378 WB36K5378 END CAP LEFT (BLACK)
WB36K5379 WB36K5379 END CAP RT (BLACK)
WB63T10027 WB63T10027 FRONT FRAME
WB2X9725 WB2X9725 GROMET STRP
WB02X9725 WB02X9725 GROMMET STRIP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10010 WB15T10010 HANDLE OVEN DR
WB15T10062 WB15T10062 HANDLE OVN DR
WB14X0103 WB14X0103 HINGE ASM-LT
WB14X0104 WB14X0104 HINGE ASM-RT
WB14X110 WB14X110 HINGE-LEFT
WB14X103 WB14X103 HINGE-LEFT
WB14X109 WB14X109 HINGE-RIGHT
WB14X104 WB14X104 HINGE-RIGHT
WB25X0093 WB25X0093 IND LHT OVN HOT SURFACE
WB25X0092 WB25X0092 INDICATOR LIGHT
WB25X0094 WB25X0094 INDICATOR LIGHT CAMERA LENS
WB3K5242 WB3K5242 INF KNOB-BLK
WB03K5242 WB03K5242 INFINTE KNOB-BLK
WB02T10077 WB02T10077 INSLN RETAINER-LO
31-10197 31-10197 INSTALLATION INSTRUCTION
31-10070 31-10070 INSTALLATION INSTRUCTION
31-10026 31-10026 INSTALLATION INSTRUCTION
SR10099 SR10099 INSTRUCTIONS INSTALL
WB2X9123 WB2X9123 INSULATION D
WB02X9030 WB02X9030 INSULATION RETAINER
WB35M0022 WB35M0022 INSULATION TOP &SIDES
WB35K5113 WB35K5113 INSULATION-BACK & BTM
WB17T10006 WB17T10006 KIT SURF TERM BLOCK

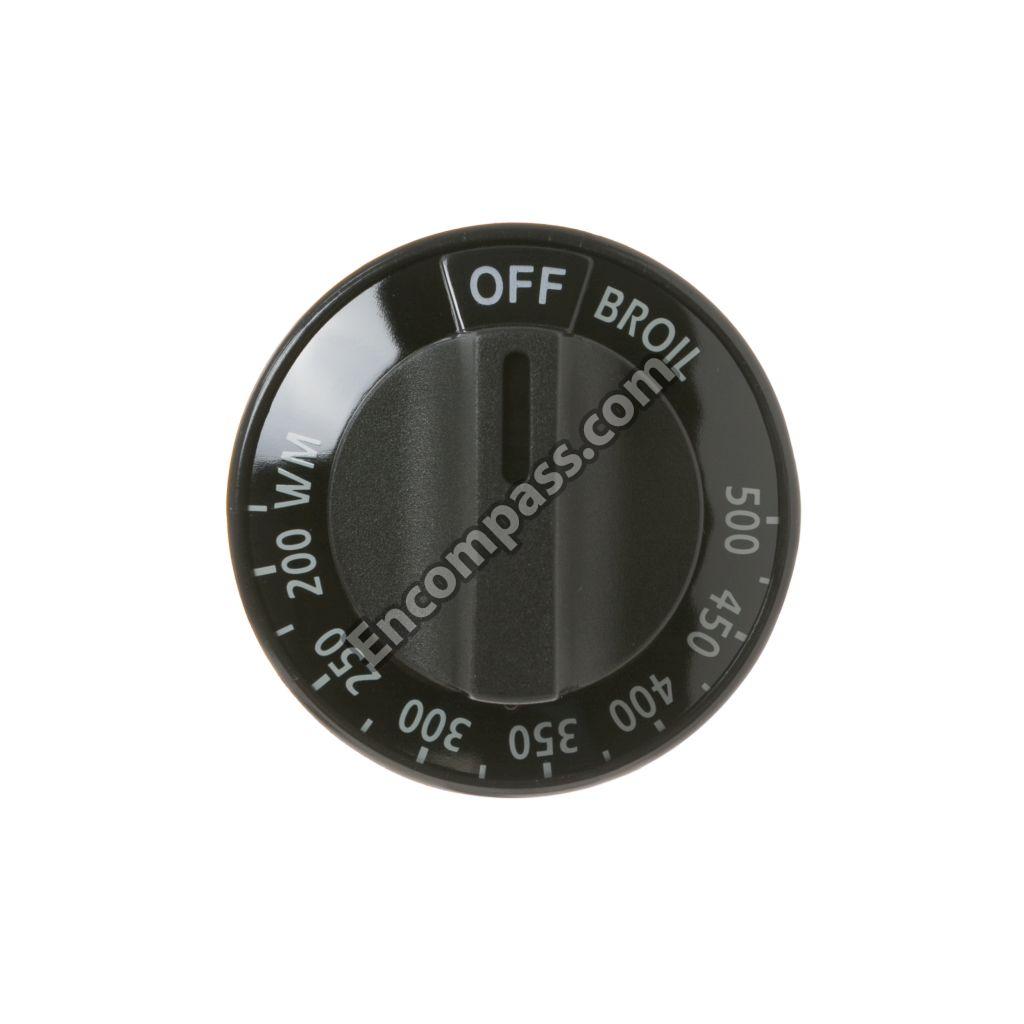

WB03T10177 WB03T10177 KNOB THMST (BLK)
WB25T10042 WB25T10042 LENS
WB1M18 WB1M18 LEVEL SCREW
WB01M0018 WB01M0018 LEVELING SCREW
WB25T10040 WB25T10040 LIGHT INDICATOR
WB25T10039 WB25T10039 LIGHT INDICATOR
WB34M0027 WB34M0027 LIGHT WIRE COVER
WB55T10002 WB55T10002 LINING OVEN DR ASSEMBLY
WB56K5021 WB56K5021 LO FRT PANEL ASSEMBLY
WB63M56 WB63M56 MAIN BACK
WB63M0056 WB63M0056 MAIN BACK ASM
WB26T10011 WB26T10011 MAINTOP BISQUE
WB14X0110 WB14X0110 MAINTOP HINGE-LT
WB14X0109 WB14X0109 MAINTOP HINGE-RT
WB62K5146 WB62K5146 MAINTOP-ALMOND
31-13945 31-13945 MANUAL MINI & WD ASM
49-80104 49-80104 MANUAL USE & CARE
WB10X0255 WB10X0255 MT HINGE BRACKET
WB02M0084 WB02M0084 MT SUPPORT ROD
WB02X9192 WB02X9192 OV DR GLASS RETAINER
WB56X1901 WB56X1901 OV DR INNER GLASS
WB02X9191 WB02X9191 OV DR INS RETAINER
WB02X9123 WB02X9123 OV DR INSULATION
WB56X1912 WB56X1912 OV DR OUTER GLASS
WB09X0266 WB09X0266 OV DR SPRING
WB63T10002 WB63T10002 OVEN BODY
WB56K5148 WB56K5148 OVEN DOOR PANEL-ALMOND
WB56K5147 WB56K5147 OVEN DOOR PANEL-WHITE
WB08T10001 WB08T10001 OVEN LIGHT ASSEMBLY
WB48X0208 WB48X0208 OVEN RACK
WB48M4 WB48M4 OVEN RACK
WB02T10244 WB02T10244 PAD FELT

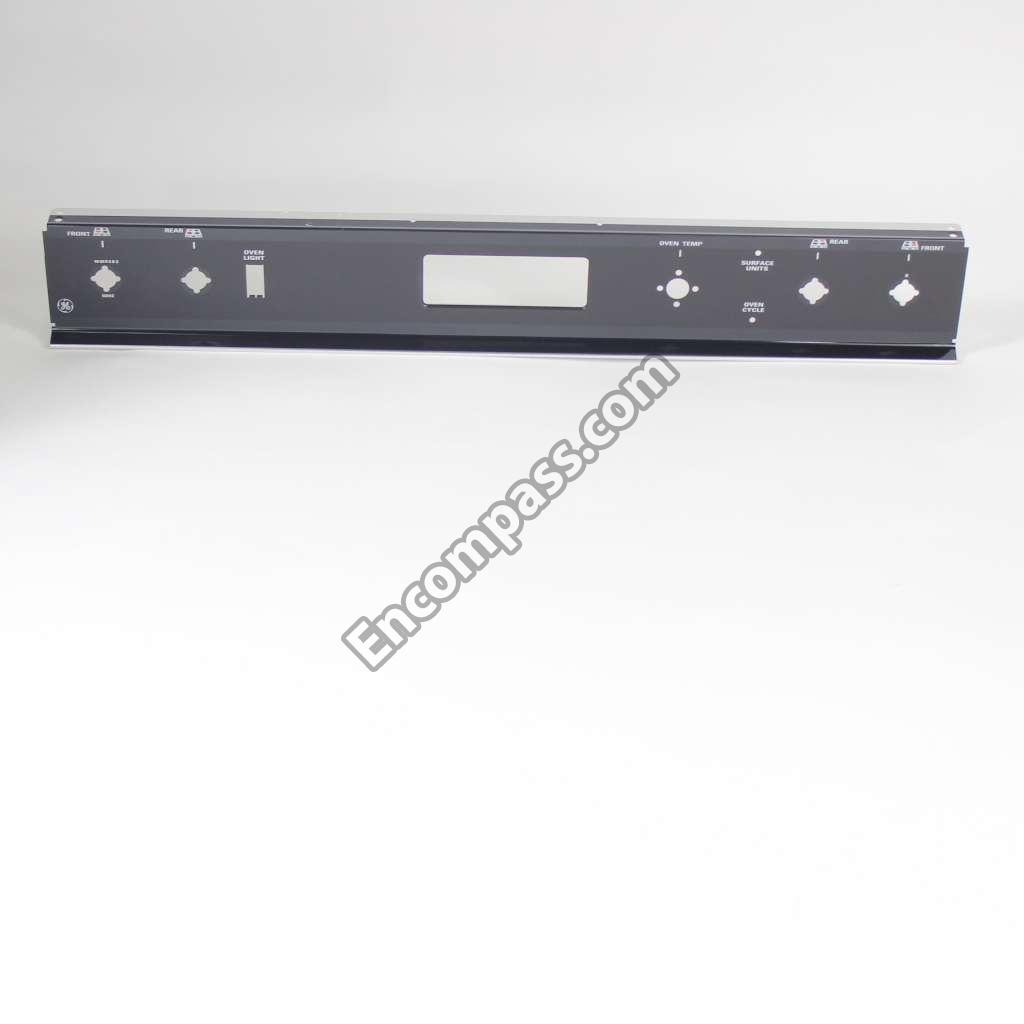

WB36T10713 WB36T10713 PANEL CNTL (SCR)
WB56T10101 WB56T10101 PANEL FRT LWR ASM
WB56T10100 WB56T10100 PANEL OVN DR ASM
WB02T10054 WB02T10054 PLATE RANGE SERVICE M
WB2X9189 WB2X9189 PLUG BUT REC
WB02X9189 WB02X9189 PLUG BUTTON-RECTANGULAR
WB17M0005 WB17M0005 POWER RING HOUSING
WB02X9427 WB02X9427 RANGE SERVICE MTG PLATE
WB2X9030 WB2X9030 RETAIN-INSUL
WB2X9192 WB2X9192 RETAINER
WB2X9191 WB2X9191 RETAINER
WB01X0500 WB01X0500 SCR 8-18 B HXW 1/4 S
WB01X0521 WB01X0521 SCR 8/32 TF FLR 5/16 S
WB01K5210 WB01K5210 SCREW
WB01X1167 WB01X1167 SCREW
WB01X1258 WB01X1258 SCREW
WB01X1172 WB01X1172 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01X1113 WB01X1113 SCREW
WB01X1127 WB01X1127 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5162 WB01K5162 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5062 WB1K5062 SCREW
WB1X1328 WB1X1328 SCREW
WB1X1258 WB1X1258 SCREW
WB1K5210 WB1K5210 SCREW
WB1X1113 WB1X1113 SCREW
WB1X1172 WB1X1172 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X1149 WB1X1149 SCREW 10-16 X 3/8-INCH
WD02X0323 WD02X0323 SCREW 8-32 X 3/8 SPH
WB1K5191 WB1K5191 SCREW FL ZNC 10-32
WB01K5191 WB01K5191 SCREW FLAT ZINC 10-32
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB01K5168 WB01K5168 SCREW-ALMOND
WB1K5168 WB1K5168 SCREW-ALMOND
WB1K5162 WB1K5162 SCREW-BLACK
WB01X1149 WB01X1149 SCREW-BRIGHT NICKEL
WD2X323D WD2X323D SCREW-PKG 12
WB1X1424D WB1X1424D SCREW-PKG 12
WB1X500D WB1X500D SCREW-PKG 12
WB34K5141 WB34K5141 SHIELD WIRE
WB34K5221 WB34K5221 SHIELD WIRE
WB02X9148 WB02X9148 SLIDE BLOCK FRONT
WB02X9146 WB02X9146 SLIDE BLOCK-REAR
WB02M0021 WB02M0021 SNAP BUSHING
WB2M21 WB2M21 SNAP BUSHING
WB01X1177 WB01X1177 SPACER
WB2X9190 WB2X9190 SPACER
WB1X1177 WB1X1177 SPACER
WB2X9037 WB2X9037 SPACER-HNDL
WB01X1432 WB01X1432 SPEED NUT
WB1X1432 WB1X1432 SPEED NUT
WB9X266 WB9X266 SPRING-OV DR
WB58X0065 WB58X0065 STORAGE DRAWER
WB2M87 WB2M87 SUP ROD CLMP
WB2X9719 WB2X9719 SUPP-BROIL
WB56M3 WB56M3 SUPPORT DRWR
WB02M0087 WB02M0087 SUPPORT ROD CLAMP
WB24X415 WB24X415 SWITCH-LITE
WB24X0415 WB24X0415 SWITCH-OVEN LIGHT
WB01T10014 WB01T10014 TERMINAL BLOCK CLIP
WB20T10005 WB20T10005 THERMOSTAT OVEN
WB35M22 WB35M22 TOP&SD INSUL
WB1K5192 WB1K5192 TRIM SCREW
WB01K5192 WB01K5192 TRIM SCREW-CHROME
WB01K5133 WB01K5133 TSTAT BULB RET CLIP
WB38K5027 WB38K5027 TUBE VENT ASSEMBLY
WB38K5016 WB38K5016 TUBE VENT ASSEMBLY
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB34K5093 WB34K5093 UPPER WIRE COVER
WB34M0041 WB34M0041 UPPER WIRE SHIELD
WB7K5334 WB7K5334 VERT SD TRIM
WB7K5333 WB7K5333 VERT SD TRIM
WB07T10168 WB07T10168 VERT SIDE TRIM LT (BISQUE)
WB07K5333 WB07K5333 VERTICAL SIDE TRM-LT-ALM
WB07K5334 WB07K5334 VERTICAL SIDE TRM-RT-ALM
WB01X1140 WB01X1140 WASHER
WB01K5174 WB01K5174 WASHER
WB1X1140 WB1X1140 WASHER
WB1K5174 WB1K5174 WASHER
WB1X681 WB1X681 WB01X0681
WB34M27 WB34M27 WIRE LIT CVR
WB34M41 WB34M41 WIRE SHIELD
