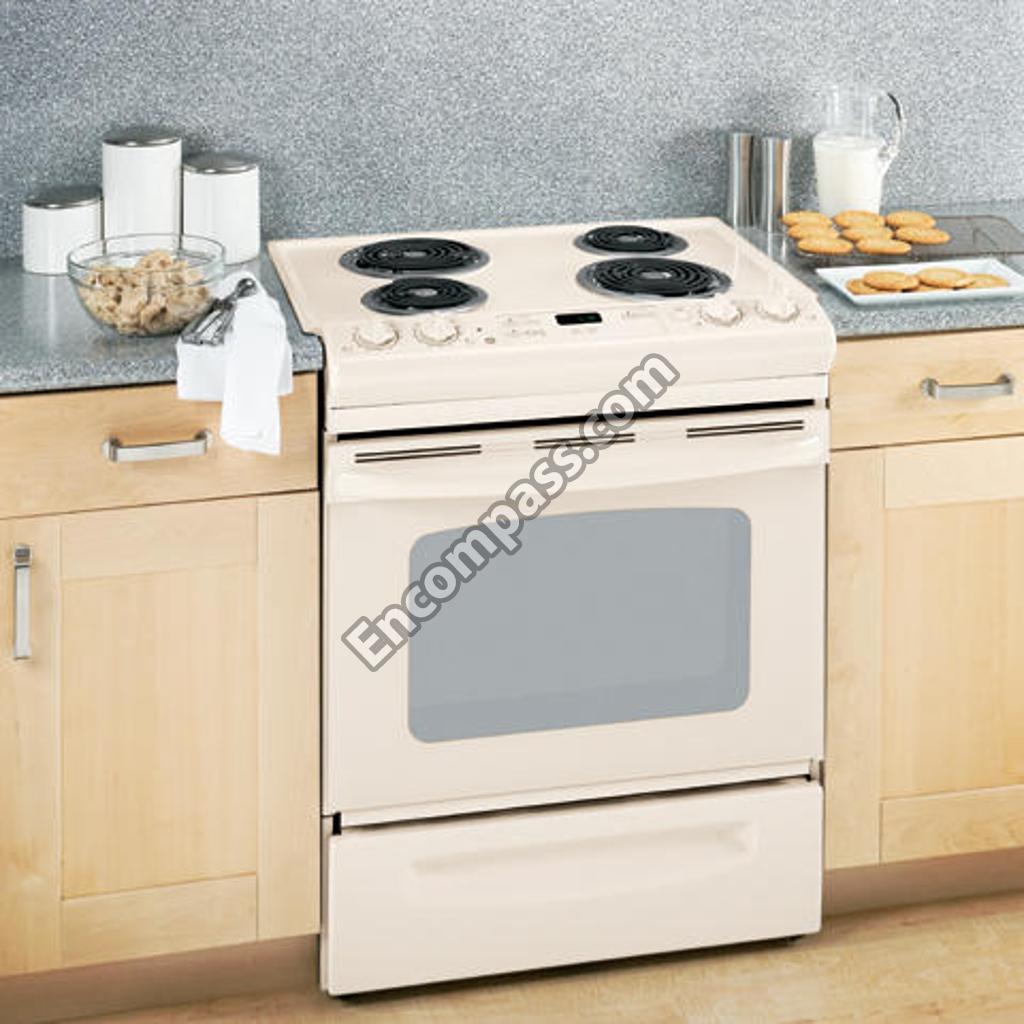

Model Image
Manufacturer

GE

Model Number

JSS28DN2CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 GE 340531
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WB31T10010 WB31T10010 GE 6 INCH CHROME BURNER BOWL - ELEC
WB31T10011 WB31T10011 GE 8 INCH CHROME BURNER BOWL - EL
WB63X28540 WB63X28540 GE BASE RIVET ASM
WB63X25881 WB63X25881 GE BASE RIVET ASM
WB64T10052 WB64T10052 GE BOTTOM BURN BOX
WB02T10242 WB02T10242 GE BRACKET
WB02T10415 WB02T10415 GE BRACKET ANTI-TIP ASM
WB02T10270 WB02T10270 GE BRACKET SWITCH
WB10X255 WB10X255 GE BRACKET-HNGE
WB2X8228 WB2X8228 GE CLIP RECEPT
WB02X8228 WB02X8228 GE CLIP RECEPTACLE
WB24T10029 WB24T10029 GE CONTROL INFINITE SWITCH
WB02X9152 WB02X9152 GE COVER
WB02K5365 WB02K5365 GE COVER
WB2X9152 WB2X9152 GE COVER
WB2K5365 WB2K5365 GE COVER
WB34T10105 WB34T10105 GE COVER WIRE
WB34K10049 WB34K10049 GE COVER WIRE REAR
WB34T10054 WB34T10054 GE COVER WIRE RR LWR
WB01T10022 WB01T10022 GE DOOR BUMPER
WB10X30501 WB10X30501 GE DOOR HINGE LT
WB57T10345 WB57T10345 GE DOOR OTR ASM 30 (BQ)
WB55T10180 WB55T10180 GE DRAWER BODY ASM
WB48T10013 WB48T10013 GE DRAWER SUPPORT FRT
WB44K10009 WB44K10009 GE ELEMENT BAKE
WB07K10155 WB07K10155 GE EXTENSION REAR
WB07T10474 WB07T10474 GE EXTENSION SIDE LEFT
WB07T10473 WB07T10473 GE EXTENSION SIDE RT
WB27T11089 WB27T11089 GE FACEPLATE GRAPHICS ASM
WB63T10083 WB63T10083 GE FRAME FRT LOWER
WB04T10050 WB04T10050 GE GASKET OVEN DOOR
WB15T10186 WB15T10186 GE HANDLE (BQ)
WB10T10089 WB10T10089 GE HINGE DOOR LT
WB10X30500 WB10X30500 GE HINGE DOOR RT
WB14T10028 WB14T10028 GE HINGE MAINTOP LEFT
WB14T10027 WB14T10027 GE HINGE MAINTOP RT
WB24T10025 WB24T10025 GE INF SW CONTROL (2500W)
31-10671 31-10671 GE INSTR INSTALL OVN DOOR
31-10673 31-10673 GE INSTRUCTION INSTALL
31-10651 31-10651 GE INSTRUCTIONS INSTALL
WB35T10074 WB35T10074 GE INSULATION (OUT) LWR
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE
WB35X30052 WB35X30052 GE INSULATION OVN DR TOP
WB35T10126 WB35T10126 GE INSULATION TOP
WB07T10682 WB07T10682 GE KIT BACKSPLASH (BQ)
WB17T10006 WB17T10006 GE KIT SURF TERM BLOCK
WB03T10285 WB03T10285 GE KNOB INFINITE (BQ)
WB02X10521 WB02X10521 GE LEG LEVELER
WB25T10042 WB25T10042 GE LENS
WB25K10010 WB25K10010 GE LIGHT INDICATOR PILOT
WB55T10179 WB55T10179 GE LINING OVN DR ASM
WB01K5046 WB01K5046 GE LOCKWASHER
WB62T10426 WB62T10426 GE MAINTOP
31-14263 31-14263 GE MANUAL MINI & WD ASM
49-80591 49-80591 GE MANUAL USE & CARE
WB17T10021 WB17T10021 GE MOUNT TERMINAL BLOCK
WB10X0255 WB10X0255 GE MT HINGE BRACKET
WB25T10002 WB25T10002 GE OVEN BULB LENS COVER-
WB27T11310 WB27T11310 GE OVEN CONTROL T09 (ELEC)
WB08T10002 WB08T10002 GE OVEN LAMP HO
WB24T10053 WB24T10053 GE OVEN ROCKER SWITCH
WB55T10149 WB55T10149 GE PACK WINDOW ASM
WB36T10793 WB36T10793 GE PANEL CNTL BTM BQ
WB36T11196 WB36T11196 GE PANEL CNTL GRAPHICS ASM
WB56T10270 WB56T10270 GE PANEL DRAWER
WB2X9587 WB2X9587 GE PLUG
WB02X9587 WB02X9587 GE PLUG BUTTON-ROUND
WB48T10095 WB48T10095 GE RACK OVEN
WB02T10267 WB02T10267 GE RANGE BRACKET
WB10T10083 WB10T10083 GE RECEIVER HINGE
WB02X20948 WB02X20948 GE RETAINER INSLN BACK
WB02T10372 WB02T10372 GE RETAINER INSLN BTM
WB02T10371 WB02T10371 GE RETAINER INSLN OVN DR
WB02T10284 WB02T10284 GE RETAINER INSLN SDE
WB02T10414 WB02T10414 GE RETAINER INSLN TOP
WB02T10268 WB02T10268 GE ROD MAINTOP SUPT
WB01T10095 WB01T10095 GE SCR 10-32 HWH I 13/16
WB02T10324 WB02T10324 GE SCR 6-20 GXB IHXW 3/8 NI
WH02X0941 WH02X0941 GE SCR 8-15 A HXW 7/8 S
WH02X1186 WH02X1186 GE SCR 8-18 AB IHW 5/8 S
WB01X0500 WB01X0500 GE SCR 8-18 B HXW 1/4 S
WB01T10094 WB01T10094 GE SCR 8-32 PN 1/2
WB01X1253 WB01X1253 GE SCREW
WB01X1137 WB01X1137 GE SCREW
WB01K5200 WB01K5200 GE SCREW
WB01K5123 WB01K5123 GE SCREW
WB01M0001 WB01M0001 GE SCREW
WB1X1293 WB1X1293 GE SCREW
WH2X1186 WH2X1186 GE SCREW
WB1M1 WB1M1 GE SCREW
WH2X930 WH2X930 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WB01T10008 WB01T10008 GE SCREW 10-32 TR T
WB01T10017 WB01T10017 GE SCREW 8-18 AB IHW 3/8 S NS
WB1K5062 WB1K5062 GE SCREW 8-18 AB TRP 500 BQT
WB1K5167 WB1K5167 GE SCREW 8-18 X 3/8
WB01K5167 WB01K5167 GE SCREW 8-18 X 3/8""
WB1X5364 WB1X5364 GE SCREW MTG
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 GE SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 GE SCREW, TRANSFORMER
WB1X1130 WB1X1130 GE SCREW-10-32
WB1X1137 WB1X1137 GE SCREW-10AB
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8
WB01X1118 WB01X1118 GE SCREW-NICKEL
WB1X1424D WB1X1424D GE SCREW-PKG 12
WH2X941D WH2X941D GE SCREW-PKG 12
WB1X500D WB1X500D GE SCREW-PKG 12
WB1K5123 WB1K5123 GE SCREWS, MOUNTING BRACKET
WB23T10015 WB23T10015 GE SENSOR ASM
WB02T10034 WB02T10034 GE SIDE PANEL SUPPORT
WB02T10452 WB02T10452 GE SPACER REINFORCEMENT
WB02T10453 WB02T10453 GE STUD COMPOSITE
WB2M87 WB2M87 GE SUP ROD CLMP
WB26T10015 WB26T10015 GE SUPPORT OVN CAV
WB02X33180 WB02X33180 GE SUPPORT REAR
WB02M0087 WB02M0087 GE SUPPORT ROD CLAMP
WB02T10411 WB02T10411 GE SUPPORT SIDE PANEL
WB30X24400 WB30X24400 GE SURFACE HEATING ELEMENT
WB30X24401 WB30X24401 GE SURFACE UNIT ASSEMBLY 6
WB24T10116 WB24T10116 GE SWITCH LIMIT
WB17T10011 WB17T10011 GE TERMINAL BLOCK ASSEMBLY
WB07T10516 WB07T10516 GE TRIM FRT FRM (BK)
WB07T10472 WB07T10472 GE TRIM VENT INR (BK)
WB07T10525 WB07T10525 GE TRIM VERT SDE LEFT (BQ)
WB07T10524 WB07T10524 GE TRIM VERT SDE RT (BQ)
WB07T10634 WB07T10634 GE TRIM VERT SIDE LT (BQ)
WB07T10633 WB07T10633 GE TRIM VERT SIDE RT (BQ)
WB38T10027 WB38T10027 GE TUBE VENT ASM
WB38T10028 WB38T10028 GE TUBE VNT ASM
WB44T10043 WB44T10043 GE UNIT BROIL ASM (DLX)
WB01K5174 WB01K5174 GE WASHER
WB1K5174 WB1K5174 GE WASHER
WB1K5046 WB1K5046 GE WASHER
WB35T10090 WB35T10090 GE WB35K5116
WB48T10068 WB48T10068 GE WEDGE DRAWER
WB63T10085 WB63T10085 GE WRAPPER OVEN CAV
