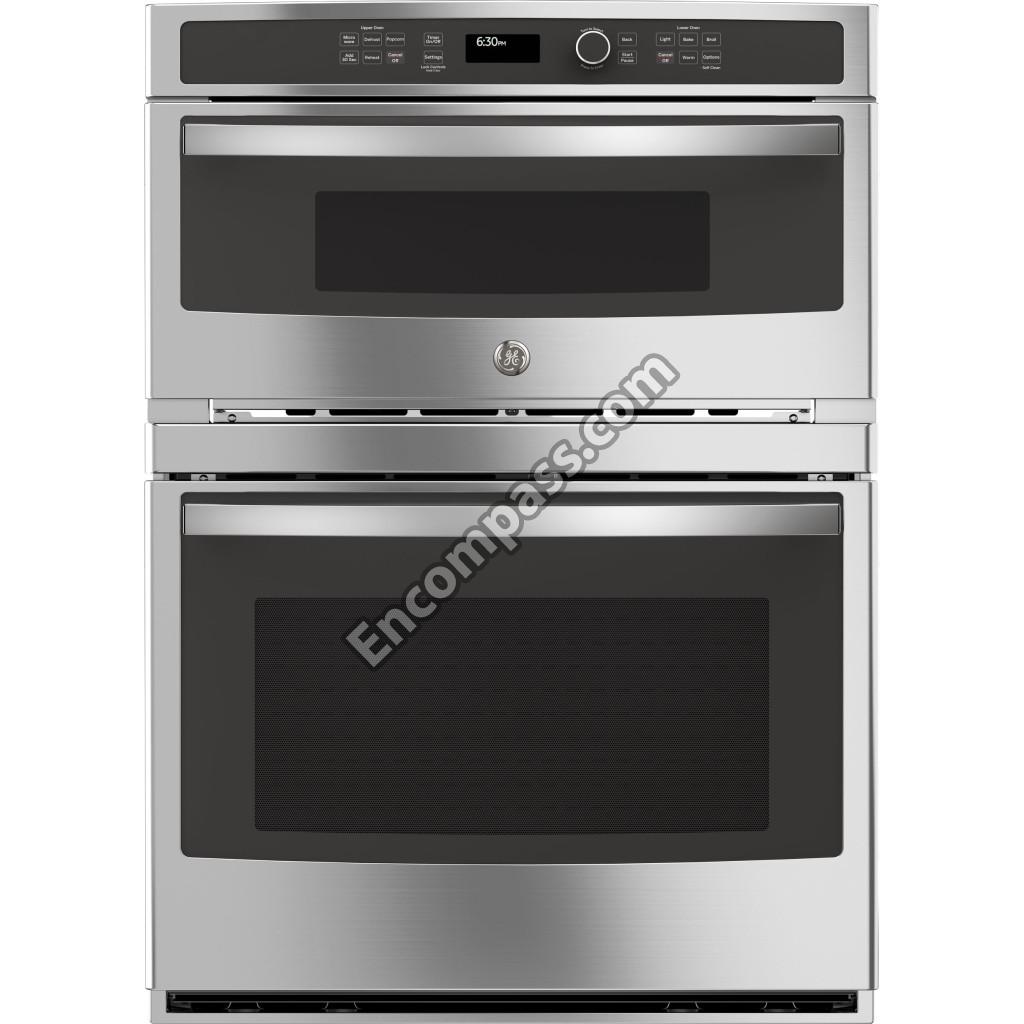

Model Image
Manufacturer

GE

Model Number

JT3800SH9SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB27X11033 WB27X11033 "CAPACITOR, H.V"
WB02X32634 WB02X32634 "SUPPORTER,BOARD"
WB17X10030 WB17X10030 "TRANSFORMER,HIGH VOLTAGE"
WB07X32627 WB07X32627 "TRIM, SIDE LEFT"
WB07X32622 WB07X32622 "TRIM, SIDE RIGHT"
WD02X10129 WD02X10129 6-19 X 1/4 TORX PAN HEAD
WB01X32574 WB01X32574 ADV HARDWARE ASM BAG
WB34X32602 WB34X32602 AIR TUNNEL
WB02X32590 WB02X32590 BARRIER
WB63X22091 WB63X22091 BASE PLATE ASM
WB17K10001 WB17K10001 BLOCK TERMINAL
WB10X32573 WB10X32573 BOARD DOOR LATCH LT
WB10X32577 WB10X32577 BOARD DOOR LATCH RT
WB27T11463 WB27T11463 BOARD FAN SENSOR
WB27X21904 WB27X21904 BOARD RJ45 CONNECTOR
WB07X32832 WB07X32832 BOTTOM TRIM
WB07X35692 WB07X35692 BRACE VERTICAL LEFT
WB07T10754 WB07T10754 BRACE VERTICAL RIGHT BLK
WB02X11225 WB02X11225 BRACKET
WB02X32591 WB02X32591 BRACKET
WB02X32932 WB02X32932 BRACKET
WB02X32593 WB02X32593 BRACKET CAPACITOR
WB37T10026 WB37T10026 BRACKET UPPER FAN MOUNT
WB06X10570 WB06X10570 BRACKET- MICROWAVE MAGNETRON
WB27X25692 WB27X25692 BRIDGE BOARD
WB44X48679 WB44X48679 BROIL ELEMENT
WB03T10341 WB03T10341 BUMPER DOOR
WB27X10037 WB27X10037 CABLE ASM
WB06X10638 WB06X10638 CANOPY MICA
WB34X35265 WB34X35265 CHANNEL REAR
WB34X21912 WB34X21912 CHANNEL REAR RT
WB34T10150 WB34T10150 CHANNEL UPPER AIR VENT
WB18X32620 WB18X32620 COMM SIGNAL HARNESS
WB18X30613 WB18X30613 CONDUIT WIRE ASM
WB27X32624 WB27X32624 CONTROL BOARD
WB02X32630 WB02X32630 CONTROL BOARD BRACKET
WB34T10136 WB34T10136 COVER - UPPER REAR DUCT
WB56X32580 WB56X32580 COVER BACK
WB56X43352 WB56X43352 COVER BOTTOM AIR DUCT
WB55T10197 WB55T10197 COVER HIDDEN BAKE
WB34X21949 WB34X21949 COVER HOUSING REAR 30
WB34X32583 WB34X32583 COVER LAMP
WB34X21944 WB34X21944 COVER WIRE TOP
WB34T10142 WB34T10142 DEFLECTOR OVEN DOOR
WB02X32631 WB02X32631 DISPLAY HOLDER
WB34T10134 WB34T10134 DIVIDER AIR CENTER
WB10X30580 WB10X30580 DOOR HINGE LT
WB10X30579 WB10X30579 DOOR HINGE RT
WB34X31516 WB34X31516 DOOR INSULATION RETAINER
WB10X28391 WB10X28391 DOOR LATCH ASM
WB01X34910 WB01X34910 DOOR REMOVAL TOOL
WB35X31513 WB35X31513 DOOR SIDE INSULATION
WB34X32584 WB34X32584 DOOR SWITCH ACCESS CVR
WB34X32607 WB34X32607 DUCT
WB34X32594 WB34X32594 DUCT
WB44X41047 WB44X41047 ELEMENT BROIL ASM
WB27X32632 WB27X32632 ENCODER BOARD
WB18X32616 WB18X32616 ENCODER SIGNAL HARNESS
WB26X31060 WB26X31060 FAN BLOWER
WB02X21902 WB02X21902 FRAME BOARD RELAY
WB27X10928 WB27X10928 FUSE
WB35X21972 WB35X21972 GASKET BROIL ELEMENT
WB01T10128 WB01T10128 GROMMET
WB25X31221 WB25X31221 HALOGEN LAMP ASM
WB18X32611 WB18X32611 HARNESS WIRE
WB18X32603 WB18X32603 HARNESS WIRE
WB18X32610 WB18X32610 HARNESS WIRE
WB18X23185 WB18X23185 HARNESS WIRE COM
WB01X1259 WB01X1259 HEX NUT
WB44X48678 WB44X48678 HIDDEN BAKE ELEMENT
WB44X21667 WB44X21667 HIDDEN BAKE ELEMENT KIT
WB49X21652 WB49X21652 HINGE BRACKET ASM KIT
WB06X10646 WB06X10646 HOLDER ASM
WB02X11233 WB02X11233 HOLDER WIRE
31-10882 31-10882 INSTRUCTION INSTALL
WB35X21737 WB35X21737 INSULATION DR TOP
WB02X35488 WB02X35488 LAMP HALOGEN
WB25T10102 WB25T10102 LAMP HALOGEN BULB G9
WB02X32588 WB02X32588 LEVER
WB34X46746 WB34X46746 LINER SUPPORT
WB27X25722 WB27X25722 MACHINE CONTROL BOARD
WB18X33173 WB18X33173 MAIN HARNESS WIRE
WB26X32629 WB26X32629 MICROWAVE MAGNETRON
WB26X10193 WB26X10193 MOTOR TURNTABLE
WB26X10182 WB26X10182 MOTOR(CIRC) CIRCULATION
WB34X32596 WB34X32596 MOUNT
WB02X32599 WB02X32599 MOUNT
WB02X35865 WB02X35865 NOISE FILTER BOARD
WB18T10580 WB18T10580 OPTIONAL 6 FT CONDUIT
WB56X32578 WB56X32578 OUTER CASE
WB56X45606 WB56X45606 OUTER DOOR-STAINLESS
WB35X32825 WB35X32825 OVEN DOOR GASKET
WB63X32569 WB63X32569 OVEN DOOR LINER ASM
WB34X31317 WB34X31317 OVEN LIGHT CAMERA LENS
WB48X31582 WB48X31582 OVEN RACK
31-10957 31-10957 PM INSTALL INSTRUCTIONS
31-17239 31-17239 PM MANUAL MINI & WD ASM
49-2001076 49-2001076 PM OWNERS MANUAL
WB27X32626 WB27X32626 POWER BOARD
WB18X32615 WB18X32615 POWER BOARD HARNESS
WB34X32592 WB34X32592 PROTECTOR (MECH)
WB63X32829 WB63X32829 REAR INSULATION RETAINER
WB27X32625 WB27X32625 RELAY BOARD
WB18X32619 WB18X32619 RELAY SIGNAL HARNESS
WB34X21913 WB34X21913 RETAINER INSLN SDE
WB02X32600 WB02X32600 ROTATING RING ASM
WB01X5904 WB01X5904 SCR 8-18 BA POR 3/4 SN
WB34X43346 WB34X43346 SCREEN SUPPORT
WB01K5072 WB01K5072 SCREW
WB01X21742 WB01X21742 SCREW
WB01X10121 WB01X10121 SCREW
WB02X10745 WB02X10745 SCREW - BINDING HEAD
WB01X34649 WB01X34649 SCREW 10-18 PL TRT20 3/4 S
WB01T10132 WB01T10132 SCREW 10-32 HEX 1 3/4 IN
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10130 WB01T10130 SCREW 7-19 1/4HEX 1/2IN
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB02X32576 WB02X32576 SEAL TAPE
WB27X10857 WB27X10857 SENSOR ASM
WB21X10165 WB21X10165 SENSOR ASM
WB06X10693 WB06X10693 SHAFT ASM
WB56X38544 WB56X38544 STAINLESS CONTROL PANEL
WB15X49367 WB15X49367 STAINLESS HANDLE
WB56X38545 WB56X38545 STAINLESS OUTER DOOR
WB03X35392 WB03X35392 STAINLESS STEEL KNOB
WB02T10093 WB02T10093 STANDOFF POWER CONTROL BOARD
WB02X36005 WB02X36005 SUPPORT HANDLE
WB34X24076 WB34X24076 SUPPORT MIDDLE LT MWO 30
WB34X24077 WB34X24077 SUPPORT MIDDLE RT MWO 30
WB34X21946 WB34X21946 SUPPORT SLIDE 30 LH
WB34X21947 WB34X21947 SUPPORT SLIDE 30 RH
WB02X22095 WB02X22095 SUPPORTER
WB24X46906 WB24X46906 SWITCH HIGH LIMIT
WB24X10047 WB24X10047 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONTR
WB21X10149 WB21X10149 THERMOSTAT
WB20X10048 WB20X10048 THERMOSTAT
WB18X32614 WB18X32614 TOUCH SIGNAL HARNESS
WB27X43590 WB27X43590 TRAY GLASS
WB07X21951 WB07X21951 TRIM MIDDLE 30 (SS)
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07X21187 WB07X21187 TRIM VENT LWR
WB07X21942 WB07X21942 TRIM VENT UPR
WB07T10732 WB07T10732 TRIM VERT SIDE (BK)
WB27X44086 WB27X44086 VF DISPLAY
WB27X50146 WB27X50146 VF DISPLAY
WB18X32613 WB18X32613 VFD SIGNAL HARNESS
WB02X32440 WB02X32440 WASHER CONTOURED
WB56X27480 WB56X27480 WINDOW PACK ASM
