Model Image
Manufacturer

GE

Model Number

JT5500SF2SS

Description

Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WB34T10133 WB34T10133 AIR CHANNEL
WB34T10137 WB34T10137 AIR DIVIDER
WB34T10140 WB34T10140 AIR DIVIDER
WB34T10163 WB34T10163 AIR DIVIDER
WB34T10139 WB34T10139 AIR DIVIDER

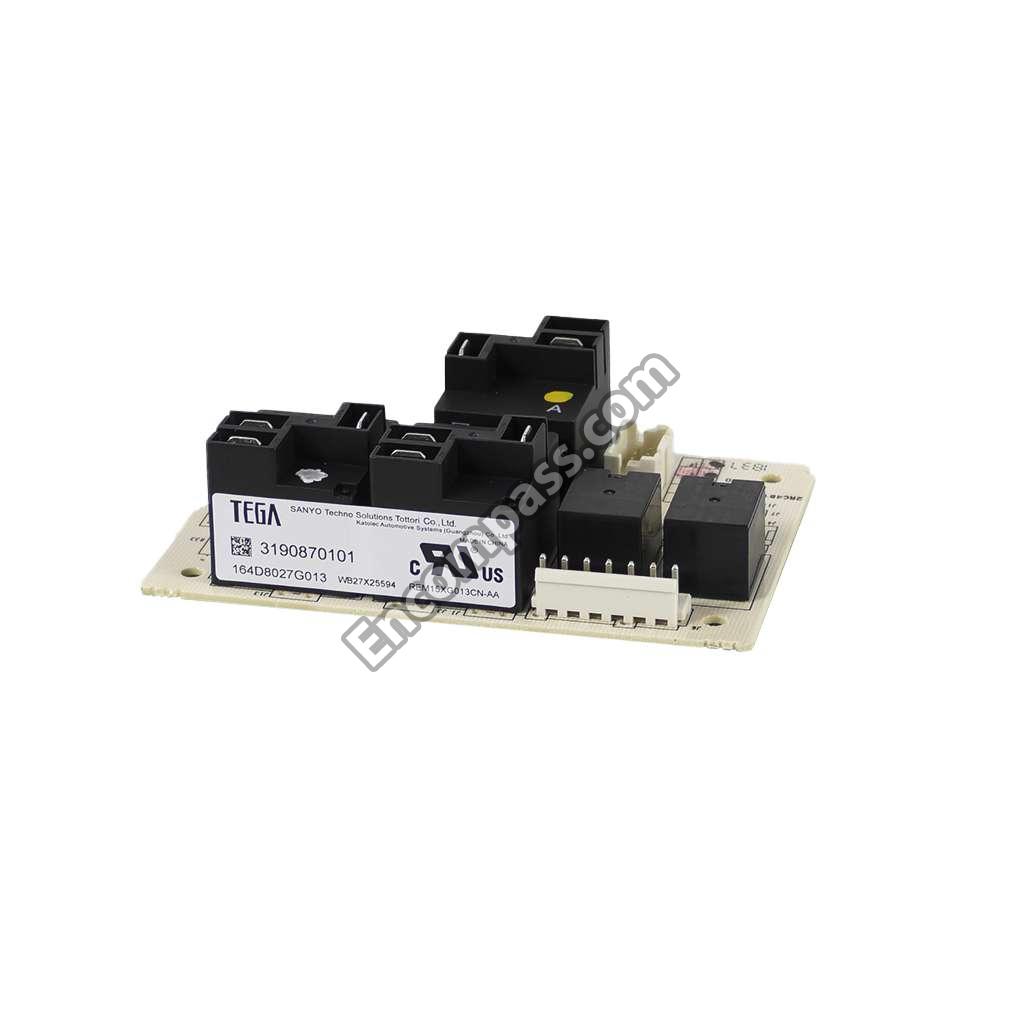

WB27X25594 WB27X25594 BOARD DAUGHT
WB27T11463 WB27T11463 BOARD FAN SE
WB27X28659 WB27X28659 BOARD SENSOR
WB07X21781 WB07X21781 BRACE VERT A
WB07X30797 WB07X30797 BRACE VERT A
WB07X21782 WB07X21782 BRACE VERT ASM (RT)
WB37T10026 WB37T10026 BRACKET UPPE
WB37T10028 WB37T10028 CHANNEL PEDESTAL
WB37T10029 WB37T10029 CHANNEL PEDESTAL
WB34T10150 WB34T10150 CHANNEL UPPE
WB02T10598 WB02T10598 COMPLETE FAN BLADE
WB18T10573 WB18T10573 CONDUIT WIRE
WB01X0119 WB01X0119 CONTOURED WASHER

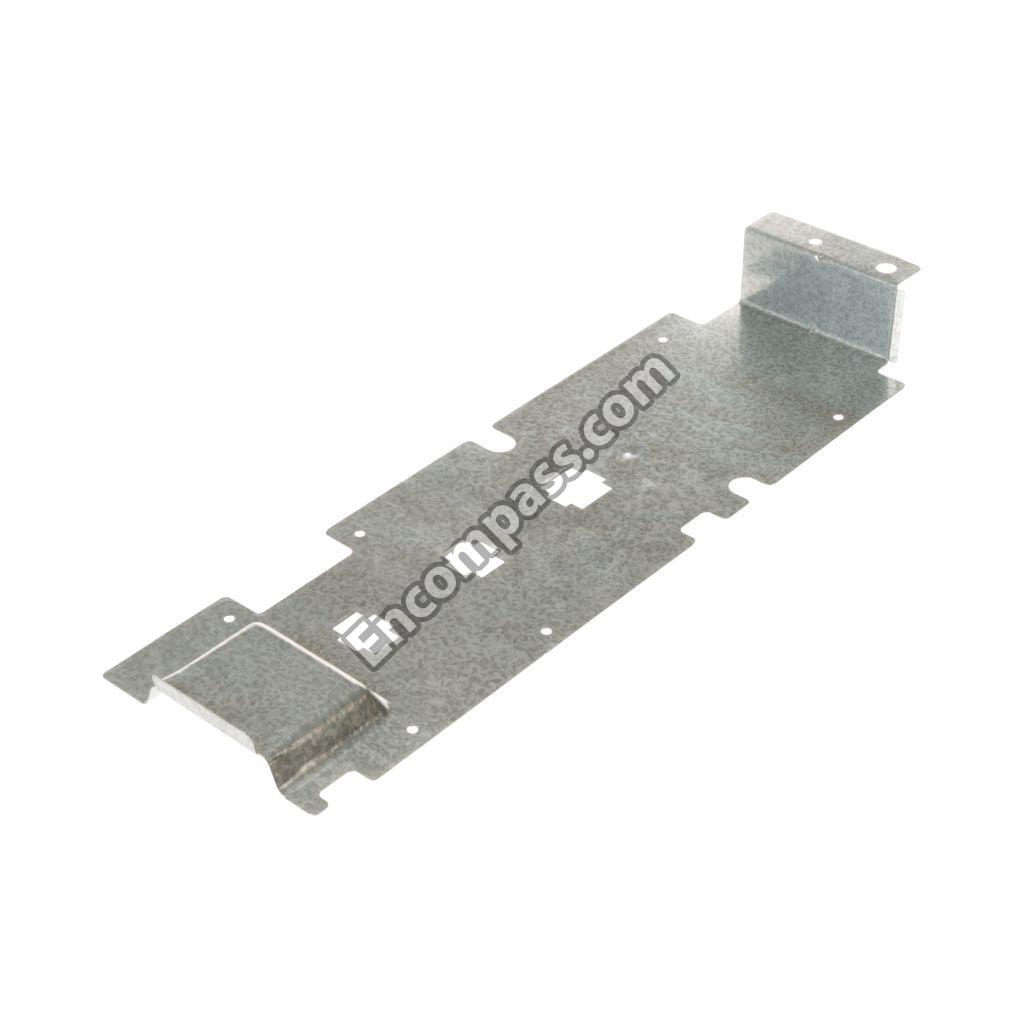

WB07X32471 WB07X32471 CONTROL PANEL MOUNTING BRACKET
WB37T10021 WB37T10021 CONVECTION COVER

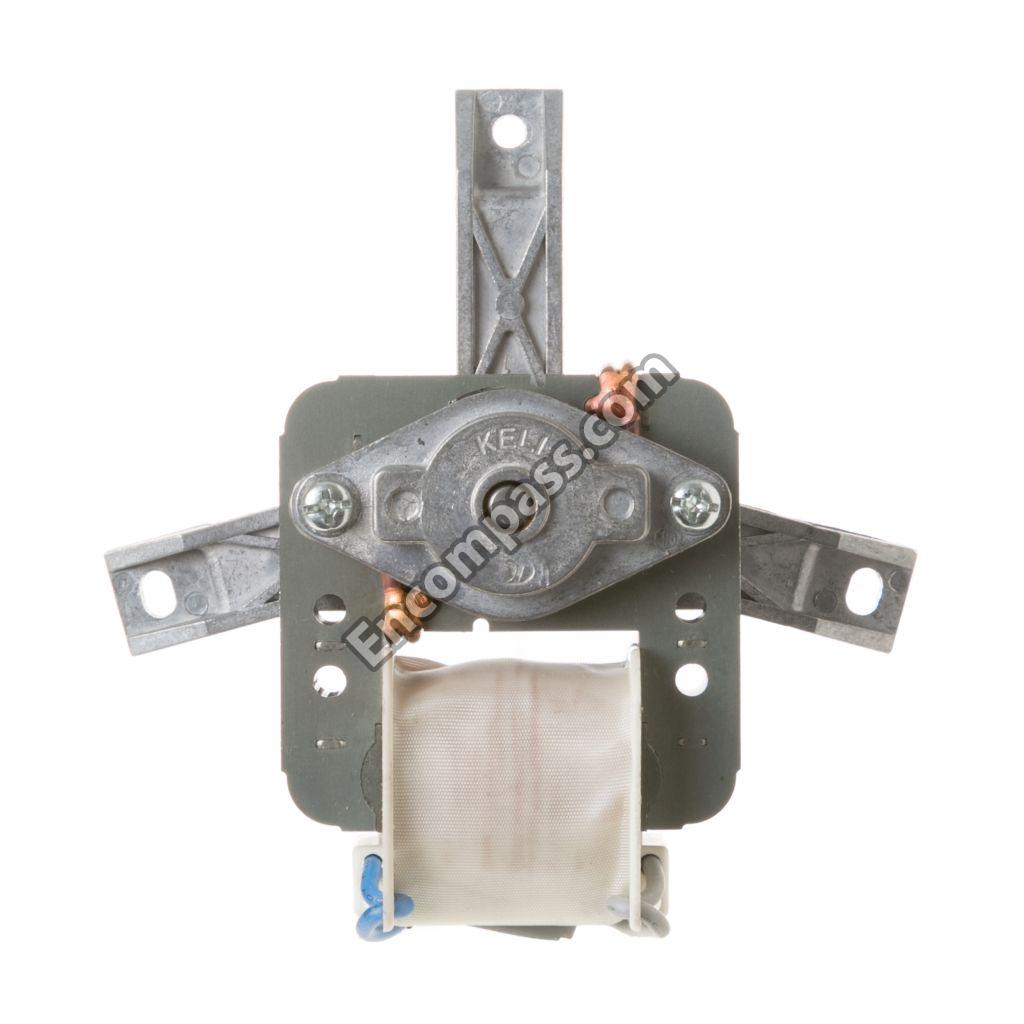

WB26T10067 WB26T10067 CONVECTION MOTOR
WB44X48668 WB44X48668 CONVERSION ELEMENT
WB01T10079 WB01T10079 CONVERSION GASKET
WB35T10259 WB35T10259 CONVEX INSULATION
WB26X35088 WB26X35088 COOLING FAN

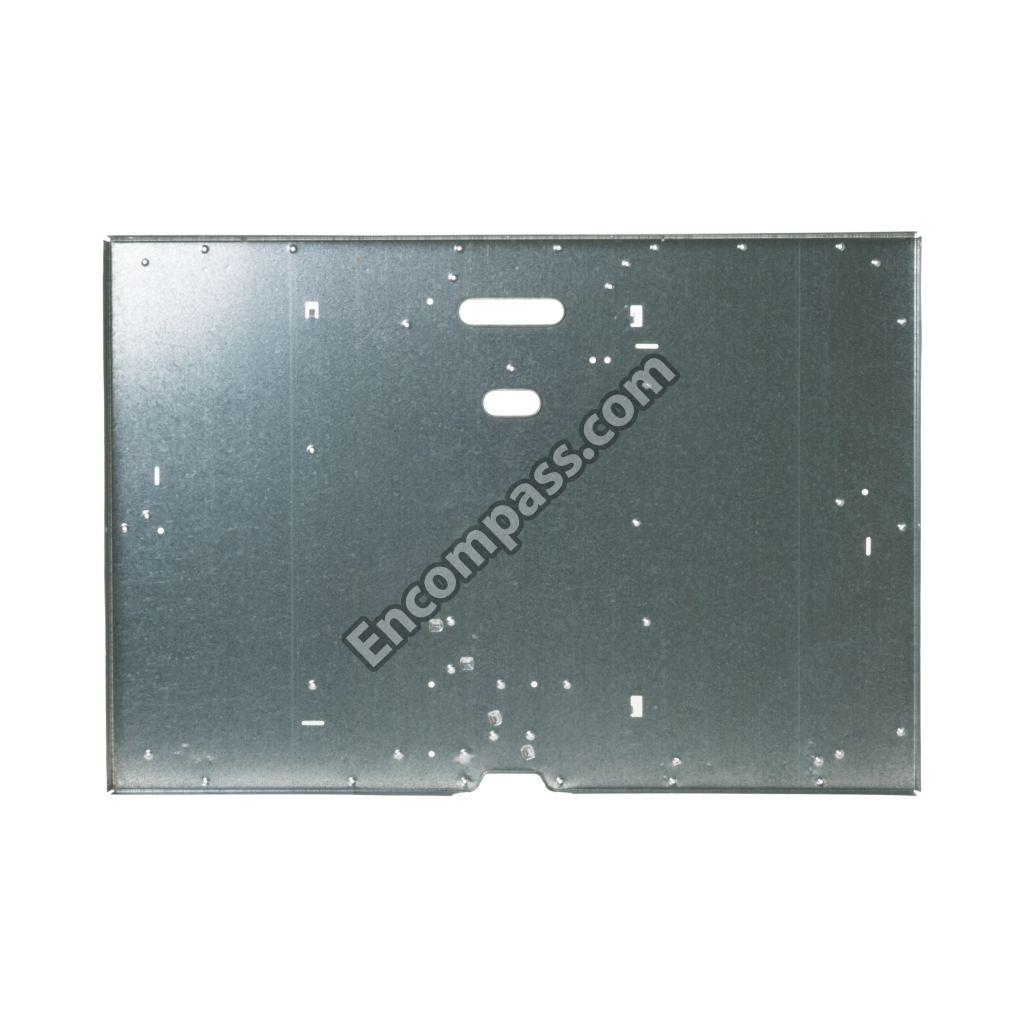

WB56X43352 WB56X43352 COVER
WB34T10136 WB34T10136 COVER - UPPE
WB34X28390 WB34X28390 COVER HOUSIN
WB44T10126 WB44T10126 COVER TOP LE
WB34X32773 WB34X32773 COVER TOP RE
WB34T10164 WB34T10164 COVER TOP RIGHT
WB35T10273 WB35T10273 COVER WIRE R
WB03T10341 WB03T10341 DOOR BUMPER
WB56X35473 WB56X35473 DOOR GLASS AND SS TRIM
WB34X31516 WB34X31516 DOOR INSULATION RETAINER

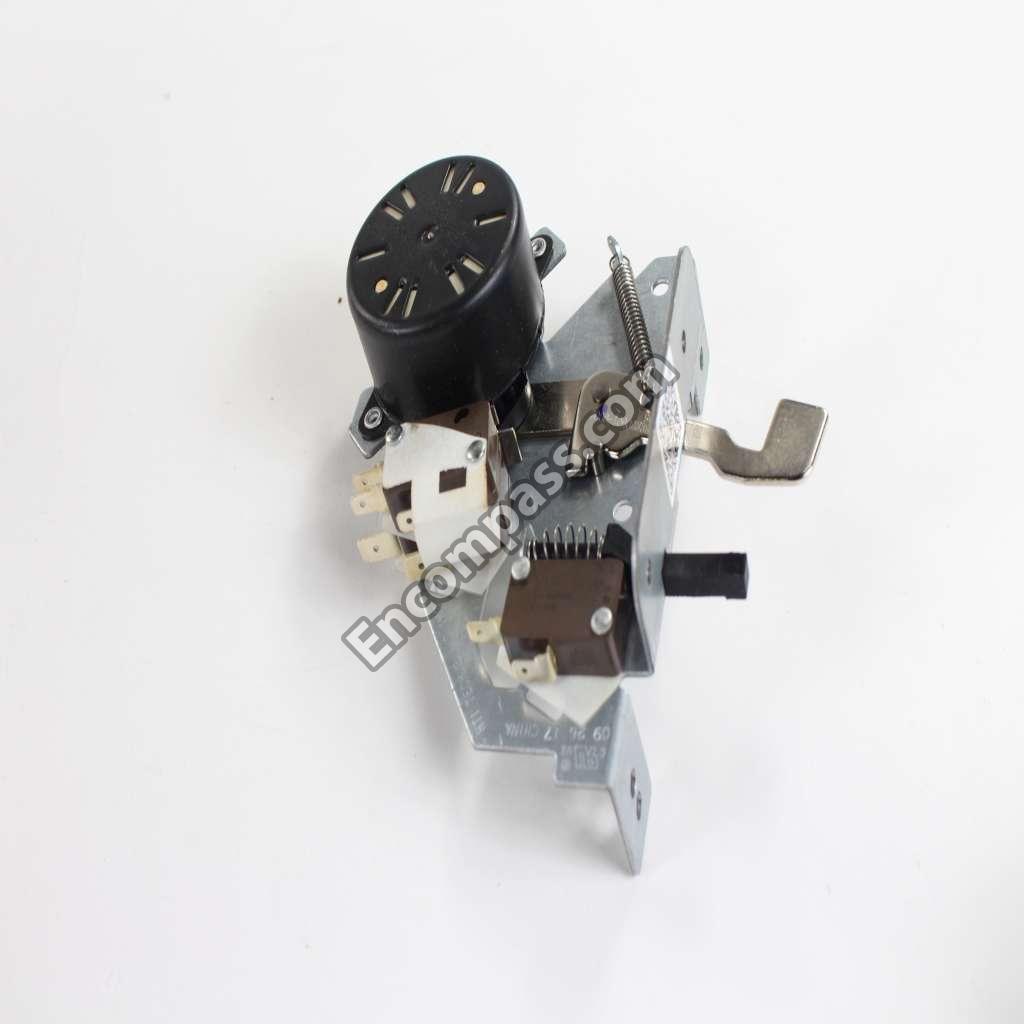

WB10X23814 WB10X23814 DOOR LATCH ASM
WB35X31513 WB35X31513 DOOR SIDE INSULATION
WH2X930 WH2X930 DRYER SCREW
WB37T10022 WB37T10022 DUCT CONVECT
WB34T10141 WB34T10141 DUCT LOWER R
WB34X20282 WB34X20282 EXTENSION REFRIGERATOR SHELF
WB34T10146 WB34T10146 EXTENSION SI
WB37T10027 WB37T10027 FAN BRACKET
WB35X21972 WB35X21972 GASKET BROIL
WB35X32825 WB35X32825 GASKET OVEN DOOR
WB56X33178 WB56X33178 GLASS AND TRIM ASM
WB01T10128 WB01T10128 GROMMET

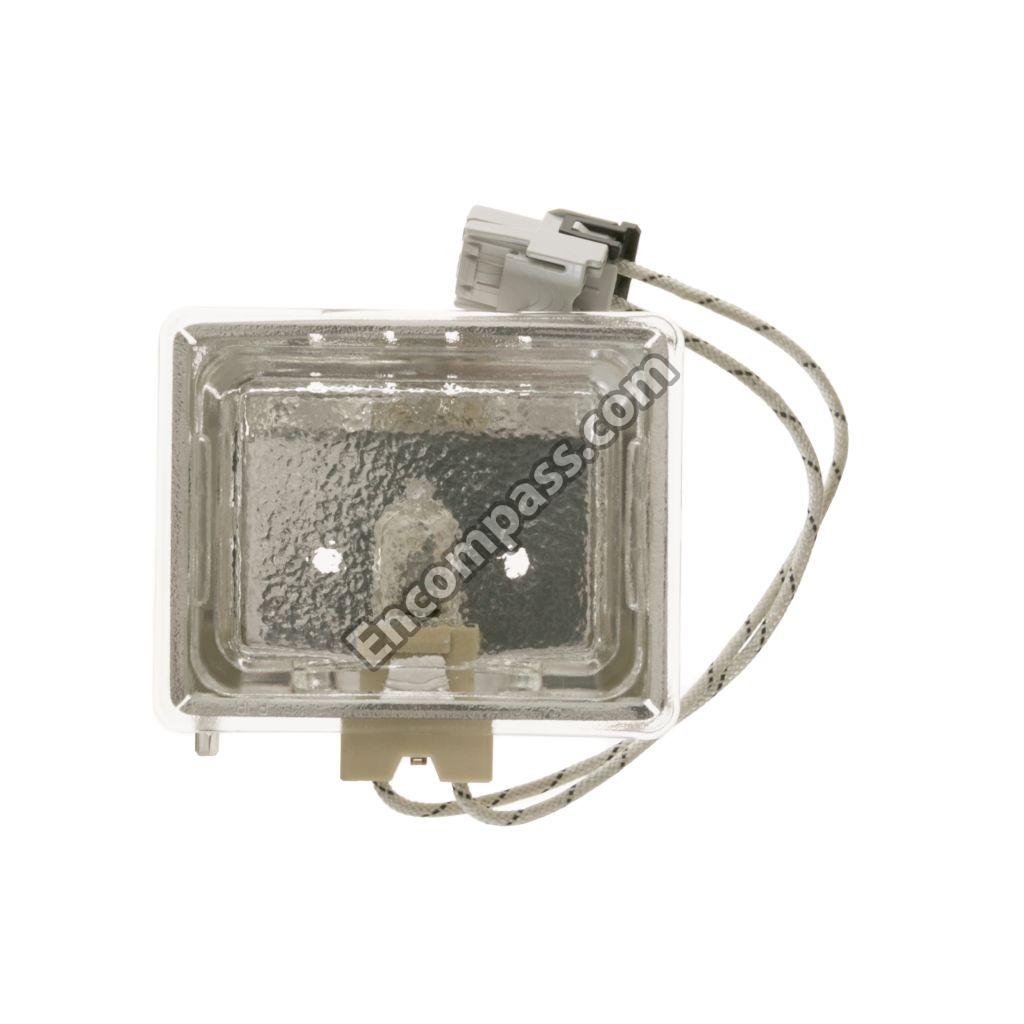

WB25T10101 WB25T10101 HALOGEN LAMP
WB25T10102 WB25T10102 HALOGEN LAMP
WB25X20199 WB25X20199 HALOGEN LAMP
WB25X31222 WB25X31222 HALOGEN LAMP
WB01X1259 WB01X1259 HEX NUT
WB1X1259 WB1X1259 HEX NUT
WB02X35585 WB02X35585 HEX NUT
WB55T10197 WB55T10197 HIDDEN COVER
WB49X21652 WB49X21652 HINGE BRACKET
WB27X20933 WB27X20933 HOUSING RJ45
31-10882 31-10882 INSTRUCTION INSTALL
WB35X33245 WB35X33245 INSULATION DOOR TOP 30-INCH
WB18X30704 WB18X30704 JUMPER
229C6291P002 229C6291P002 LABEL WIRE DIAGRAM
WB24X46907 WB24X46907 LIMIT SWITCH
WB34X46746 WB34X46746 LINE SUPPORT
WB34T10160 WB34T10160 LOWER CHANNEL

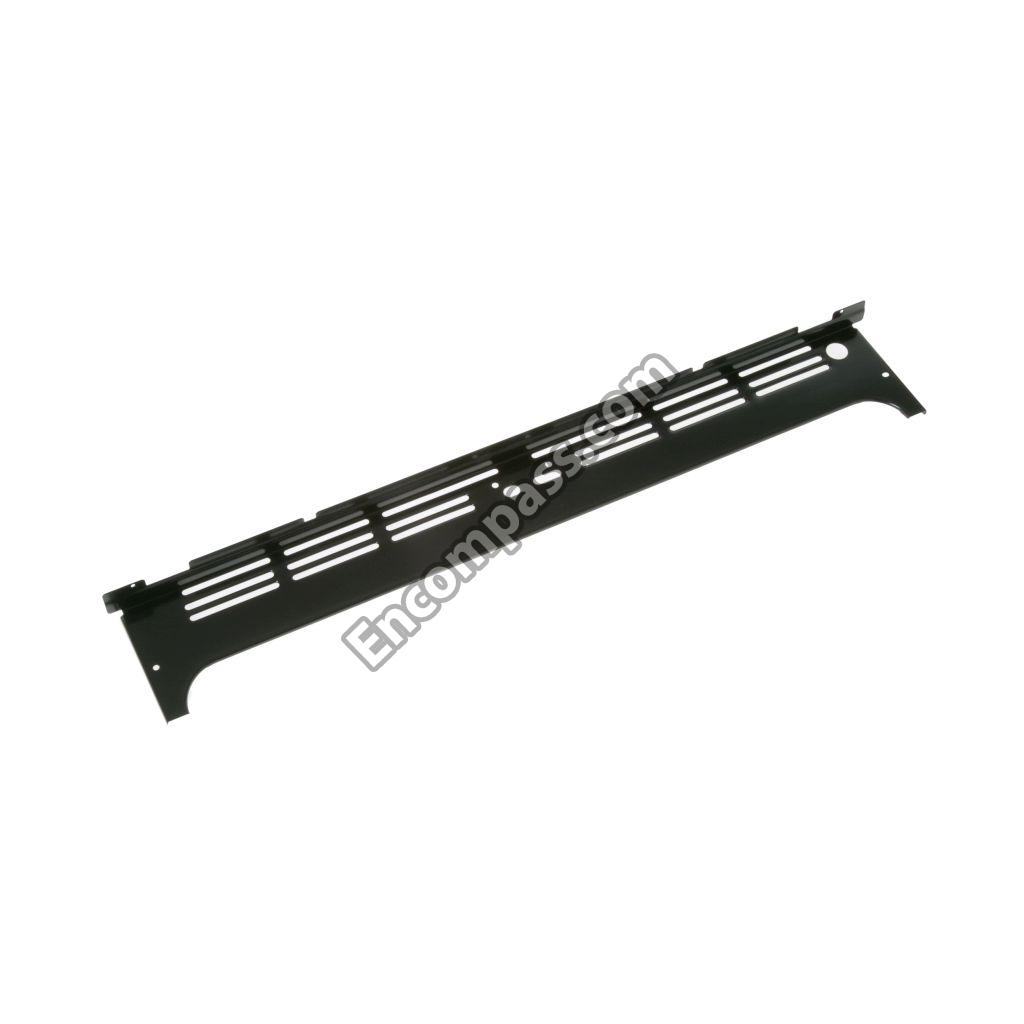

WB07X21783 WB07X21783 LOWER TRIM VENT
49-80597 49-80597 MANUAL U&C TIP SHEET
WB01T10133 WB01T10133 NUT HEX M4-.
WB18T10580 WB18T10580 OPTIONAL 6 F
WB02T10589 WB02T10589 OVEN BADGE

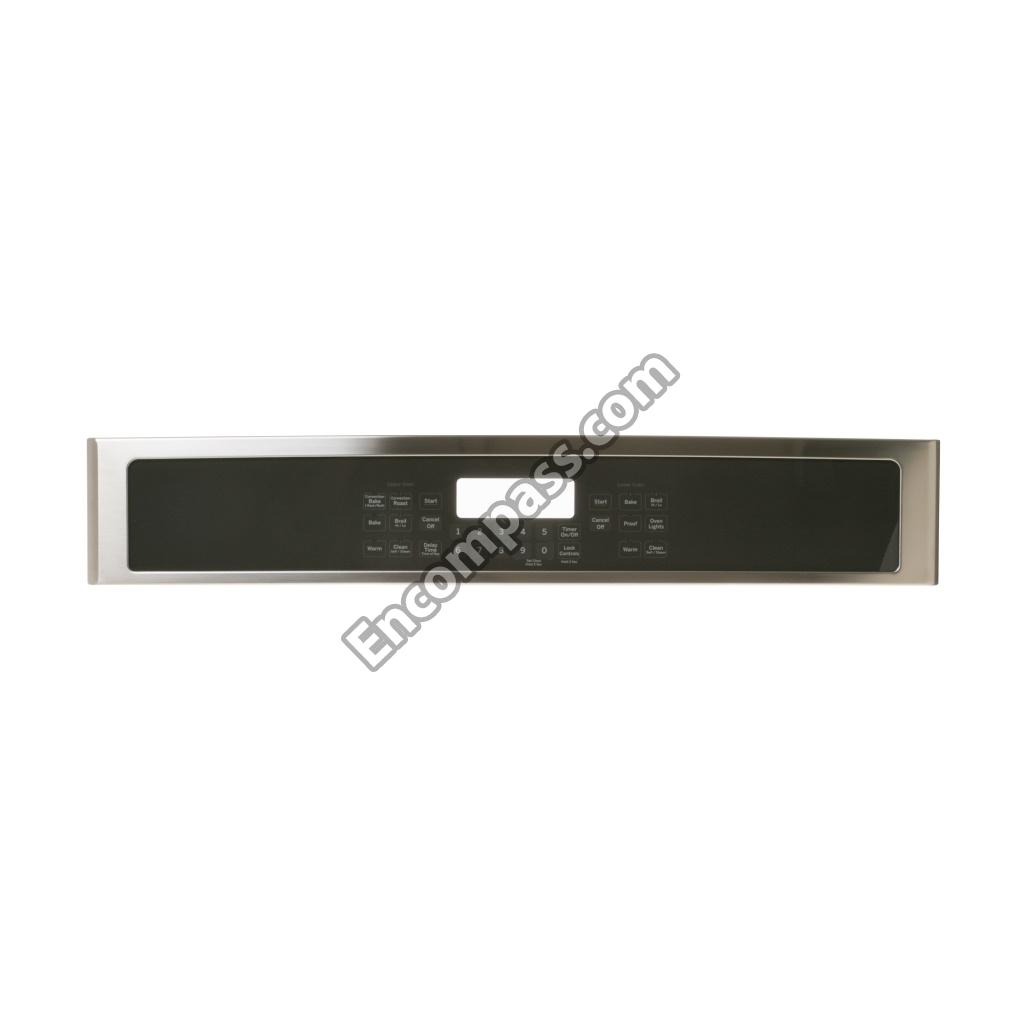

WB07T10769 WB07T10769 OVEN CONTROL PANEL

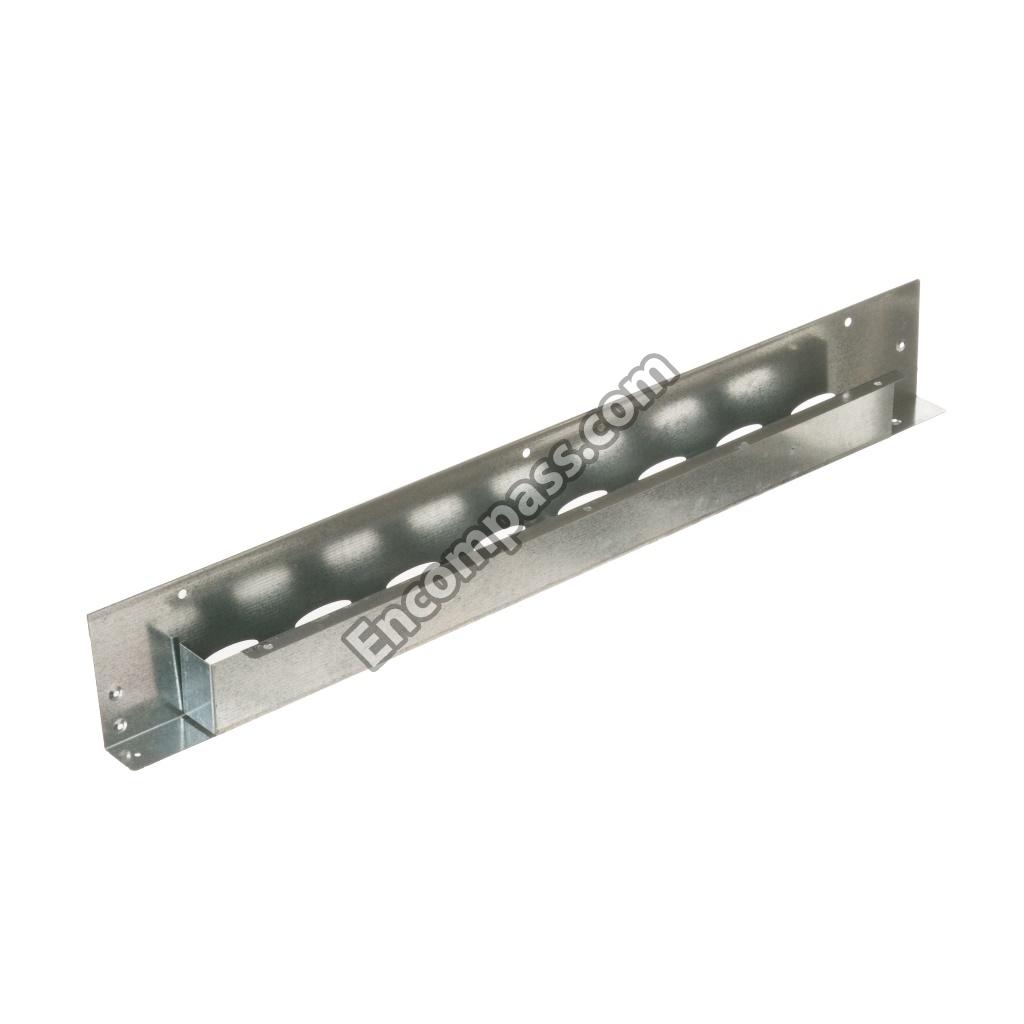

WB34T10142 WB34T10142 OVEN DEFLECTOR

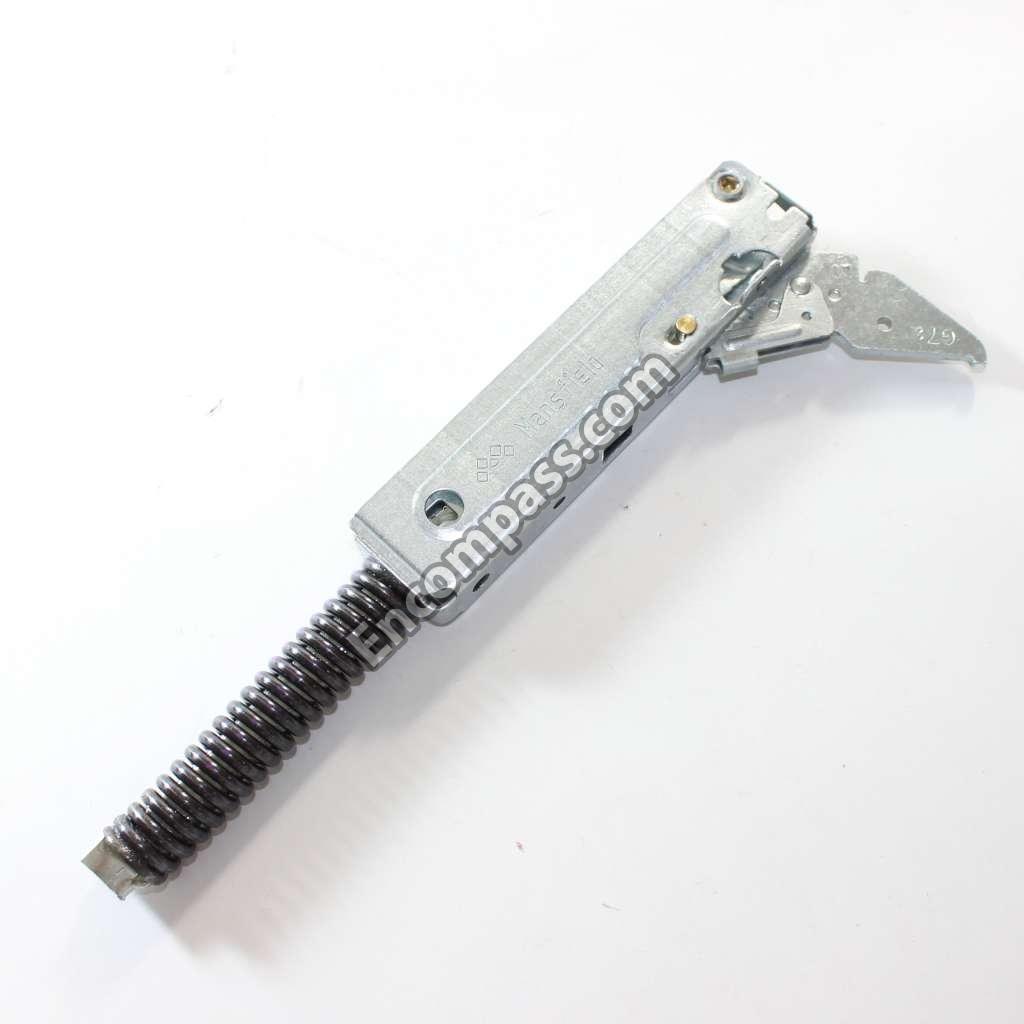

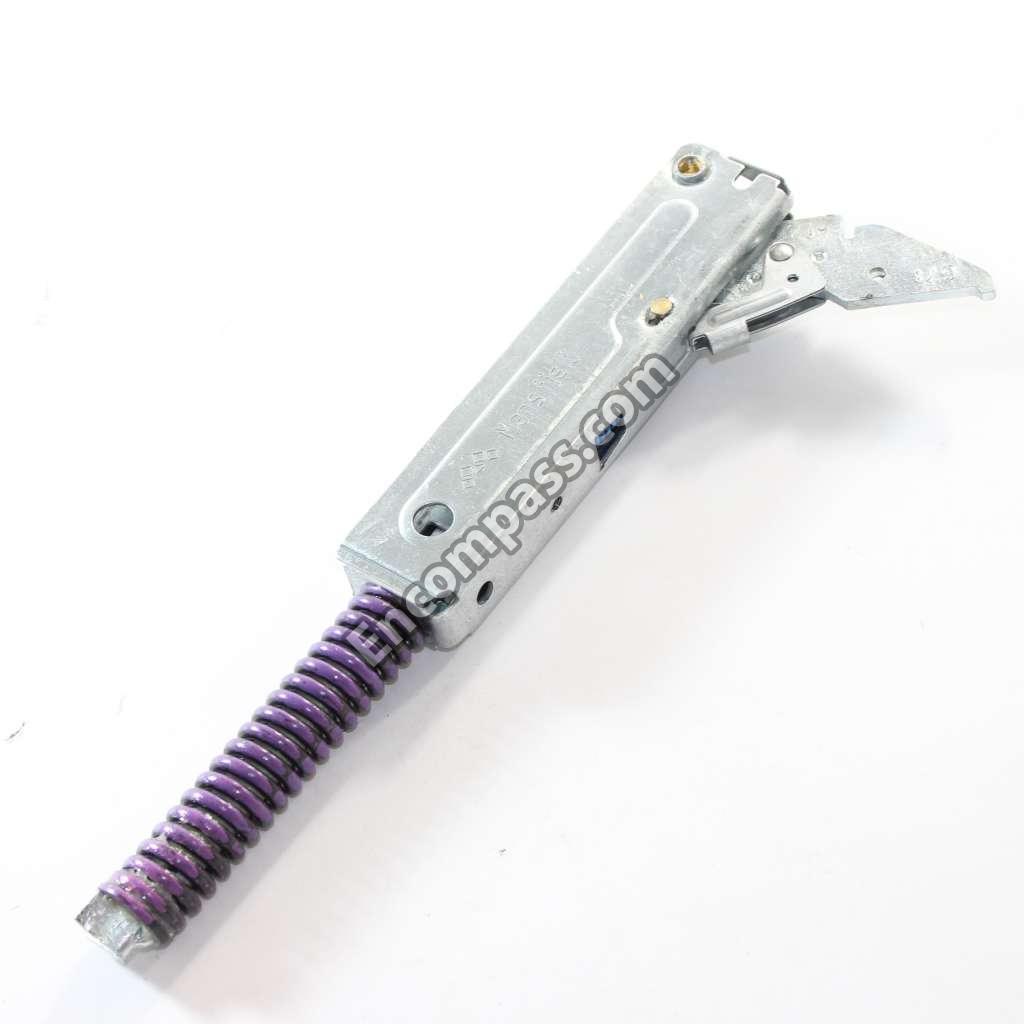

WB10X21741 WB10X21741 OVEN DOOR HINGE
WB10X21740 WB10X21740 OVEN DOOR HINGE

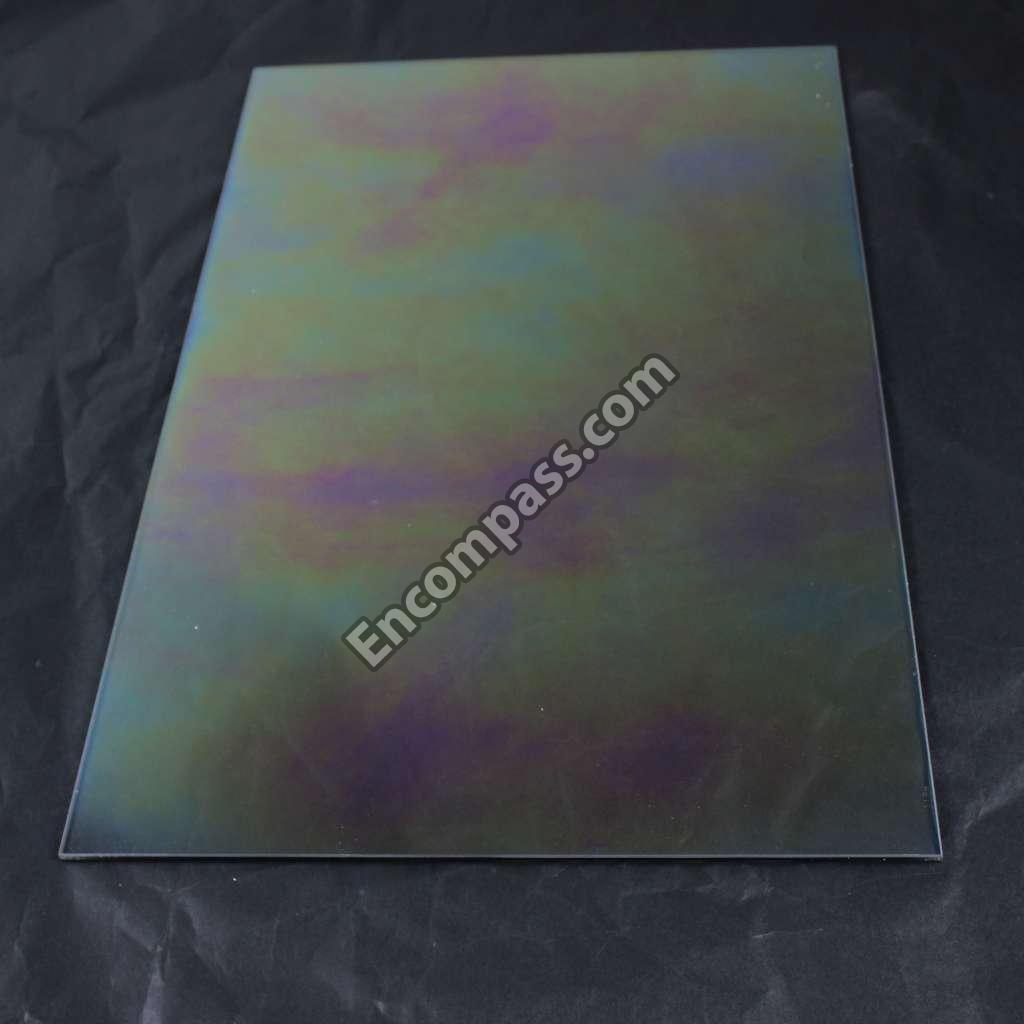

WB56T10351 WB56T10351 OVEN GLASS
WB35X21737 WB35X21737 OVEN INSULATION
WB35X34930 WB35X34930 OVEN INSULATION

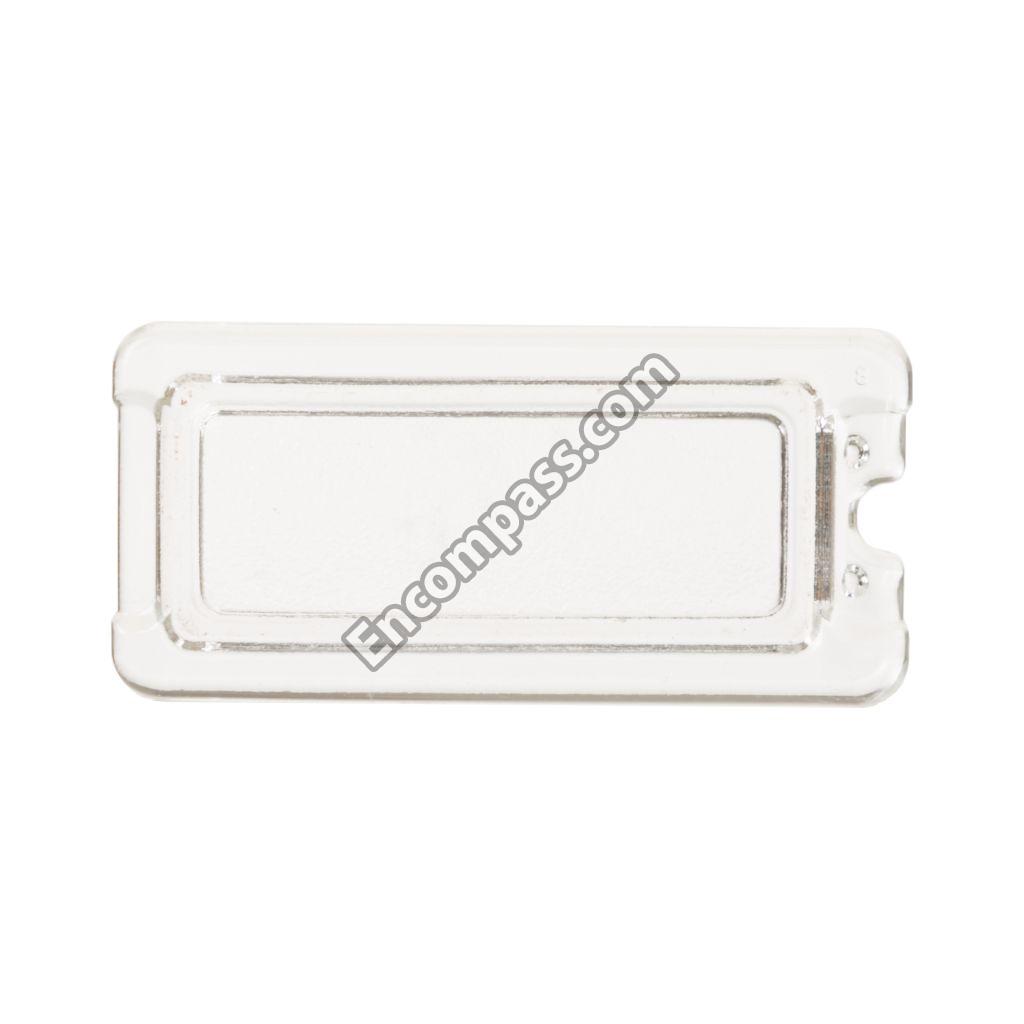

WB34T10145 WB34T10145 OVEN LIGHT LENS
WB34T10144 WB34T10144 OVEN LIGHT LENS
WB63X32818 WB63X32818 OVEN LINER
WB37T10030 WB37T10030 OVEN SPACER
WB07T10786 WB07T10786 OVEN TRIM

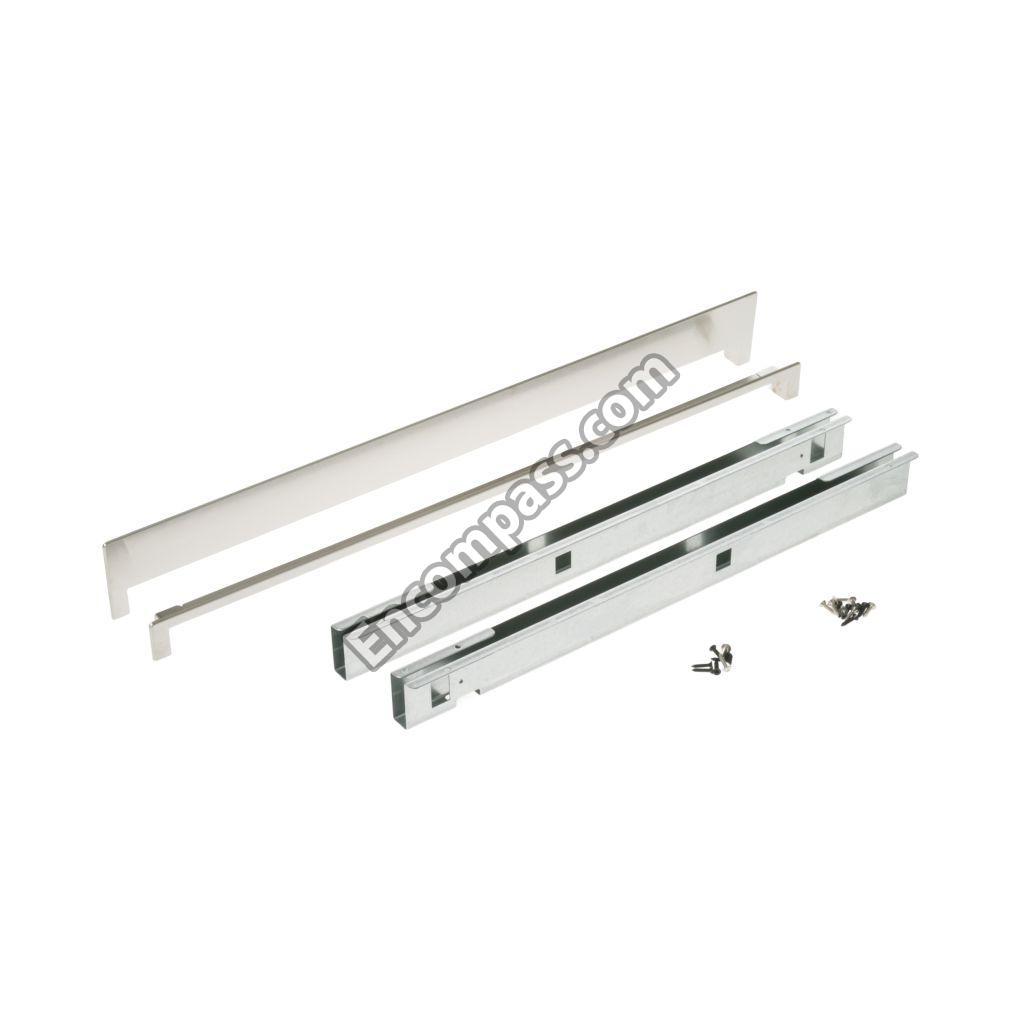

WB63T10172 WB63T10172 PEDESTAL ASSEMBLY
31-10957 31-10957 PM INSTALL INSTRUCTIONS
31-10958 31-10958 PM INSTRUCTIONS INSTALL
31-17035 31-17035 PM MANUAL MINI & WD ASM_
49-80669 49-80669 PM MANUAL USE & CARE
WB07T10791 WB07T10791 RANGE BASE TRIM (STAINLESS)
WB24X46906 WB24X46906 RANGE HIGH-LIMIT THERMOSTAT
WB24T10147 WB24T10147 RANGE OVEN DOOR SWITCH

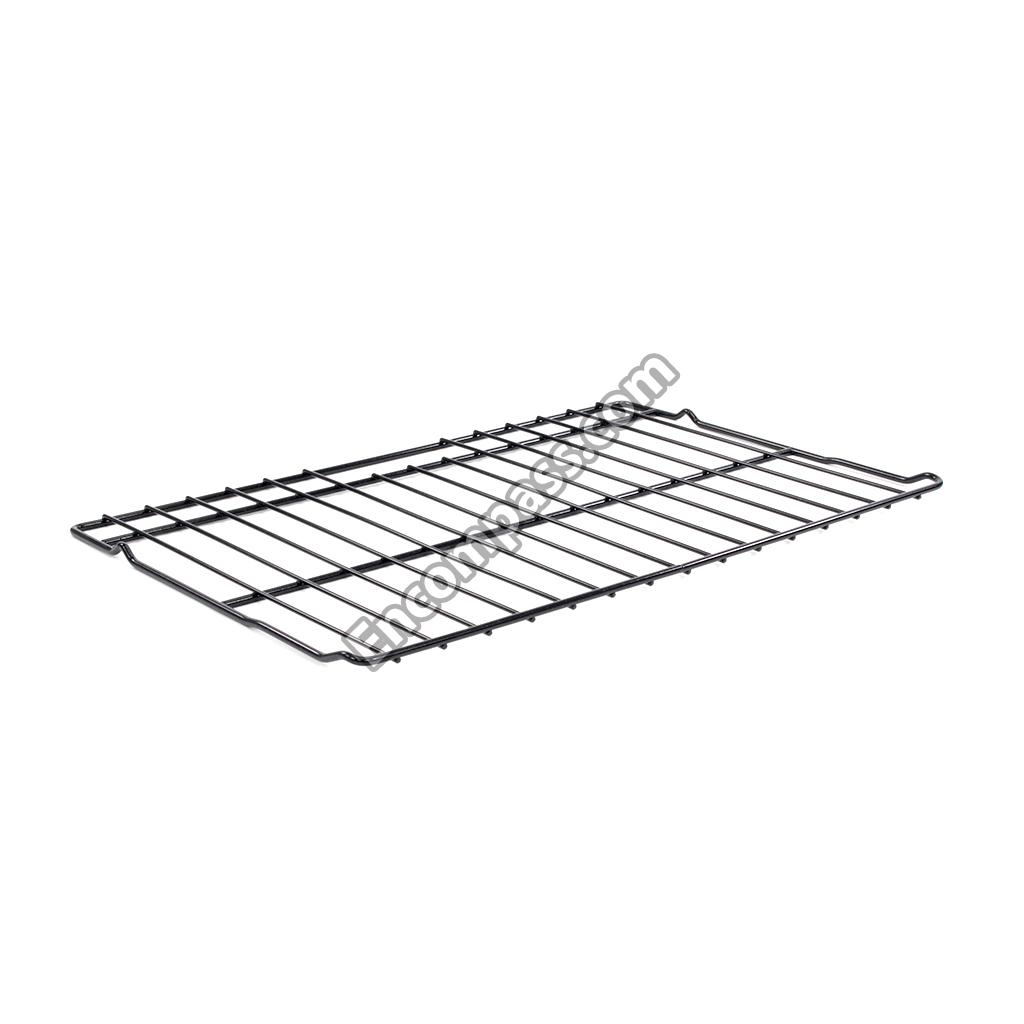

WB48X31582 WB48X31582 RANGE OVEN RACK
WB1K5072 WB1K5072 RANGE SCREW
WB1X1261 WB1X1261 RANGE SCREW
WB1M1 WB1M1 RANGE SCREW
WB1X119D WB1X119D RANGE WASHER, 12-PACK
WB55X10971 WB55X10971 REAR CHANNEL
WB63T10169 WB63T10169 RETAINER INSERT
WB01T10008 WB01T10008 SCR 10-32 TR
WB01K5072 WB01K5072 SCREW
WD02X10129 WD02X10129 SCREW
WB01X21742 WB01X21742 SCREW
WB01X32746 WB01X32746 SCREW
WB01T10130 WB01T10130 SCREW 7-19 1
WB01T10134 WB01T10134 SCREW 8-18 T
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01T10132 WB01T10132 SCREW, #10-32
WB01X1174 WB01X1174 SCREW-NICKLE
WB21X10165 WB21X10165 SENSOR ASSEMBLY
WB02T10093 WB02T10093 STANDOFF PCB
WB17K10001 WB17K10001 TERMINAL BLOCK

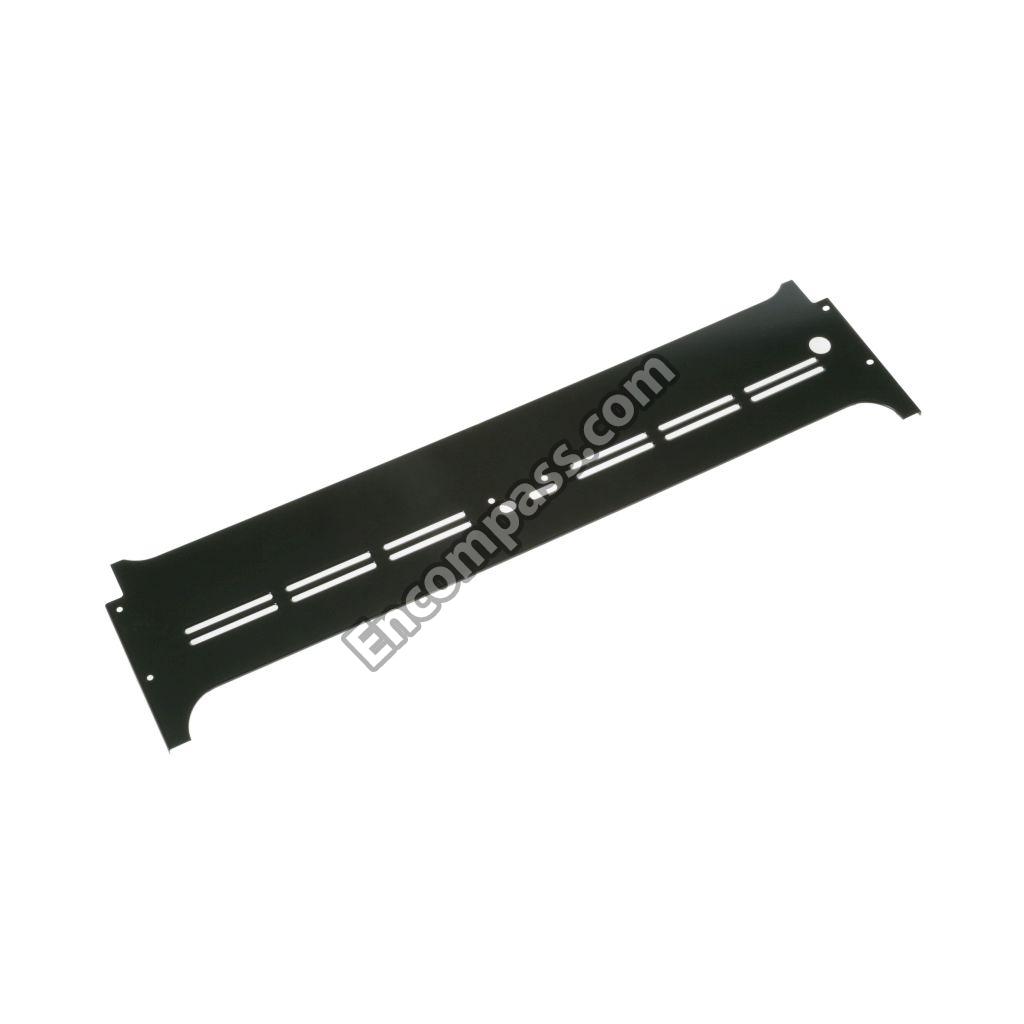

WB07X20180 WB07X20180 TRIM VENT MI
WB07T10770 WB07T10770 TRIM VERTICA

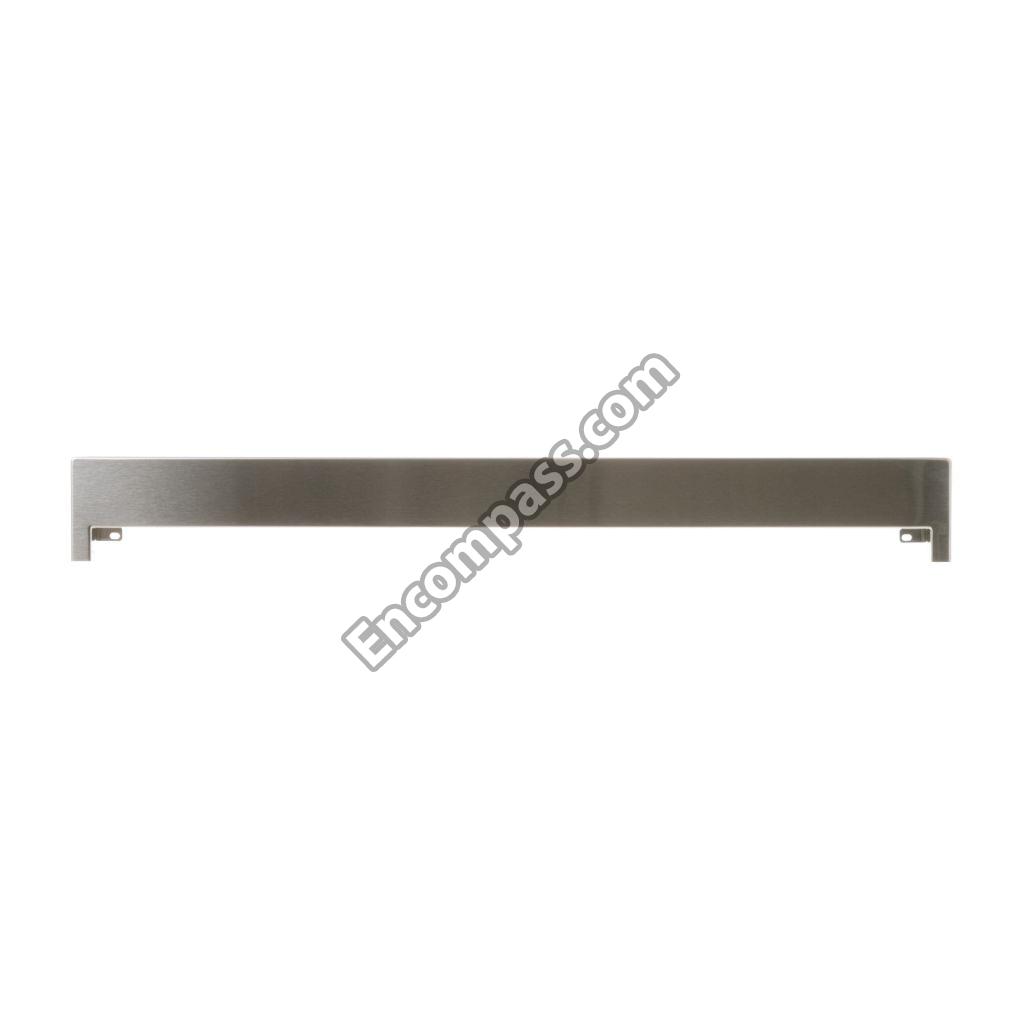

WB07T10805 WB07T10805 VENT TRIM
WB44X21667 WB44X21667 WALL OVEN BAKE ELEMENT
WB44X48685 WB44X48685 WALL OVEN BROIL ELEMENT

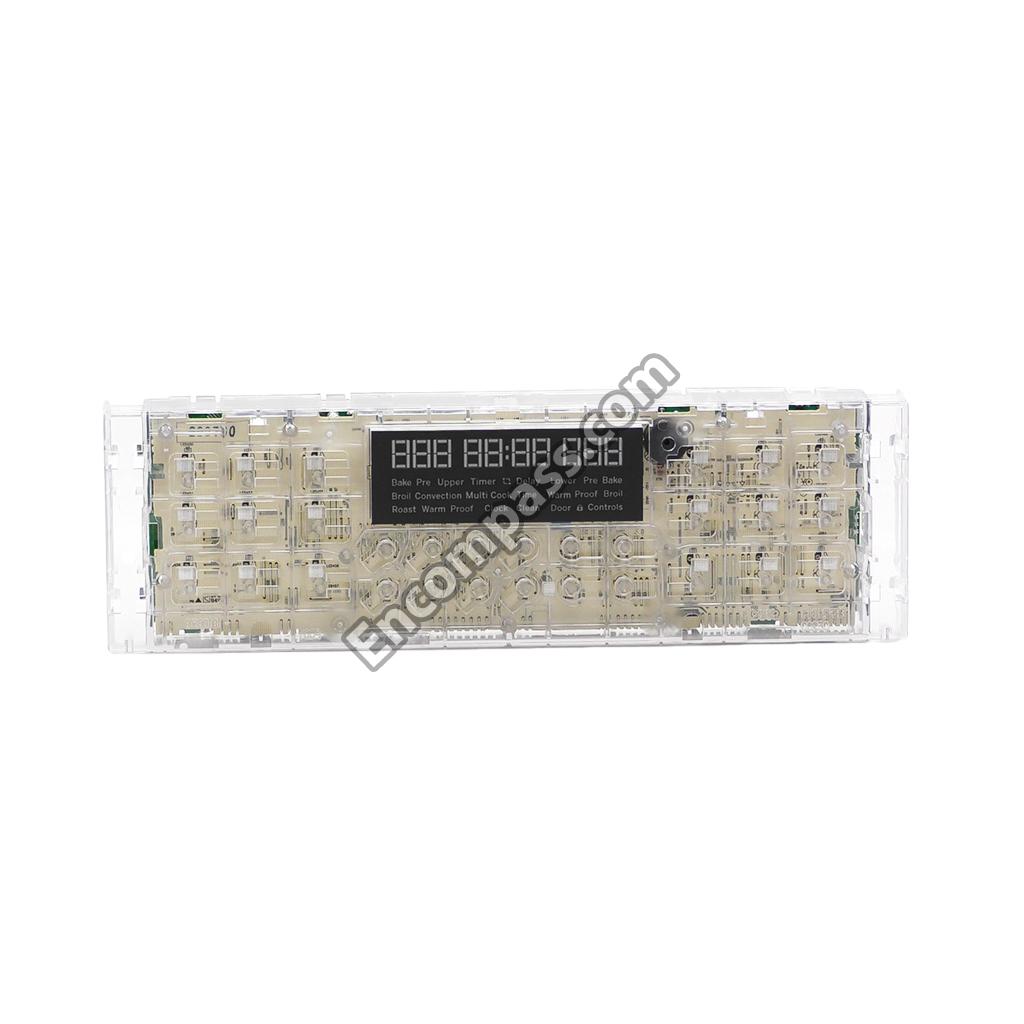

WB27X25351 WB27X25351 WALL OVEN CONTROL BOARD

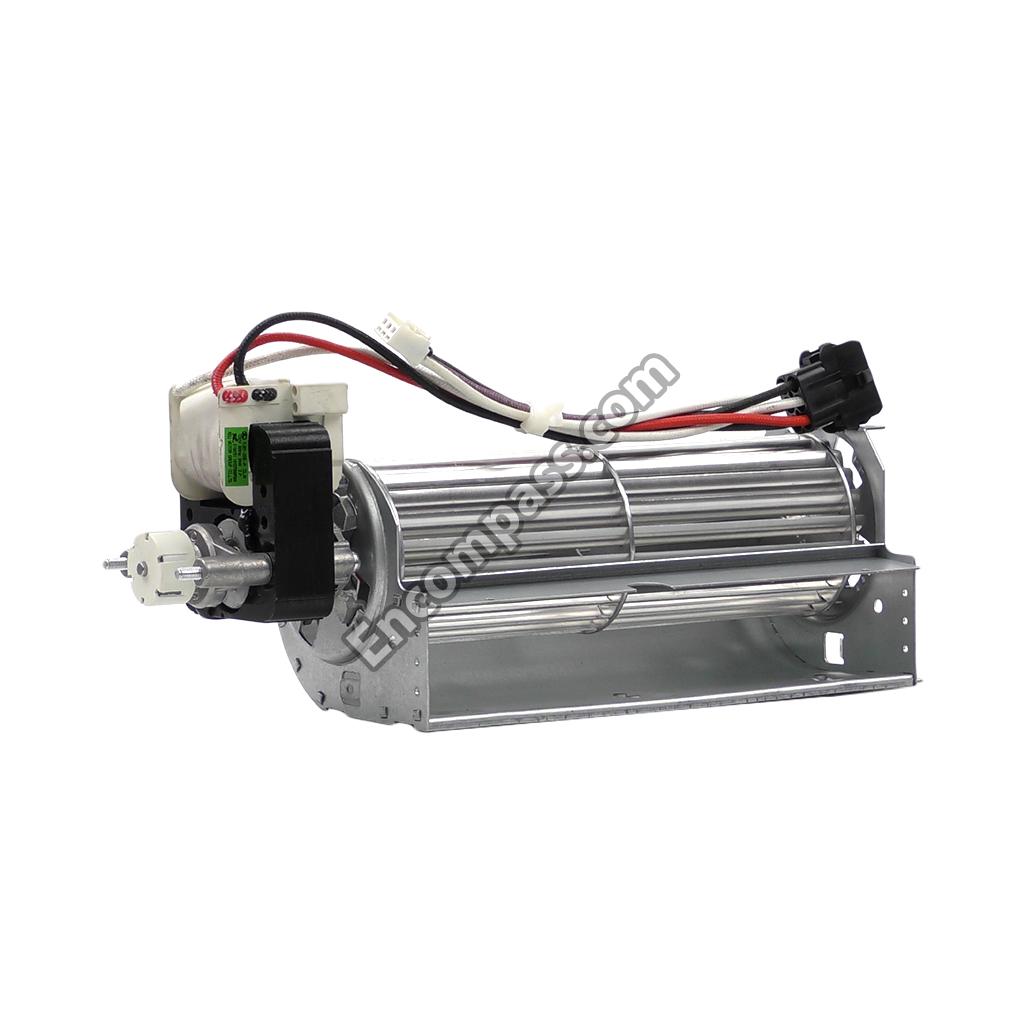

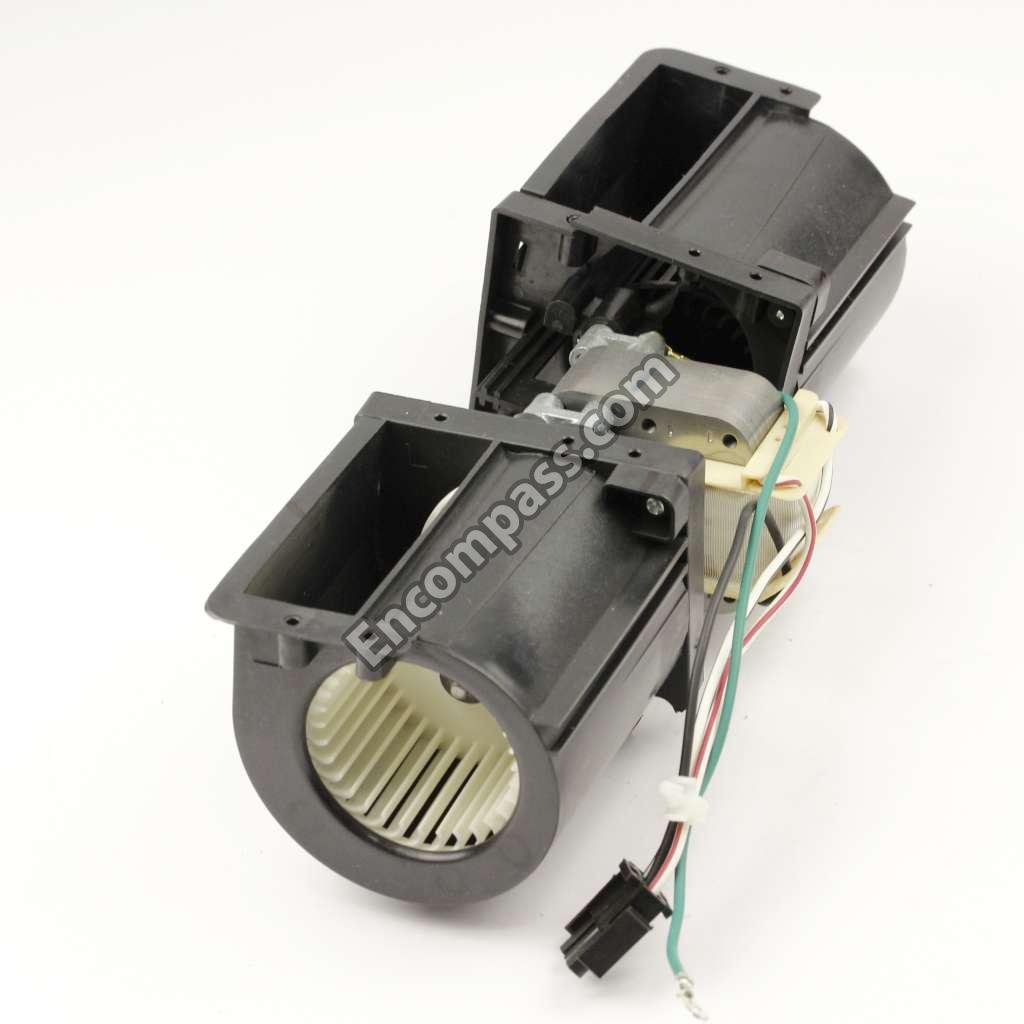

WB26T10066 WB26T10066 WALL OVEN COOLING FAN ASSEMBLY
WB15X27281 WB15X27281 WALL OVEN DOOR HANDLE
WB02T10603 WB02T10603 WALL OVEN DOOR HANDLE MOUNTING BRACKET
WB56X33188 WB56X33188 WALL OVEN DOOR OUTER PANEL ASSEMBLY (STAINLESS)
WB01T10127 WB01T10127 WALL OVEN LOCK NUT
WB27T11116 WB27T11116 WALL OVEN NOISE FILTER BOARD
WB01T10131 WB01T10131 WALL OVEN SCREW, #10-32 X 2-1/2-IN
WB02X32440 WB02X32440 WASHER CONTOURED

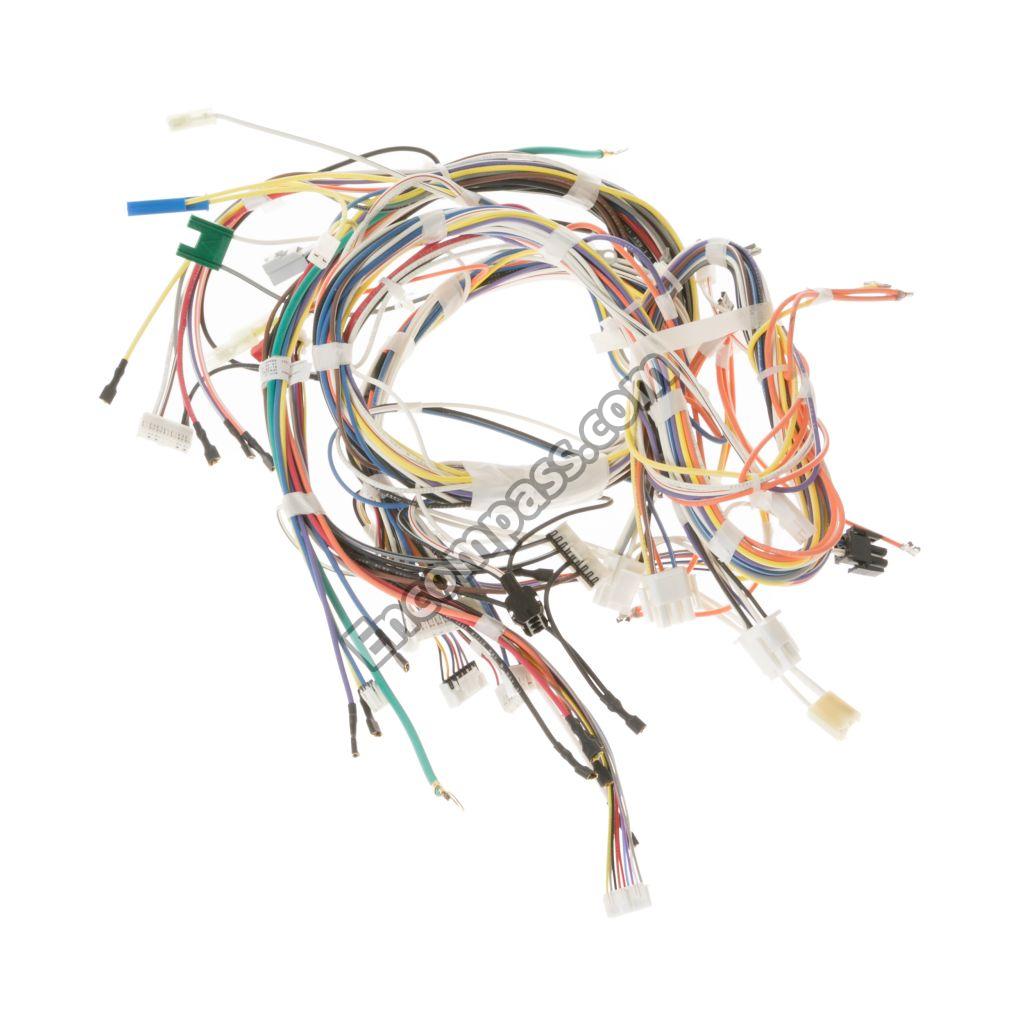

WB18X21784 WB18X21784 WIRE HARNESS
WB18X20178 WB18X20178 WIRE HARNESS
