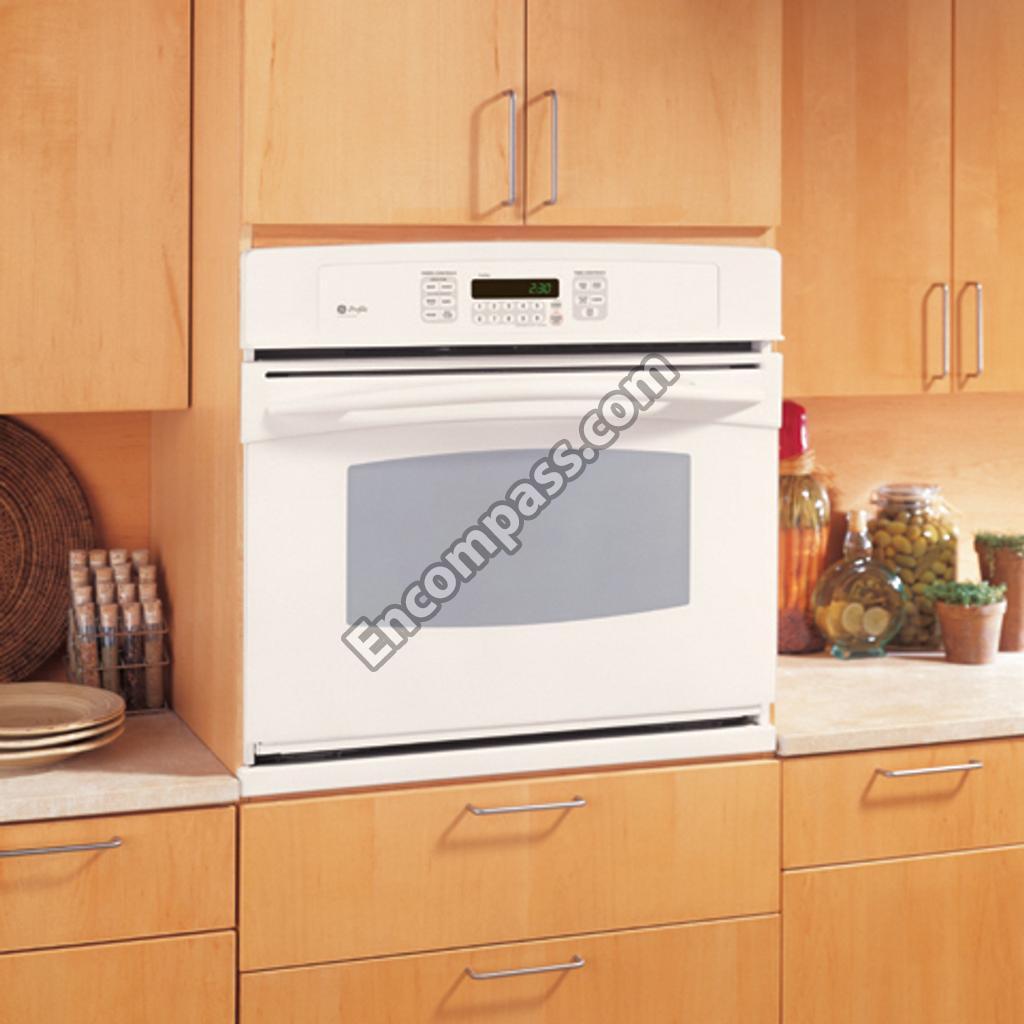

Model Image
Manufacturer

GE

Model Number

JT912CF4CC

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description Stock
WB1K5200 WB1K5200 GE 340531 No
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB No
WB02K10048 WB02K10048 GE BASE RAIL No
WB38T10019 WB38T10019 GE BOX VENT ASSEMBLY No
WB02T10152 WB02T10152 GE BRACKET CAPACITOR MTR No
WB26T10016 WB26T10016 GE CAPACITOR MOTOR No
WB2K5126 WB2K5126 GE COND CLAMP No
WB02K5126 WB02K5126 GE CONDUIT CLAMP No
WB18T10271 WB18T10271 GE CONDUIT WIRE ASM No
WB27T10800 WB27T10800 GE CONTROL ERC No
WB02X9152 WB02X9152 GE COVER No
WB02K5365 WB02K5365 GE COVER No
WB2X9152 WB2X9152 GE COVER No
WB2K5365 WB2K5365 GE COVER No
WB26T10053 WB26T10053 GE COVER FAN (CONVX) No
WB34T10058 WB34T10058 GE COVER FAN HOUSING No
WB34T10056 WB34T10056 GE COVER WIRE LWR No
WB34T10057 WB34T10057 GE COVER WIRE TOP No
WB34T10055 WB34T10055 GE COVER WIRE UPR RR No
WB03T10156 WB03T10156 GE DOOR BUMPER No
WB01T10022 WB01T10022 GE DOOR BUMPER No
WB15K10051 WB15K10051 GE DOOR HANDLE (BISQ) No
WB15K10050 WB15K10050 GE DOOR HANDLE (BLACK) No
WB57T10259 WB57T10259 GE DOOR OTR ASM 30 (BLK) No
WB57T10261 WB57T10261 GE DOOR OTR ASM 30 (BQT) No
WB57T10260 WB57T10260 GE DOOR OTR ASM 30 (WHT) No
WB15K10052 WB15K10052 GE DRAWER HANDLE WHITE No
WB28T10074 WB28T10074 GE DUCT VNT INLET No
WB44T10055 WB44T10055 GE ELEMENT BAKE No
WB44T10053 WB44T10053 GE ELEMENT CONVX No
WB63T10034 WB63T10034 GE FALSE BOTTOM No
WB26T10018 WB26T10018 GE FAN ASM - CONTROL No
WB63T10083 WB63T10083 GE FRAME FRT LOWER No
WB41T10003 WB41T10003 GE GASKET OVEN DR LOWER No
WB01X1260 WB01X1260 GE GROUND WASHER No
WB1X1260 WB1X1260 GE GRUND WASHER No
WB50T10078 WB50T10078 GE HINGE DOOR LT No
WB26T10014 WB26T10014 GE HOUSING FAN No
WB02T10289 WB02T10289 GE HUB BLADE ASSEMBLY No
31-10551 31-10551 GE INSTRUCTION INSTALL No
31-10524 31-10524 GE INSTRUCTION INSTALL No
31-10514 31-10514 GE INSTRUCTION SHEET No
WB35T10073 WB35T10073 GE INSULATION (INR) LWR No
WB35T10074 WB35T10074 GE INSULATION (OUT) LWR No
WB35K10025 WB35K10025 GE INSULATION OVEN DR SDE No
WB35X30052 WB35X30052 GE INSULATION OVN DR TOP No
WB50T10072 WB50T10072 GE KIT CONV MOTOR CAPACITOR No
WB14T10018 WB14T10018 GE LATCH OVN No
WB24T10060 WB24T10060 GE LIMIT SWITCH-UPPER(LOCK) No
WB55T10147 WB55T10147 GE LINER OVN DR ASM No
WB01K5046 WB01K5046 GE LOCKWASHER No
WB02K5306 WB02K5306 GE LOWER OVN INSLN RETAINER No
31-14021 31-14021 GE MANUAL MINI & WD ASM No
49-80129 49-80129 GE MANUAL USE & CARE No
WB1X5572 WB1X5572 GE NUT No
WB02T10017 WB02T10017 GE NUT No
WB01X5572 WB01X5572 GE NUT MEAT PROBE No
WB25T10002 WB25T10002 GE OVEN BULB LENS COVER- No
WB08T10002 WB08T10002 GE OVEN LAMP HO No
WB56X22160 WB56X22160 GE PACK WINDOW ASSEMBLY No
WB36T10555 WB36T10555 GE PANEL CNTL ASM (BQT) No
WB36T10556 WB36T10556 GE PANEL CNTL ASM (WHT) No
WB36T10549 WB36T10549 GE PANEL CNTL ASM(BLK) No
WB02T10147 WB02T10147 GE PLATE REINFORCEMEMT No
WB02T10168 WB02T10168 GE PLUG FOAM No
WB2X8309 WB2X8309 GE PR0BE COVER No
WB20T10024 WB20T10024 GE PROBE No
WB02X8309 WB02X8309 GE PROBE COVER No
WB26T10013 WB26T10013 GE PSC CONV MOTOR LOWER No
WB48T10020 WB48T10020 GE RACK OVEN No
WB10T10053 WB10T10053 GE RECEIVER HINGE No
WB08T10018 WB08T10018 GE RECEPTACLE JACK No
WB56T10136 WB56T10136 GE RETAINER INSLN BACK No
WB02T10143 WB02T10143 GE RETAINER INSLN BTM No
WB56T10147 WB56T10147 GE RETAINER INSLN OVN DR No
WB02T10343 WB02T10343 GE RETAINER INSLN TOP CENTER No
WB48X5108 WB48X5108 GE ROAST RACK No
WB34T10091 WB34T10091 GE SCREEN FAN No
WB01X1127 WB01X1127 GE SCREW No
WB01X1253 WB01X1253 GE SCREW No
WB01X1137 WB01X1137 GE SCREW No
WB01K5028 WB01K5028 GE SCREW No
WB01K5029 WB01K5029 GE SCREW No
WB01K5200 WB01K5200 GE SCREW No
WB1K5029 WB1K5029 GE SCREW No
WB1M1 WB1M1 GE SCREW No
WB1X1261 WB1X1261 GE SCREW No
WB1X536 WB1X536 GE SCREW No
WH2X930 WH2X930 GE SCREW No
WB01T10058 WB01T10058 GE SCREW 10-16 AB HXW 750 S N No
WB01T10048 WB01T10048 GE SCREW 10-16 SHLDR TYPE A No
WB01T10066 WB01T10066 GE SCREW 10-16 X 1.000 HWH No
WB01T10008 WB01T10008 GE SCREW 10-32 TR T No
WB01X1261 WB01X1261 GE SCREW GROUND No
WB01T10033 WB01T10033 GE SCREW ST 8-18 (BISQUE) No
WB01K5150 WB01K5150 GE SCREW ST10-16 X 7/16"" No
WB1X1130 WB1X1130 GE SCREW-10-32 No
WB1X1137 WB1X1137 GE SCREW-10AB No
WB1X1118 WB1X1118 GE SCREW-6-32T 6-20 X 3/8 No
WB01X1180 WB01X1180 GE SCREW-BLACK No
WB1K5157 WB1K5157 GE SCREW-BLK No
WZ4X245D WZ4X245D GE SCREW-PKG 12 No
WB2K5306 WB2K5306 GE SD INSUL RET No
WB23T10015 WB23T10015 GE SENSOR ASM No
WB26T10015 WB26T10015 GE SUPPORT OVN CAV No
WB24T10065 WB24T10065 GE SWITCH LIGHT SPOT No
WB24T10076 WB24T10076 GE SWITCH LIMIT BIMETAL No
WB07T10401 WB07T10401 GE TRIM BTM 30 OUTER (BLACK) No
WB07T10399 WB07T10399 GE TRIM BTM 30 OUTER(BISQUE) No
WB07T10422 WB07T10422 GE TRIM BTM CAB ASM (BLK) No
WB07T10429 WB07T10429 GE TRIM BTM CAB ASM (BQT) No
WB07T10426 WB07T10426 GE TRIM BTM CAB ASM (WHT) No
WB07T10252 WB07T10252 GE TRIM VENT INR (BLACK) LWR No
WB07T10251 WB07T10251 GE TRIM VERT SDE ASM LT No
WB07T10250 WB07T10250 GE TRIM VERT SDE ASM RT No
WB07T10256 WB07T10256 GE TRIM VERT SDE ASSEMBLY LEFT No
WB07T10255 WB07T10255 GE TRIM VERT SDE ASSEMBLY RT No
WB38X33650 WB38X33650 GE TUBE VENT No
WB44T10043 WB44T10043 GE UNIT BROIL ASM (DLX) No
WB48X10056 WB48X10056 GE UNIVERSAL RANGE BROILER PAN No
WB01X5573 WB01X5573 GE WASHER No
WB1K5046 WB1K5046 GE WASHER No
WB1X5573 WB1X5573 GE WASHER No
WB1X681 WB1X681 GE WB01X0681 No
WB35T10090 WB35T10090 GE WB35K5116 No
WB63T10084 WB63T10084 GE WRAPPER OVEN CAV ASSEMBLY LO No
