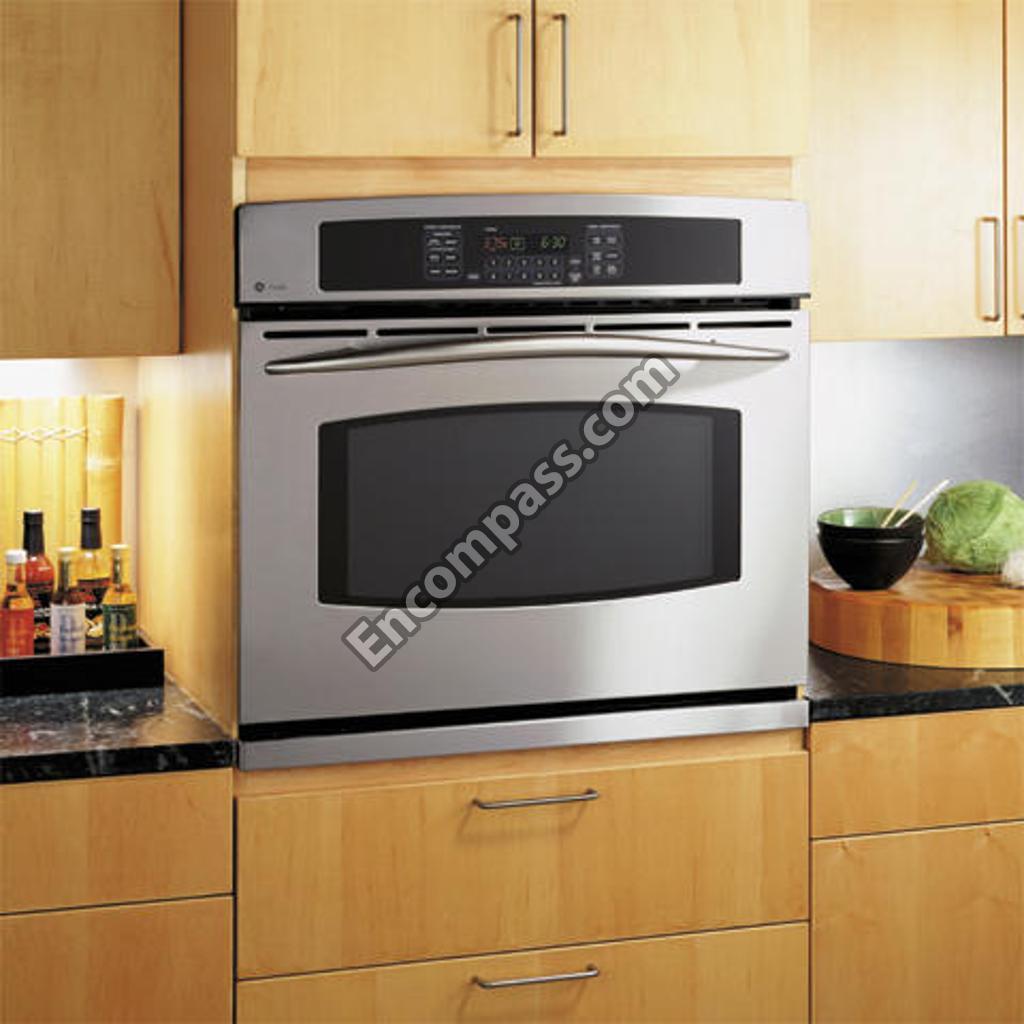

Model Image
Manufacturer

GE

Model Number

JT915SK4SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB27T10503 WB27T10503 CAPACITOR MOTOR
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10271 WB18T10271 CONDUIT WIRE ASM
WB27T10605 WB27T10605 CONTROL ERC
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34T10058 WB34T10058 COVER FAN HOUSING
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10055 WB34T10055 COVER WIRE UPR RR
WB03T10156 WB03T10156 DOOR BUMPER
WB01T10022 WB01T10022 DOOR BUMPER
WB01T10026 WB01T10026 DOOR PAD
WB28T10074 WB28T10074 DUCT VNT INLET
WB44T10055 WB44T10055 ELEMENT BAKE
WB44T10053 WB44T10053 ELEMENT CONVX
WB63T10034 WB63T10034 FALSE BOTTOM
WB26K5061 WB26K5061 FAN ASSEMBLY UPPER
WB63T10083 WB63T10083 FRAME FRT LOWER
WB41T10003 WB41T10003 GASKET OVEN DR LOWER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10190 WB15T10190 HANDLE 30 ASSEMBLY (PRF-SS)
WB10T10085 WB10T10085 HINGE DOOR LT
WB10T10084 WB10T10084 HINGE DOOR RT
WB26T10014 WB26T10014 HOUSING FAN
WB02T10289 WB02T10289 HUB BLADE ASM
31-10551 31-10551 INSTRUCTION INSTALL
31-10524 31-10524 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10123 WB35T10123 INSULATION BACK & BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10126 WB35T10126 INSULATION TOP
WB25T10026 WB25T10026 LAMP HALOGEN ASSEMBLY
WB49X29679 WB49X29679 LAMP HALOGEN UPPR 50W
WB14T10018 WB14T10018 LATCH OVN
WB25T10027 WB25T10027 LENS OVEN LAMP
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
31-14021 31-14021 MANUAL MINI & WD ASM
49-80341 49-80341 MANUAL USE & CARE
WB26T10033 WB26T10033 MOTOR PSC CONV
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB56T10122 WB56T10122 OUTER DR ASSEMBLY
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10879 WB36T10879 PANEL CNTL ASM 30 (SS)
WB02T10168 WB02T10168 PLUG FOAM
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB48T10095 WB48T10095 RACK OVEN
WB48T10020 WB48T10020 RACK OVEN
WB10T10083 WB10T10083 RECEIVER HINGE
WB08T10018 WB08T10018 RECEPTACLE JACK
WB34T10112 WB34T10112 REFLECTOR HEAT
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02T10285 WB02T10285 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB18T10370 WB18T10370 RIBBON CONNECTOR GLS TCH
WB48X5108 WB48X5108 ROAST RACK
WR01X10655 WR01X10655 SCR 10-32 F HXW 3/4 S
WB34T10091 WB34T10091 SCREEN FAN
WB01M0001 WB01M0001 SCREW
WB01X1127 WB01X1127 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5029 WB1K5029 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1118 WB01X1118 SCREW-NICKEL
WZ4X245D WZ4X245D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB34T10114 WB34T10114 SHIELD OVN DR VNT
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10076 WB24T10076 SWITCH LIMIT BIMETAL
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB01T10055 WB01T10055 TAPE FOAM
WB07T10454 WB07T10454 TRIM BTM ASM 30 (SS)
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10252 WB07T10252 TRIM VENT INR (BLACK) LWR
WB07T10251 WB07T10251 TRIM VERT SDE ASM LT
WB07T10250 WB07T10250 TRIM VERT SDE ASM RT
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB01X5573 WB01X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB63T10084 WB63T10084 WRAPPER OVEN CAV ASSEMBLY LO
