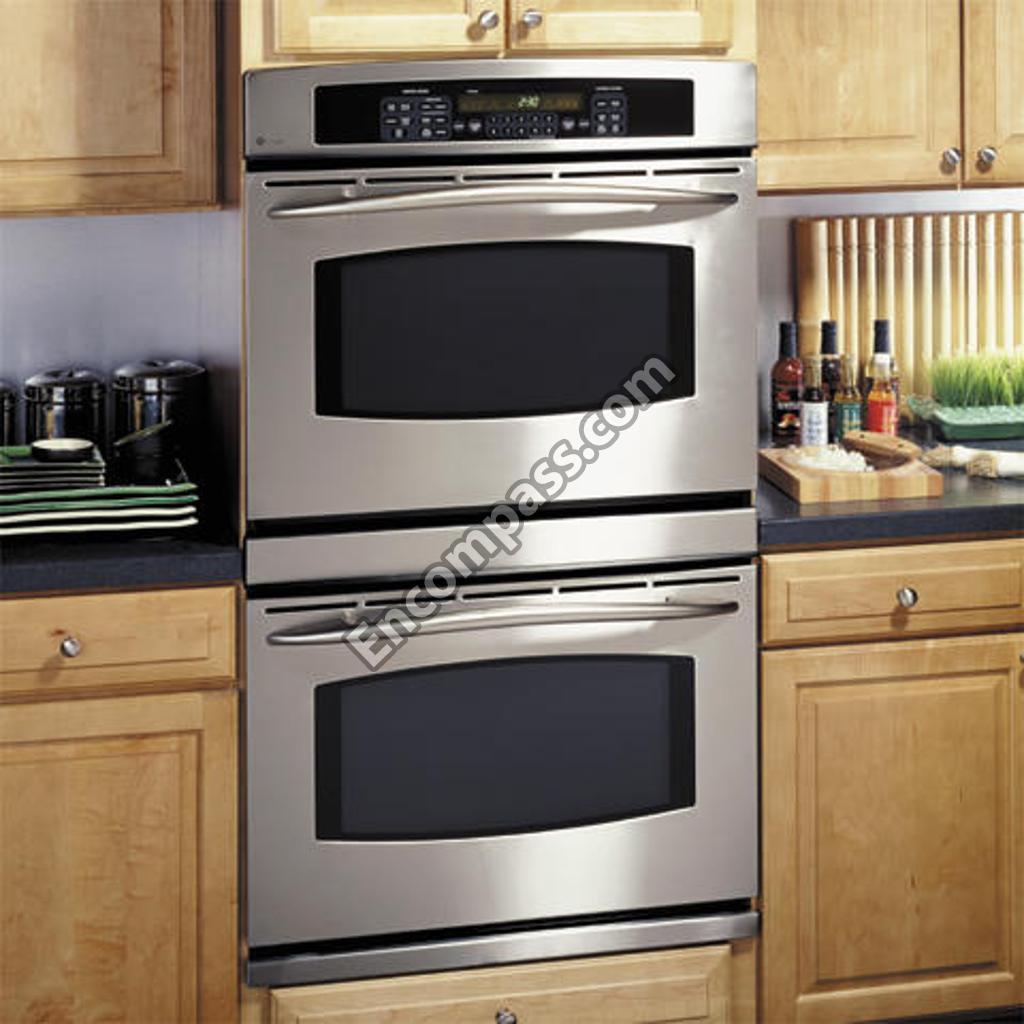

Model Image
Manufacturer

GE

Model Number

JT952SF1SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB24T10080 WB24T10080 BAKE TCO
WB02K10048 WB02K10048 BASE RAIL

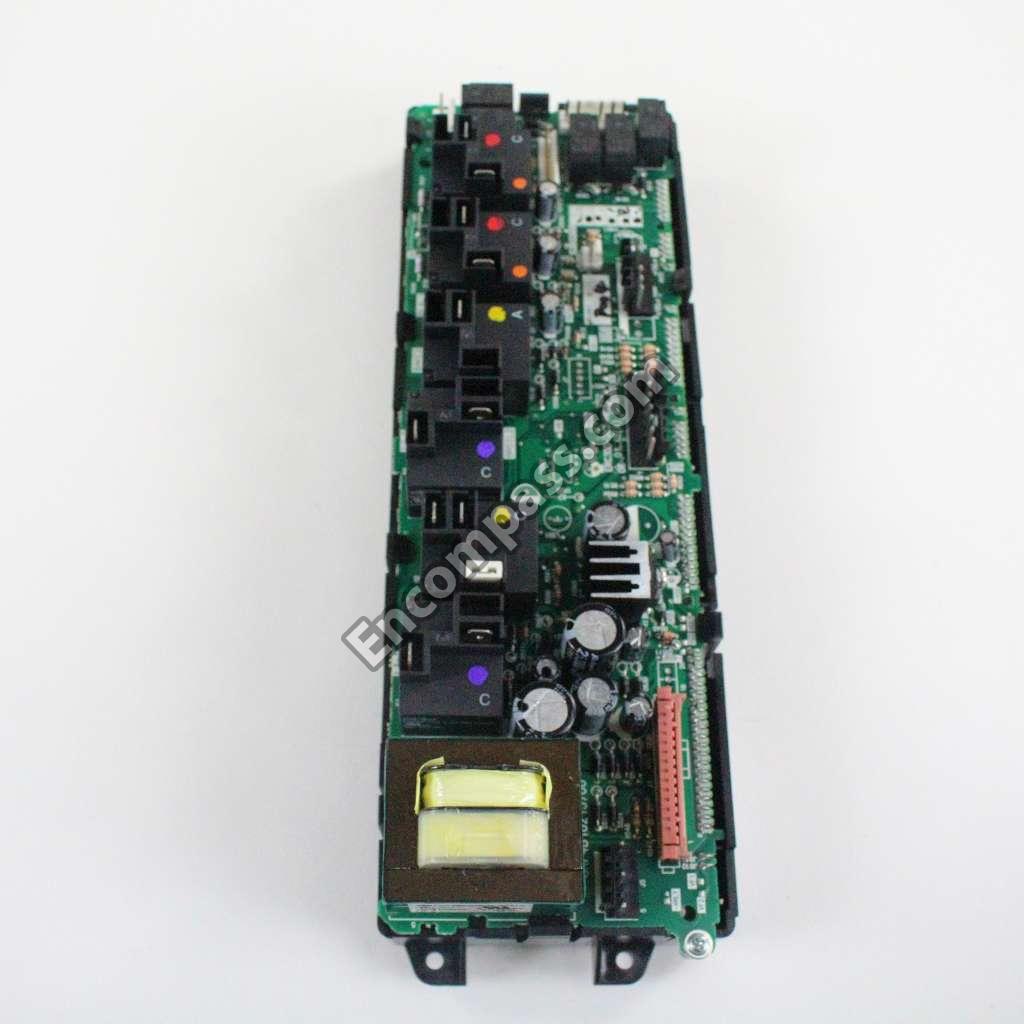

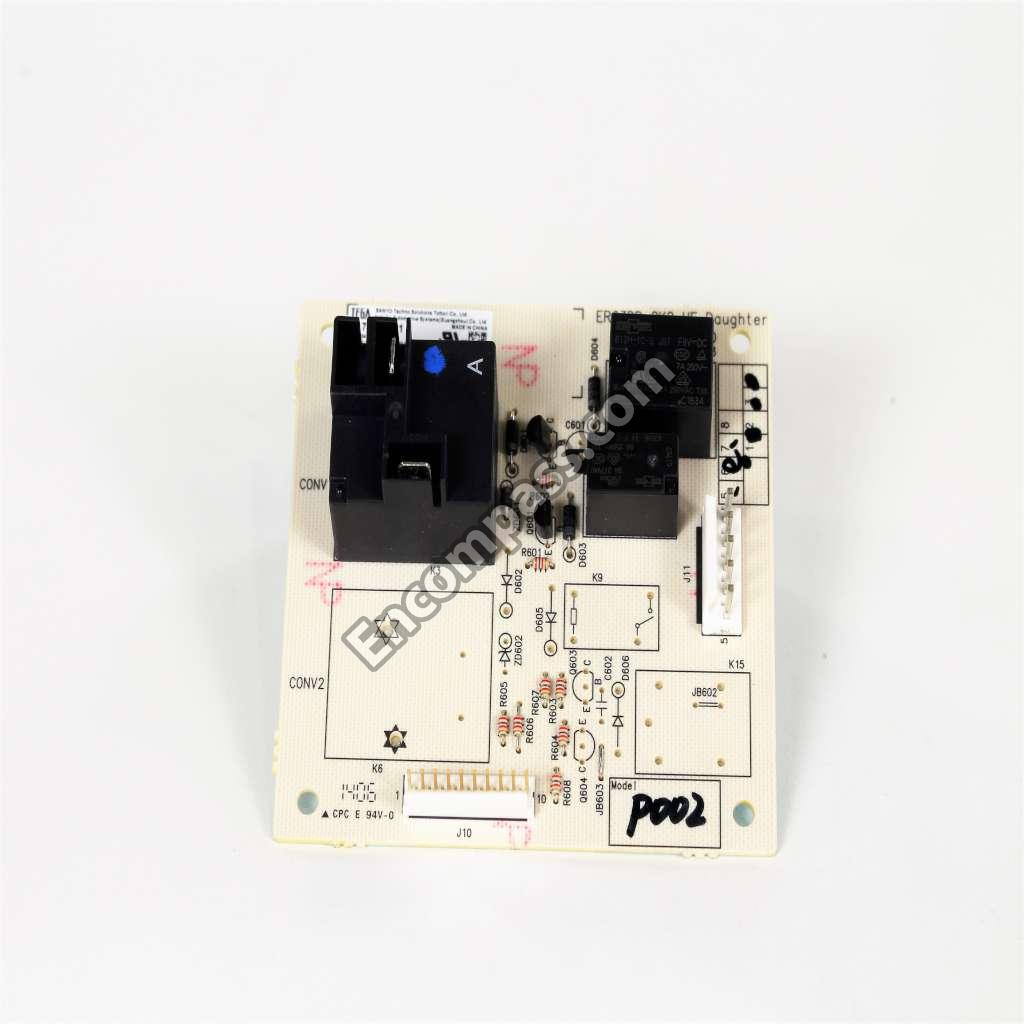

WB27T10438 WB27T10438 BOARD PC (ERC)
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB02T10152 WB02T10152 BRACKET CAPACITOR MTR
WB26T10016 WB26T10016 CAPACITOR MOTOR
WB24T10061 WB24T10061 CLEAN TCO
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10273 WB18T10273 CONDUIT WIRE ASM
WB27T10431 WB27T10431 CONTROL OVN (ERC3DD)
WB2K5365 WB2K5365 COVER
WB2X9152 WB2X9152 COVER ENAM WIPE
WB26T10053 WB26T10053 COVER FAN (CONVX)
WB34T10058 WB34T10058 COVER FAN HOUSING
WB2X8309 WB2X8309 COVER PROBE
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10060 WB34T10060 COVER WIRE MDL
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10055 WB34T10055 COVER WIRE UPR RR
WB01T10022 WB01T10022 DOOR BUMPER
WB03T10156 WB03T10156 DOOR BUMPER
WB28T10074 WB28T10074 DUCT VNT INLET
WB44T10055 WB44T10055 ELEMENT BAKE
WB63T10034 WB63T10034 FALSE BOTTOM
WB26T10018 WB26T10018 FAN ASM - CONTROL
WB26T10019 WB26T10019 FAN ASSEMBLY MAGNETRON
WB02K5355 WB02K5355 FAN SUPPORT
WB2K5355 WB2K5355 FAN SUPPORT
WB63T10083 WB63T10083 FRAME FRT LOWER
WB41T10003 WB41T10003 GASKET OVN DR
WB57T10233 WB57T10233 GLASS OVN DR INR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER

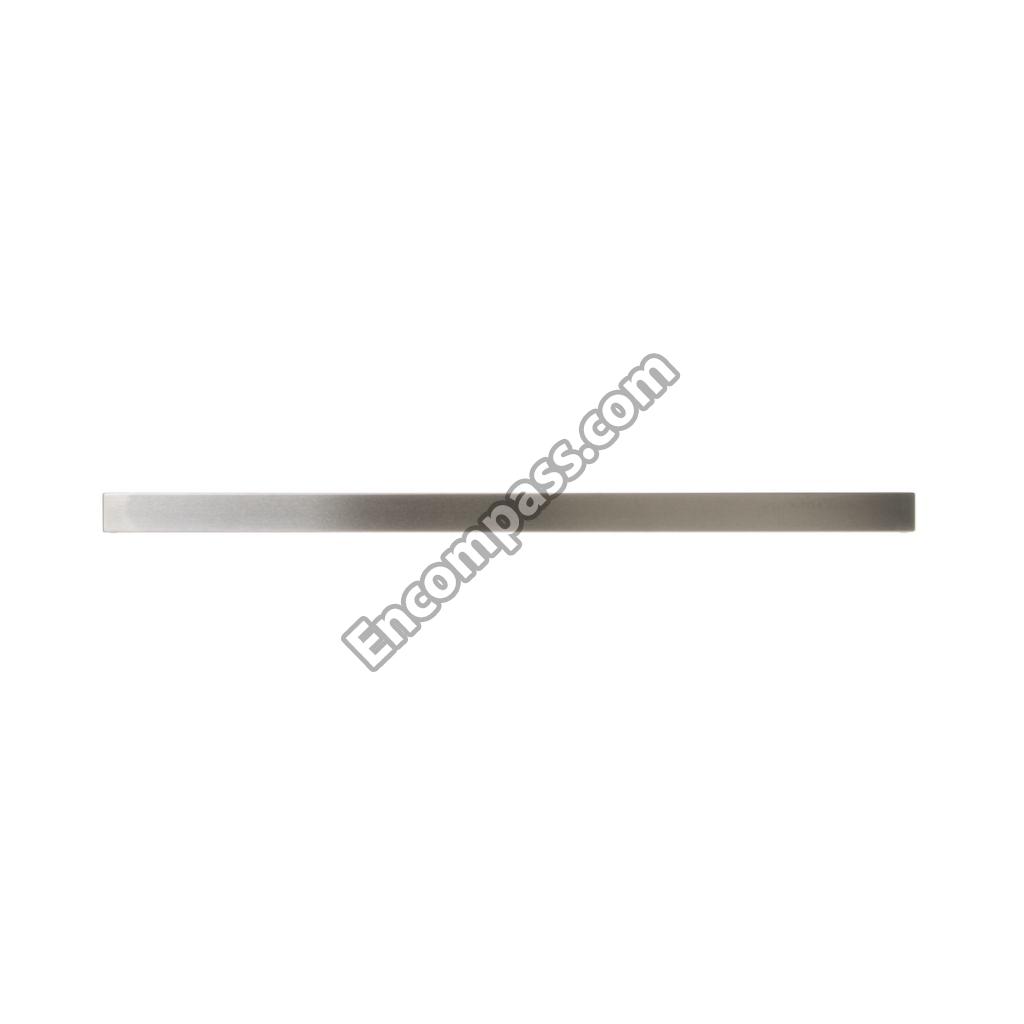

WB15T10107 WB15T10107 HANDLE PROFILE SS
WB18T10269 WB18T10269 HARNESS LOGIC/DISPLAY
WB10T10026 WB10T10026 HINGE DOOR
WB10T10027 WB10T10027 HINGE DOOR
WB26T10014 WB26T10014 HOUSING FAN
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
31-10551 31-10551 INSTRUCTION INSTALL
31-10524 31-10524 INSTRUCTION INSTALL
WB35T10073 WB35T10073 INSULATION (INR) LWR
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35T10086 WB35T10086 INSULATION OVN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB14T10013 WB14T10013 LATCH OVN
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVEN DR ASSEMBLY UPPER
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
31-14013 31-14013 MANUAL MINI & WD ASM
49-80129 49-80129 MANUAL USE & CARE
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB56T10122 WB56T10122 OUTER DR ASM
WB25T10002 WB25T10002 OVEN BULB LENS
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10599 WB36T10599 PANEL CNTL ASM
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB02T10167 WB02T10167 PLUG FOAM
WB20T10024 WB20T10024 PROBE
WB02X8309 WB02X8309 PROBE COVER
WB26T10013 WB26T10013 PSC CONV MOTOR LOWER

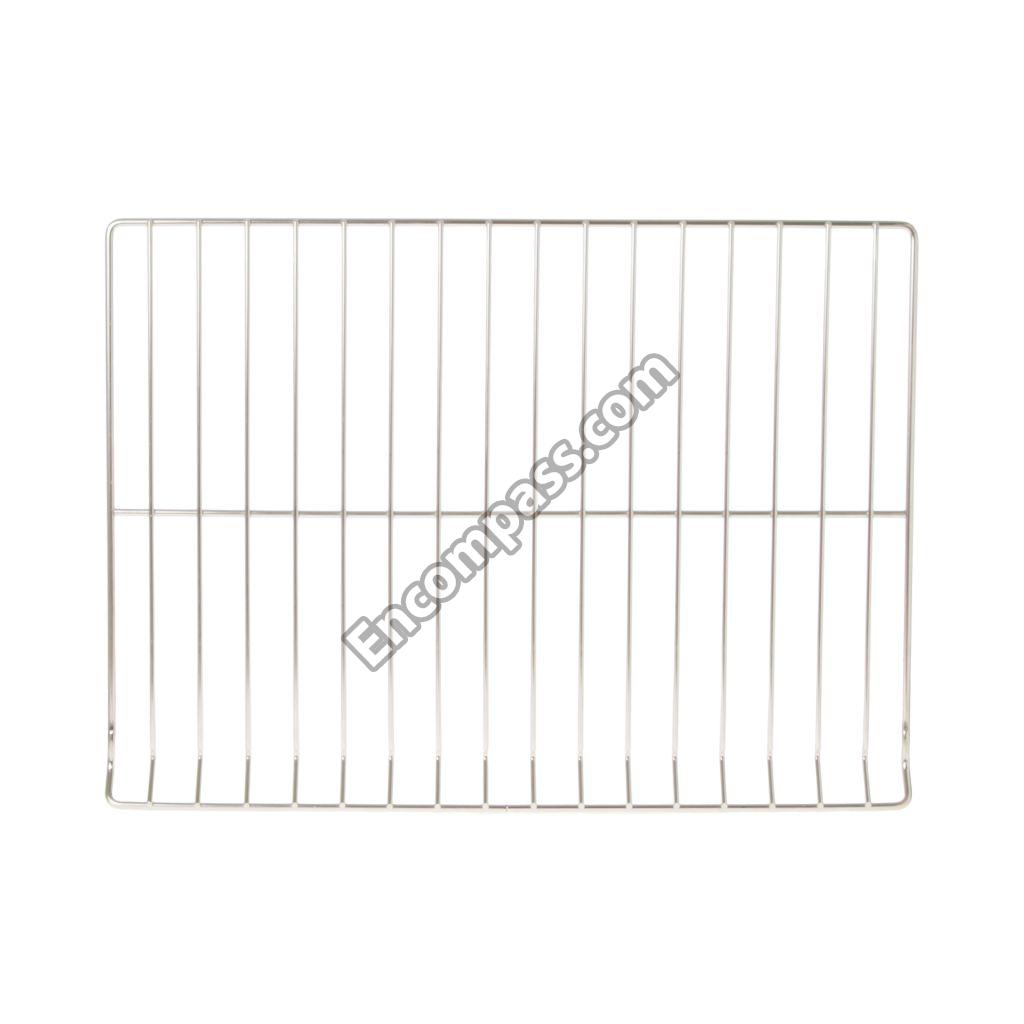

WB48T10021 WB48T10021 RACK OVEN LWR
WB48T10020 WB48T10020 RACK OVEN UPR
WB44T10053 WB44T10053 RANGE CONVECTION ELEMENT
WB10T10025 WB10T10025 RECEIVER HINGE
WB08T10018 WB08T10018 RECEPTACLE JACK
WB34T10085 WB34T10085 REFLECTOR HEAT
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB56T10104 WB56T10104 RETAINER INSLN BACK LOW
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB56T10147 WB56T10147 RETAINER INSLN OVN DR
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB02T10172 WB02T10172 RETAINER OVN DR EXT
WB48X5108 WB48X5108 ROAST RACK
WB34T10091 WB34T10091 SCREEN FAN
WB01X1127 WB01X1127 SCREW
WB01X1116 WB01X1116 SCREW
WB01X0537 WB01X0537 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5029 WB01K5029 SCREW
WB1X537 WB1X537 SCREW
WB1K5029 WB1K5029 SCREW
WB1K5116 WB1K5116 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10058 WB01T10058 SCREW 10-16 AB HXW 750 S N
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB37K5038 WB37K5038 SIDE EXTENSION-LT
WB37K5037 WB37K5037 SIDE EXTENSION-RT
WB02T10160 WB02T10160 STANDOFF CIRCUIT BOARD
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10076 WB24T10076 SWITCH LIMIT BIMETAL
WB01T10055 WB01T10055 TAPE FOAM
WB07T10289 WB07T10289 TRIM ASSEMBLY MDL
WB07T10454 WB07T10454 TRIM BTM ASSEMBLY 30 (STAINLESS STEEL)
WB07T10388 WB07T10388 TRIM BTM CAB ASSEMBLY (BLK)
WB07T10275 WB07T10275 TRIM MDL I-BROW BLACK
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10252 WB07T10252 TRIM VENT INR (BLACK) LWR
WB07T10277 WB07T10277 TRIM VERT SDE ASSEMBLY LT
WB07T10276 WB07T10276 TRIM VERT SDE ASSEMBLY RT
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB28T10083 WB28T10083 VENT INLET DUCT
WB01X5573 WB01X5573 WASHER
WB1K5117 WB1K5117 WASHER
WB1K5046 WB1K5046 WASHER
WB1X5573 WB1X5573 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB63T10085 WB63T10085 WRAPPER OVEN CAV
WB63T10084 WB63T10084 WRAPPER OVEN CAV ASSEMBLY LO
WZ4X416 WZ4X416 WZ04X0408
