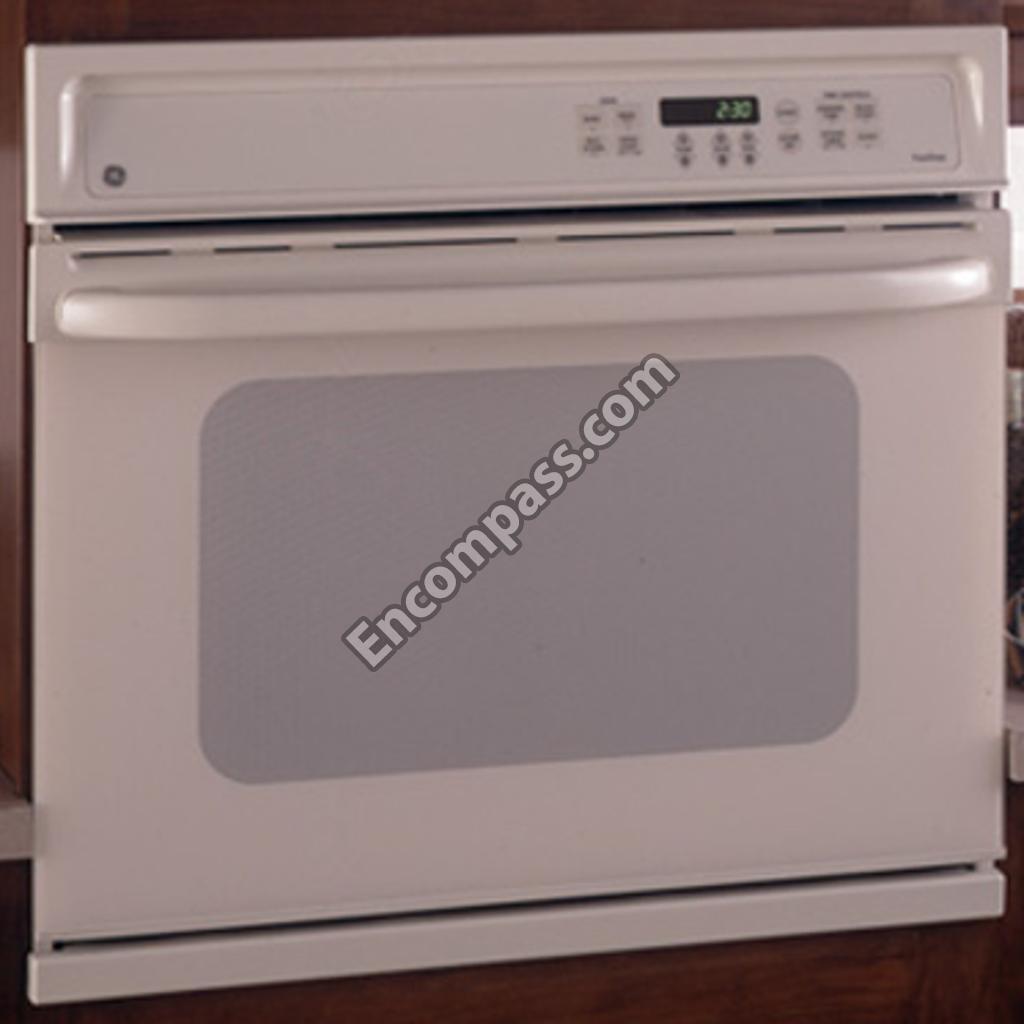

Model Image
Manufacturer

GE

Model Number

JTP15AA5AA

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB39T10002 WB39T10002 AIR DEFLECTOR
WB34K5195 WB34K5195 BOTTOM TRIM SHIELD
WB07T10038 WB07T10038 BOTTOM TRIM- WHITE
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5473 WB18K5473 CONDUIT WIRE ASSEMBLY
WB27T10305 WB27T10305 CONTROL OVEN [USED]
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34K5217 WB34K5217 COVER FAN HOUSING
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB01T10022 WB01T10022 DOOR BUMPER
WB01T10026 WB01T10026 DOOR PAD
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB07K10138 WB07K10138 DR TRIM SHIELD
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB26K5063 WB26K5063 FAN HOUSING
WB55T10078 WB55T10078 FRAME OVEN DR ASSEMBLY (W
WB63T10064 WB63T10064 FRONT FRAME
WB04T10008 WB04T10008 GASKET OVEN DR
WB57T10181 WB57T10181 GLASS OVEN DR OTR (AD)
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15X5226 WB15X5226 HANDLE OVEN DR
WB15X5225 WB15X5225 HANDLE OVEN DR
WB18T10109 WB18T10109 HARNESS WIRE F O D
WB18T10153 WB18T10153 HARNESS WIRE LCK MTR
WB18T10209 WB18T10209 HARNESS WIRE MAIN
WB34T10024 WB34T10024 HEAT SHIELD ASSEMBLY
WB14T10010 WB14T10010 HINGE ASM-LT
WB14T10009 WB14T10009 HINGE ASM-RT
WB07T10209 WB07T10209 INNER VENT TRIM-BLACK
31-10435 31-10435 INSTRUCTIONS INSTALL
WB2K5322 WB2K5322 INSUL RETNR
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB56X10189 WB56X10189 INSULATION RETAINER BACK
WB02T10109 WB02T10109 INSULATION RETAINER TOP
WB02K10047 WB02K10047 INSULATION RETAINER-BTM
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB14T10008 WB14T10008 LATCH OVN ASM
WB24T10059 WB24T10059 LIMIT SWITCH
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10090 WB55T10090 LINING OVEN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
WB01X1399 WB01X1399 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
31-13809 31-13809 MINI-MANUAL & WD ASM
WB26T10003 WB26T10003 OV CAVITY SUPPORT
WB55T10079 WB55T10079 OV DR FRAME ALMOND
WB63T10068 WB63T10068 OVEN BODY
WB63T10070 WB63T10070 OVEN BODY LOWER
WB25T10002 WB25T10002 OVEN BULB LENS
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
49-80032 49-80032 OWNERS MANUAL
WB02T10244 WB02T10244 PAD FELT
WB36T10399 WB36T10399 PANEL CONTROL ASSEMBLY (GE-AD)
WB48T10095 WB48T10095 RACK OVEN
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5029 WB01K5029 SCREW
WB1X1178 WB1X1178 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5029 WB1K5029 SCREW
WB1K5116 WB1K5116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1K5157 WB1K5157 SCREW
WB1X536 WB1X536 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10012 WB01T10012 SCREW 8-18 AB FLT 375 B
WB01T10011 WB01T10011 SCREW 8-18 AB FLT 375 W
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01T10007 WB01T10007 SCREW-AD
WB01X1180 WB01X1180 SCREW-BLACK
WH2X941D WH2X941D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB34K5216 WB34K5216 TOP WIRE COVER
WB07T10039 WB07T10039 TRIM BTM (AD
WB07T10087 WB07T10087 TRIM DR VENT (AD)
WB1K5211 WB1K5211 TRIM SCREW
WB1K5178 WB1K5178 TRIM SCREW 8-18 X 3/4
WB01K5211 WB01K5211 TRIM SCREW-AD
WB01K5178 WB01K5178 TRIM SCREW-ALMOND
WB07T10047 WB07T10047 TRIM VERT SDE LT (AD)
WB07T10046 WB07T10046 TRIM VERT SDE RT (AD)
WB07T10043 WB07T10043 TRIM VERT SIDE LT (BL
WB07T10041 WB07T10041 TRIM VERT SIDE LT (WH
WB07T10042 WB07T10042 TRIM VERT SIDE RT (BLACK)
WB28K5010 WB28K5010 TUBE VENT
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB44T10043 WB44T10043 UNIT BROIL ASSEMBLY (DLX)
WB38T10014 WB38T10014 VENT BOX ASSEMBLY
WB07T10040 WB07T10040 VERT SIDE TRIM RT-WHITE
WB01K5174 WB01K5174 WASHER
WB1X1399 WB1X1399 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB35T10090 WB35T10090 WB35K5116
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WB34K5192 WB34K5192 WIRE COVER-LWR RR
