Model Image
Manufacturer

GE

Model Number

JTP15WW1WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB02K5307 WB02K5307 BACK INSULATION RETAINER
WB44K5018 WB44K5018 BAKE ELEMENT
WB2K5307 WB2K5307 BK INSUL RET
WB34K5195 WB34K5195 BOTTOM TRIM SHIELD
WB07K5468 WB07K5468 BOTTOM TRIM-WHITE
WB44K5017 WB44K5017 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB49K2 WB49K2 BROIL PAN 16X16 3/4 FITS RACK
WB48K2 WB48K2 BROIL PAN RACK 15 1/2X16 3/4 F
WB02K5305 WB02K5305 BTTM INSULATION RETAINER
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5473 WB18K5473 CONDUIT WIRE ASSEMBLY
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2K5365 WB2K5365 COVER
WB2X9152 WB2X9152 COVER
WB34K5217 WB34K5217 COVER FAN HOUSING
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB07K5310 WB07K5310 DOOR BOTTOM TRIM
WB34K5200 WB34K5200 DOOR LOCK PLATE
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB07K5300 WB07K5300 DOOR TRIM SHIELD
WB34T10114 WB34T10114 DOOR VENT SHIELD
WB07K5318 WB07K5318 DOOR VENT TRIM-WHITE
WB7K5300 WB7K5300 DR TRIM SHLD
WB7K5318 WB7K5318 DR VENT TRIM

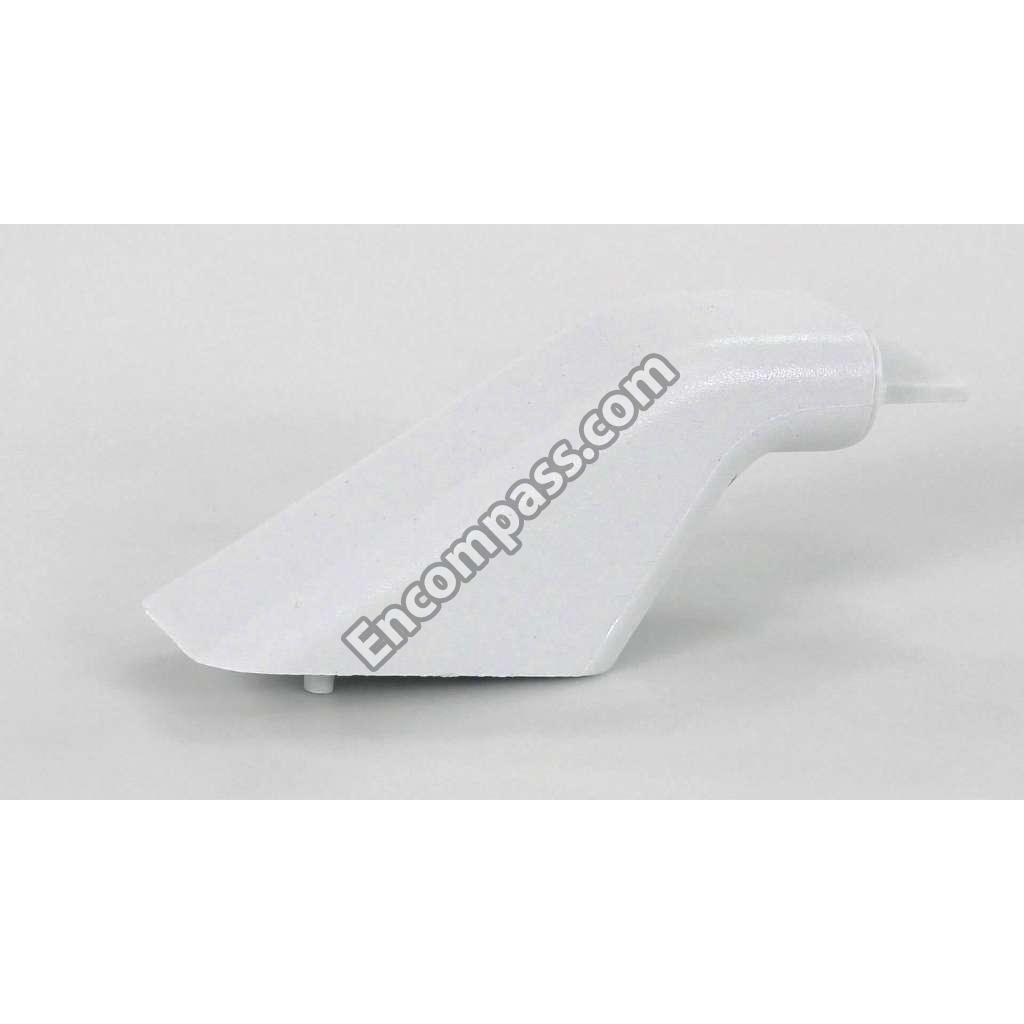

WB07X7189 WB07X7189 END CAP HANDLE (WH)
WB7X7189 WB7X7189 END CAP HNDL
WB7K5314 WB7K5314 END CAP LT
WB7K5315 WB7K5315 END CAP RT
WB36K5516 WB36K5516 END CAP-LT-WHITE
WB36K5417 WB36K5417 END CAP-LT-WHITE-CONT
WB07K5314 WB07K5314 END CAP-LT-WHITE-VENT
WB36K5520 WB36K5520 END CAP-RT-BLACK-CONTROL
WB36K5517 WB36K5517 END CAP-RT-WHITE
WB36K5416 WB36K5416 END CAP-RT-WHITE-CONT
WB07K5315 WB07K5315 END CAP-RT-WHITE-VENT
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB6K5041 WB6K5041 FAN HOUS SCR
WB26K5063 WB26K5063 FAN HOUSING
WB06K5041 WB06K5041 FAN HOUSING SCREEN
WB01K5115 WB01K5115 FELT PAD
WB1K5115 WB1K5115 FELT PAD
WB55T10070 WB55T10070 FRAME OVEN DR ASSEMBLY (WHITE)
WB63K5172 WB63K5172 FRONT FRAME
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER

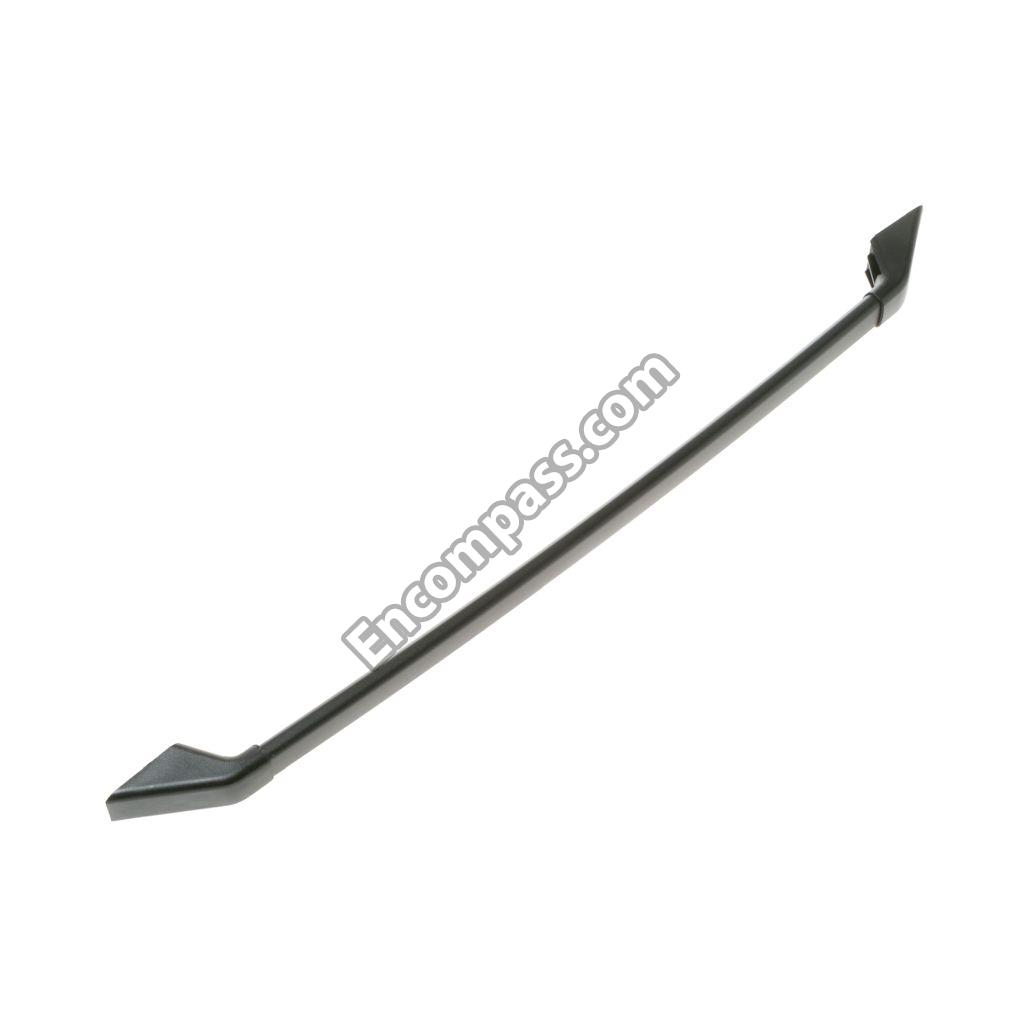

WB15T10030 WB15T10030 HANDLE ASM (BLK)
WB15T10031 WB15T10031 HANDLE ASM (WHT)
WB18K5605 WB18K5605 HARNESS WIRE MAIN
WB14T10006 WB14T10006 HINGE ASM LT
WB14T10005 WB14T10005 HINGE ASM RT
WB7K5433 WB7K5433 I-BROW TRIM
WB07K5433 WB07K5433 I-BROW TRIM-WHITE
31-10125 31-10125 INSTALLATION INSTRUCTION
WB2K5322 WB2K5322 INSUL RETNR
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB25K5025 WB25K5025 LENS OVEN LAMP
WB24K5127 WB24K5127 LIMIT SWITCH
WB24K5126 WB24K5126 LIMIT SWITCH
WB15K5075 WB15K5075 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB18K5491 WB18K5491 LOCK MOTOR WIRE HARNESS
WB01K5046 WB01K5046 LOCKWASHER
WB01X1399 WB01X1399 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
31-13265 31-13265 MINI MANUAL W/WIRE DIAG.
WB57K5233 WB57K5233 OV DOOR OUTER GLASS-W
WB63K5171 WB63K5171 OVEN BODY
WB02K5304 WB02K5304 OVEN CAVITY SUPPORT

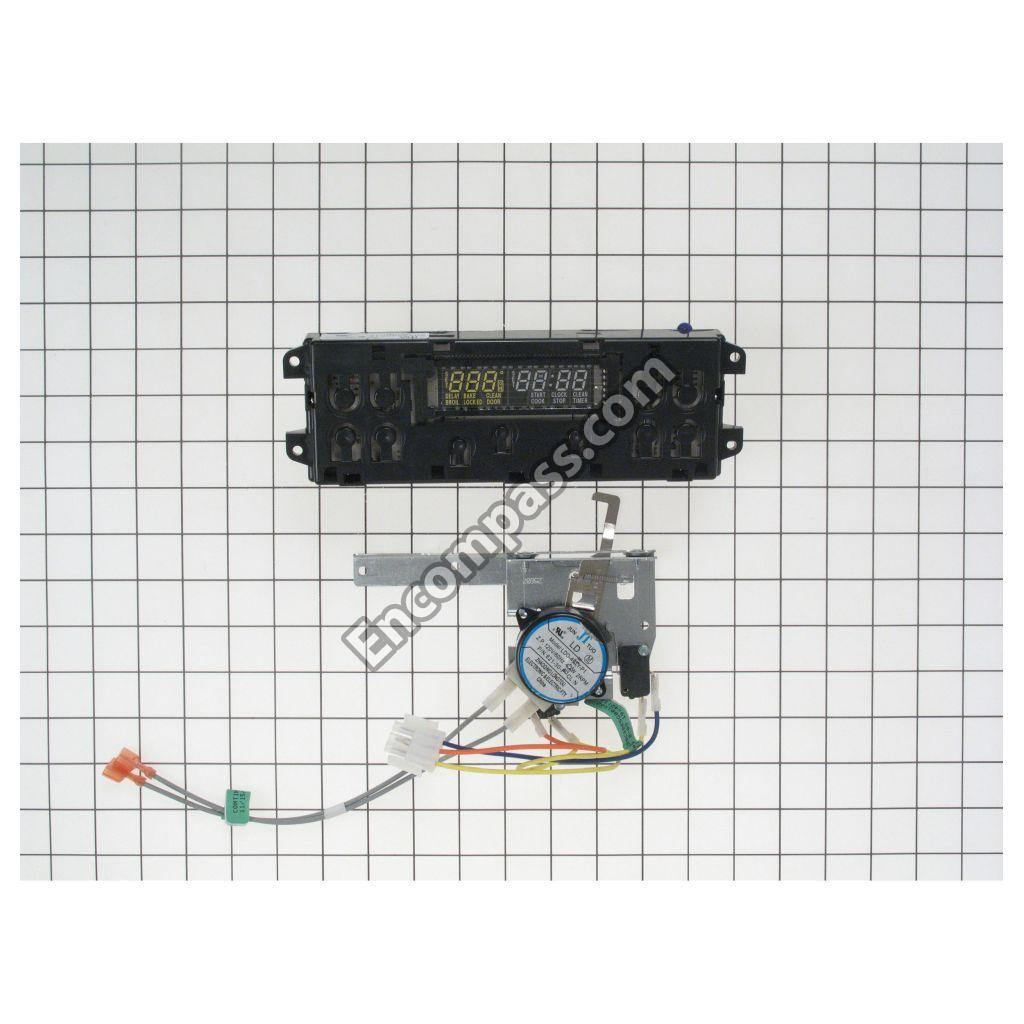

WB27T10265 WB27T10265 OVEN CONTROL ERC111-B
WB32K5039 WB32K5039 OVEN DOOR GASKET
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB55K5035 WB55K5035 OVEN DOOR LINING
WB57K5212 WB57K5212 OVEN DOOR OUTER GLASS-BLACK
WB08K5042 WB08K5042 OVEN LAMP HOLDER
WB8K5042 WB8K5042 OVLAMP HLDR
WB36T10024 WB36T10024 PANEL W/KYPD-WHITE
WB48T10095 WB48T10095 RACK OVEN
WB2K5387 WB2K5387 RETAINER
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02T10143 WB02T10143 RETAINER INSLN BTM
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WZ04X0044 WZ04X0044 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5162 WB01K5162 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5119 WB01K5119 SCREW
WB01K5029 WB01K5029 SCREW
WB1M1 WB1M1 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB1K5119 WB1K5119 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5062 WB1K5062 SCREW
WR1X1850 WR1X1850 SCREW
WB1X536 WB1X536 SCREW
WB1K5116 WB1K5116 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01K5062 WB01K5062 SCREW ST8-18X.500TRBRNI
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1K5162 WB1K5162 SCREW-BLACK
WB1K5157 WB1K5157 SCREW-BLK
WZ4X44D WZ4X44D SCREW-PKG 12
WB01K5161 WB01K5161 SCREW-WHITE
WB1K5161 WB1K5161 SCREW-WHITE
WB2K5306 WB2K5306 SD INSUL RET
WB23X5340 WB23X5340 SENSOR ASM
WB6K5026 WB6K5026 SMOKE EL SCR
WB06K5026 WB06K5026 SMOKE ELIM SCREEN
WB2X9719 WB2X9719 SUPP-BROIL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB02K5387 WB02K5387 TOP INSULATION RETAINER
WB34K5216 WB34K5216 TOP WIRE COVER
WB07T10038 WB07T10038 TRIM BTM (WH
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB07T10165 WB07T10165 TRIM VENT INR (BLACK)
49-8717 49-8717 USE CARE MANUAL
WB38K5051 WB38K5051 VENT BOX ASM
WB07K5308 WB07K5308 VENT TRIM-INR-BLK
WB7K5311 WB7K5311 VERT SD TRIM
WB07K5311 WB07K5311 VERTICAL SIDE TRIM-WHITE
WB01X1140 WB01X1140 WASHER
WB01K5174 WB01K5174 WASHER
WB1X1399 WB1X1399 WASHER
WB1K5046 WB1K5046 WASHER
WB1K5174 WB1K5174 WASHER
WB1X1140 WB1X1140 WASHER
WB2K5304 WB2K5304 WB2K5304
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WZ4X416 WZ4X416 WZ04X0408
