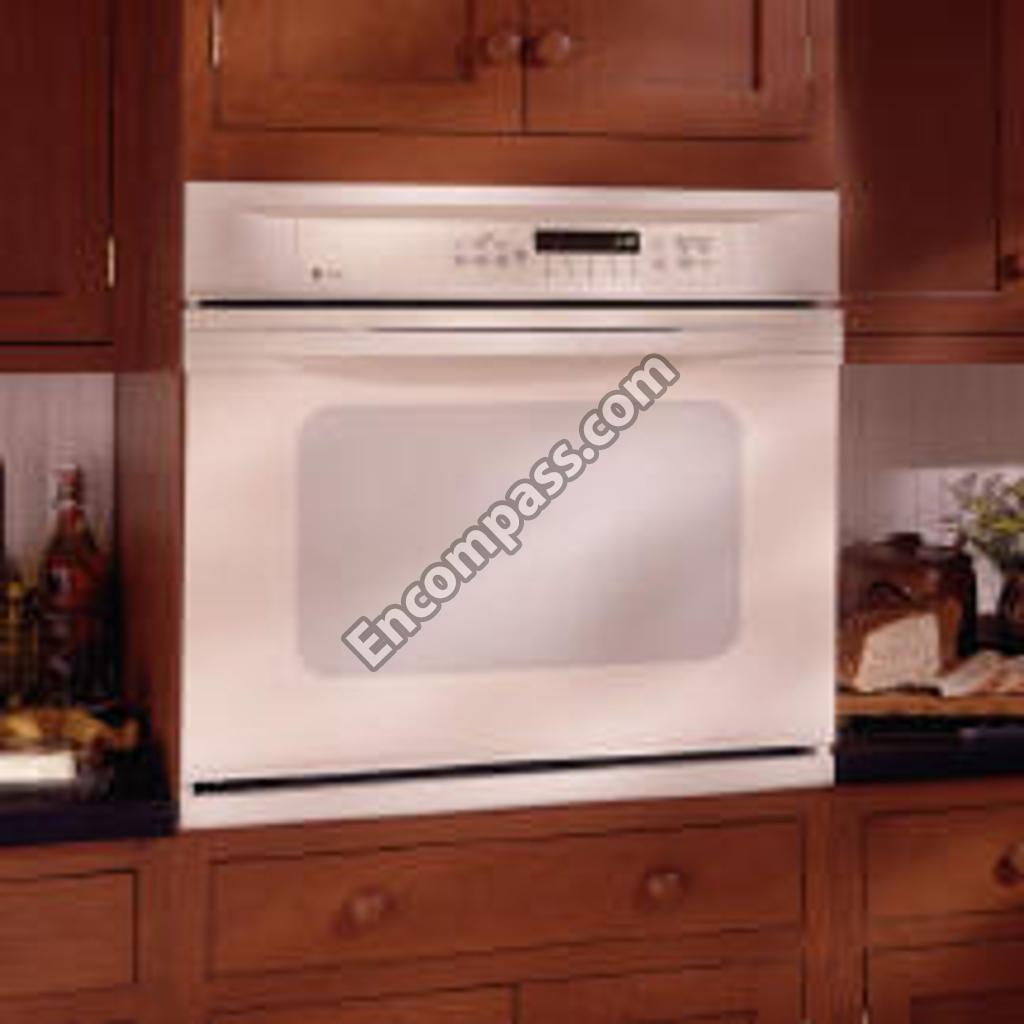

Model Image
Manufacturer

GE

Model Number

JTP18AW1AA

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB02K5307 WB02K5307 BACK INSULATION RETAINER
WB44K5018 WB44K5018 BAKE ELEMENT
WB2K5307 WB2K5307 BK INSUL RET
WB2X8351 WB2X8351 BLADE FAN
WB07K5325 WB07K5325 BOTTOM DOOR TRIM
WB34K5195 WB34K5195 BOTTOM TRIM SHIELD
WB07K5431 WB07K5431 BOTTOM TRIM-ALMOND
WB44K5017 WB44K5017 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48M0003 WB48M0003 BROILER PAN
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB02K5305 WB02K5305 BTTM INSULATION RETAINER
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5473 WB18K5473 CONDUIT WIRE ASSEMBLY
WB34K5237 WB34K5237 CONTROL PANEL SHIELD
WB36K5653 WB36K5653 CONTROL PANEL-ALMOND
WB36K5651 WB36K5651 CONTROL PANEL-WHITE
WB26K5069 WB26K5069 CONVECTION FAN MOTOR
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB34K5217 WB34K5217 COVER FAN HOUSING
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB56K5156 WB56K5156 DOOR FRAME-ALMOND
WB15K5109 WB15K5109 DOOR HANDLE-ALMOND
WB15K5108 WB15K5108 DOOR HANDLE-BLACK
WB15K5110 WB15K5110 DOOR HANDLE-WHITE
WB34K5200 WB34K5200 DOOR LOCK PLATE
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB07K5300 WB07K5300 DOOR TRIM SHIELD
WB34T10114 WB34T10114 DOOR VENT SHIELD
WB7K5300 WB7K5300 DR TRIM SHLD
WB44T10053 WB44T10053 ELEMENT CONVX
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB02X8351 WB02X8351 FAN BLADE
WB26K5055 WB26K5055 FAN COVER
WB6K5041 WB6K5041 FAN HOUS SCR
WB26K5063 WB26K5063 FAN HOUSING
WB06K5041 WB06K5041 FAN HOUSING SCREEN
WB01K5115 WB01K5115 FELT PAD
WB1K5115 WB1K5115 FELT PAD
WB63K5172 WB63K5172 FRONT FRAME
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB34K5246 WB34K5246 HEAT SHIELD W/INSULATION
WB14T10006 WB14T10006 HINGE ASM LT
WB14T10005 WB14T10005 HINGE ASM RT
WB8K5013 WB8K5013 HOUS ASM REC
WB08K5013 WB08K5013 HOUSING ASM RECEPTACLE
WB07T10177 WB07T10177 INNER VENT TRIM
WB07K5466 WB07K5466 INNER VENT TRIM-BLACK
31-10125 31-10125 INSTALLATION INSTRUCTION
WB2K5322 WB2K5322 INSUL RETNR
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB8K5012 WB8K5012 JACK RECEPT
WB08K5012 WB08K5012 JACK RECEPTACLE
WB25K5025 WB25K5025 LENS OVEN LAMP
WB24K5126 WB24K5126 LIMIT SWITCH
WB15K5075 WB15K5075 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB18K5491 WB18K5491 LOCK MOTOR WIRE HARNESS
WB01K5046 WB01K5046 LOCKWASHER
WB01X1399 WB01X1399 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB18K5601 WB18K5601 MAIN WIRE HARNESS
31-13258 31-13258 MINI MANUAL W/WIRE DIAG.
WB02X8454 WB02X8454 NUT
WB2X8454 WB2X8454 NUT
WB1X5572 WB1X5572 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB57T10076 WB57T10076 OUTER DOOR GLASS-ALMOND
WB2K5304 WB2K5304 OV CAV SUPT
WB55T10081 WB55T10081 OV DR FRAME BISQUE
WB63K5177 WB63K5177 OVEN BODY-CONVEX
WB02K5304 WB02K5304 OVEN CAVITY SUPPORT
WB27T10207 WB27T10207 OVEN CONTROL ERC3H
WB32K5039 WB32K5039 OVEN DOOR GASKET
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB55K5035 WB55K5035 OVEN DOOR LINING
WB57K5212 WB57K5212 OVEN DOOR OUTER GLASS-BLACK
WB08K5042 WB08K5042 OVEN LAMP HOLDER
WB8K5042 WB8K5042 OVLAMP HLDR
WB01K5199 WB01K5199 PAL NUT
WB1K5199 WB1K5199 PAL NUT
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB48K5022 WB48K5022 RACK OVEN
WB2K5387 WB2K5387 RETAINER
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB48X5108 WB48X5108 ROAST RACK
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WZ04X0044 WZ04X0044 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB00X6542 WB00X6542 SCREW
WB01X1178 WB01X1178 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5029 WB01K5029 SCREW
WB1X1178 WB1X1178 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1116 WB1X1116 SCREW
WB1X536 WB1X536 SCREW
WB1X1261 WB1X1261 SCREW
WH2X930 WH2X930 SCREW
WB1K5029 WB1K5029 SCREW
WB1K5116 WB1K5116 SCREW
WB1M1 WB1M1 SCREW
WR1X1850 WR1X1850 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WZ4X44D WZ4X44D SCREW-PKG 12
WB2K5306 WB2K5306 SD INSUL RET
WB23X5340 WB23X5340 SENSOR-OVEN
WB34K5252 WB34K5252 SHIELD W/INSUL ASSEMBLY
WB2X9719 WB2X9719 SUPP-BROIL
WB24T10001 WB24T10001 SWITCH LIMIT
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB2K5366 WB2K5366 TOP INS RET
WB02K5387 WB02K5387 TOP INSULATION RETAINER
WB02K5366 WB02K5366 TOP INSULATION RETAINER
WB34K5216 WB34K5216 TOP WIRE COVER
WB07K5427 WB07K5427 TRIM ASM (AD)
WB7K5427 WB7K5427 TRIM ASM AL
WB07T10039 WB07T10039 TRIM BTM (AD
WB1K5211 WB1K5211 TRIM SCREW
WB1K5188 WB1K5188 TRIM SCREW 6-20 X 3/8 ALMOND
WB1K5178 WB1K5178 TRIM SCREW 8-18 X 3/4
WB01K5211 WB01K5211 TRIM SCREW-AD
WB01K5188 WB01K5188 TRIM SCREW-ALMOND
WB01K5178 WB01K5178 TRIM SCREW-ALMOND
WB28K5010 WB28K5010 TUBE VENT
WB26K5054 WB26K5054 UPR FAN CVR
49-8688 49-8688 USE & CARE MANUAL
WB38K5051 WB38K5051 VENT BOX ASM
WB7K5327 WB7K5327 VERT SD TRIM
WB07K5327 WB07K5327 VERTICAL SIDE TRIM-ALMND
WB01K5198 WB01K5198 WASHER
WB01X5573 WB01X5573 WASHER
WB01X1140 WB01X1140 WASHER
WB01K5174 WB01K5174 WASHER
WB1X1140 WB1X1140 WASHER
WB1X1399 WB1X1399 WASHER
WB1X5573 WB1X5573 WASHER
WB1K5198 WB1K5198 WASHER
WB1K5046 WB1K5046 WASHER
WB1K5174 WB1K5174 WASHER
WB07T10127 WB07T10127 WB07T10127
WB35T10090 WB35T10090 WB35K5116
WB55T10060 WB55T10060 WB55T10060
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WB34K5192 WB34K5192 WIRE COVER-LWR RR
