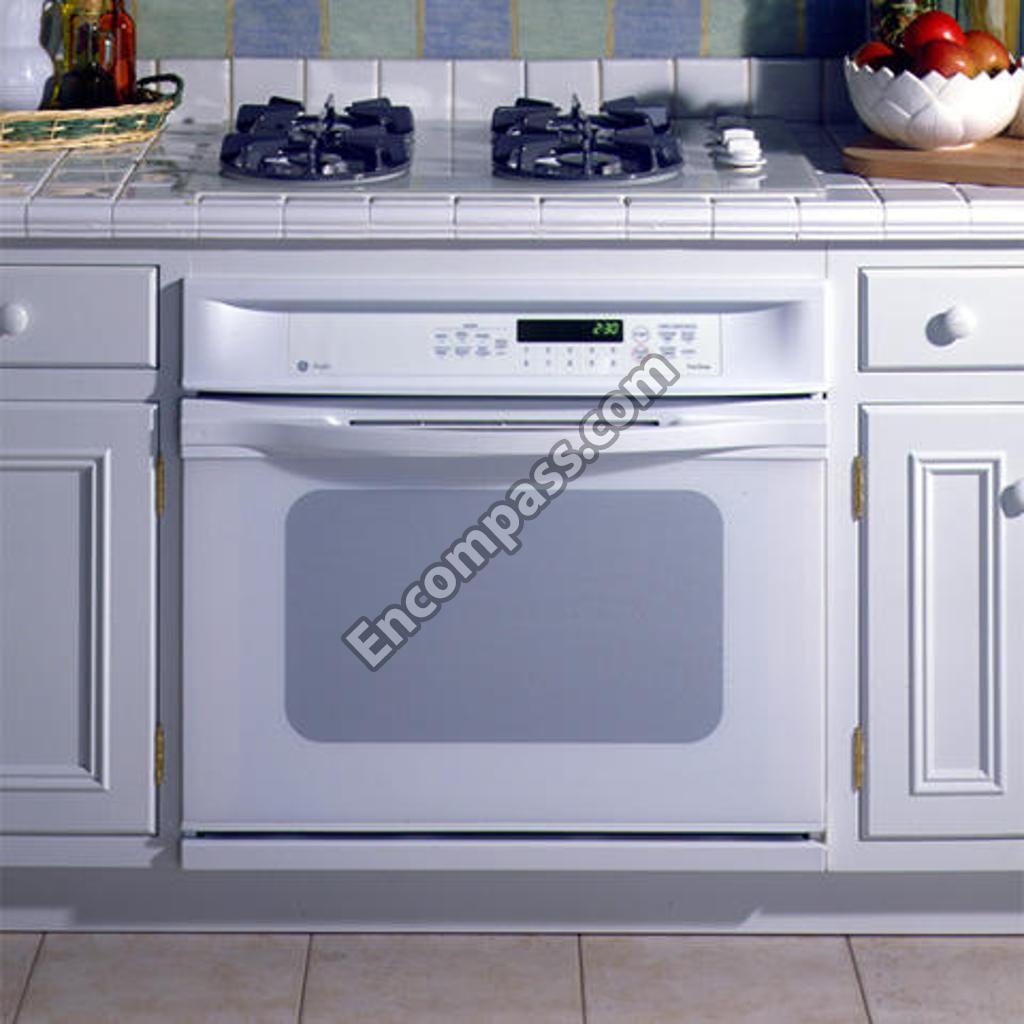

Model Image
Manufacturer

GE

Model Number

JTP18WA5WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
49-8443 49-8443 44-K006
WB39T10002 WB39T10002 AIR DEFLECTOR
WB44T10055 WB44T10055 BAKE ELEMENT (2700W)
WB2X8351 WB2X8351 BLADE FAN
WB34K5195 WB34K5195 BOTTOM TRIM SHIELD
WB07T10038 WB07T10038 BOTTOM TRIM- WHITE
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5473 WB18K5473 CONDUIT WIRE ASSEMBLY

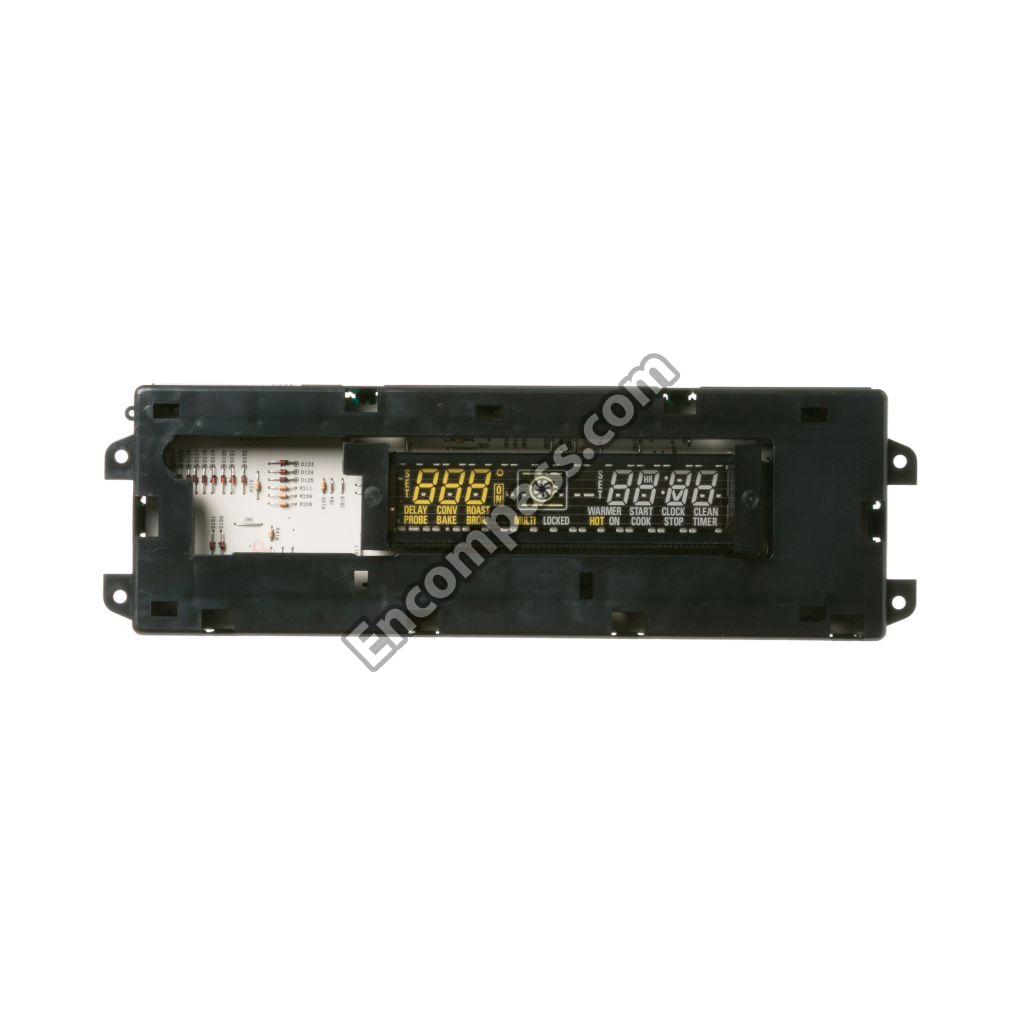

WB27T10312 WB27T10312 CONTROL OVN ASM
WB34K5237 WB34K5237 CONTROL PANEL SHIELD
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB34K5217 WB34K5217 COVER FAN HOUSING
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB01T10022 WB01T10022 DOOR BUMPER
WB15K5109 WB15K5109 DOOR HANDLE-ALMOND
WB15K5108 WB15K5108 DOOR HANDLE-BLACK
WB15K5110 WB15K5110 DOOR HANDLE-WHITE
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB07K10138 WB07K10138 DR TRIM SHIELD
WB44T10053 WB44T10053 ELEMENT CONVEX
WB63T10034 WB63T10034 FALSE BOTTOM
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB26T10008 WB26T10008 FAN COVER
WB26K5063 WB26K5063 FAN HOUSING
WB56T10075 WB56T10075 FRAME OVEN DR ASSEMBLY (BLACK)
WB56T10079 WB56T10079 FRAME OVEN DR ASSEMBLY (W
WB63T10064 WB63T10064 FRONT FRAME
WB04T10008 WB04T10008 GASKET OVEN DR
WB57T10181 WB57T10181 GLASS OVEN DR OTR (AD)
WB57T10180 WB57T10180 GLASS OVEN DR OTR (WHITE)
WB02K5225 WB02K5225 GROMMET STRIP (.020)
WB2K5225 WB2K5225 GROMMET STRP
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB18T10109 WB18T10109 HARNESS WIRE F O D
WB18T10153 WB18T10153 HARNESS WIRE LCK MTR
WB18T10108 WB18T10108 HARNESS WIRE MAIN
WB34T10024 WB34T10024 HEAT SHIELD ASSEMBLY
WB14T10010 WB14T10010 HINGE ASM-LT
WB14T10009 WB14T10009 HINGE ASM-RT
WB8K5013 WB8K5013 HOUS ASM REC
WB08K5013 WB08K5013 HOUSING ASM RECEPTACLE
WB02T10289 WB02T10289 HUB BLADE ASSEMBLY
WB07T10209 WB07T10209 INNER VENT TRIM-BLACK
31-10435 31-10435 INSTRUCTIONS INSTALL
WB2K5322 WB2K5322 INSUL RETNR
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB56X10189 WB56X10189 INSULATION RETAINER BACK
WB02T10109 WB02T10109 INSULATION RETAINER TOP
WB02K10047 WB02K10047 INSULATION RETAINER-BTM
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB14T10008 WB14T10008 LATCH OVN ASM
WB24T10059 WB24T10059 LIMIT SWITCH
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10090 WB55T10090 LINING OVEN DR ASSEMBLY
WB01K5046 WB01K5046 LOCKWASHER
WB01X1399 WB01X1399 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
49-80058 49-80058 MANUAL USE & CARE
31-13806 31-13806 MINI-MANUAL & WD ASM
WB1K5198 WB1K5198 MOTOR FAN
WB1X5572 WB1X5572 NUT
WB02T10017 WB02T10017 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB26T10003 WB26T10003 OV CAVITY SUPPORT
WB63T10063 WB63T10063 OVEN BODY-UPPER
WB25T10002 WB25T10002 OVEN BULB LENS
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB01K5199 WB01K5199 PAL NUT
WB1K5199 WB1K5199 PAL NUT

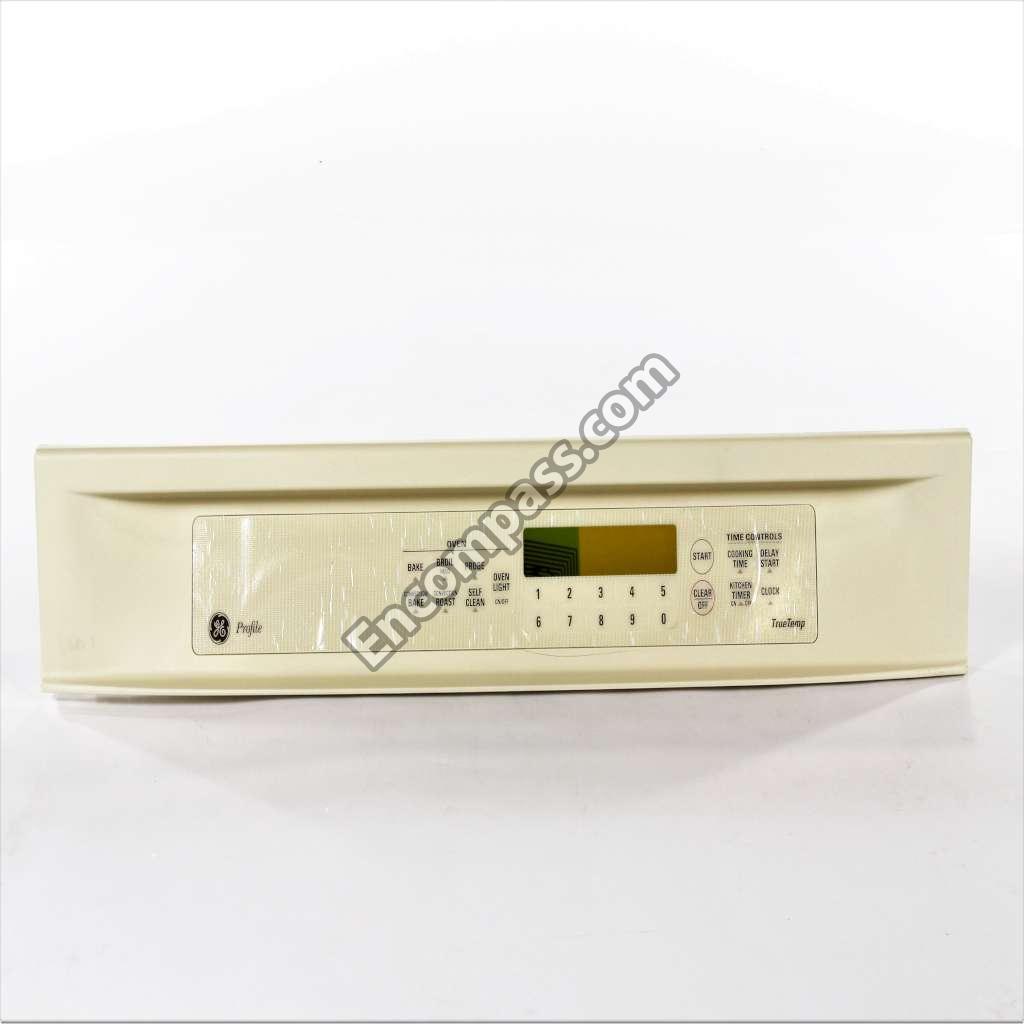

WB36T10195 WB36T10195 PANEL CNTL ASM

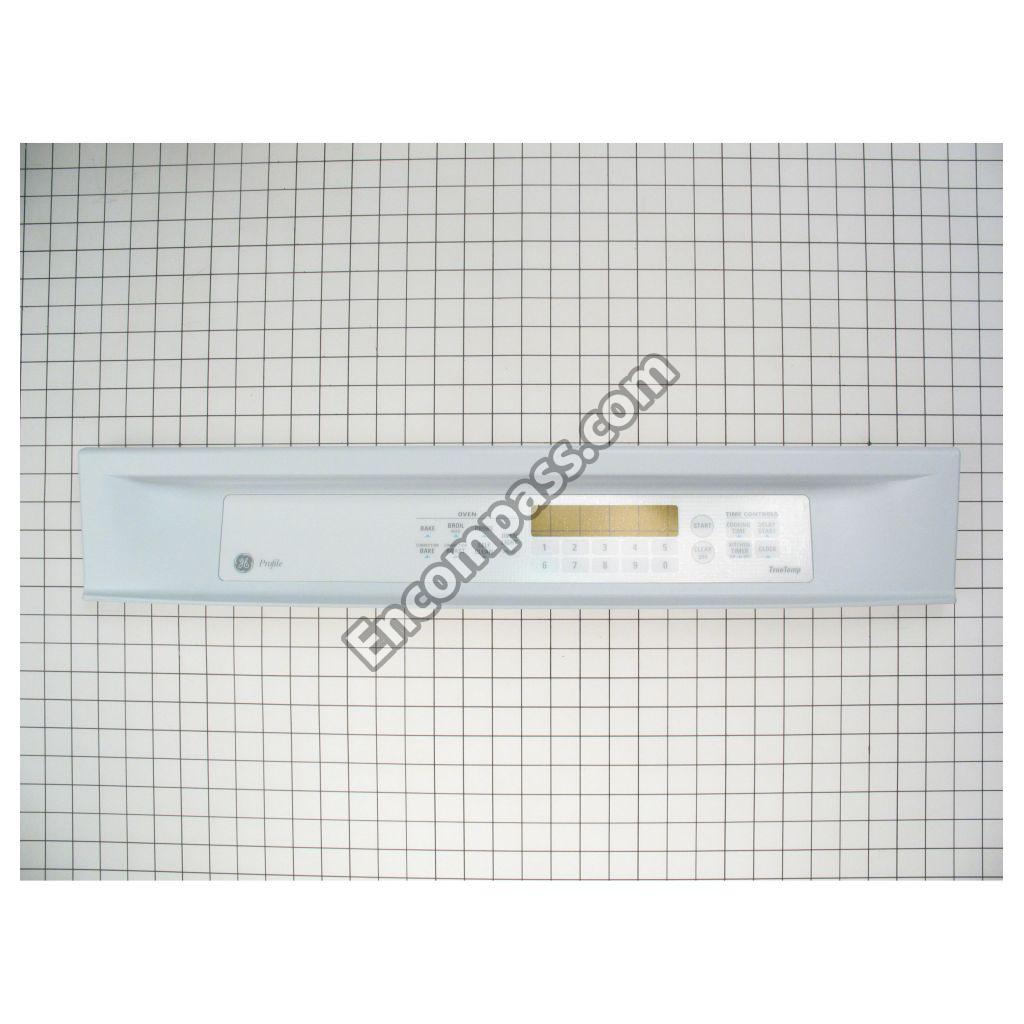

WB36T10196 WB36T10196 PANEL CONTROL ASSEMBLY
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB48K5022 WB48K5022 RACK OVEN
WB08T10014 WB08T10014 RECEPTACLE JACK
WB48X5108 WB48X5108 ROAST RACK
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X1253 WB01X1253 SCREW
WB01X1127 WB01X1127 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1178 WB01X1178 SCREW
WB01K5029 WB01K5029 SCREW
WR1X1850 WR1X1850 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1293 WB1X1293 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1K5157 WB1K5157 SCREW
WB1X536 WB1X536 SCREW
WB01X5364 WB01X5364 SCREW (CR)
WB01T10048 WB01T10048 SCREW 10-16 SHLDR TYPE A
WB1X1149 WB1X1149 SCREW 10-16 X 3/8-INCH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB1X5364 WB1X5364 SCREW MTG
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WH2X941D WH2X941D SCREW-PKG 12
WB01K5161 WB01K5161 SCREW-WHITE
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5161 WB1K5161 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB34K5216 WB34K5216 TOP WIRE COVER
WB7K5429 WB7K5429 TRIM ASM
WB07K5429 WB07K5429 TRIM ASSEMBLY
WB07T10039 WB07T10039 TRIM BTM (AD
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB28K5010 WB28K5010 TUBE VENT
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB44T10043 WB44T10043 UNIT BROIL ASSEMBLY (DLX)
WB26T10001 WB26T10001 UPR FAN CVR
WB38T10014 WB38T10014 VENT BOX ASSEMBLY
WB7K5311 WB7K5311 VERT SD TRIM
WB07K5311 WB07K5311 VERTICAL SIDE TRIM-WHITE
WB01X5573 WB01X5573 WASHER
WB1X1399 WB1X1399 WASHER
WB1K5117 WB1K5117 WASHER
WB1X5573 WB1X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WB34K5192 WB34K5192 WIRE COVER-LWR RR
