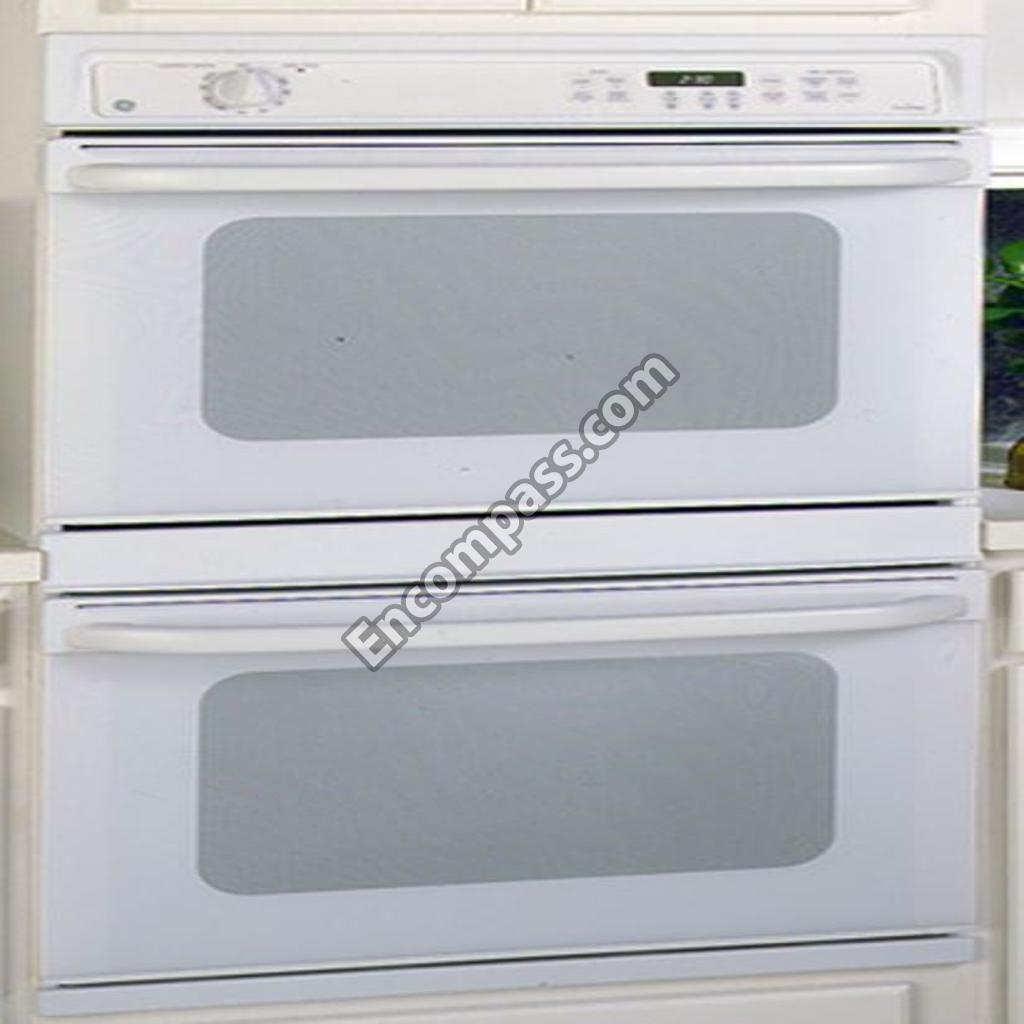

Model Image
Manufacturer

GE

Model Number

JTP27WA3WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB39T10003 WB39T10003 AIR DEFLECTOR
WB39T10002 WB39T10002 AIR DEFLECTOR
WB02K5307 WB02K5307 BACK INSULATION RETAINER
WB02K5356 WB02K5356 BASE RAIL
WB02K10048 WB02K10048 BASE RAIL
WB2K5307 WB2K5307 BK INSUL RET
WB34K5195 WB34K5195 BOTTOM TRIM SHIELD
WB07T10038 WB07T10038 BOTTOM TRIM- WHITE
WB44K5017 WB44K5017 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48T10089 WB48T10089 BROILER PAN (XLG)
WB48T10090 WB48T10090 BROILER PAN GRID (XLG)
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB02K5305 WB02K5305 BTTM INSULATION RETAINER
WD01X1444 WD01X1444 CAMERA LENS (RED)
WB01K5209 WB01K5209 CLIP
WB2X9105 WB2X9105 CLIP
WB1K5209 WB1K5209 CLIP
WB2X8320 WB2X8320 CLIP WINDOW
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18K5540 WB18K5540 CONDUIT WIRE HARNESS
WB27T10272 WB27T10272 CONTROL OVEN (ERC3B)
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34K5217 WB34K5217 COVER FAN HOUSING
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB01T10022 WB01T10022 DOOR BUMPER
WB34K5200 WB34K5200 DOOR LOCK PLATE
WB01T10026 WB01T10026 DOOR PAD
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB07T10035 WB07T10035 DOOR TRIM SH
WB34T10114 WB34T10114 DOOR VENT SHIELD
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB6K5041 WB6K5041 FAN HOUS SCR
WB26K5063 WB26K5063 FAN HOUSING
WB01K5115 WB01K5115 FELT PAD
WB1K5115 WB1K5115 FELT PAD
WB34K5242 WB34K5242 FILLER TRIM SHIELD-WHITE
WB07K5448 WB07K5448 FILLER TRIM-WHT
WB7K5448 WB7K5448 FILLER WHITE
WB55T10071 WB55T10071 FRAME OVEN DR ASSEMBLY (BLACK)
WB55T10070 WB55T10070 FRAME OVEN DR ASSEMBLY (WHITE)
WB63T10058 WB63T10058 FRONT FRAME
WB04T10008 WB04T10008 GASKET OVEN DR
WB57T10092 WB57T10092 GLASS OVEN DR OTR (WHITE)
WB57T10091 WB57T10091 GLASS OVN DR OTR (BLK)
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15X5226 WB15X5226 HANDLE OVEN DR
WB7K5476 WB7K5476 HANDLE TRIM
WB18T10109 WB18T10109 HARNESS WIRE F O D
WB18T10116 WB18T10116 HARNESS WIRE MAIN
WB18T10048 WB18T10048 HARNESS WIRE OVEN LIGHT
WB34T10024 WB34T10024 HEAT SHIELD ASSEMBLY
WB14T10006 WB14T10006 HINGE ASM LT
WB14T10005 WB14T10005 HINGE ASM RT
WB10K5015 WB10K5015 HINGE ASSEMBLY-RT-LOWER
WB25X0092 WB25X0092 INDICATOR LIGHT
WB07T10177 WB07T10177 INNER VENT TRIM
31-10125 31-10125 INSTALLATION INSTRUCTION
WB2K5322 WB2K5322 INSUL RETNR
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB35T10043 WB35T10043 INSULATION SHIELD
WB35T10042 WB35T10042 INSULATION SHIELD
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB50T10039 WB50T10039 KIT CONDENSATION (RPR)
WB03T10058 WB03T10058 KNOB THERMO (WHITE)
WB03T10057 WB03T10057 KNOB THERMOSTAT SRS (BLACK)
WB14T10008 WB14T10008 LATCH OVN ASM
WD1X1444 WD1X1444 LENS
WB25T10039 WB25T10039 LIGHT INDICATOR
WB24T10033 WB24T10033 LIMIT SWITCH
WB24T10045 WB24T10045 LIMIT SWITCH
WB55T10090 WB55T10090 LINING OVEN DR ASSEMBLY
WB15K5075 WB15K5075 LOCK LEVER ASM
WB49T10020 WB49T10020 LOCK MOTOR
WB18K5491 WB18K5491 LOCK MOTOR WIRE HARNESS
WB01K5046 WB01K5046 LOCKWASHER
WB01X1399 WB01X1399 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
31-13637 31-13637 MANUAL MINI & WD ASM
WB26T10003 WB26T10003 OV CAVITY SUPPORT
WB25T10002 WB25T10002 OVEN BULB LENS
WB32K5044 WB32K5044 OVEN DOOR GASKET-LOWER
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB10K5016 WB10K5016 OVEN DOOR HINGE-LT-LOWER
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB55T10015 WB55T10015 OVEN LINING-
WB20T10001 WB20T10001 OVN THERMOSTAT
WB36T10467 WB36T10467 PANEL CONTROL ASSEMBLY (GE-WHT)
WB2K5395 WB2K5395 PLATE REINFO
WB2X9587 WB2X9587 PLUG
WB2X9189 WB2X9189 PLUG BUT REC
WB02X9189 WB02X9189 PLUG BUTTON-RECTANGULAR
WB02X9587 WB02X9587 PLUG BUTTON-ROUND
49-8911 49-8911 PM MANUAL USE & CARE
WB48T10095 WB48T10095 RACK OVEN
WB02K5395 WB02K5395 REINFORCEMENT PLATE
WB2K5387 WB2K5387 RETAINER
WB02X9105 WB02X9105 RETAINER CLIP
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB02T10082 WB02T10082 RETAINER INSLN TOP
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1116 WB01X1116 SCREW
WB01K5119 WB01K5119 SCREW
WB01K5029 WB01K5029 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5116 WB1K5116 SCREW
WR1X1850 WR1X1850 SCREW
WB1K5119 WB1K5119 SCREW
WB1X1178 WB1X1178 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WB01T10012 WB01T10012 SCREW 8-18 AB FLT 375 B
WB01T10011 WB01T10011 SCREW 8-18 AB FLT 375 W
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01M0027 WB01M0027 SCREW ST 6-20X.437 TR
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1158 WB01X1158 SCREW-NICKEL
WH2X941D WH2X941D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB01K5166 WB01K5166 SCREW-WHITE
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB1K5166 WB1K5166 SCREW-WHITE
WB2K5306 WB2K5306 SD INSUL RET
WB23X5340 WB23X5340 SENSOR-OVEN
WB07T10036 WB07T10036 SHIELD DR TR
WB34K5252 WB34K5252 SHIELD W/INSUL ASSEMBLY
WB37K5038 WB37K5038 SIDE EXTENSION-LT
WB37K5037 WB37K5037 SIDE EXTENSION-RT
WB2X9719 WB2X9719 SUPP-BROIL
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB34K5216 WB34K5216 TOP WIRE COVER
WB07T10241 WB07T10241 TRIM DR VENT (WHITE)
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB07T10165 WB07T10165 TRIM VENT INR (BLACK)
WB07T10228 WB07T10228 TRIM VENT INR (BLACK)
WB07T10050 WB07T10050 TRIM VERT SDE LT (WHITE)
WB07T10051 WB07T10051 TRIM VERT SDE RT (BLACK)
WB07T10049 WB07T10049 TRIM VERT SDE RT (WHITE)
WB07T10167 WB07T10167 TRIM VNT INR (BLK)
WB28K5010 WB28K5010 TUBE VENT
WB38T10014 WB38T10014 VENT BOX ASSEMBLY
WB01X1140 WB01X1140 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1X1140 WB1X1140 WASHER
WB1X1399 WB1X1399 WASHER
WB1K5046 WB1K5046 WASHER
WB1X119D WB1X119D WASHR-PKG 12
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WB34K5192 WB34K5192 WIRE COVER-LWR RR
WB34K5224 WB34K5224 WIRE COVER-MIDDLE REA
WB63T10057 WB63T10057 WRAPPER OVEN CAV ASSEMBLY
WZ4X416 WZ4X416 WZ04X0408
