Model Image
Manufacturer

GE

Model Number

JTP28WF1WW

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB24T10080 WB24T10080 BAKE TCO
WB02K10048 WB02K10048 BASE RAIL
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WD01X1444 WD01X1444 CAMERA LENS (RED)
WB01K5209 WB01K5209 CLIP
WB1K5209 WB1K5209 CLIP
WB2X9105 WB2X9105 CLIP
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10273 WB18T10273 CONDUIT WIRE ASM
WB36T10578 WB36T10578 CONTROL PANEL ASM
WB36T10580 WB36T10580 CONTROL PANEL ASM
WB2K5365 WB2K5365 COVER
WB2X9152 WB2X9152 COVER ENAM WIPE
WB34T10058 WB34T10058 COVER FAN HOUSING
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10060 WB34T10060 COVER WIRE MDL
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10055 WB34T10055 COVER WIRE UPR RR
WB03T10156 WB03T10156 DOOR BUMPER
WB01T10022 WB01T10022 DOOR BUMPER
WB28T10074 WB28T10074 DUCT VNT INLET
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB26T10018 WB26T10018 FAN ASM - CONTROL
WB26T10019 WB26T10019 FAN ASSEMBLY MAGNETRON
WB34T10043 WB34T10043 FAN SCREEN
WB02K5355 WB02K5355 FAN SUPPORT
WB2K5355 WB2K5355 FAN SUPPORT
WB63T10083 WB63T10083 FRAME FRT LOWER
WB41T10003 WB41T10003 GASKET OVN DR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10110 WB15T10110 HANDLE GE 30 (BQT)
WB15T10109 WB15T10109 HANDLE OVN DR (WHT)
WB10T10024 WB10T10024 HINGE DOOR LT
WB10T10023 WB10T10023 HINGE DOOR RT
WB26T10014 WB26T10014 HOUSING FAN
WB25X0092 WB25X0092 INDICATOR LIGHT
31-10524 31-10524 INSTRUCTION INSTALL
WB35T10073 WB35T10073 INSULATION (INR) LWR
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP

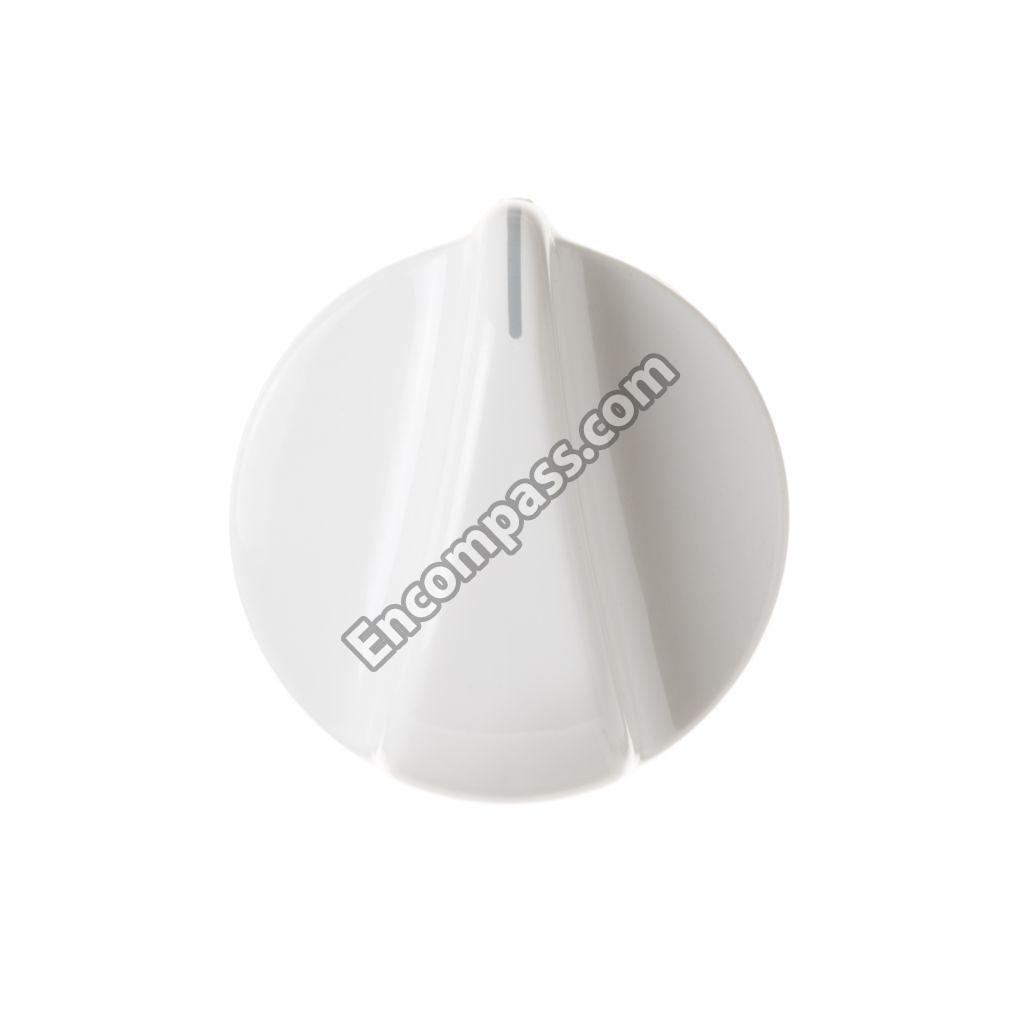

WB03T10058 WB03T10058 KNOB THERMO (WHITE)

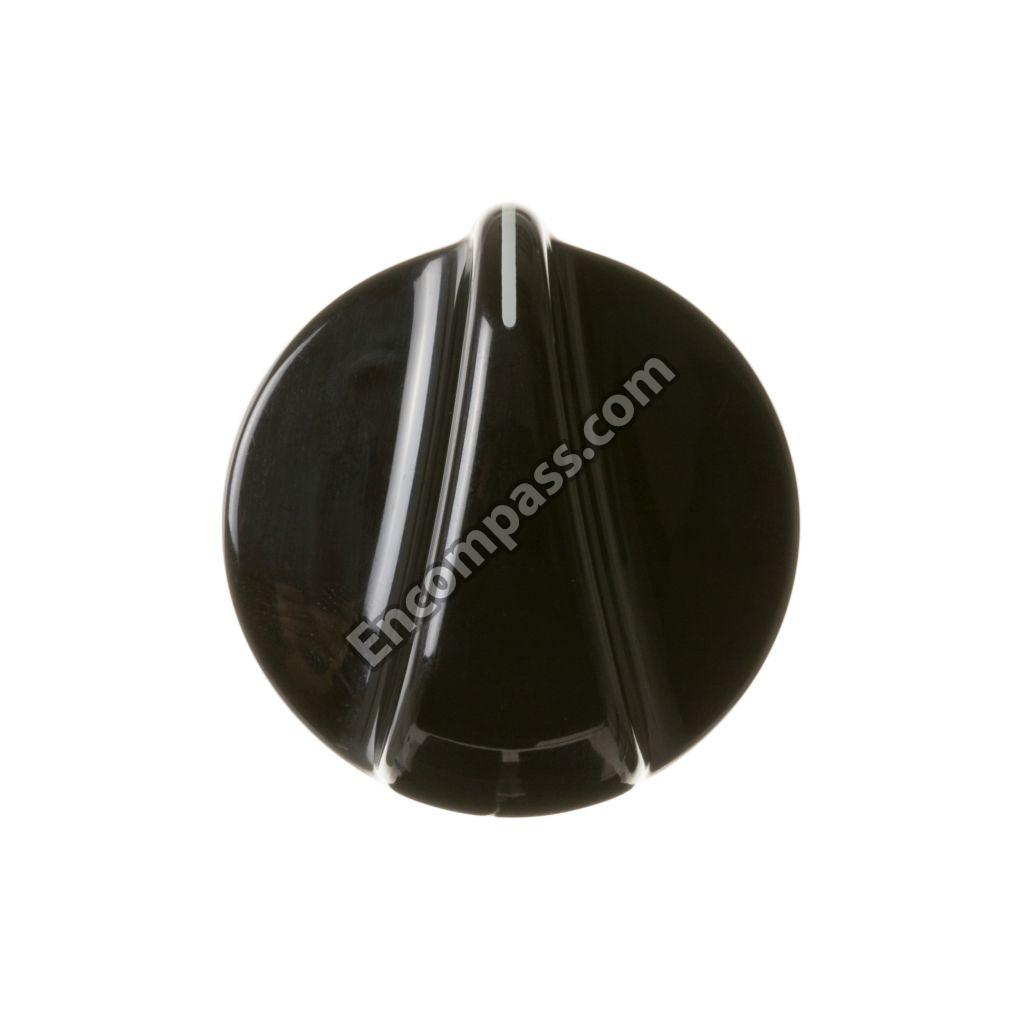

WB03T10057 WB03T10057 KNOB THERMOSTAT SRS (BLACK)
WB14T10013 WB14T10013 LATCH OVN
WD1X1444 WD1X1444 LENS
WB25T10039 WB25T10039 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVEN DR ASSEMBLY UPPER
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
31-14027 31-14027 MANUAL MINI & WD ASM
49-80131 49-80131 MANUAL USE & CARE
WB57T10211 WB57T10211 OUTER DR ASM
WB57T10210 WB57T10210 OUTER DR ASM
WB57T10209 WB57T10209 OUTER DR ASM
WB25T10002 WB25T10002 OVEN BULB LENS

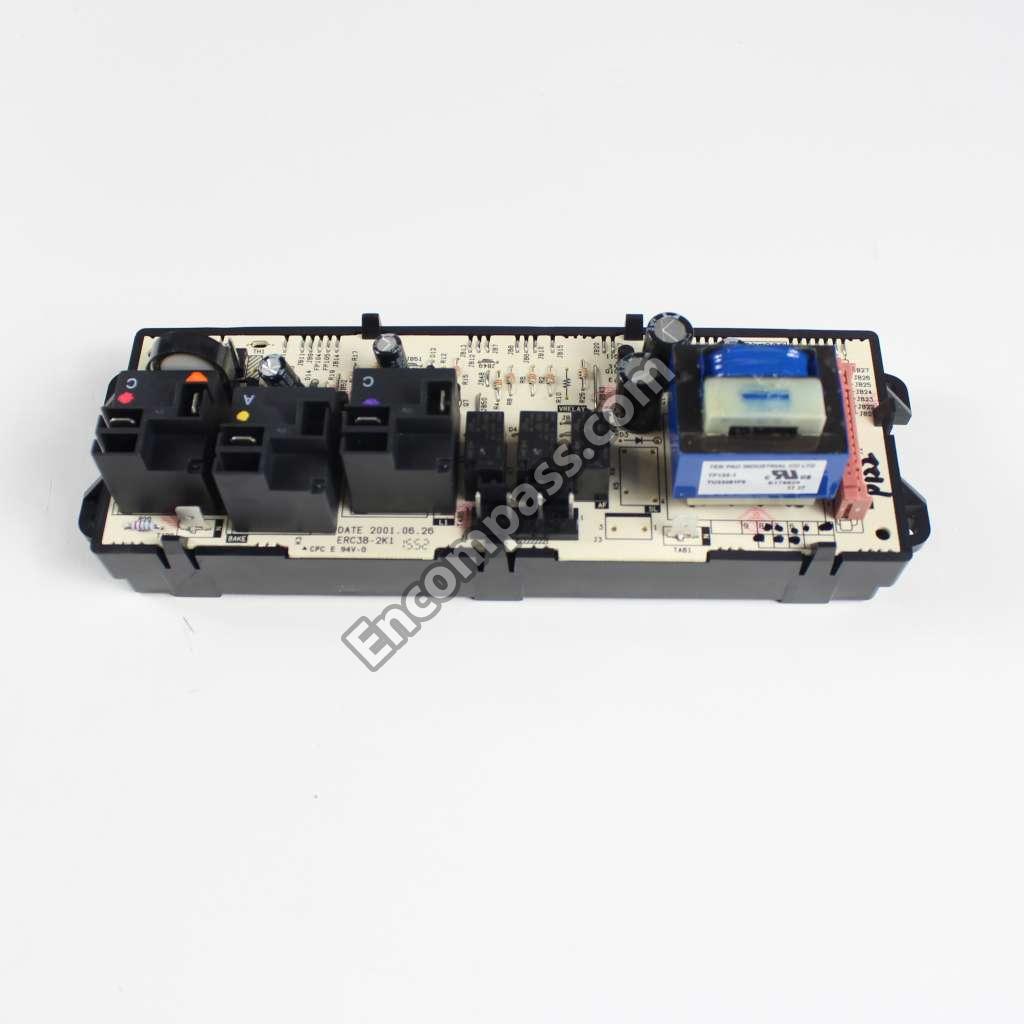

WB27T10411 WB27T10411 OVEN CONTROL ( ERC3B)
WB08T10002 WB08T10002 OVEN LAMP HOLDER ASM
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10665 WB36T10665 PANEL CNTL ASM 30 GE
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB2X9587 WB2X9587 PLUG
WB02X9587 WB02X9587 PLUG BUTTON-ROUND
WB02T10167 WB02T10167 PLUG FOAM
WB48T10095 WB48T10095 RACK OVEN
WB10T10025 WB10T10025 RECEIVER HINGE
WB02X9105 WB02X9105 RETAINER CLIP
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB56T10104 WB56T10104 RETAINER INSLN BACK LOW
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB56T10147 WB56T10147 RETAINER INSLN OVN DR
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB01X1127 WB01X1127 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5119 WB01K5119 SCREW
WB01K5029 WB01K5029 SCREW
WB1K5029 WB1K5029 SCREW
WB1K5119 WB1K5119 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5062 WB1K5062 SCREW 8-18 AB TRP 500 BQT
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01T10033 WB01T10033 SCREW ST 8-18 (BISQUE)
WB01T10042 WB01T10042 SCREW ST 8-18X 625 TR BISQUE
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WZ4X245D WZ4X245D SCREW-PKG 12
WB01K5166 WB01K5166 SCREW-WHITE
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB1K5166 WB1K5166 SCREW-WHITE
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB37K5038 WB37K5038 SIDE EXTENSION-LT
WB37K5037 WB37K5037 SIDE EXTENSION-RT
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY

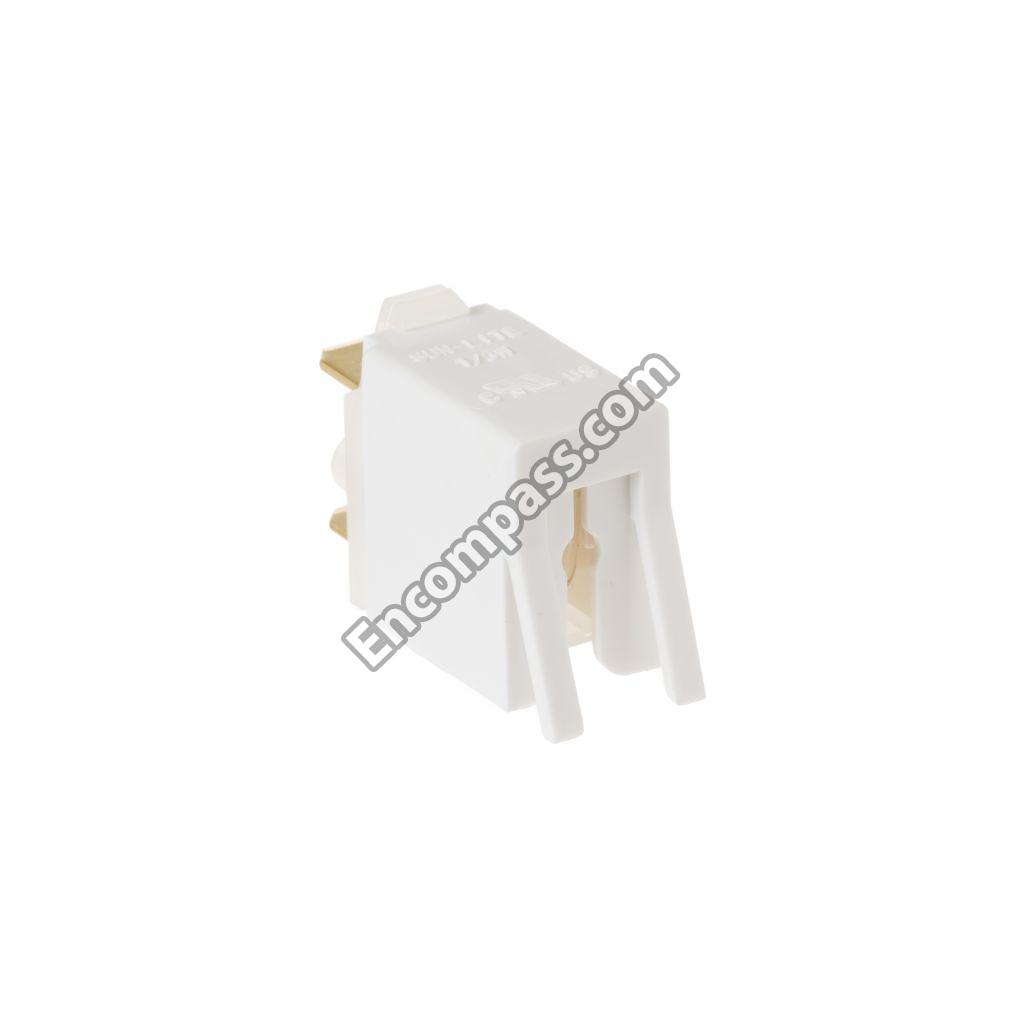

WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB20T10003 WB20T10003 THERMOSTAT OVEN
WB07T10400 WB07T10400 TRIM BTM 30 OUTER (WHITE)
WB07T10399 WB07T10399 TRIM BTM 30 OUTER(BISQUE)
WB07T10401 WB07T10401 TRIM BTM 30 OUTER(BLK)
WB07T10388 WB07T10388 TRIM BTM CAB ASM (BLK)
WB07T10387 WB07T10387 TRIM BTM CAB ASM (WHT)
WB07T10380 WB07T10380 TRIM FILLER
WB07T10379 WB07T10379 TRIM FILLER
WB07T10381 WB07T10381 TRIM FILLER
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB07T10291 WB07T10291 TRIM VENT INR (BLACK)
WB07T10252 WB07T10252 TRIM VENT INR (BLACK) LWR
WB07T10285 WB07T10285 TRIM VERT SDE ASSEMBLY (LT)
WB07T10284 WB07T10284 TRIM VERT SDE ASSEMBLY (RT)
WB07T10277 WB07T10277 TRIM VERT SDE ASSEMBLY LT
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB28T10081 WB28T10081 VENT INLET DUCT LWR
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB63T10085 WB63T10085 WRAPPER OVEN CAV
WZ4X416 WZ4X416 WZ04X0408
