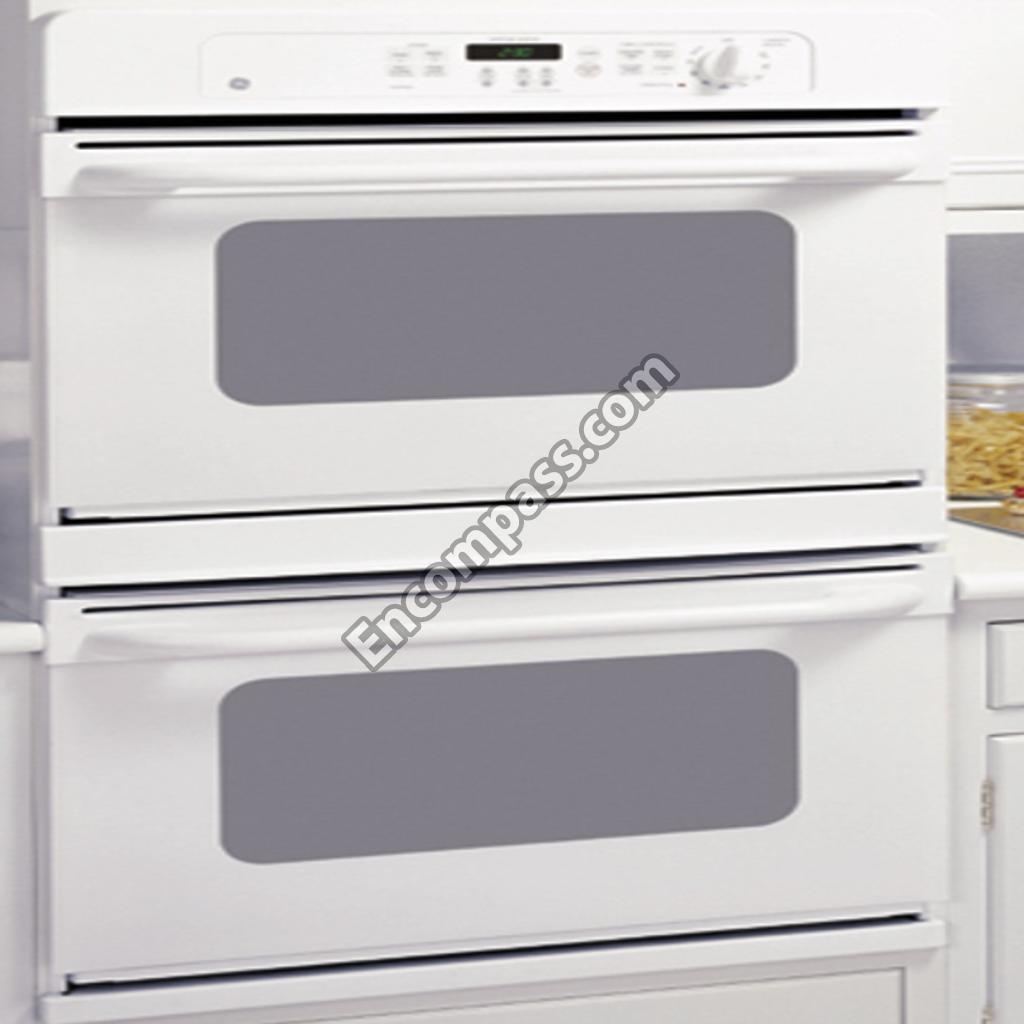

Model Image
Manufacturer

GE

Model Number

JTP28WFW

Description

Ge Range/stove/oven Model Jtp28wfw Parts

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP
WB20T10010 WB20T10010 ATEA THERMOSTAT
WB24T10080 WB24T10080 BAKE TCO
WB02K10048 WB02K10048 BASE RAIL
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB48X10056 WB48X10056 BROILER PAN&RACK LARGE 12-3/4
WB1K5209 WB1K5209 CLIP
WB02K10073 WB02K10073 CLIP CAPILLARY
WB2K5126 WB2K5126 COND CLAMP
WB18T10273 WB18T10273 CONDUIT WIRE ASM
WB2K5365 WB2K5365 COVER
WB2X9152 WB2X9152 COVER
WB34T10058 WB34T10058 COVER FAN HOUSING
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10094 WB34T10094 COVER WIRE MDL
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10055 WB34T10055 COVER WIRE UPR RR
WB03T10156 WB03T10156 DOOR BUMPER
WB01T10022 WB01T10022 DOOR BUMPER
WB28T10074 WB28T10074 DUCT VNT INLET
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB26T10018 WB26T10018 FAN ASM - CONTROL
WB26T10019 WB26T10019 FAN ASSEMBLY MAGNETRON
WB2K5355 WB2K5355 FAN SUPPORT
WB63T10083 WB63T10083 FRAME FRT LOWER
WB41T10003 WB41T10003 GASKET OVEN DR LOWER
WB1X1260 WB1X1260 GRUND WASHER
WB15T10109 WB15T10109 HANDLE OVN DR (WHT)
WB26T10014 WB26T10014 HOUSING FAN
WB35T10073 WB35T10073 INSULATION (INR) LWR
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10090 WB35T10090 INSULATION BACK & BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB03T10058 WB03T10058 KNOB THERMO (WHITE)
WB14T10013 WB14T10013 LATCH OVN
WD1X1444 WD1X1444 LENS
WB25T10039 WB25T10039 LIGHT INDICATOR
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVN DR ASM
WZ4X408 WZ4X408 N/L/A 03/24/05
WB57T10211 WB57T10211 OUTER DR ASM
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB27T10411 WB27T10411 OVEN CONTROL ( ERC3B)
WB35X30052 WB35X30052 OVEN DOOR INSULATION
WB08T10002 WB08T10002 OVEN LAMP AND HOUSING
WB29T10076 WB29T10076 PANEL CNTL ASM 30 GE
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB2X9587 WB2X9587 PLUG
WB02T10167 WB02T10167 PLUG FOAM
WB48T10095 WB48T10095 RACK OVEN
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB02T10343 WB02T10343 RETAINER INSLN TOP
WB34T10091 WB34T10091 SCREEN FAN
WB1M1 WB1M1 SCREW
WB1K5029 WB1K5029 SCREW
WB1X536 WB1X536 SCREW
WB1X681 WB1X681 SCREW
WH2X930 WH2X930 SCREW
WB1X1261 WB1X1261 SCREW
WB01T10066 WB01T10066 SCREW 10-16 X 1.000 HWH
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WZ4X245D WZ4X245D SCREW-PKG 12
WB1K5166 WB1K5166 SCREW-WHITE
WB2K5306 WB2K5306 SD INSUL RET
WB23T10015 WB23T10015 SENSOR ASM
WB37K5038 WB37K5038 SIDE EXTENSION-LT
WB37K5037 WB37K5037 SIDE EXTENSION-RT
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB07T10400 WB07T10400 TRIM BTM 30 OUTER (WHITE)
WB07T10426 WB07T10426 TRIM BTM CAB ASM (WHT)
WB07T10381 WB07T10381 TRIM FILLER
WB07T10291 WB07T10291 TRIM VENT INR (BLACK)
WB07T10252 WB07T10252 TRIM VENT INR (BLACK) LWR
WB07T10285 WB07T10285 TRIM VERT SDE ASSEMBLY (LT)
WB07T10284 WB07T10284 TRIM VERT SDE ASSEMBLY (RT)
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB28T10081 WB28T10081 VENT INLET DUCT LWR
WB38X33650 WB38X33650 VENT TUBE
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB56X22160 WB56X22160 WINDOW PACK ASM
WB63T10085 WB63T10085 WRAPPER OVEN CAV
