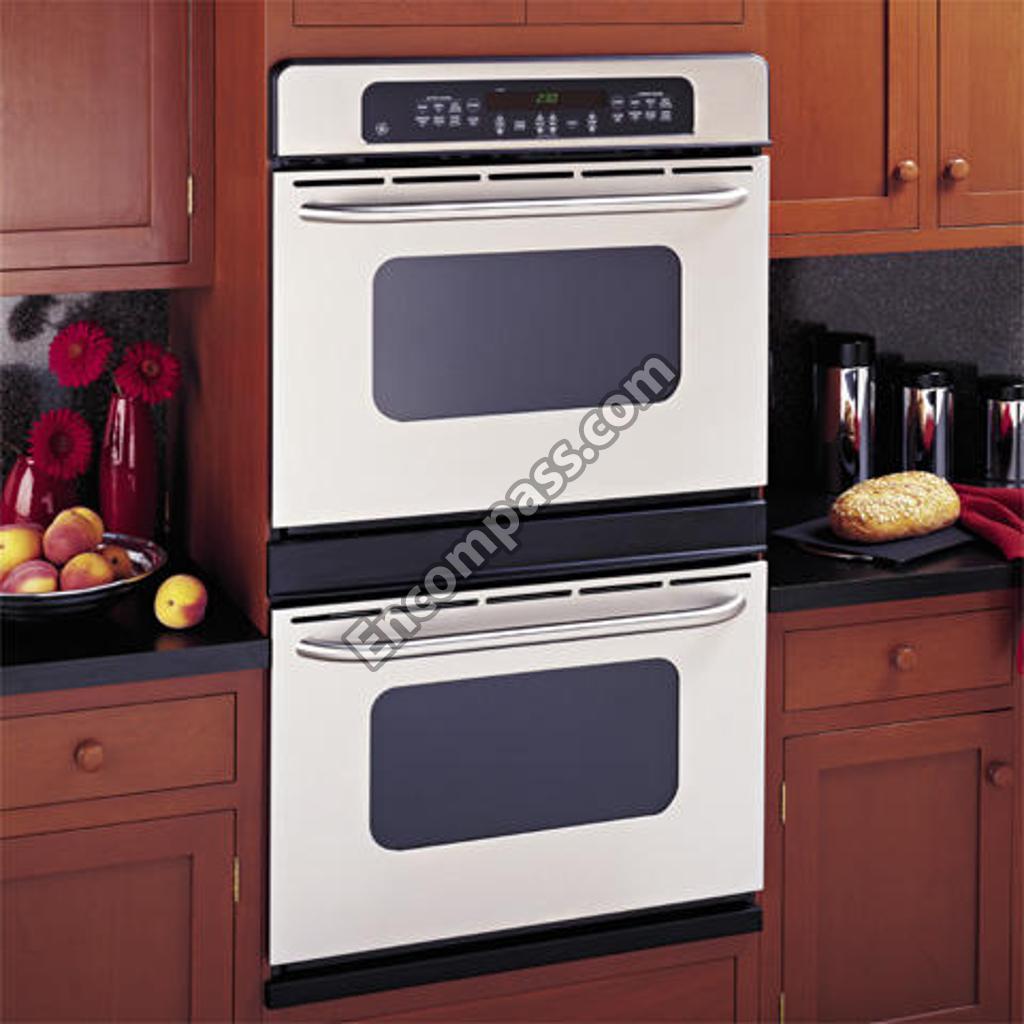

Model Image
Manufacturer

GE

Model Number

JTP50SH6SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB24T10080 WB24T10080 BAKE TCO
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB24T10061 WB24T10061 CLEAN TCO
WB2K5126 WB2K5126 COND CLAMP
WB02K5126 WB02K5126 CONDUIT CLAMP
WB18T10273 WB18T10273 CONDUIT WIRE ASM
WB27T10445 WB27T10445 CONTROL ERC
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB34T10058 WB34T10058 COVER FAN HOUSING
WB34T10056 WB34T10056 COVER WIRE LWR
WB34T10094 WB34T10094 COVER WIRE MDL
WB34T10057 WB34T10057 COVER WIRE TOP
WB34T10055 WB34T10055 COVER WIRE UPR RR
WB01T10022 WB01T10022 DOOR BUMPER
WB03T10156 WB03T10156 DOOR BUMPER
WB56T10159 WB56T10159 DOOR OTR ASM 30 (SS)
WB28T10074 WB28T10074 DUCT VNT INLET
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB37T10006 WB37T10006 EXTENSION SIDE LT
WB37T10005 WB37T10005 EXTENSION SIDE RT
WB26X114 WB26X114 FAN ASM
WB26X0114 WB26X0114 FAN ASM-TOP CABINET
WB26K5061 WB26K5061 FAN ASSEMBLY UPPER
WB63T10083 WB63T10083 FRAME FRT LOWER
WB41T10003 WB41T10003 GASKET OVEN DR LOWER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB15X21658 WB15X21658 HANDLE KIT
WB10T10085 WB10T10085 HINGE DOOR LT
WB10T10084 WB10T10084 HINGE DOOR RT
WB26T10014 WB26T10014 HOUSING FAN
31-10551 31-10551 INSTRUCTION INSTALL
31-10524 31-10524 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10123 WB35T10123 INSULATION BACK & BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10126 WB35T10126 INSULATION TOP
WB14T10018 WB14T10018 LATCH OVN
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
31-14025 31-14025 MANUAL MINI & WD ASM
49-80341 49-80341 MANUAL USE & CARE
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB08T10002 WB08T10002 OVEN LAMP HO
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY
WB36T10750 WB36T10750 PANEL CNTL ASM 30 GE
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB02T10167 WB02T10167 PLUG FOAM
WB48T10095 WB48T10095 RACK OVEN
WB10T10083 WB10T10083 RECEIVER HINGE
WB34T10112 WB34T10112 REFLECTOR HEAT
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02T10285 WB02T10285 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB34T10091 WB34T10091 SCREEN FAN
WB01X1127 WB01X1127 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB01K5029 WB01K5029 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1116 WB1X1116 SCREW
WB1M1 WB1M1 SCREW
WB1X1261 WB1X1261 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB1K5165 WB1K5165 SCREW-BLACK
WB01K5165 WB01K5165 SCREW-BLK
WZ4X245D WZ4X245D SCREW-PKG 12
WB23T10015 WB23T10015 SENSOR ASM
WB02T10288 WB02T10288 SUPPORT FAN
WB02T10286 WB02T10286 SUPPORT FAN
WB26T10015 WB26T10015 SUPPORT OVN CAV
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10127 WB24T10127 SWITCH LIMIT BIMETAL
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB01T10052 WB01T10052 TAPE FOAM
WB01T10055 WB01T10055 TAPE FOAM
WB07T10401 WB07T10401 TRIM BTM 30 OUTER (BLACK)
WB07T10422 WB07T10422 TRIM BTM CAB ASM (BLK)
WB07T10379 WB07T10379 TRIM FILLER
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10252 WB07T10252 TRIM VENT INR (BLACK) LWR
WB07T10277 WB07T10277 TRIM VERT SDE ASSEMBLY LT
WB07T10276 WB07T10276 TRIM VERT SDE ASSEMBLY RT
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB28T10083 WB28T10083 VENT INLET DUCT
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB63T10085 WB63T10085 WRAPPER OVEN CAV
WZ4X416 WZ4X416 WZ04X0408
