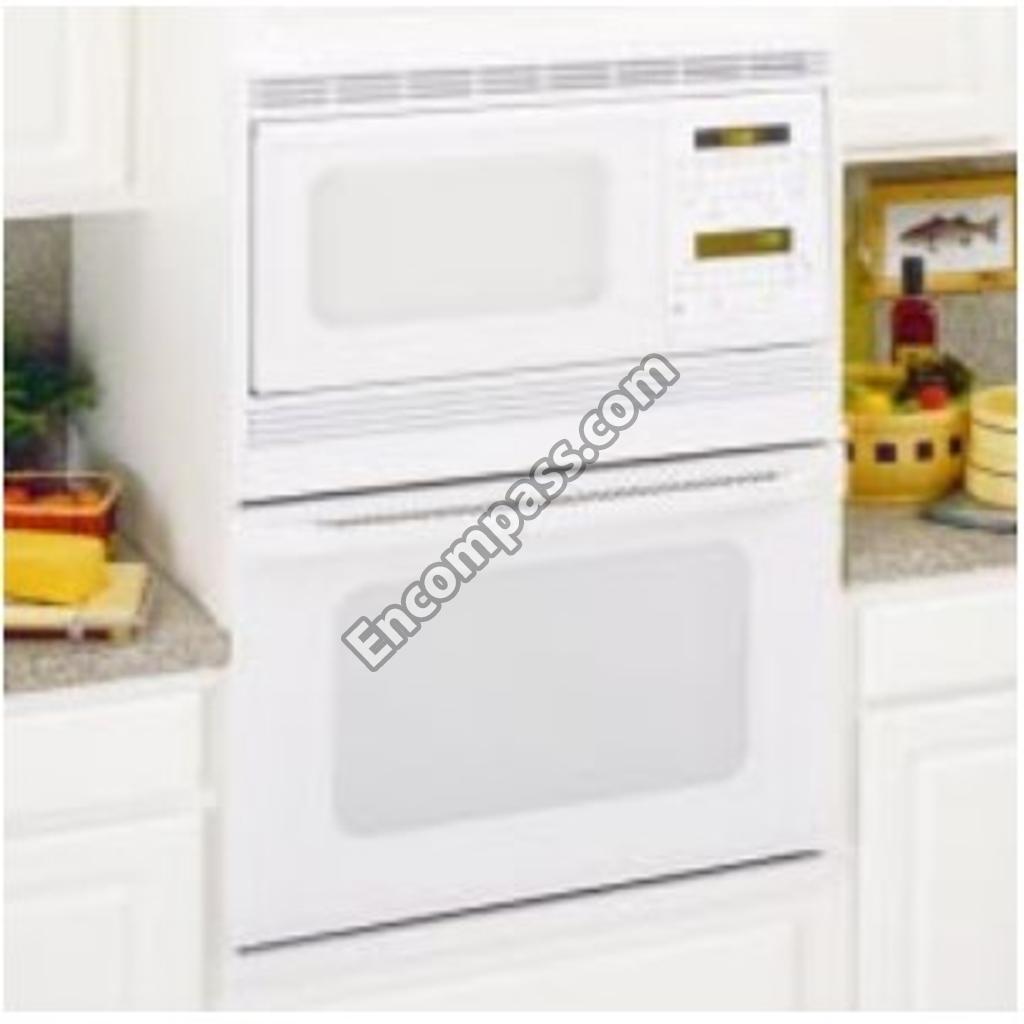

Manufacturer
GE
Model Number
JTP85WW1WW
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
340531 |
|
|
AIR DUCT-TOP LT |
|
|
AIR DUCT-TOP RT |
|
|
BACK AIR DUCT |
|
|
BAKE ELEMENT |
|
|
BASE (DO-BI 2) |
|
|
BOTTOM TRIM SHIELD |
|
|
BROIL ELEMENT |
|
|
BROIL PAN 16X16 3/4 FITS RACK WB48K2 |
|
|
BROIL PAN RACK 15 1/2X16 3/4 FITS WB49K2 |
|
|
CLIP WINDOW |
|
|
COND PLATE |
|
|
CONDUIT HARNESS PLATE |
|
|
CONDUIT WIRE HARNESS |
|
|
CONTROL OVEN (ERCIII-D) |
|
|
CONTROL WIRE HARNESS |
|
|
COVER |
|
|
COVER A (DO-BI 2) |
|
|
COVER SHEET |
|
|
DOOR A (1 2CFT 2PC) |
|
|
DOOR C |
|
|
DOOR E ASSEMBLY |
|
|
DOOR KEY A |
|
|
DOOR LOCK PLATE |
|
|
DOOR SCREEN A |
|
|
DOOR VENT SHIELD |
|
|
END CAP LT |
|
|
END CAP RT |
|
|
END CAP-LT-WHITE-VENT |
|
|
END CAP-RT-WHITE-VENT |
|
|
ESCUTCHEON SHEET ASSEMBLY |
|
|
EXHAUST COVER A(DO-BI 2) |
|
|
FAN ASM -CONTROL-UPR |
|
|
FAN MOTOR |
|
|
FRAME OVEN DR ASSEMBLY (WHITE) |
|
|
FUSE |
|
|
FUSE INSULATOR |
|
|
GLASS TRAY |
|
|
GLASS TRAY MOTOR |
|
|
GRUND WASHER |
|
|
HANDLE ASM (BLK) |
|
|
HANDLE ASM (WHT) |
|
|
HINGE A (DO-BI 2) |
|
|
HINGE ASSEMBLY LEFT |
|
|
HINGE ASSEMBLY RT |
|
|
HINGE B (DO-BI 2) |
|
|
INSULATION OVEN DR SD |
|
|
INSULATION TOP/SDS (INR) |
|
|
INSULATION TOP/SDS (OUT) |
|
|
LATCH SWITCH B |
|
|
LEAD WIRE |
|
|
LEAD WIRE |
|
|
LENS OVEN LAMP |
|
|
LIMIT SWITCH |
|
|
LOCK LEVER ASM |
|
|
LOCK MOTOR |
|
|
LOCKWASHER |
|
|
M/W DOOR ASSEMBLY-WHITE |
|
|
M/W DOOR C-WHITE |
|
|
M/W DOOR FRAME-WHITE |
|
|
M/W DR GLASS BLACK |
|
|
M/W DR GLASS-WHITE |
|
|
M/W HI VOLT TRANSFORMER |
|
|
M/W OUTER PANEL |
|
|
M/W OVEN BODY |
|
|
M/W PCB ASM |
|
|
M/W PIEZO SENSOR |
|
|
M/W PULLEY SHAFT |
|
|
M/W ROLLER RING |
|
|
M/W SLIDE RAIL-LT |
|
|
M/W THERMAL CUT OUT |
|
|
MAGNETRON |
|
|
NAME PLATE |
|
|
NAME PLATE |
|
|
OV DOOR OUTER GLASS-WHITE |
|
|
OVEN BODY |
|
|
OVEN DOOR GASKET |
|
|
OVEN DOOR GLASS-INNER |
|
|
OVEN DOOR LINING |
|
|
OVEN DOOR OUTER GLASS-BLACK |
|
|
PAN BROILER |
|
|
RACK BROILER PAN |
|
|
RACK OVEN |
|
|
SCR 8-15 A HXW 7/8 S |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 8-18 AB HXW 3/8 |
|
|
SCREW ST 8-18 X 3/4 BLK |
|
|
SCREW-10-32 |
|
|
SCREW-10AB |
|
|
SCREW-PKG 12 |
|
|
SCREW-PKG 12 |
|
|
SENSOR ASM |
|
|
SENSOR UNIT |
|
|
SHORT SWITCH |
|
|
SIDE WIRE COVER |
|
|
SWITCH DOOR |
|
|
SWITCH LIMIT |
|
|
SWITCH SPDT HIGH AMP |
|
|
TOP WIRE COVER |
|
|
TRIM SCREW-BLK |
|
|
WASHER |
|
|
WASHER |
|
|
WASHER |
|
|
WASHR-PKG 12 |
|
|
WB35K5116 |
|
|
WB38K5051 |
|
|
WIRE COVER UPPER RR |
|
|
WIRE HARNESS (DO-BI 2) |
|
|
WZ04X0408 |
