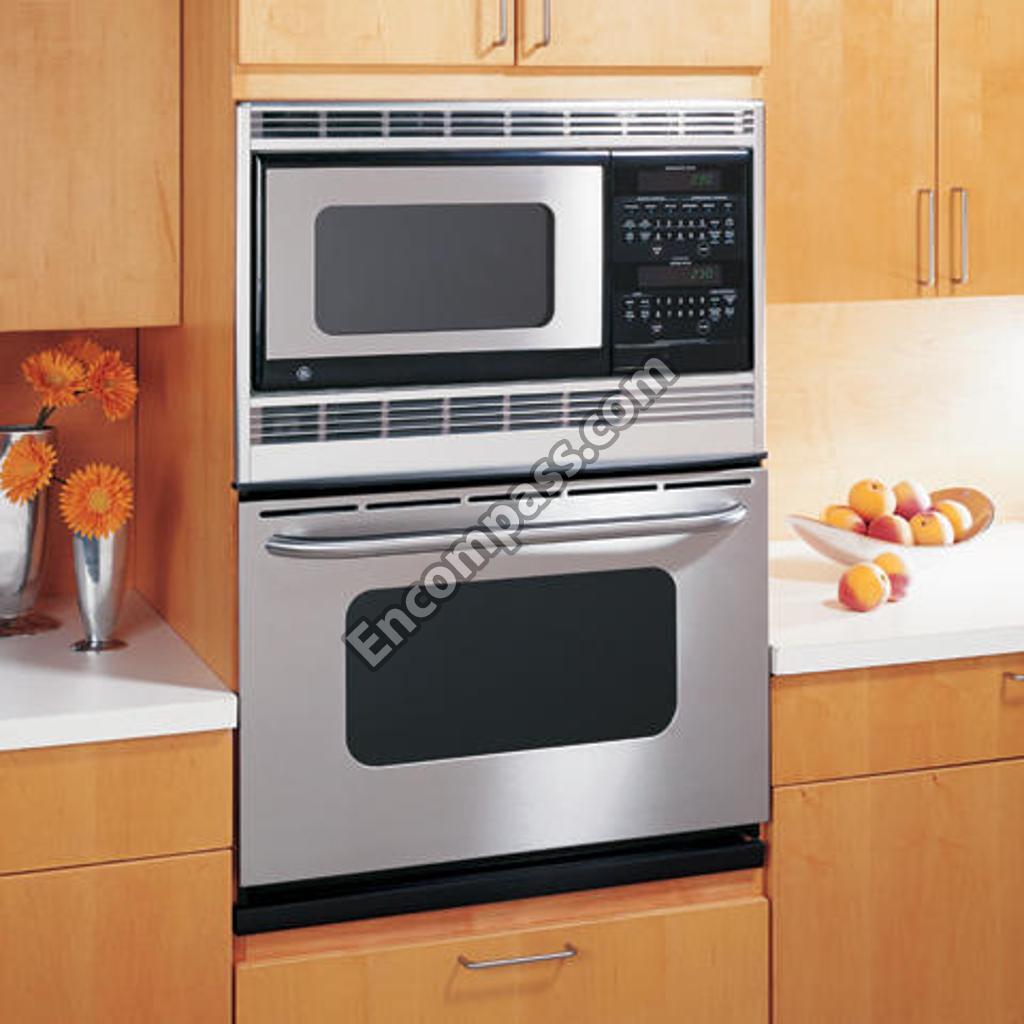

Model Image
Manufacturer

GE

Model Number

JTP86SH6SS

Description

Electric Range

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WB38K5056 WB38K5056 AIR DUCT-TOP LT
WB10X10071 WB10X10071 ASSEMBLY BODY LATCH
WB26X10026 WB26X10026 ASSEMBLY COVER MOTOR
WB63X10011 WB63X10011 BASE PLATE
WB63X10013 WB63X10013 BKT SLIDE-A:30LT
WB63X10016 WB63X10016 BKT SLIDE-B:30RT
WB63T10069 WB63T10069 BKT-BASE
WB38T10019 WB38T10019 BOX VENT ASSEMBLY
WB6X537 WB6X537 BRACKET
WB63X10015 WB63X10015 BRACKET BASE COVER
WB06X0537 WB06X0537 BRACKET H.V.C
WB02T10033 WB02T10033 BRACKET SUPT TRIM
WB27X10073 WB27X10073 C-OIL
WB18T10272 WB18T10272 CONDUIT WIRE HARNESS
WB36T10731 WB36T10731 CONTROL PANEL ASSEMBLY BLK.
WB02X9152 WB02X9152 COVER
WB02K5365 WB02K5365 COVER
WB2X9152 WB2X9152 COVER
WB2K5365 WB2K5365 COVER
WB6X538 WB6X538 COVER WAVE G
WB34T10009 WB34T10009 COVER WIRE SIDE
WB06X0535 WB06X0535 COVER-AIR
WB6X535 WB6X535 COVER-AIR
WB06X0538 WB06X0538 COVER-WAVE GUIDE
WB35X10002 WB35X10002 CUSHION - H V T
WB35X10001 WB35X10001 CUSHION RUBBER
WB55T10143 WB55T10143 DOOR ASSEMBLY SS
WB03T10156 WB03T10156 DOOR BUMPER
WB01T10022 WB01T10022 DOOR BUMPER
WB56T10159 WB56T10159 DOOR OTR ASM 30 (SS)
WB34T10013 WB34T10013 DUCT AIR BACK
WB34T10010 WB34T10010 DUCT AIR TOP RT
WB34T10072 WB34T10072 DUCT ASSEMBLY
WB28T10076 WB28T10076 DUCT VNT INLET
WB44T10018 WB44T10018 ELEMENT BAKE (3400W)
WB26K5061 WB26K5061 FAN ASSEMBLY UPPER
WB24X10034 WB24X10034 FAN TCO (60/70)
WB63T10083 WB63T10083 FRAME FRT LOWER
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB06X10034 WB06X10034 FUSE-HOLDER
WB41T10003 WB41T10003 GASKET OVEN DR LOWER
WB57T10233 WB57T10233 GLASS OVN DR INR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB06T10012 WB06T10012 GUIDE ROLLER ASSEMBLY
WB15X21658 WB15X21658 HANDLE KIT
WB18T10309 WB18T10309 HARNESS WIRE CNTL

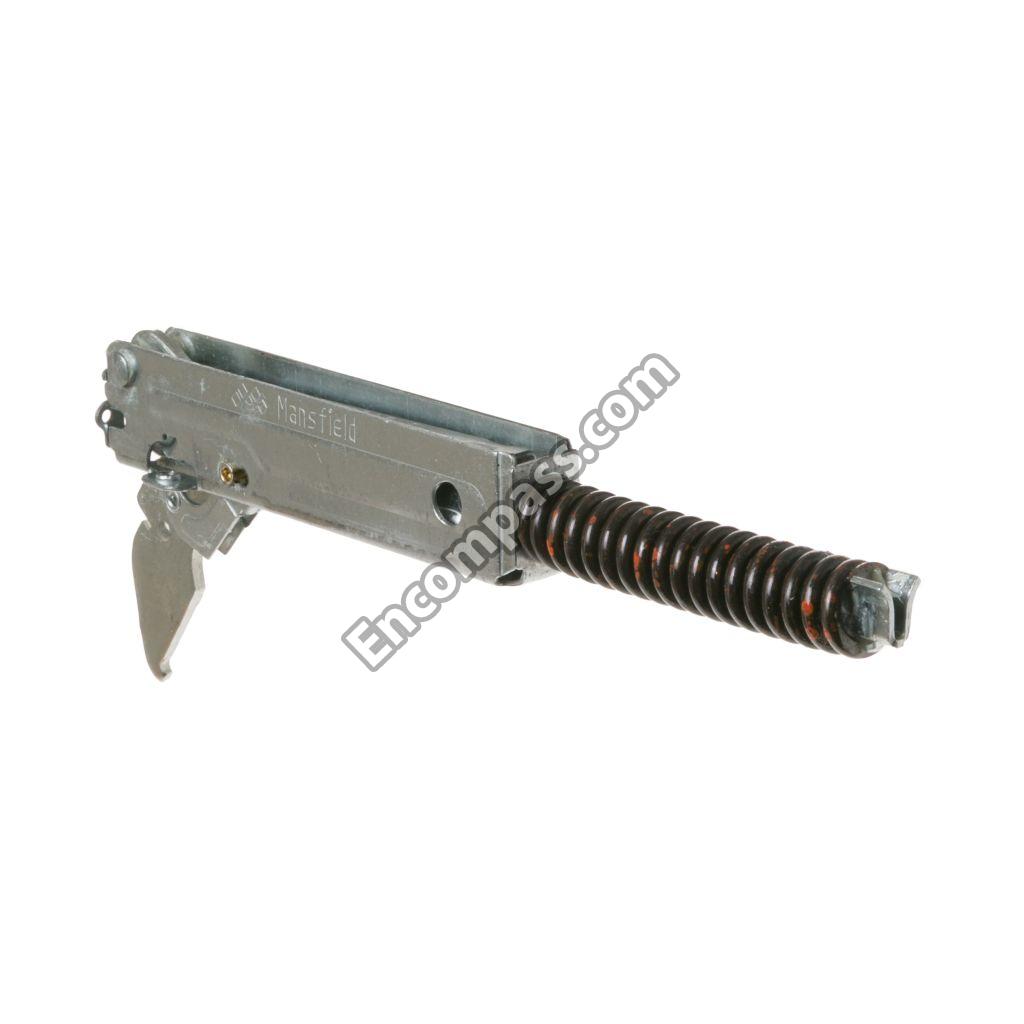

WB10T10085 WB10T10085 HINGE DOOR LT

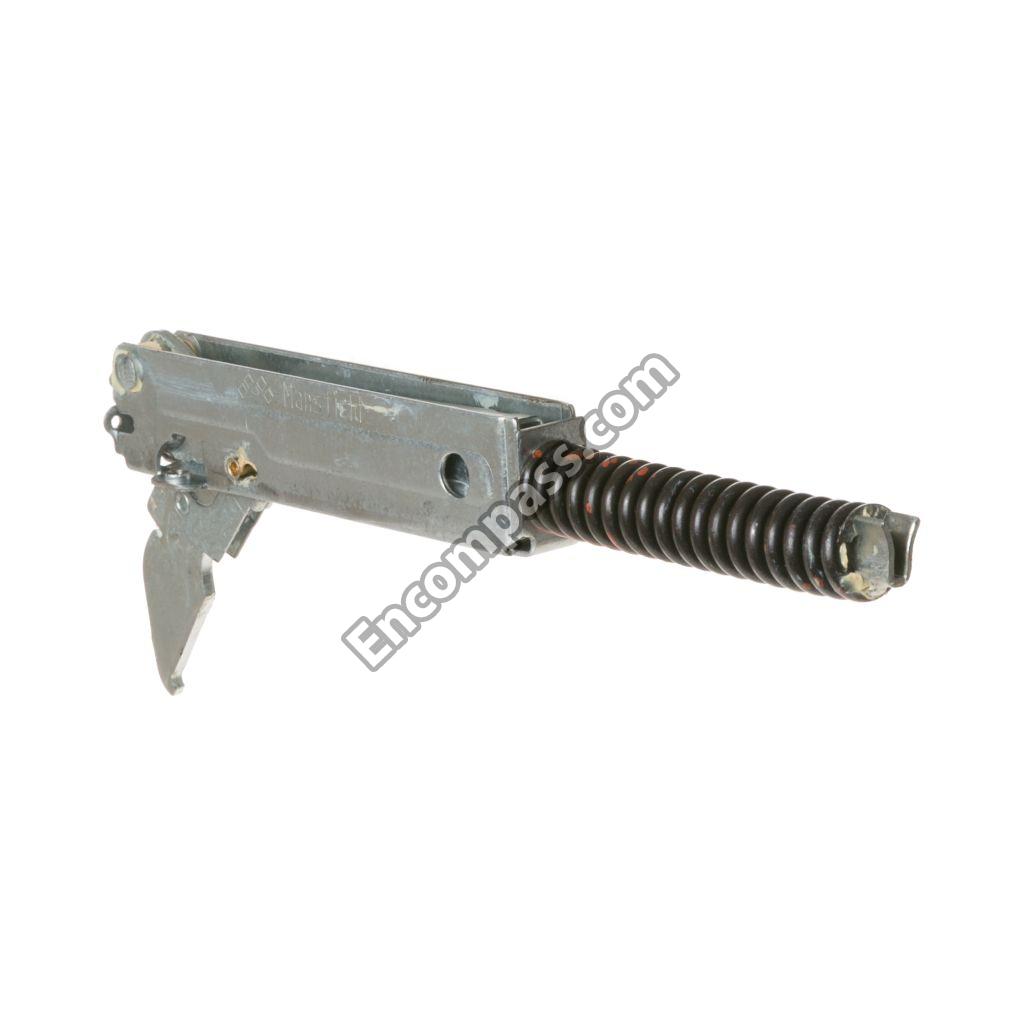

WB10T10084 WB10T10084 HINGE DOOR RT
WB10X10017 WB10X10017 HINGE LOWER-M/W
WB14X10008 WB14X10008 HINGE-UPPER
WB14X0211 WB14X0211 HINGE-UPPER-M/W
WB06X0549 WB06X0549 HOLDER-SENSOR
WB6X549 WB6X549 HOLDER-SENSR
WB7K5435 WB7K5435 I-BROW TRIM
WB07K5435 WB07K5435 I-BROW TRIM-BLACK
31-10551 31-10551 INSTRUCTION INSTALL
31-10514 31-10514 INSTRUCTION SHEET
WB35T10074 WB35T10074 INSULATION (OUT) LWR
WB35T10123 WB35T10123 INSULATION BACK & BTM
WB35K10025 WB35K10025 INSULATION OVEN DR SDE
WB35X30052 WB35X30052 INSULATION OVN DR TOP
WB35T10126 WB35T10126 INSULATION TOP
WB36X10194 WB36X10194 LAMP:125V25W
WB14T10018 WB14T10018 LATCH OVN
WB10X10015 WB10X10015 LEVER DOOR POM
WB24T10060 WB24T10060 LIMIT SWITCH-UPPER(LOCK)
WB55T10147 WB55T10147 LINER OVN DR ASM
WB01K5046 WB01K5046 LOCKWASHER
WB27X10516 WB27X10516 MAGNETRON
31-14192 31-14192 MANUAL MINI & WD ASM
49-80335 49-80335 MANUAL USE & CARE
WB27T10463 WB27T10463 MICROWAVE CONTROL
WB27X10597 WB27X10597 MICROWAVE DIODE
WB24X830 WB24X830 MICROWAVE OVEN DOOR SWITCH
WB02X11243 WB02X11243 NOISE FILTER
WB25T10002 WB25T10002 OVEN BULB LENS COVER-
WB18T10303 WB18T10303 OVEN CONTROL W/HARNESS
WB08T10002 WB08T10002 OVEN LAMP HO
WB56T10105 WB56T10105 PACK WINDOW ASM
WB56X22160 WB56X22160 PACK WINDOW ASSEMBLY

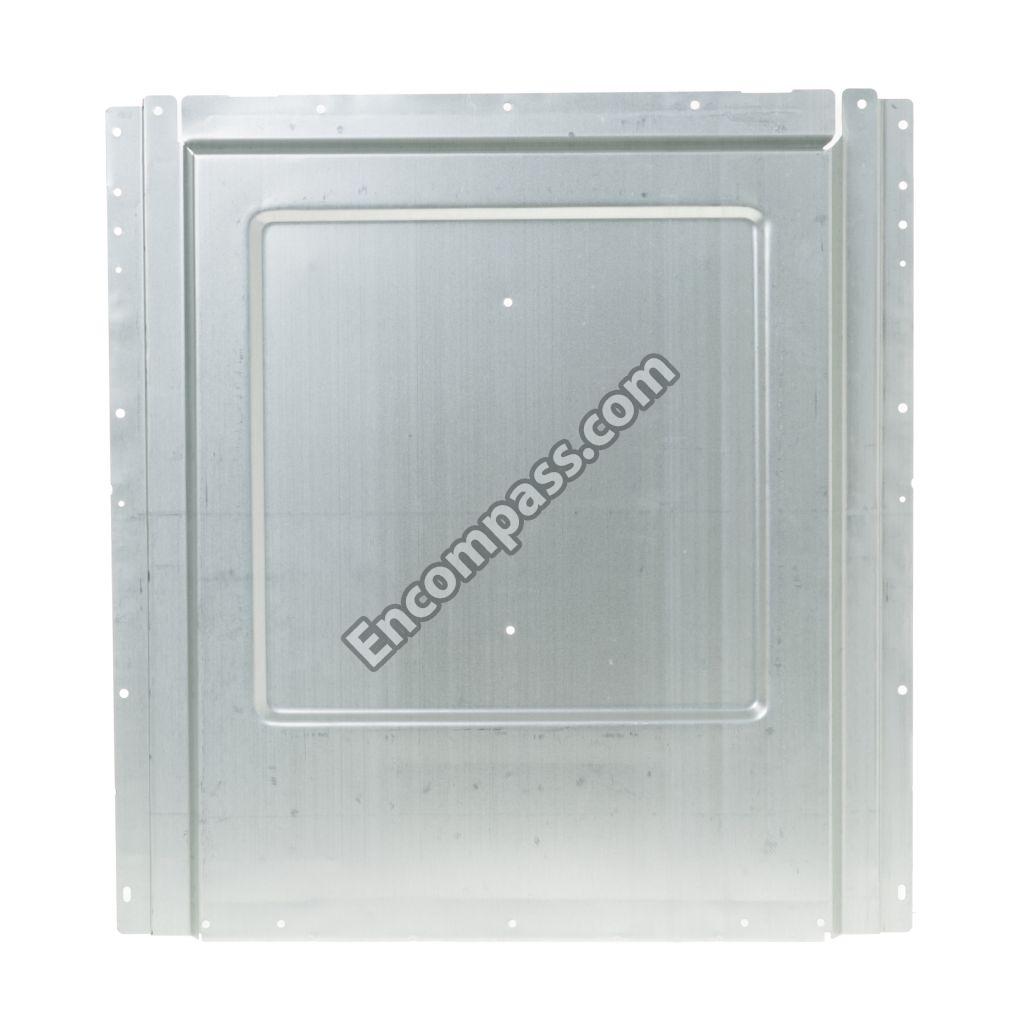

WB63T10039 WB63T10039 PANEL OUTER:EG1
WB02T10147 WB02T10147 PLATE REINFORCEMEMT
WB03T10210 WB03T10210 PUSH-BUTTON BLK
WB48T10095 WB48T10095 RACK OVEN
WB02T10225 WB02T10225 RAIL SLIDE RT
WB10T10083 WB10T10083 RECEIVER HINGE
WB34T10112 WB34T10112 REFLECTOR HEAT
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB56T10136 WB56T10136 RETAINER INSLN BACK
WB02X20948 WB02X20948 RETAINER INSLN BACK
WB02T10285 WB02T10285 RETAINER INSLN BTM
WB02T10371 WB02T10371 RETAINER INSLN OVN DR
WB02T10284 WB02T10284 RETAINER INSLN SDE
WB02T10343 WB02T10343 RETAINER INSLN TOP CENTER
WB34T10091 WB34T10091 SCREEN FAN

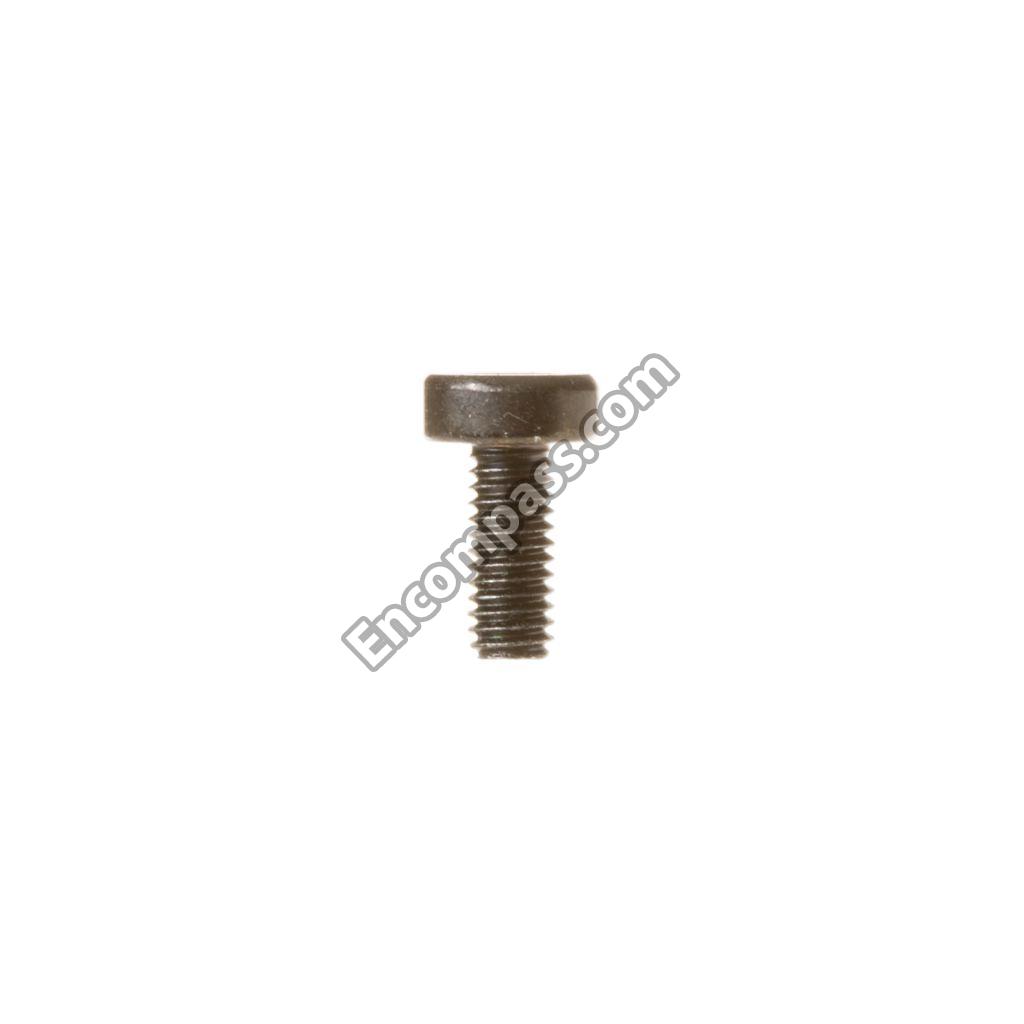

WB01X1127 WB01X1127 SCREW
WB01X1116 WB01X1116 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5028 WB01K5028 SCREW
WB01K5200 WB01K5200 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1116 WB1X1116 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WB1X536 WB1X536 SCREW
WH2X930 WH2X930 SCREW
WB01T10008 WB01T10008 SCREW 10-32 TR T
WB01T10068 WB01T10068 SCREW 8-18 AB FLT .375 B
WB01X1261 WB01X1261 SCREW GROUND
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X10328 WB01X10328 SCREW TORX L10 BLACK
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01X1180 WB01X1180 SCREW-BLACK
WB23T10015 WB23T10015 SENSOR ASM
WB27X1170 WB27X1170 SENSOR HUMIDITY
WB2K5385 WB2K5385 SLIDE RAIL-L
WB02K5385 WB02K5385 SLIDE RAIL-LT
WB09X0308 WB09X0308 SPRING-BUTTON
WB09X10009 WB09X10009 SPRING-BUTTON
WB02T10173 WB02T10173 SUPPORT FAN
WB26T10015 WB26T10015 SUPPORT OVEN CAVITY
WB24X829 WB24X829 SW-SECONDARY
WB24T10065 WB24T10065 SWITCH LIGHT SPOT
WB24T10076 WB24T10076 SWITCH LIMIT BIMETAL
WB24T10111 WB24T10111 SWITCH SPDT HIGH AMP
WB24X0829 WB24X0829 SWITCH-MICRO
WB24X0830 WB24X0830 SWITCH-MICRO
WB26X0172 WB26X0172 T/T MOTOR
WB26X172 WB26X172 T/T MOTOR
WB01T10055 WB01T10055 TAPE FOAM
WB01T10052 WB01T10052 TAPE FOAM
WB24X10025 WB24X10025 THERMOSTAT
WB27X10166 WB27X10166 THERMOSTAT
WB34K5234 WB34K5234 TOP WIRE COVER
WB27X10189 WB27X10189 TRANS-H.V
WB49X0690 WB49X0690 TRAY-COOKING
WB49X690 WB49X690 TRAY-GLASS
WB07T10305 WB07T10305 TRIM ASM (SS)
WB07T10401 WB07T10401 TRIM BTM 30 OUTER (BLACK)
WB07T10422 WB07T10422 TRIM BTM CAB ASM (BLK)
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB07T10252 WB07T10252 TRIM VENT INR (BLACK) LWR
WB07T10301 WB07T10301 TRIM VERT SDE 30 LT(BLK)
WB07T10471 WB07T10471 TRIM VERT SDE 30 RT(BLK)
WB38X33650 WB38X33650 TUBE VENT
WB44T10043 WB44T10043 UNIT BROIL ASM (DLX)
WB48X10056 WB48X10056 UNIVERSAL RANGE BROILER PAN
WB01K5174 WB01K5174 WASHER
WB1K5174 WB1K5174 WASHER
WB1K5046 WB1K5046 WASHER
WB1X681 WB1X681 WB01X0681
WB35T10090 WB35T10090 WB35K5116
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WB34K5192 WB34K5192 WIRE COVER-LWR RR
WB63T10085 WB63T10085 WRAPPER OVEN CAV
WZ4X416 WZ4X416 WZ04X0408
