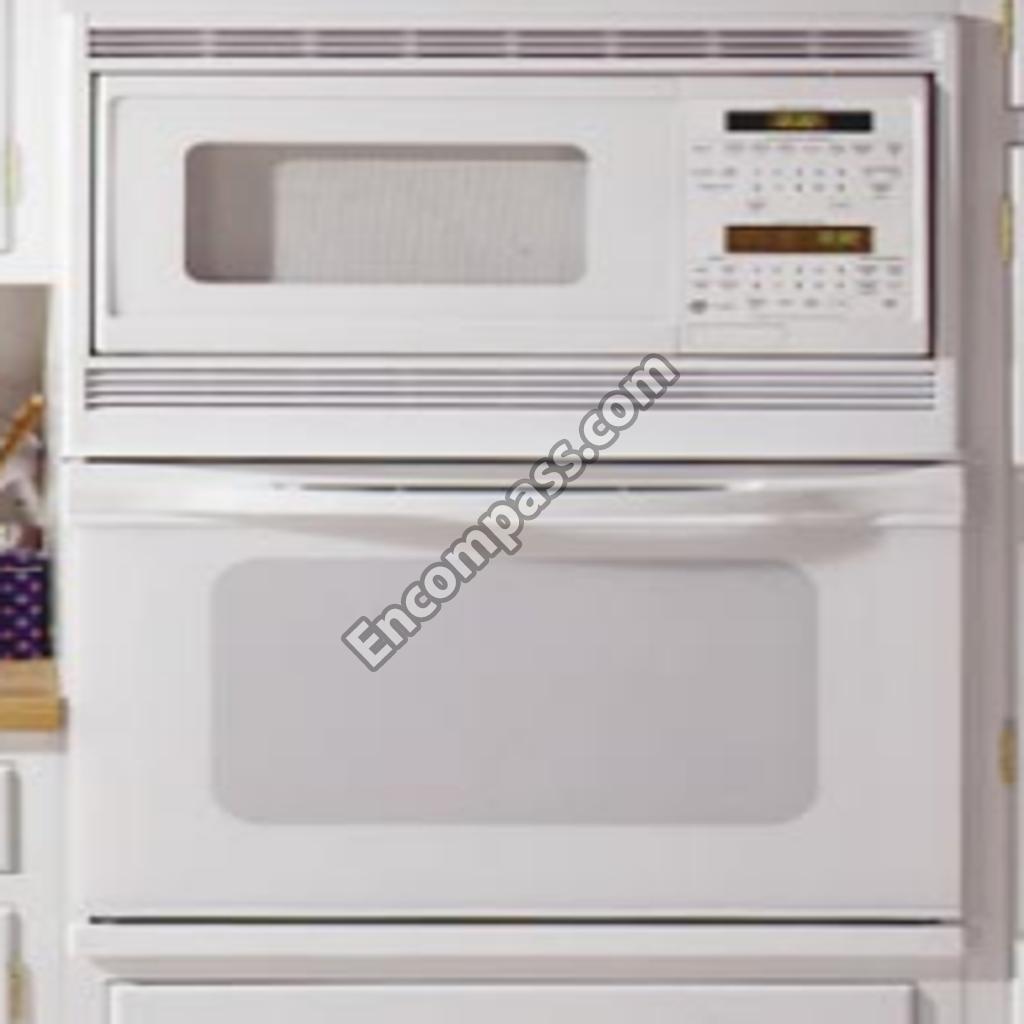

Model Image
Manufacturer

GE

Model Number

JTP95WW1WW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WB1K5200 WB1K5200 340531
WB38K5056 WB38K5056 AIR DUCT-TOP LT
WB38K5055 WB38K5055 AIR DUCT-TOP RT
WB02K5418 WB02K5418 AIR GUIDE A
WB2K5418 WB2K5418 AIR GUIDE C
WB38K5057 WB38K5057 BACK AIR DUCT
WB02K5307 WB02K5307 BACK INSULATION RETAINER
WB44K5018 WB44K5018 BAKE ELEMENT
WB63K5205 WB63K5205 BASE (DO-BI 2)
WB2K5307 WB2K5307 BK INSUL RET
WB2X8351 WB2X8351 BLADE FAN
WB34K5195 WB34K5195 BOTTOM TRIM SHIELD
WB07K5428 WB07K5428 BOTTOM TRIM-WHITE
WB44K5017 WB44K5017 BROIL ELEMENT
WB02X9719 WB02X9719 BROIL ELEMENT SUPPORT
WB48M0003 WB48M0003 BROILER PAN
WB02K5305 WB02K5305 BTTM INSULATION RETAINER
WB2X8320 WB2X8320 CLIP WINDOW
WB27T10590 WB27T10590 CLOCK/OVEN CONTROL
WB18K5628 WB18K5628 CONDUIT WIRE HARNESS
WB02X7729 WB02X7729 CONTROL PANEL HINGE
WB26K5069 WB26K5069 CONVECTION FAN MOTOR
WB02X9152 WB02X9152 COVER
WB2X9152 WB2X9152 COVER
WB63K5204 WB63K5204 COVER A (DO-BI 2)
WB34K5261 WB34K5261 COVER SHEET
WB56K0020 WB56K0020 CRYSTAL WINDOW
WB06K5052 WB06K5052 CUSHION
WB06K5061 WB06K5061 CUSHION
WB06K5060 WB06K5060 CUSHION
WB06K5059 WB06K5059 CUSHION
WB06K5058 WB06K5058 CUSHION
WB06K5057 WB06K5057 CUSHION
WB06K5056 WB06K5056 CUSHION
WB06K5055 WB06K5055 CUSHION
WB06K5054 WB06K5054 CUSHION
WB06K5053 WB06K5053 CUSHION
WB6K5057 WB6K5057 CUSHION
WB6K5055 WB6K5055 CUSHION
WB6K5052 WB6K5052 CUSHION
WB6K5061 WB6K5061 CUSHION
WB6K5054 WB6K5054 CUSHION
WB6K5056 WB6K5056 CUSHION
WB6K5058 WB6K5058 CUSHION
WB6K5060 WB6K5060 CUSHION
WB6K5053 WB6K5053 CUSHION
WB8K5050 WB8K5050 DIODE **NLA*
WB56K5164 WB56K5164 DOOR A (1 2CFT 2PC)
WB07K5310 WB07K5310 DOOR BOTTOM TRIM
WB3K5309 WB3K5309 DOOR BUTTON
WB55K5085 WB55K5085 DOOR C
WB55K5086 WB55K5086 DOOR E ASSEMBLY
WB15K5108 WB15K5108 DOOR HANDLE-BLACK
WB15K5110 WB15K5110 DOOR HANDLE-WHITE
WB10K5022 WB10K5022 DOOR KEY A
WB34K5200 WB34K5200 DOOR LOCK PLATE
WB03K5309 WB03K5309 DOOR OPEN BUTTON
WB57K5314 WB57K5314 DOOR SCREEN A
WB18K5490 WB18K5490 DOOR SWITCH WIRE HARNESS
WB07K5300 WB07K5300 DOOR TRIM SHIELD
WB34T10114 WB34T10114 DOOR VENT SHIELD
WB7K5300 WB7K5300 DR TRIM SHLD
WB2K5412 WB2K5412 ESCUT BASE
WB02K5412 WB02K5412 ESCUTCHEON BASE
WB38K5059 WB38K5059 EXHAUST COVER A(DO-BI 2)
WB26K5061 WB26K5061 FAN ASM -CONTROL-UPR
WB02X8351 WB02X8351 FAN BLADE
WB26K5055 WB26K5055 FAN COVER
WB6K5041 WB6K5041 FAN HOUS SCR
WB06K5041 WB06K5041 FAN HOUSING SCREEN
WB26K5073 WB26K5073 FAN MOTOR
WB02K5386 WB02K5386 FAN SUPPORT
WB02T10020 WB02T10020 FAN SUPPORT
WB01K5115 WB01K5115 FELT PAD
WB1K5115 WB1K5115 FELT PAD
WB55T10070 WB55T10070 FRAME OVEN DR ASSEMBLY (WHITE)
WB63K5172 WB63K5172 FRONT FRAME
WB27X7 WB27X7 FUSE
WB35K5070 WB35K5070 FUSE INSULATOR
WB57K5313 WB57K5313 GLASS TRAY
WB26K5067 WB26K5067 GLASS TRAY MOTOR
WB01X1260 WB01X1260 GROUND WASHER
WB1X1260 WB1X1260 GRUND WASHER
WB18K5630 WB18K5630 HARNESS WIRE MICROWAV
WB2X7729 WB2X7729 HINGE
WB10K5021 WB10K5021 HINGE A (DO-BI 2)
WB14T10006 WB14T10006 HINGE ASSEMBLY LEFT
WB14T10005 WB14T10005 HINGE ASSEMBLY RT
WB10K5020 WB10K5020 HINGE B (DO-BI 2)
WB2K5417 WB2K5417 HOOK SPACER
WB02K5416 WB02K5416 HOOK SPACER B
WB02K5417 WB02K5417 HOOK SPACER C
WB8K5013 WB8K5013 HOUS ASM REC
WB08K5013 WB08K5013 HOUSING ASM RECEPTACLE
WB07K5472 WB07K5472 I-BROW TRIM-WHITE
WB7K5472 WB7K5472 I-BROW TRM
WB07T10177 WB07T10177 INNER VENT TRIM
WB07K5466 WB07K5466 INNER VENT TRIM-BLACK
31-10198 31-10198 INSTALLATION INSTRUCTION
WB2K5322 WB2K5322 INSUL RETNR
WB35K5097 WB35K5097 INSULATION OVEN DR SD
WB02K5322 WB02K5322 INSULATION RETAINER
WB35K5118 WB35K5118 INSULATION TOP/SDS (INR)
WB35K5119 WB35K5119 INSULATION TOP/SDS (OUT)
WB08K5056 WB08K5056 JACK RECEPTACLE
WB8K5049 WB8K5049 LAMP HOLDER
WB24K5138 WB24K5138 LATCH SWITCH B
WB18K5656 WB18K5656 LEAD WIRE
WB18K5655 WB18K5655 LEAD WIRE
WB25K5025 WB25K5025 LENS OVEN LAMP
WB24K5127 WB24K5127 LIMIT SWITCH
WB15K5075 WB15K5075 LOCK LEVER ASM
WB26K5036 WB26K5036 LOCK MOTOR
WB01K5046 WB01K5046 LOCKWASHER
WB02K5306 WB02K5306 LOWER OVN INSLN RETAINER
WB6K5049 WB6K5049 M/W BACK PLT
WB02K5397 WB02K5397 M/W BASE PLATE
WB2K5397 WB2K5397 M/W BASE PLT
WB08K5055 WB08K5055 M/W CAPACITOR
WB8K5055 WB8K5055 M/W CAPACITR
WB02K5398 WB02K5398 M/W CEILING COVER PLATE
WB18K5668 WB18K5668 M/W CONTROL HARNESS
WB2K5398 WB2K5398 M/W COVER PL
WB2K5405 WB2K5405 M/W COVER-LO
WB2K5404 WB2K5404 M/W COVER-UP
WB08K5050 WB08K5050 M/W DIODE
WB55K5087 WB55K5087 M/W DOOR ASSEMBLY-WHITE
WB55K5088 WB55K5088 M/W DOOR C-WHITE
WB56K5167 WB56K5167 M/W DOOR FRAME-WHITE
WB09K5023 WB09K5023 M/W DOOR KEY SPRING
WB6K5063 WB6K5063 M/W DOOR LVR
WB06K5063 WB06K5063 M/W DOOR OPENING LEVER
WB57K5339 WB57K5339 M/W DR GLASS BLACK
WB57K5338 WB57K5338 M/W DR GLASS-WHITE
WB06K5064 WB06K5064 M/W ESCUT SHEET ASM-WHT
WB06K5049 WB06K5049 M/W ESCUTCHEON BACK PLTE
WB02K5400 WB02K5400 M/W FAN BLADE
WB2K5400 WB2K5400 M/W FAN BLDE
WB08K5051 WB08K5051 M/W FUSE
WB2K5399 WB2K5399 M/W FUSE HLD
WB02K5399 WB02K5399 M/W FUSE HOLDER
WB6K5062 WB6K5062 M/W GRD CAP
WB06K5062 WB06K5062 M/W GROUNDING PLATE CAP
WB20K5047 WB20K5047 M/W HI VOLT TRANSFORMER
WB8K5048 WB8K5048 M/W LAME
WB08K5049 WB08K5049 M/W LAMP HOLDER
31-13275 31-13275 M/W MINI MNL W/WIRE DIAG
WB02K5401 WB02K5401 M/W ORIFICE
WB2K5401 WB2K5401 M/W ORIFICE
WB63K5203 WB63K5203 M/W OUTER PANEL
WB63K5202 WB63K5202 M/W OVEN BODY
WB08K5048 WB08K5048 M/W OVEN LAMP
WB27K5309 WB27K5309 M/W PCB ASM
WB20K5045 WB20K5045 M/W PIEZO SENSOR
WB26K5064 WB26K5064 M/W PULLEY SHAFT
WB01K5205 WB01K5205 M/W PULLEY WASHER
WB26K5066 WB26K5066 M/W ROLLER
WB26K5065 WB26K5065 M/W ROLLER RING
WB01X1051 WB01X1051 M/W SCREW
WB01K5219 WB01K5219 M/W SCREW
WB01K5218 WB01K5218 M/W SCREW
WB01X5779 WB01X5779 M/W SCREW
WB1K5218 WB1K5218 M/W SCREW
WB1K5219 WB1K5219 M/W SCREW
WB1K5217 WB1K5217 M/W SCREW
WB01K5217 WB01K5217 M/W SCREW-MAG THERMO SW
WB01X1275 WB01X1275 M/W SCREW-WHT
WB2K5396 WB2K5396 M/W SENSOR
WB02K5405 WB02K5405 M/W SENSOR COVER-LOWER
WB02K5404 WB02K5404 M/W SENSOR COVER-UPPER
WB02K5396 WB02K5396 M/W SENSOR MTG PLATE
WB6K5064 WB6K5064 M/W SHEET
WB63K5207 WB63K5207 M/W SLIDE RAIL-LT
WB63K5206 WB63K5206 M/W SLIDE RAIL-RT
WB09K5024 WB09K5024 M/W SPRING
WB9K5023 WB9K5023 M/W SPRING
WB24K5140 WB24K5140 M/W THERMAL CUT OUT
WB27K5310 WB27K5310 MAGNETRON
WB18K5604 WB18K5604 MAIN WIRE HARNESS
31-13274 31-13274 MINI MANUAL W/WIRE DIAG.
WB10K5023 WB10K5023 N/L/A 10/05/06
WB9K5024 WB9K5024 N/L/A 10/10/06
WB02X8454 WB02X8454 NUT
WB2X8454 WB2X8454 NUT
WB1X5572 WB1X5572 NUT
WB01X5572 WB01X5572 NUT MEAT PROBE
WB2K5304 WB2K5304 OV CAV SUPT
WB57K5233 WB57K5233 OV DOOR OUTER GLASS-WHITE
WB63K5177 WB63K5177 OVEN BODY-CONVEX
WB02K5304 WB02K5304 OVEN CAVITY SUPPORT
WB32K5039 WB32K5039 OVEN DOOR GASKET
WB02K5310 WB02K5310 OVEN DOOR GLASS RETAINER
WB57K5230 WB57K5230 OVEN DOOR GLASS-INNER
WB55K5035 WB55K5035 OVEN DOOR LINING
WB57K5212 WB57K5212 OVEN DOOR OUTER GLASS-BLACK
WB08K5042 WB08K5042 OVEN LAMP HOLDER
WB8K5042 WB8K5042 OVLAMP HLDR
WB01K5199 WB01K5199 PAL NUT
WB1K5199 WB1K5199 PAL NUT
WB2X8309 WB2X8309 PR0BE COVER
WB20T10024 WB20T10024 PROBE
WB48K5022 WB48K5022 RACK OVEN
WB02T10225 WB02T10225 RAIL SLIDE RT
WB44T10053 WB44T10053 RANGE CONVECTION ELEMENT
WB8K5056 WB8K5056 RECEPTACLE
WB2K5387 WB2K5387 RETAINER
WB56T10373 WB56T10373 RETAINER GLASS OVEN DR
WB02T10143 WB02T10143 RETAINER INSLN BTM
WB48X5108 WB48X5108 ROAST RACK
WR01X1850 WR01X1850 SCR 7-19 HXW 1/2
WH02X0941 WH02X0941 SCR 8-15 A HXW 7/8 S
WZ04X0044 WZ04X0044 SCREW
WB01X1178 WB01X1178 SCREW
WB01X1253 WB01X1253 SCREW
WB01X1137 WB01X1137 SCREW
WB01M0001 WB01M0001 SCREW
WB01K5116 WB01K5116 SCREW
WB01K5200 WB01K5200 SCREW
WB01X1116 WB01X1116 SCREW
WB01K5101 WB01K5101 SCREW
WB01K5098 WB01K5098 SCREW
WB01K5029 WB01K5029 SCREW
WB01K5104 WB01K5104 SCREW
WB01K5099 WB01K5099 SCREW
WB01K5097 WB01K5097 SCREW
WB1X1275 WB1X1275 SCREW
WB1X1293 WB1X1293 SCREW
WB1K5099 WB1K5099 SCREW
WB1K5116 WB1K5116 SCREW
WB1K5104 WB1K5104 SCREW
WB1K5097 WB1K5097 SCREW
WB1X1178 WB1X1178 SCREW
WR1X1850 WR1X1850 SCREW
WB1X5779 WB1X5779 SCREW
WB1K5091 WB1K5091 SCREW
WB1K5067 WB1K5067 SCREW
WB1K5029 WB1K5029 SCREW
WB1X1116 WB1X1116 SCREW
WB1X1261 WB1X1261 SCREW
WB1M1 WB1M1 SCREW
WH2X930 WH2X930 SCREW 8-18 AB HXW 3/8
WB1K5172 WB1K5172 SCREW 8-18 X 3/4 WHITE
WB01X1261 WB01X1261 SCREW GROUND
WB01M0027 WB01M0027 SCREW ST 6-20X.437 TR
WB1K5173 WB1K5173 SCREW ST 8-18 X 3/4 BLK
WB01K5150 WB01K5150 SCREW ST10-16 X 7/16""
WB01X1293 WB01X1293 SCREW TC10-32X.250HEXNI
WB01X1424 WB01X1424 SCREW, TRANSFORMER
WB1X1130 WB1X1130 SCREW-10-32
WB1X1137 WB1X1137 SCREW-10AB
WB1X1118 WB1X1118 SCREW-6-32T 6-20 X 3/8
WB01K5091 WB01K5091 SCREW-CHROME
WB01X1158 WB01X1158 SCREW-NICKEL
WB1X1424D WB1X1424D SCREW-PKG 12
WH2X941D WH2X941D SCREW-PKG 12
WZ4X44D WZ4X44D SCREW-PKG 12
WB01K5161 WB01K5161 SCREW-WHITE
WB01K5185 WB01K5185 SCREW-WHITE
WB1K5185 WB1K5185 SCREW-WHITE
WB1K5161 WB1K5161 SCREW-WHITE
WB01K5067 WB01K5067 SCREW-WHT
WB2K5306 WB2K5306 SD INSUL RET
WB2K5414 WB2K5414 SENSOR COVER
WB2K5415 WB2K5415 SENSOR COVER
WB02K5414 WB02K5414 SENSOR COVER A
WB02K5415 WB02K5415 SENSOR COVER C
WB20K5048 WB20K5048 SENSOR UNIT
WB23X5340 WB23X5340 SENSOR-OVEN
WB24K5139 WB24K5139 SHORT SWITCH
WB34K5233 WB34K5233 SIDE WIRE COVER
WB2K5385 WB2K5385 SLIDE RAIL-L
WB02K5385 WB02K5385 SLIDE RAIL-LT
WB02K5384 WB02K5384 SLIDE RAIL-RT
WB2X9719 WB2X9719 SUPP-BROIL
WB02K5411 WB02K5411 SUPPORT
WB2K5411 WB2K5411 SUPPORT
WB2K5388 WB2K5388 SUPPORT BKT
WB24X5214 WB24X5214 SWITCH DOOR
WB24K5135 WB24K5135 SWITCH LIMIT
WB24T10147 WB24T10147 SWITCH SPDT HIGH AMP
WB02K5387 WB02K5387 TOP INSULATION RETAINER
WB34K5234 WB34K5234 TOP WIRE COVER
WB7K5429 WB7K5429 TRIM ASM
WB07K5429 WB07K5429 TRIM ASSEMBLY
WB07K5420 WB07K5420 TRIM ASSEMBLY-WHITE
WB07T10038 WB07T10038 TRIM BTM (WH
WB01K5173 WB01K5173 TRIM SCREW-BLK
WB01K5172 WB01K5172 TRIM SCREW-WHITE
WB02K5388 WB02K5388 TRIM SUPPORT BRACKET
WB7K5420 WB7K5420 TRIMASM-WHIT
WB28K5010 WB28K5010 TUBE VENT
WB48X10056 WB48X10056 TWO-PIECE PORCELAIN-COATED BROILER
WB26K5054 WB26K5054 UPR FAN CVR
49-8690 49-8690 USE & CARE JTP94 95
WB7K5517 WB7K5517 VERT SDE TRM
WB7K5518 WB7K5518 VERT SDE TRM
WB07K5518 WB07K5518 VERT SIDE TRIM-LT-WHT
WB07K5517 WB07K5517 VERT SIDE TRIM-RT-WHT
WB01K5198 WB01K5198 WASHER
WB01X5573 WB01X5573 WASHER
WB01X1140 WB01X1140 WASHER
WB01K5174 WB01K5174 WASHER
WB1K5117 WB1K5117 WASHER
WB1K5198 WB1K5198 WASHER
WB1K5174 WB1K5174 WASHER
WB1X1140 WB1X1140 WASHER
WB1X5573 WB1X5573 WASHER
WB1K5046 WB1K5046 WASHER
WB01K5117 WB01K5117 WASHER .250 ID X .812 OD
WB07T10127 WB07T10127 WB07T10127
WB35T10090 WB35T10090 WB35K5116
WB38K5051 WB38K5051 WB38K5051
WB55T10060 WB55T10060 WB55T10060
WB56K20 WB56K20 WIND PACK LG
WB2K5321 WB2K5321 WIND SPACER
WB02X8320 WB02X8320 WINDOW CLIP
WB02K5321 WB02K5321 WINDOW SPACER
WB34K5193 WB34K5193 WIRE COVER UPPER RR
WB34K5192 WB34K5192 WIRE COVER-LWR RR
WB18K5654 WB18K5654 WIRE HARNESS (DO-BI 2)
WZ4X416 WZ4X416 WZ04X0408
Main Menu x
