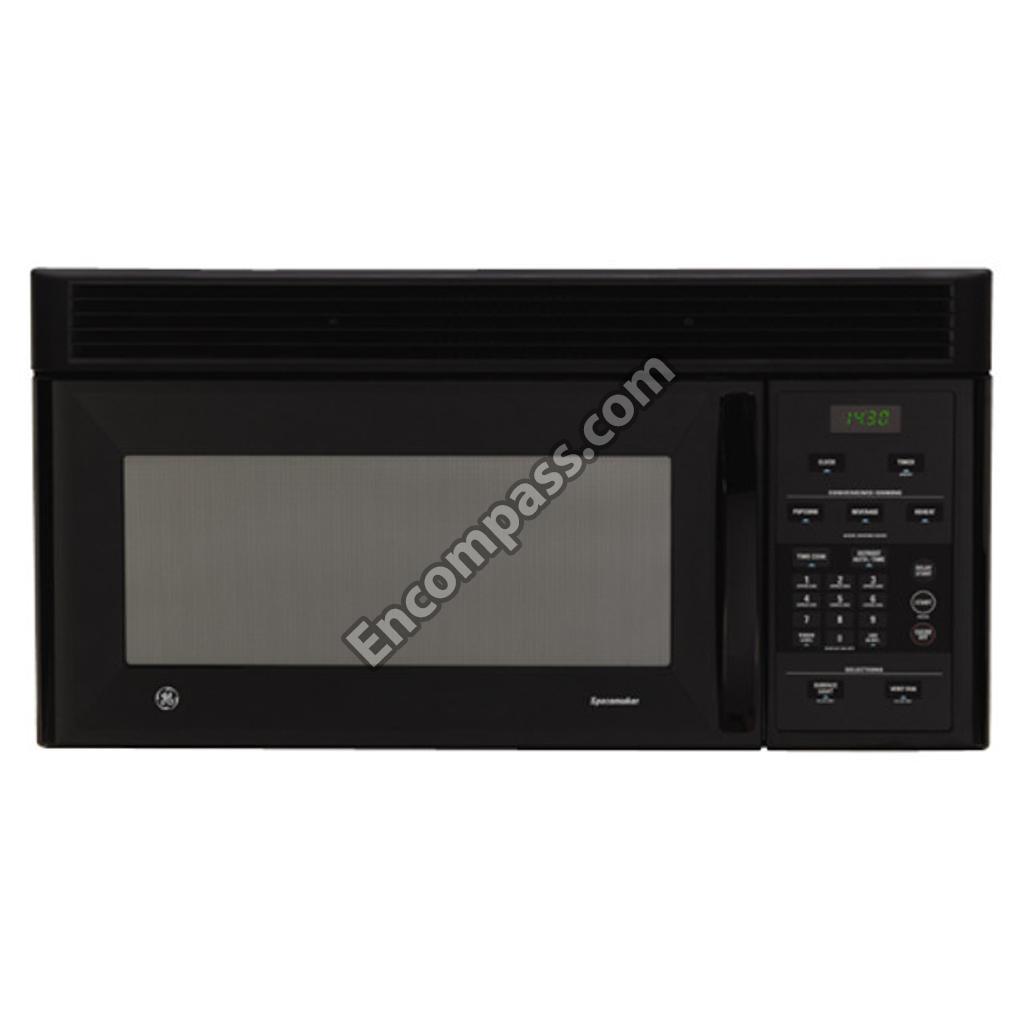

Model Image
Manufacturer

GE

Model Number

JVM1430B

Description

Ge Microwave Model Jvm1430b Parts

Interactive Exploded View

Parts List

Part Number Description
WB26X10045 WB26X10045 ASSEMBLY COVER MOTOR
WB01X10067 WB01X10067 ASSEMBLY-HARDWARE
WB18X10053 WB18X10053 ASSEMBLY-POWER CORD
WB56X10266 WB56X10266 BASE-BOTTOM
WB56X10212 WB56X10212 BASE-PLATE
WB06X10167 WB06X10167 BKT-FILTER
WB06X10443 WB06X10443 BKT-GRILLE
WB01X10064 WB01X10064 BOLT-FLANGE
WB06X10127 WB06X10127 BOLY-LATCH
WB06X10131 WB06X10131 BRACKET COOKTOP GLASS
WB06X10147 WB06X10147 BRACKET-AIR GUIDE A
WB06X10434 WB06X10434 BRACKET-BARRIER
WB06X10117 WB06X10117 BRACKET-BOTTOM LAMP
WB06X10296 WB06X10296 BRACKET-BOTTOM LAMP
WB06X10148 WB06X10148 BRACKET-DUCT UPPER ASSEMBLY
WB06X10118 WB06X10118 BRACKET-H V C
WB06X10439 WB06X10439 BRACKET-LEFT
WB06X10122 WB06X10122 BRACKET-POWER CORD
WB06X10165 WB06X10165 BRACKET-V/T MOTOR
WB27X10240 WB27X10240 CAPACITOR 2100V/0.86 MICROF
WB27X10011 WB27X10011 CAPACITOR 2100V/0.91 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB2X9883 WB2X9883 CHARCOAL FILTER
WB55X10532 WB55X10532 CHOKE COVER
WB07X10193 WB07X10193 CONTROL PANEL
WB07X10735 WB07X10735 CONTROL PANEL ASM
WB06X10420 WB06X10420 COUPLER TT
WB06X10138 WB06X10138 COUPLER-TT
WB36X10171 WB36X10171 COVER LAMP
WB06X10281 WB06X10281 COVER TCO-BOTTOM
WB06X10129 WB06X10129 COVER-DAMPER
WB06X10132 WB06X10132 COVER-FRONT
WB06X10130 WB06X10130 COVER-STIRRER
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB36X10070 WB36X10070 DISPLAY WINDOW
WB56X10342 WB56X10342 DOOR ASSEMBLY BLACK
WB10X10012 WB10X10012 DOOR KEY
WB55X10144 WB55X10144 DOOR LINER & CHOKE BLACK
WB55X10531 WB55X10531 DOOR MAIN ASM
WB55X10599 WB55X10599 DOOR-A
WB36X10068 WB36X10068 FILM DOOR
WB6X486 WB6X486 FILTER AIR
WB07X10529 WB07X10529 FRAME CONTROL PANEL
WB55X10137 WB55X10137 FRAME-INNER DOOR
WB27X10928 WB27X10928 FUSE
WB06X10034 WB06X10034 FUSE HOLDER
WB36X10071 WB36X10071 GLASS COOKTOP LAMP
WB36X10167 WB36X10167 GLASS-COOK TOP LAMP
WB07X10525 WB07X10525 GRILLE
WB07X10530 WB07X10530 GRILLE ASSEMBLY
WB15X10022 WB15X10022 HANDLE ASSEMBLY
WB14X10014 WB14X10014 HINGE- LOWER
WB14X10015 WB14X10015 HINGE- UPPER
WB06X10436 WB06X10436 HOOD DAMPER ASSEMBLY
WB36X10003 WB36X10003 LAMP-INCANDESCENT
WB05X10007 WB05X10007 LATCH PAWL
WB06X10289 WB06X10289 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
WB27X10017 WB27X10017 MAGNETRON ASSEMBLY
WB26X10105 WB26X10105 MOTOR MAG FAN ASSEMBLY
WB26X10037 WB26X10037 MOTOR-DRIVE
WB26X10038 WB26X10038 MOTOR-SYNCHRONOUS
WB26X10042 WB26X10042 MOTOR-VENTILATION
WB01X10181 WB01X10181 MOUNTING HARDWARE ASM
WB56X10862 WB56X10862 MOUNTING PLATE W\MANUAL
WB01X10065 WB01X10065 NUT MAGNETRON
WB01X10071 WB01X10071 NUT TOP MOUNTING
WB56X10083 WB56X10083 PANEL-OUTER
WB56X10267 WB56X10267 PANEL-OUTER
WB27X10655 WB27X10655 PCB PARTS ASSEMBLY
WB06X10060 WB06X10060 PIN-HINGE
WB06X10139 WB06X10139 ROLLER GUIDE RING
WB27X10195 WB27X10195 S/W THERMO
WB36X10206 WB36X10206 SCREEN-DOOR(B)
WB01X10062 WB01X10062 SCREW - GRILLE
WB01X10063 WB01X10063 SCREW LAMP SOCKET
WB08X10016 WB08X10016 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB06X10416 WB06X10416 STIRRER ASSEMBLY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB27X10194 WB27X10194 TCO HOOD
WB27X1127 WB27X1127 THERMO SW-TCO SENSE TEMP
WB27X10166 WB27X10166 THERMOSTAT
WB27X10133 WB27X10133 TRANS-H V
WB39X10003 WB39X10003 TRAY-COOKING
WB27X10422 WB27X10422 UPPER DUCT ASSEMBLY
WB18X10139 WB18X10139 WIRE GND PCB
WB18X10055 WB18X10055 WIRE HARNESS-B
WB18X10193 WB18X10193 WIRE HARNESS-D
WB01X10135 WB01X10135 WIRE SADDLE
