Model Image
Manufacturer

GE

Model Number

JVM1441WH03

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description

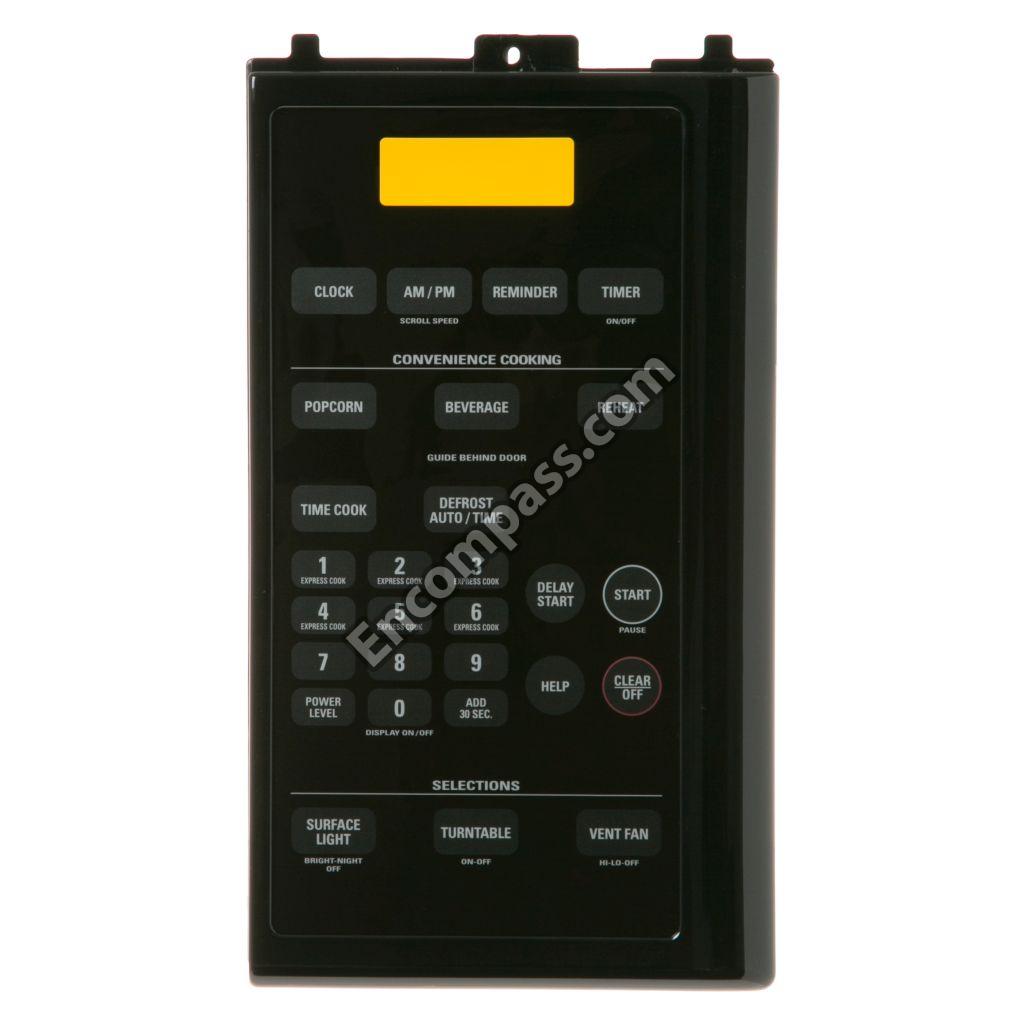

WB07X10950 WB07X10950 ASM-CONTOL PANEL
WB07X10951 WB07X10951 ASM-CONTOL PANEL
WB18X10053 WB18X10053 ASSEMBLY-POWER CORD
WB56X10268 WB56X10268 BASE-BOTTOM
WB56X10266 WB56X10266 BASE-BOTTOM
WB56X10212 WB56X10212 BASE-PLATE
WB06X10443 WB06X10443 BKT-GRILLE
WB06X10147 WB06X10147 BRACKET-AIR GUIDE A
WB06X10434 WB06X10434 BRACKET-BARRIER
WB06X10296 WB06X10296 BRACKET-BOTTOM LAMP
WB06X10148 WB06X10148 BRACKET-DUCT UPPER ASSEMBLY
WB06X10118 WB06X10118 BRACKET-H V C
WB06X10439 WB06X10439 BRACKET-LEFT
WB06X10122 WB06X10122 BRACKET-POWER CORD
WB06X10165 WB06X10165 BRACKET-V/T MOTOR
WB06X10126 WB06X10126 BUTTON-LOCK
WB27X10240 WB27X10240 CAPACITOR 2100V/0.86 MICROF
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB56X10269 WB56X10269 CASE OUTER
WB2X9883 WB2X9883 CHARCOAL FILTER
WB55X10532 WB55X10532 CHOKE COVER
WB55X10535 WB55X10535 CHOKE COVER
WB06X10420 WB06X10420 COUPLER TT
WB36X10168 WB36X10168 COVER LAMP
WB36X10171 WB36X10171 COVER LAMP
WB06X10281 WB06X10281 COVER TCO-BOTTOM
WB06X10132 WB06X10132 COVER-FRONT
WB06X10130 WB06X10130 COVER-STIRRER
WB27X1160 WB27X1160 DIODE ASSEMBLY
WB56X10265 WB56X10265 DOOR ASM
WB56X10270 WB56X10270 DOOR ASM
WB55X10531 WB55X10531 DOOR MAIN ASM
WB55X10534 WB55X10534 DOOR MAIN ASM
WB55X10533 WB55X10533 DOOR OUTER FRAME
WB55X10530 WB55X10530 DOOR OUTER FRAME
WB36X10068 WB36X10068 FILM DOOR
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB06X10034 WB06X10034 FUSE HOLDER
WB36X10167 WB36X10167 GLASS-COOK TOP LAMP
WB07X10533 WB07X10533 GRILLE ASSEMBLY
WB07X10530 WB07X10530 GRILLE ASSEMBLY
WB27X10868 WB27X10868 H.V. TRANSFORMER
WB15X10023 WB15X10023 HANDLE
WB15X10022 WB15X10022 HANDLE ASSEMBLY
WB06X10437 WB06X10437 HARDWARE BAG ASSEMBLY
WB06X10435 WB06X10435 HARDWARE BAG ASSEMBLY
WB06X10224 WB06X10224 HOLDER-RACK-B
WB06X10436 WB06X10436 HOOD DAMPER ASSEMBLY
49-40217 49-40217 LABEL-COOKING GUIDE
WB36X10003 WB36X10003 LAMP-INCANDESCENT
WB05X10005 WB05X10005 LATCH PAWL
WB05X10007 WB05X10007 LATCH PAWL
WB06X10432 WB06X10432 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
WB39X10003 WB39X10003 MICROWAVE GLASS TRAY
WB6X486 WB6X486 MICROWAVE GREASE FILTER
WB27X10017 WB27X10017 MICROWAVE MAGNETRON
31-40046 31-40046 MINI MANUAL
WB26X10105 WB26X10105 MOTOR MAG FAN ASSEMBLY
WB26X10037 WB26X10037 MOTOR-DRIVE
WB26X10038 WB26X10038 MOTOR-SYNCHRONOUS
WB26X10042 WB26X10042 MOTOR-VENTILATION
WB01X10181 WB01X10181 MOUNTING HARDWARE ASM
WB56X10862 WB56X10862 MOUNTING PLATE W\MANUAL
WB01X10065 WB01X10065 NUT MAGNETRON
WB01X10071 WB01X10071 NUT TOP MOUNTING
49-40366-1 49-40366-1 OWNERS MANUAL
WB56X10267 WB56X10267 PANEL-OUTER
WB06X10060 WB06X10060 PIN-HINGE
WB06X10223 WB06X10223 RACK HOLDER LF/RR
WB48X10021 WB48X10021 RACK WIRE ASM
WB06X10139 WB06X10139 ROLLER GUIDE RING
WB27X10195 WB27X10195 S/W THERMO
WB36X10101 WB36X10101 SCREEN-DOOR B
WB36X10099 WB36X10099 SCREEN-DOOR(B)
WB01X10062 WB01X10062 SCREW - GRILLE
WB01X10063 WB01X10063 SCREW LAMP SOCKET
WB01X10068 WB01X10068 SCREW TAP PH
WB01X10084 WB01X10084 SCREW WASHER

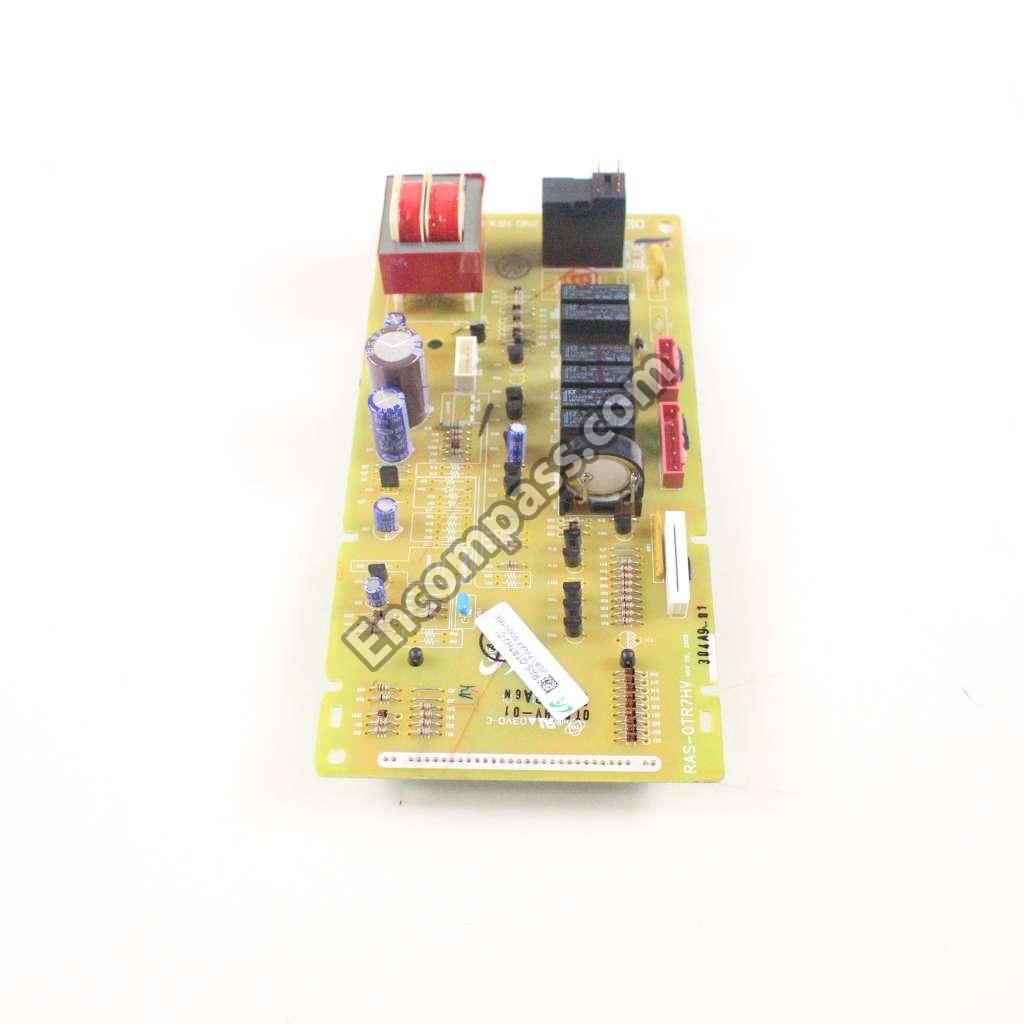

WB27X10871 WB27X10871 SMART BOARD
WB08X10016 WB08X10016 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB06X10416 WB06X10416 STIRRER ASSEMBLY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB21X0535 WB21X0535 TCO -BOTTOM
WB27X10194 WB27X10194 TCO HOOD
WB27X1127 WB27X1127 THERMO SW-TCO SENSE TEMP
WB27X10166 WB27X10166 THERMOSTAT
WB27X10422 WB27X10422 UPPER DUCT ASSEMBLY
WB18X10139 WB18X10139 WIRE GND PCB
WB18X10334 WB18X10334 WIRE HARNESS-A
WB18X10193 WB18X10193 WIRE HARNESS-D
WB01X10135 WB01X10135 WIRE SADDLE
