Model Image
Manufacturer

GE

Model Number

JVM1530DM1WW

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB01X10287 WB01X10287 ASM - HARD WARE
WB27X10827 WB27X10827 ASM - MGT
WB56X10733 WB56X10733 ASM BASE PLATE

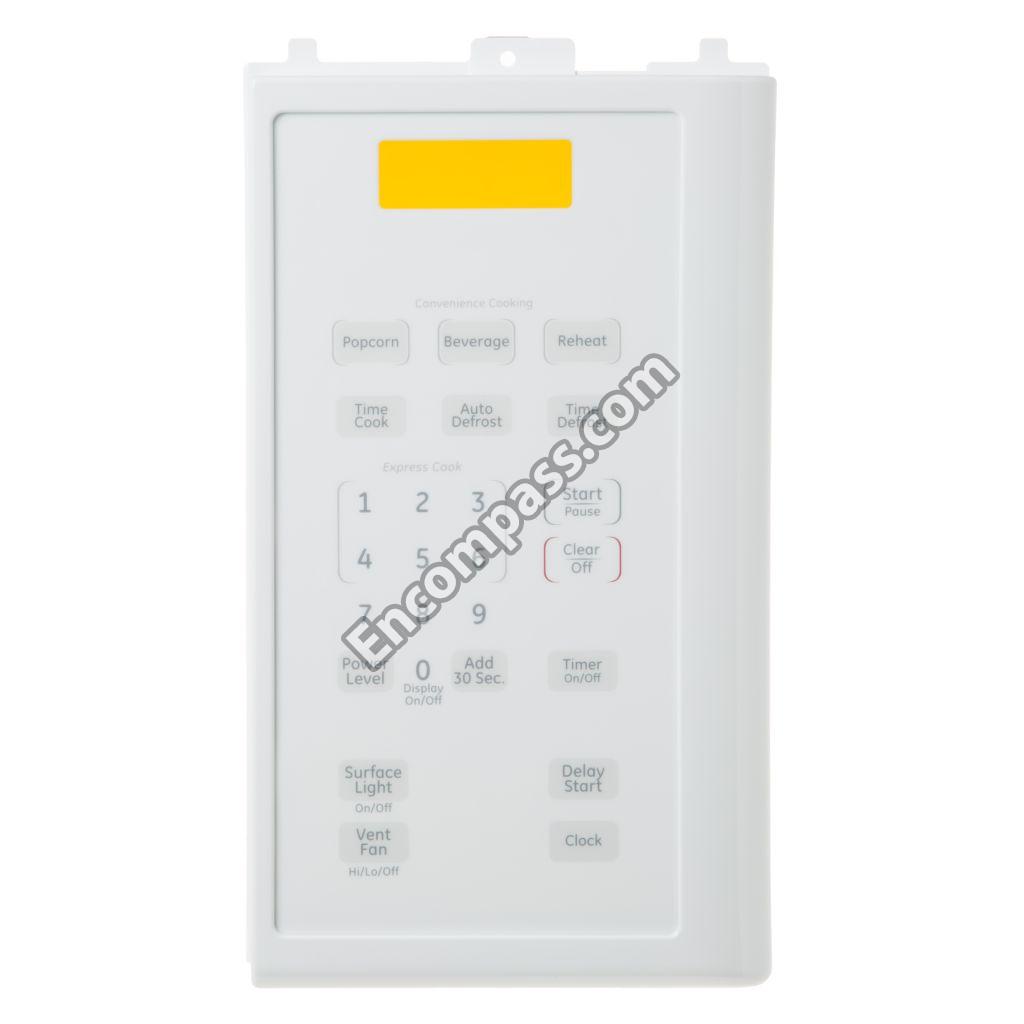

WB07X11077 WB07X11077 ASM CONTROL PANEL

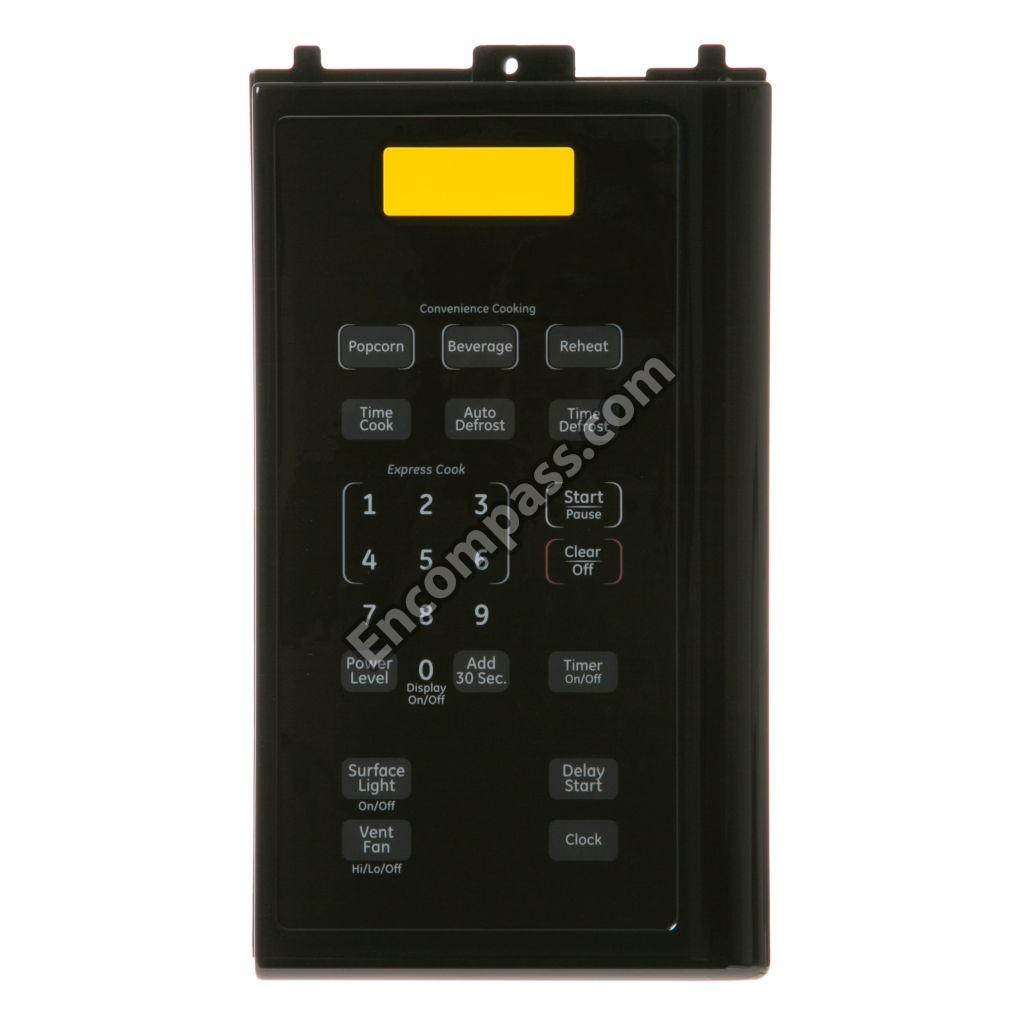

WB07X11079 WB07X11079 ASM CONTROL PANEL
WB56X10734 WB56X10734 ASM DOOR
WB56X10736 WB56X10736 ASM DOOR
WB56X10737 WB56X10737 ASM DOOR
WB55X10862 WB55X10862 ASM DOOR E
WB27X10828 WB27X10828 ASM P.C.B
WB56X10735 WB56X10735 BASE BOTTOM
WB56X10732 WB56X10732 BASE BOTTOM
WB01X10180 WB01X10180 BOLT-FLAT CAB MOUNTING
WB06X10722 WB06X10722 BRACKET BARRIER
WB06X10719 WB06X10719 BRACKET BARRIER
WB06X10718 WB06X10718 BRACKET DUCT(U)
WB06X10720 WB06X10720 BRACKET V/T CONNECTOR
WB06X10721 WB06X10721 BRACKET V/T STOPPER
WB06X10595 WB06X10595 BRACKET-HVC
WB27X10825 WB27X10825 C-OIL
WB27X10170 WB27X10170 CAPACITOR- MOTOR
WB55X10535 WB55X10535 CHOKE COVER
WB55X10532 WB55X10532 CHOKE COVER
WB06X10597 WB06X10597 COUPLER
WB02X11201 WB02X11201 COVER FRONT
WB06X10129 WB06X10129 COVER-DAMPER
WB36X10216 WB36X10216 COVER-GLASS
WB36X10217 WB36X10217 COVER-GLASS
WB02X11147 WB02X11147 COVER-MGT
WB36X10070 WB36X10070 DISPLAY WINDOW
WB55X10859 WB55X10859 DOOR E
WB55X10533 WB55X10533 DOOR OUTER FRAME
WB55X10613 WB55X10613 DOOR OUTER FRAME
WB55X10599 WB55X10599 DOOR-A
WB26X10209 WB26X10209 DUCT UPPER
WB36X10068 WB36X10068 FILM DOOR
WB06X10596 WB06X10596 FILTER-AIR
WB07X10529 WB07X10529 FRAME CONTROL PANEL
WB07X10532 WB07X10532 FRAME CONTROL PANEL
WB27X10388 WB27X10388 FUSE
WB27X10928 WB27X10928 FUSE
WB36X10071 WB36X10071 GLASS COOKTOP LAMP
WB07X11080 WB07X11080 GRILLE
WB07X11078 WB07X11078 GRILLE
WB07X11084 WB07X11084 GRILLE
WB06X10717 WB06X10717 GUIDE AIR
WB15X10144 WB15X10144 HANDLE BLK
WB15X10154 WB15X10154 HANDLE WHT
WB06X10436 WB06X10436 HOOD DAMPER ASSEMBLY
WB36X10003 WB36X10003 LAMP-INCANDESCENT
WB05X10005 WB05X10005 LATCH PAWL
WB05X10007 WB05X10007 LATCH PAWL
WB06X10676 WB06X10676 LATCH-BODY
WB06X10128 WB06X10128 LEVER-S/W
WB27X10597 WB27X10597 MICROWAVE DIODE
WB39X10003 WB39X10003 MICROWAVE GLASS TRAY
31-40067 31-40067 MINI MANUAL
WB26X10168 WB26X10168 MOTOR DRIVE
WB26X10223 WB26X10223 MOTOR VENTILATION
WB02X11200 WB02X11200 NOISE FILTER ASM
WB01X10071 WB01X10071 NUT TOP MOUNTING
WB56X10607 WB56X10607 PANEL-OUTER
WB56X10612 WB56X10612 PANEL-OUTER
WB06X10060 WB06X10060 PIN-HINGE
WB56X10608 WB56X10608 PLATE-MOUNTING
WB18X10200 WB18X10200 POWER CORD ASSEMBLY
WB06X10374 WB06X10374 ROLLER GUIDE ASSEMBLY
WB27X10195 WB27X10195 S/W THERMO
WB36X10285 WB36X10285 SCREEN-DOOR(B)
WB36X10282 WB36X10282 SCREEN-DOOR(B)
WB08X10016 WB08X10016 SOCKET LAMP
WB05X10006 WB05X10006 SPRING-KEY
WB24X830 WB24X830 SW-MONITOR
WB24X829 WB24X829 SW-SECONDARY
WB27X10194 WB27X10194 TCO HOOD
WB27X10166 WB27X10166 THERMOSTAT
WB27X10826 WB27X10826 TRANS H.V
49-40542 49-40542 USE & CARE
WB18X10122 WB18X10122 WIRE GND PCB
WB18X10282 WB18X10282 WIRE HARNESS-A
