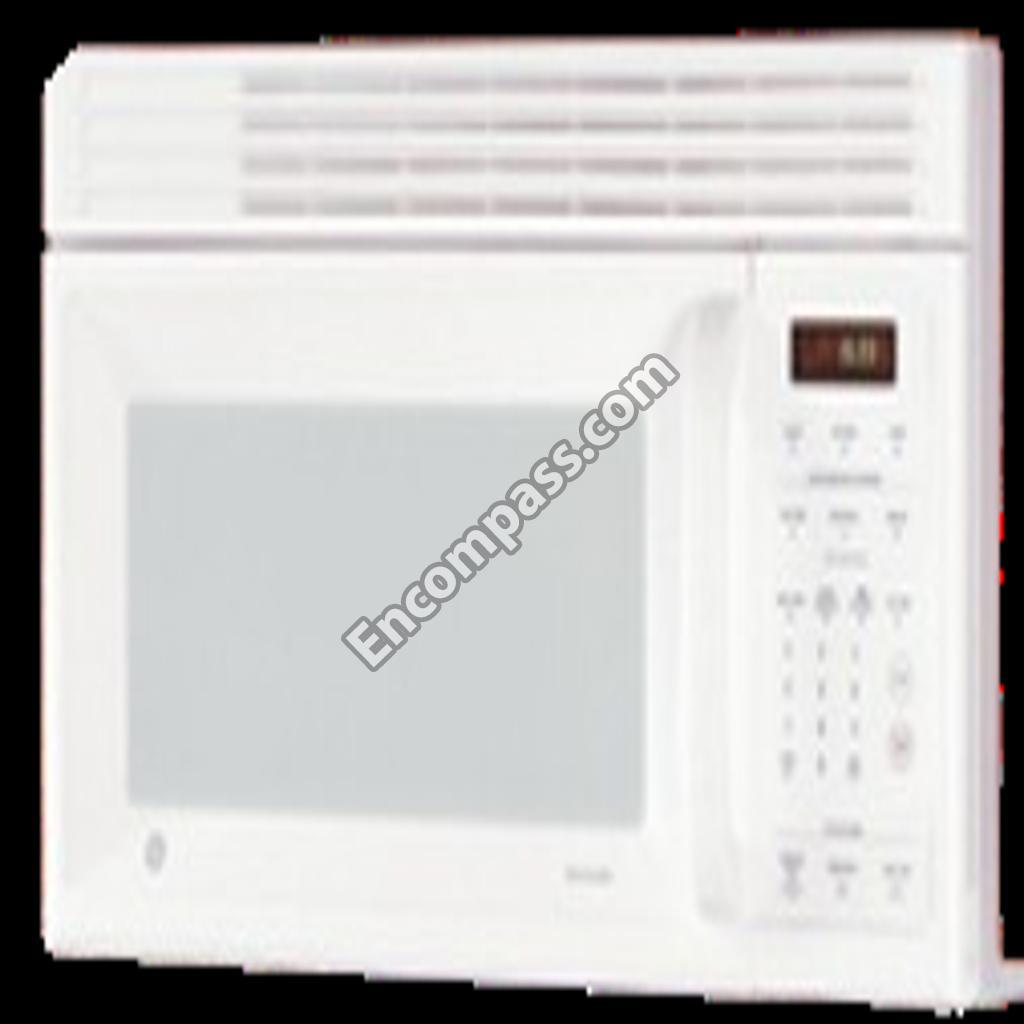

Model Image
Manufacturer

GE

Model Number

JVM1533WD002

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB56X10232 WB56X10232 BASE PLATE
WB56X10236 WB56X10236 BASE-BOTTOM
WB06X10210 WB06X10210 BLADE-STIRRER
WB02X32720 WB02X32720 BOARD - LATCH
WB06X10368 WB06X10368 BRACKET ASSEMBLY
WB06X10367 WB06X10367 BRACKET ASSEMBLY
WB06X10362 WB06X10362 BRACKET CAPACITOR
WB06X10555 WB06X10555 BRACKET CONTROL PANEL
WB06X10358 WB06X10358 BRACKET COOKTOP GLASS
WB06X10557 WB06X10557 BRACKET COOKTOP GLASS
WB06X10364 WB06X10364 BRACKET-BOTTOM LAMP
WB02X10761 WB02X10761 CANOPY RESIN
WB27X10233 WB27X10233 CAPACITOR HIGH VOLT
WB56X10234 WB56X10234 CASE OUTER
WB56X10523 WB56X10523 CASE OUTER
WB02X33061 WB02X33061 CHARCOAL FILTER
WB55X10725 WB55X10725 CHOKE COVER
WB07X10815 WB07X10815 CONTROL PANEL
WB49X10129 WB49X10129 COOKING TRAY
WB27X10037 WB27X10037 DIODE-CABLE ASM
WB55X10464 WB55X10464 DOOR ASSEMBLY
WB55X10461 WB55X10461 DOOR ASSEMBLY
WB55X10727 WB55X10727 DOOR LINER & CHOKE
WB55X10723 WB55X10723 DOOR OUTER FRAME
WB55X10726 WB55X10726 DOOR OUTER FRAME
WB36X10294 WB36X10294 DRAWING LAMP
WB06X10568 WB06X10568 EXHAUST ADAPTER
WB02X32715 WB02X32715 EXHAUST ADAPTER
WB36X10196 WB36X10196 FILM-DOOR
WB06X10359 WB06X10359 FILTER GREASE
WB27X10928 WB27X10928 FUSE
WB06X10205 WB06X10205 FUSE HOLDER
WB36X10293 WB36X10293 GLASS
WB27X10499 WB27X10499 H V TRANSFORMER
WB15X10076 WB15X10076 HANDLE
WB01X10132 WB01X10132 HARDWARE ASM
WB18X10249 WB18X10249 HARNESS
WB06X10365 WB06X10365 HOLDER
49-40193 49-40193 INSTALLATION INSTRUCTION
WB27X10507 WB27X10507 KEY PANEL
WB27X10500 WB27X10500 KEY PANEL
49-40204 49-40204 LABLE COOKING GUIDE

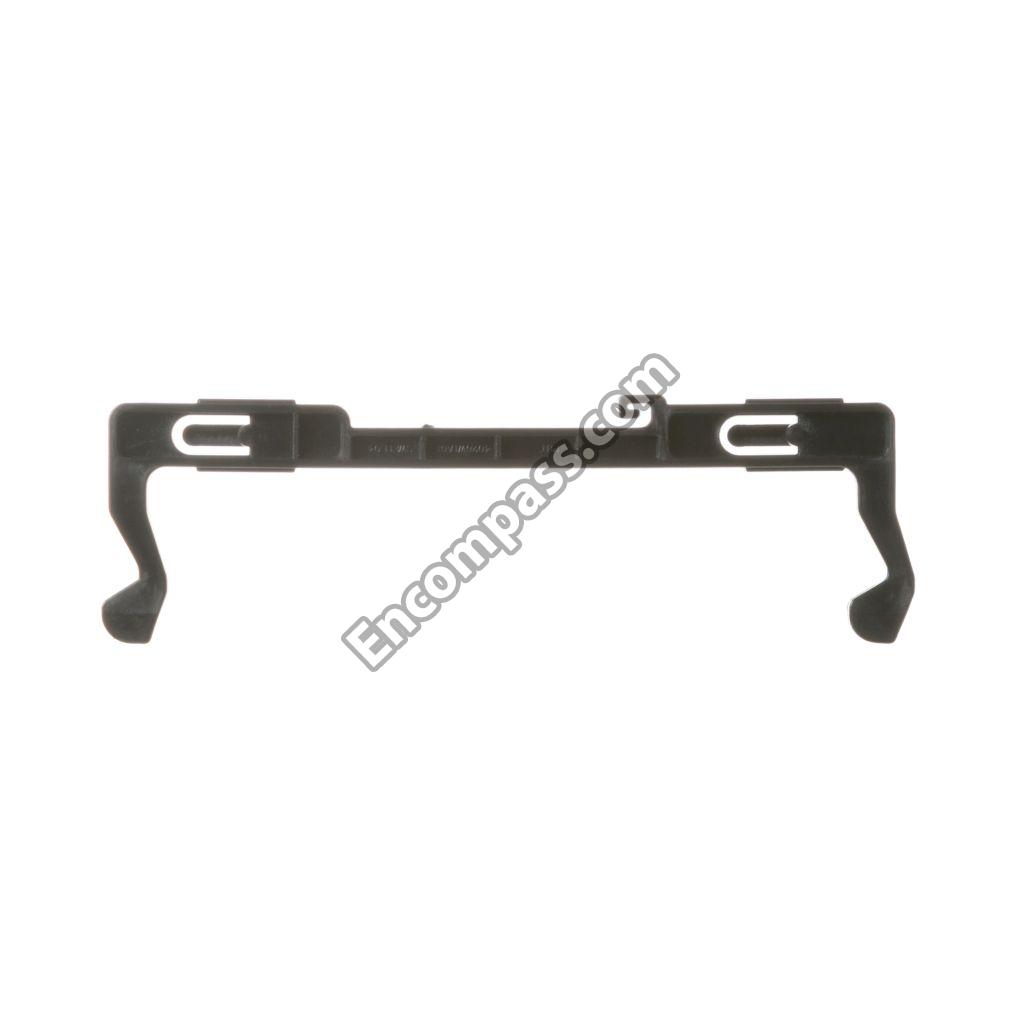

WB02X10773 WB02X10773 LATCH PAWL
WB18X10159 WB18X10159 LEAD WIRE ASM
WB18X10158 WB18X10158 LEAD WIRE ASSEMBLY
WB06X10559 WB06X10559 LEVER SWITCH-LOWER
WB36X10328 WB36X10328 M/W LIGHT BULB
WB27X10505 WB27X10505 MAGNETRON ASSEMBLY
WB06X10565 WB06X10565 MICROWAVE EXHAUST DAMPER
WB02X11097 WB02X11097 MICROWAVE FAN HOLDER
WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
31-20965 31-20965 MINI - MANUAL
WB26X10109 WB26X10109 MOTOR STIRRER
WB26X10107 WB26X10107 MOTOR VENTILATION
WB06X10366 WB06X10366 MOUNT
WB56X10524 WB56X10524 MOUNTING PLATE
WB01X10124 WB01X10124 NUT ASM
WB36X10291 WB36X10291 OUTER GLASS DOOR
WB01X10107 WB01X10107 PANEL-CONTROL MOUNTING
WB20X10024 WB20X10024 POWER CORD ASSEMBLY
WB06X10369 WB06X10369 PROTECTOR (MECH)
WB06X10567 WB06X10567 RANGE FAN COVER
49-40191-2 49-40191-2 REAR WALL TEMPLATE
WB01X10055 WB01X10055 RIVET ASM
WB06X10361 WB06X10361 ROTATING RING ASSEMBLY
WB1X1514 WB1X1514 SCREW
WB1X1515 WB1X1515 SCREW
WB02X10728 WB02X10728 SCREW - HAND
WB02X10729 WB02X10729 SCREW -PCB
WB01X1515 WB01X1515 SCREW TAPPING
WB01X1514 WB01X1514 SCREW TAPPING
WB01X10134 WB01X10134 SCREW TAPPING PAN HEAD
WB02X10760 WB02X10760 SCREW TAPPING TRUSS HEAD
WB48X10018 WB48X10018 SHELF
WB48X10043 WB48X10043 SHELF
WB27X10501 WB27X10501 SMART BOARD
WB27X10786 WB27X10786 SMART BOARD
WB08X10022 WB08X10022 SOCKET LAMP
4B70188B 4B70188B SPECIAL SCREW-D
WB09X10017 WB09X10017 SPRING LATCH DOOR
WB24X0817 WB24X0817 SWITCH MICRO
WB24X0815 WB24X0815 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB26X10154 WB26X10154 SYNCHRONOUS MOTOR(CIRC)
WB01X10127 WB01X10127 TAPPING SCREW - TRUSS HEAD
WB27X10789 WB27X10789 TCO HOOD
WB27X10506 WB27X10506 THERMOSTAT,BIMETAL
49-40192 49-40192 TOP CABINET TEMPLATE
WB06X10564 WB06X10564 TURN TABLE SHAFT
49-40191-1 49-40191-1 USE & CARE MANUAL
WB07X10816 WB07X10816 VENT WHT GRILLE
