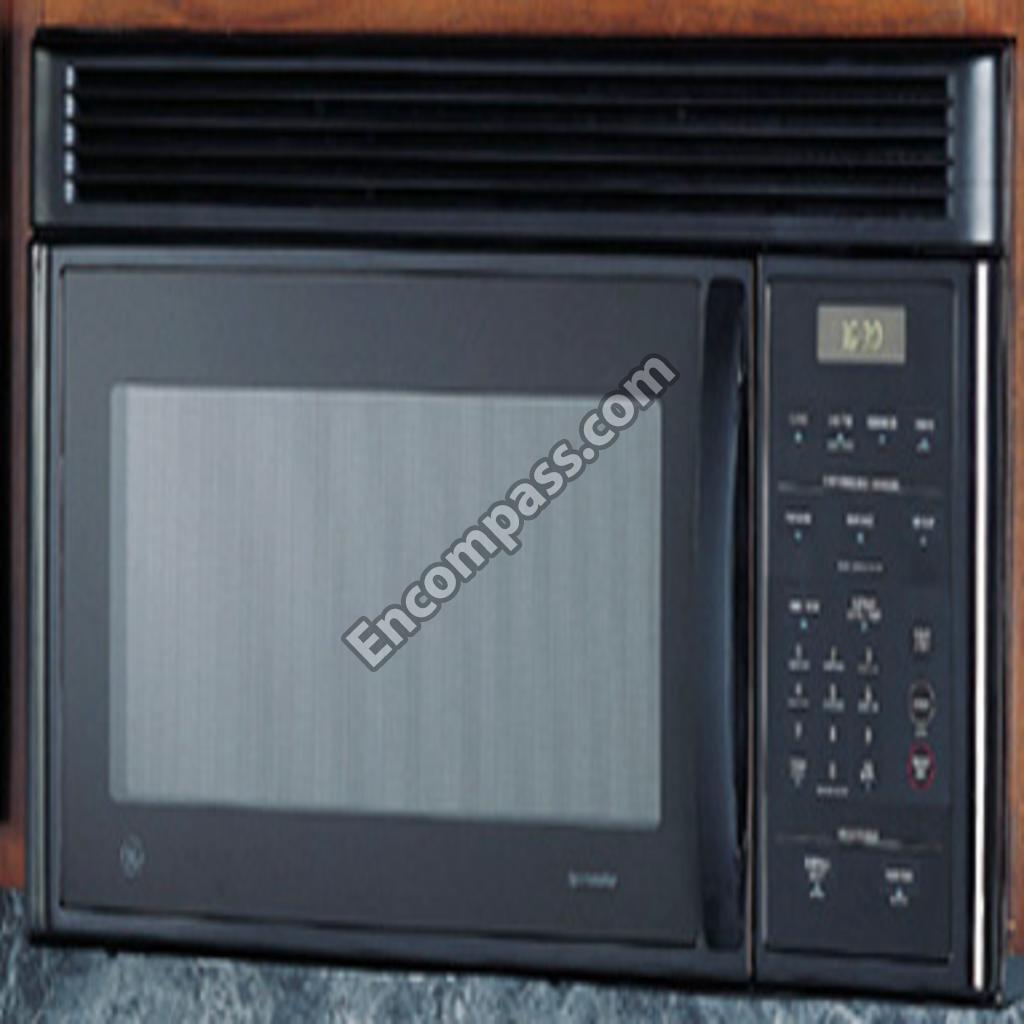

Model Image
Manufacturer

GE

Model Number

JVM1630BH003

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB56X10431 WB56X10431 GE BASE PLATE
WB56X10429 WB56X10429 GE BASE PLATE
WB02X32720 WB02X32720 GE BOARD - LATCH
WB06X10367 WB06X10367 GE BRACKET ASSEMBLY
WB06X10362 WB06X10362 GE BRACKET CAPACITOR
WB06X10512 WB06X10512 GE BRACKET CONTROL PANEL
WB06X10358 WB06X10358 GE BRACKET COOKTOP GLASS
WB06X10557 WB06X10557 GE BRACKET COOKTOP GLASS
WB06X10570 WB06X10570 GE BRACKET- MAGNETRON
WB06X10364 WB06X10364 GE BRACKET-BOTTOM LAMP
WB06X10764 WB06X10764 GE CANOPY, PLASTIC
WB27X10329 WB27X10329 GE CAPACITOR
WB27X10233 WB27X10233 GE CAPACITOR, H. V.
WB02X35607 WB02X35607 GE CHARCOAL FILTER
WB55X10725 WB55X10725 GE CHOKE COVER
WB06X10514 WB06X10514 GE COVER LAMP(BASE)
WB27X10037 WB27X10037 GE DIODE-CABLE ASM
WB56X10430 WB56X10430 GE DOOR ASSEMBLY BLK
WB56X10433 WB56X10433 GE DOOR ASSEMBLY WH
WB55X10724 WB55X10724 GE DOOR FRAME ASSEMBLY
WB55X10727 WB55X10727 GE DOOR LINER & CHOKE
WB55X10815 WB55X10815 GE DOOR MAIN ASM
WB06X10568 WB06X10568 GE EXHAUST ADAPTER
WB02X32715 WB02X32715 GE EXHAUST ADAPTER
WB38X10074 WB38X10074 GE FAN(FAN MOTOR)
WB36X10196 WB36X10196 GE FILM-DOOR
WB06X10359 WB06X10359 GE FILTER GREASE
WB27X10928 WB27X10928 GE FUSE
WB06X10205 WB06X10205 GE FUSE HOLDER
WB36X10293 WB36X10293 GE GLASS
WB07X10967 WB07X10967 GE GRILLE VENT
WB15X10124 WB15X10124 GE HANDLE DOOR -L
WB15X10122 WB15X10122 GE HANDLE DOOR -L
WB15X10119 WB15X10119 GE HANDLE DOOR -L
WB15X10123 WB15X10123 GE HANDLE DOOR -R
WB15X10121 WB15X10121 GE HANDLE DOOR -R
WB01X10132 WB01X10132 GE HARDWARE ASM
WB18X10228 WB18X10228 GE HARNESS (MAIN)
WB18X10227 WB18X10227 GE HARNESS(BASE)
49-40315-1 49-40315-1 GE INSTALLATION INSTRUCTION
WB07X10871 WB07X10871 GE KEYPANEL ASM BK
WB07X10872 WB07X10872 GE KEYPANEL ASM BQ
WB07X10873 WB07X10873 GE KEYPANEL ASM WH
WB36X10328 WB36X10328 GE LAMP(OVEN/BASELESS)
WB02X11096 WB02X11096 GE LATCH
WB06X10559 WB06X10559 GE LEVER SWITCH-LOWER
WB26X32629 WB26X32629 GE MAGNETRON
WB55X10813 WB55X10813 GE MICROWAVE DOOR FRAME PANEL - BLACK
WB15X10120 WB15X10120 GE MICROWAVE DOOR H AND LE
WB06X10565 WB06X10565 GE MICROWAVE EXHAUST DAMPER
WB21X10148 WB21X10148 GE MICROWAVE THERMOSTAT
31-40307 31-40307 GE MINI-MANUAL
WB26X10133 WB26X10133 GE MOTOR(CIRC) FAN
WB26X10135 WB26X10135 GE MOTOR(CIRC) SYNCHRONOUS
WB26X10134 WB26X10134 GE MOTOR(CIRC) VENTILATION
WB06X10366 WB06X10366 GE MOUNT
WB56X10524 WB56X10524 GE MOUNTING PLATE
WB01X10124 WB01X10124 GE NUT ASM
WB56X10432 WB56X10432 GE OUT CASE U-BENDING
WB56X10428 WB56X10428 GE OUT CASE U-BENDING
WB56X10434 WB56X10434 GE OUT CASE U-BENDING
WB36X10257 WB36X10257 GE OUTER GLASS DOOR
WB36X10256 WB36X10256 GE OUTER GLASS DOOR
WB36X10255 WB36X10255 GE OUTER GLASS DOOR
WB55X10828 WB55X10828 GE PANEL,DOOR
WB01X10107 WB01X10107 GE PANEL-CONTROL MOUNTING
WB20X10030 WB20X10030 GE POWER CORD ASSEMBLY
WB06X10689 WB06X10689 GE ROTATING RING ASSEMBLY
WB1X1515 WB1X1515 GE SCREW
WB1X1514 WB1X1514 GE SCREW
WB02X10728 WB02X10728 GE SCREW - HAND
WB02X10729 WB02X10729 GE SCREW -PCB
WB01X1514 WB01X1514 GE SCREW TAPPING
WB01X1515 WB01X1515 GE SCREW TAPPING
WB01X10134 WB01X10134 GE SCREW TAPPING PAN HEAD
WB02X10720 WB02X10720 GE SCREW TAPPING TRUSS HEAD
WB02X10760 WB02X10760 GE SCREW TAPPING TRUSS HEAD
WB27X10712 WB27X10712 GE SMART BOARD
WB08X10022 WB08X10022 GE SOCKET LAMP
4B70188B 4B70188B GE SPECIAL SCREW-D
WB09X10014 WB09X10014 GE SPRING
WB24X0817 WB24X0817 GE SWITCH MICRO
WB24X0815 WB24X0815 GE SWITCH MICRO
WB24X10047 WB24X10047 GE SWITCH MICRO
WB24X25397 WB24X25397 GE SWITCH MONITOR INTERLOCK
WB27X10714 WB27X10714 GE THERMOSTAT(DUCT)
WB27X11034 WB27X11034 GE THERMOSTAT(PLATE)
49-40192 49-40192 GE TOP CABINET TEMPLATE
WB27X10711 WB27X10711 GE TRANSFORMER HIGH VOLTAGE
WB49X10176 WB49X10176 GE TRAY,GLASS
WB06X10564 WB06X10564 GE TURN TABLE SHAFT
49-40313 49-40313 GE USE & CARE
WB02X10745 WB02X10745 GE WB02X10745
