Model Image
Manufacturer

GE

Model Number

JVM1631BJ03

Description

Microwave Or Advantium

Interactive Exploded View

Parts List

Part Number Description
WB56X10431 WB56X10431 BASE PLATE
WB56X10429 WB56X10429 BASE PLATE
WB38X10101 WB38X10101 BLADE FAN
WB38X37514 WB38X37514 BLADE FAN
WB02X32720 WB02X32720 BOARD - LATCH
WB06X10367 WB06X10367 BRACKET ASSEMBLY
WB06X10362 WB06X10362 BRACKET CAPACITOR
WB06X10512 WB06X10512 BRACKET CONTROL PANEL
WB06X10557 WB06X10557 BRACKET COOKTOP GLASS
WB06X10358 WB06X10358 BRACKET COOKTOP GLASS
WB06X10570 WB06X10570 BRACKET- MAGNETRON
WB06X10364 WB06X10364 BRACKET-BOTTOM LAMP
WB06X10764 WB06X10764 CANOPY, PLASTIC
WB27X10329 WB27X10329 CAPACITOR
WB27X10233 WB27X10233 CAPACITOR, H. V.
WB56X10559 WB56X10559 CASE OUTER BISQUE
WB56X10557 WB56X10557 CASE OUTER WHITE
WB02X35607 WB02X35607 CHARCOAL FILTER
WB55X10725 WB55X10725 CHOKE COVER
WB06X10514 WB06X10514 COVER LAMP(BASE)
WB27X10037 WB27X10037 DIODE-CABLE ASM
WB56X10430 WB56X10430 DOOR ASSEMBLY BLK
WB56X10433 WB56X10433 DOOR ASSEMBLY WH
WB55X10724 WB55X10724 DOOR FRAME ASSEMBLY
WB55X10727 WB55X10727 DOOR LINER & CHOKE
WB55X10815 WB55X10815 DOOR MAIN ASM
WB06X10568 WB06X10568 EXHAUST ADAPTER
WB02X32715 WB02X32715 EXHAUST ADAPTER
WB36X10196 WB36X10196 FILM-DOOR
WB27X10519 WB27X10519 FILTER ASSEMBLY NOISE
WB06X10359 WB06X10359 FILTER GREASE
WB27X10928 WB27X10928 FUSE
WB36X10293 WB36X10293 GLASS

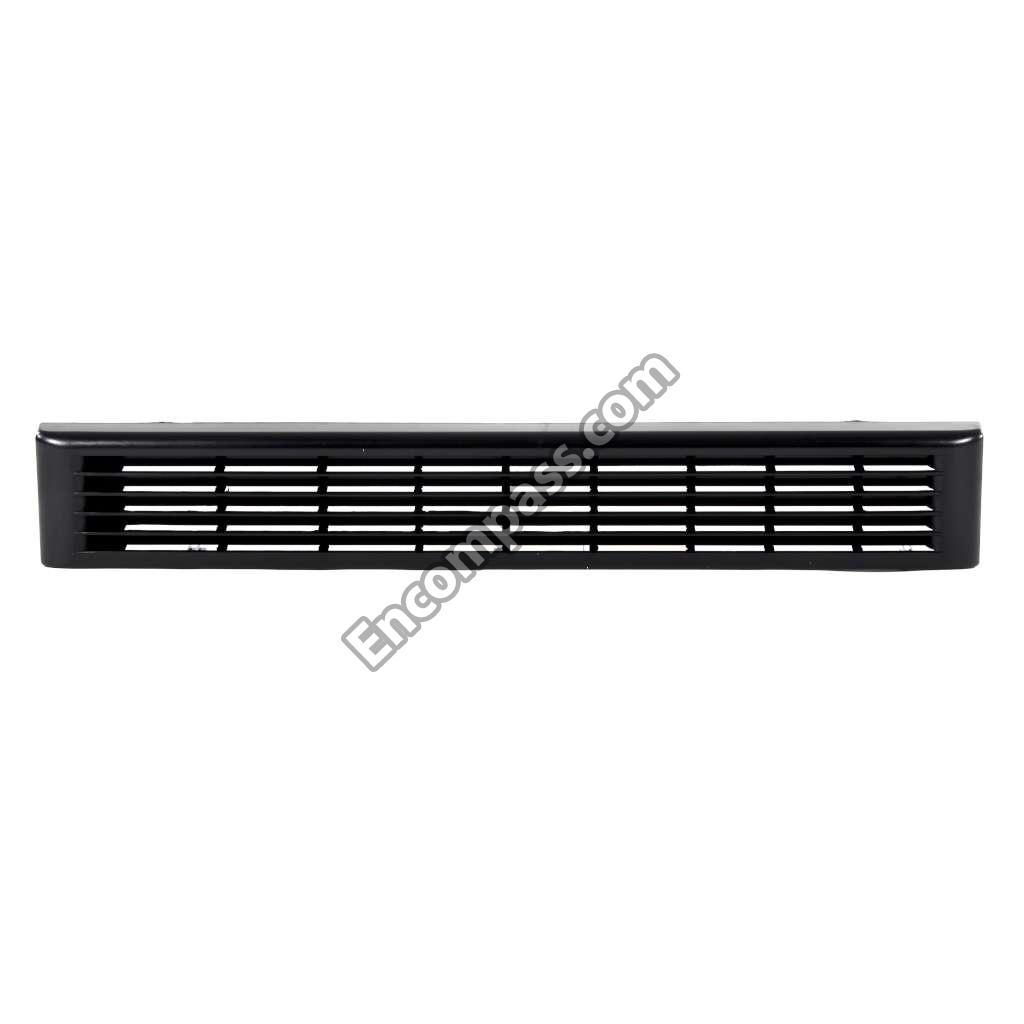

WB07X10967 WB07X10967 GRILLE VENT
WB15X10124 WB15X10124 HANDLE DOOR -L
WB15X10122 WB15X10122 HANDLE DOOR -L
WB15X10119 WB15X10119 HANDLE DOOR -L
WB15X10123 WB15X10123 HANDLE DOOR -R
WB15X10121 WB15X10121 HANDLE DOOR -R
WB01X10132 WB01X10132 HARDWARE ASM
WB18X10322 WB18X10322 HARNESS (MAIN)
WB18X10227 WB18X10227 HARNESS(BASE)
WB07X10871 WB07X10871 KEYPANEL ASM BK
WB07X10872 WB07X10872 KEYPANEL ASM BQ
WB07X10873 WB07X10873 KEYPANEL ASM WH
49-40413 49-40413 LABEL,COOKING GUIDE
WB36X10328 WB36X10328 LAMP(OVEN/BASELESS)
WB02X11096 WB02X11096 LATCH
WB06X10559 WB06X10559 LEVER SWITCH-LOWER
WB26X32629 WB26X32629 MAGNETRON
49-40409 49-40409 MANUAL,INSTALLATION

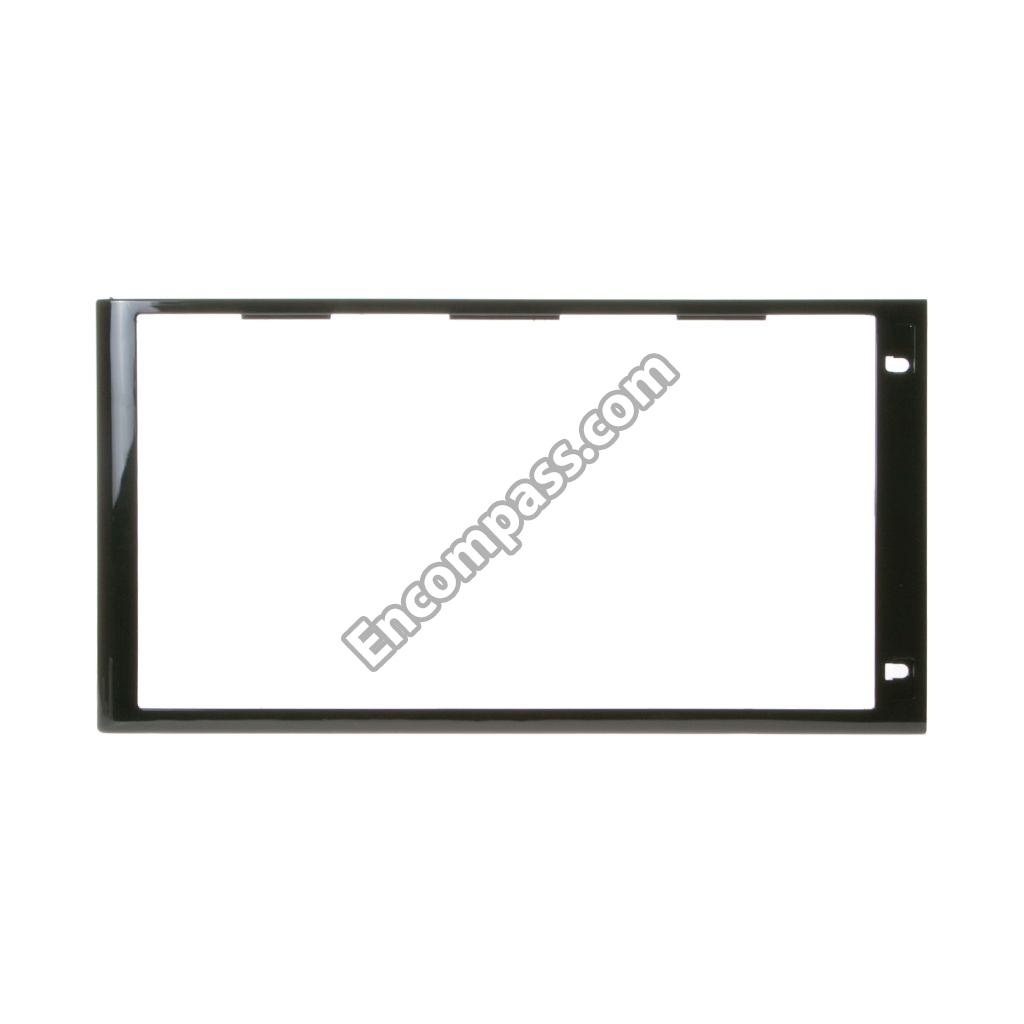

WB55X10813 WB55X10813 MICROWAVE DOOR FRAME PANEL - BLACK

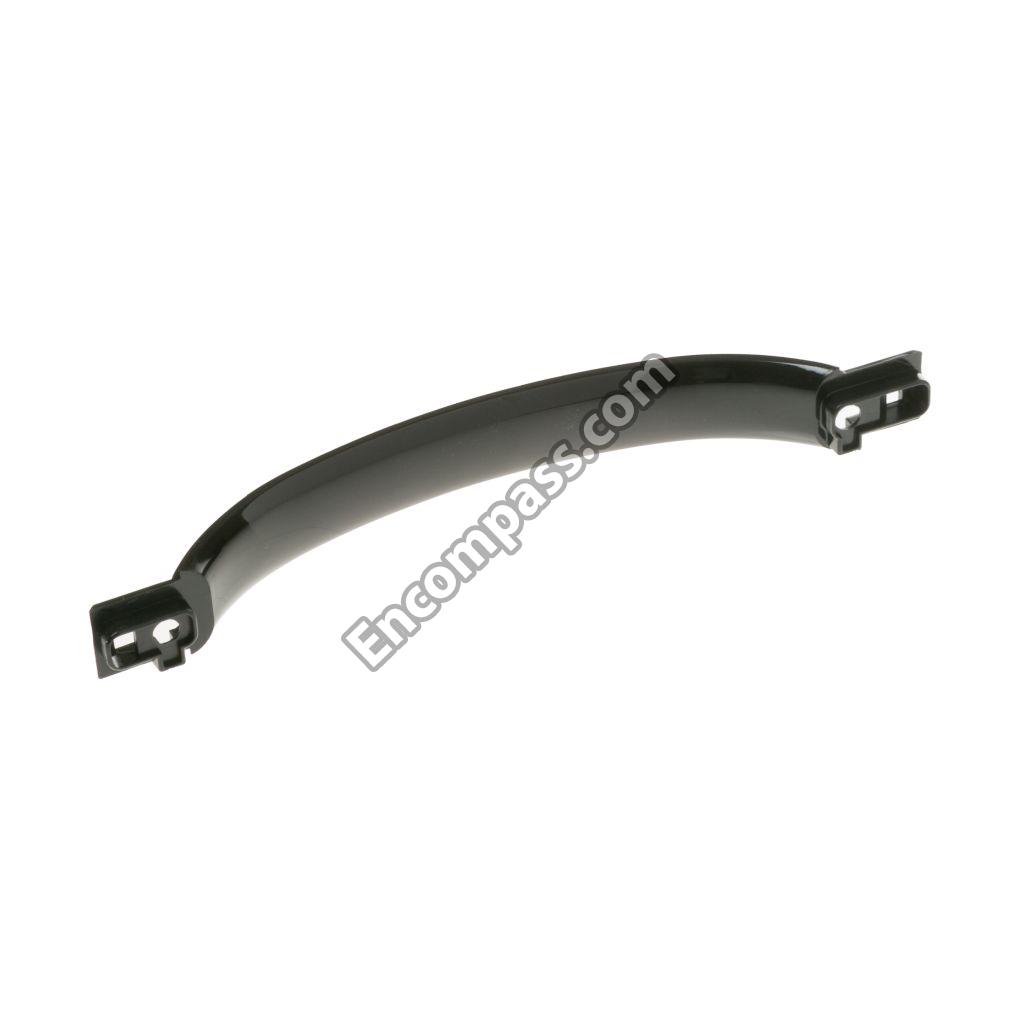

WB15X10120 WB15X10120 MICROWAVE DOOR H AND LE
WB06X10565 WB06X10565 MICROWAVE EXHAUST DAMPER
WB06X10562 WB06X10562 MICROWAVE MOUNTING BRACKET
WB21X10148 WB21X10148 MICROWAVE THERMOSTAT
31-40447 31-40447 MINI MANUAL
WB26X10135 WB26X10135 MOTOR(CIRC) SYNCHRONOUS
WB26X10134 WB26X10134 MOTOR(CIRC) VENTILATION
WB26X10164 WB26X10164 MOTOR/BLADE FAN ASM
WB06X10366 WB06X10366 MOUNT
WB56X10524 WB56X10524 MOUNTING PLATE
WB01X10124 WB01X10124 NUT ASM
WB02X11130 WB02X11130 NUT RING
WB56X10558 WB56X10558 OUTER CASE BLACK
WB36X10257 WB36X10257 OUTER GLASS DOOR
WB36X10256 WB36X10256 OUTER GLASS DOOR
WB36X10255 WB36X10255 OUTER GLASS DOOR
WB55X10828 WB55X10828 PANEL,DOOR
WB01X10107 WB01X10107 PANEL-CONTROL MOUNTING
WB20X10038 WB20X10038 POWER CORD ASM
WB06X10689 WB06X10689 ROTATING RING ASSEMBLY
WB1X1515 WB1X1515 SCREW
WB1X1514 WB1X1514 SCREW
WB02X10728 WB02X10728 SCREW - HAND
WB02X10729 WB02X10729 SCREW -PCB
WB01X1514 WB01X1514 SCREW TAPPING
WB01X1515 WB01X1515 SCREW TAPPING
WB01X10134 WB01X10134 SCREW TAPPING PAN HEAD
WB02X10760 WB02X10760 SCREW TAPPING TRUSS HEAD
WB06X10576 WB06X10576 SHAFT TURN TABLE
WB27X10712 WB27X10712 SMART BOARD
WB08X10022 WB08X10022 SOCKET LAMP
4B70188B 4B70188B SPECIAL SCREW-D
WB09X10014 WB09X10014 SPRING
WB24X0817 WB24X0817 SWITCH MICRO
WB24X0815 WB24X0815 SWITCH MICRO
WB24X10047 WB24X10047 SWITCH MICRO
WB24X25397 WB24X25397 SWITCH MONITOR INTERLOCK
WB27X10714 WB27X10714 THERMOSTAT(DUCT)
WB27X11034 WB27X11034 THERMOSTAT(PLATE)
49-40410 49-40410 TOP CABINET TEMPLATE
WB27X10711 WB27X10711 TRANSFORMER HIGH VOLTAGE
WB49X10176 WB49X10176 TRAY,GLASS
49-40369 49-40369 USE & CARE
WB02X10745 WB02X10745 WB02X10745
